Rockford Fosgate R250X1

Purchase this product

RRP: $349.00
Our Price: $248.00

Enquire about this product Print Product Information

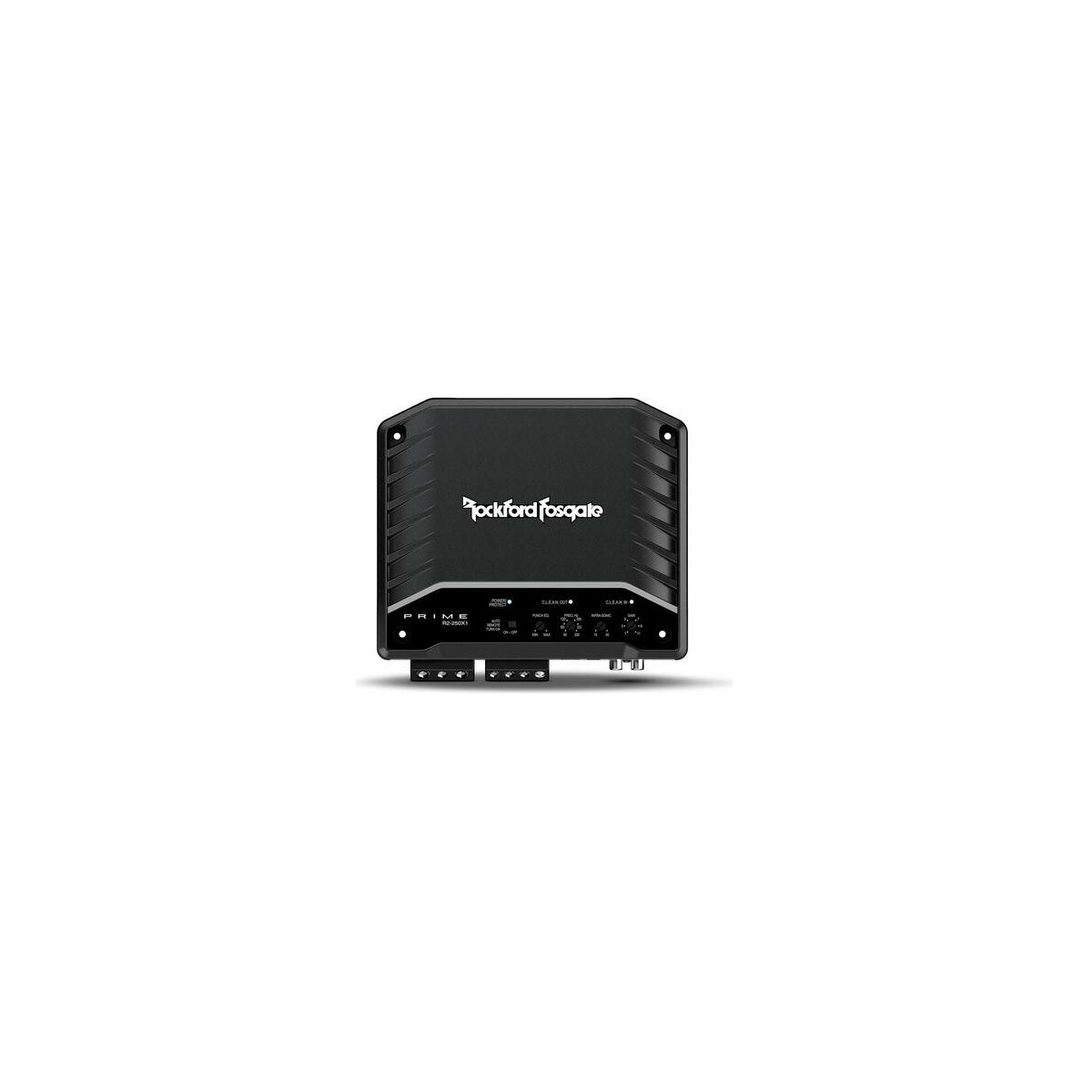

Prime 250 Watt Mono Amplifier


The PRIME R250X1 amplifier is great mono amplifier in a compact chassis and respectable power output in any sound system. The R250X1 mono output design also makes it great for running a pair of 8" or 10" 4-ohm SVC subwoofers wired in parallel. The included Remote Punch Level Control corrects for any acoustic anomalies in the automobile environment, making certain that bass notes sound deep and rich.

Specifications
Input Sensitivity150 mV to 4 V
Damping Factor>200
Signal-to-Noise (CEA)>80 dB
Channel Separation—
Common Mode Rejection>40 dB
Average Current Draw (13.8V Music)15 A
Shipping Weight7.1 Lbs. (3.22 Kg.)
Signal InputHigh Level: 4-pin molex
Low Level: 1 RCA pair
Suggested Alternator75 A
Total Harmonic Distortion (THD+Noise)4-Ohm: <1.0%
2-Ohm: <1.0%
1-Ohm: <1.0%
Operating Voltage9 - 16 VDC
Recommended Fuse
(not included)30 A
Max. Current Draw (13.8V Sinewave)30 A
Dynamic Power
(PVC/PowerCube®)186 Watts x 1 @ 4-Ohms 0° Res
298 Watts x 1 @ 2-Ohms 0° Res
Efficiency (average)70% @ 4-Ohm
CEA-2006 CompliantCEA-2006 Guidelines CEA-2006 Power Rating
150W x 1 @ 4Ω
≤1.0% THD+N
Number of Channels1
Rated Power
(RMS Continuous Power)150 Watts x 1 @ 4-Ohm
250 Watts x 1 @ 2-Ohm
Total Power
(Sum of Rated Power)250 Watts RMS
BridgeableNo
Crossover ControlsLow Pass (LP): 50Hz-250Hz @ 12dB/octave Butterworth
Tone ControlsPunch Bass: 0dB to +12dB @ 45Hz
Signal OutputLow Level: 1 RCA pair
Power Input ConnectorScrew terminal
Power Wire Gauge4 AWG
Speaker Output ConnectorScrew terminal
Speaker Wire Gauge8 AWG
Heat Sink TypeExtruded Aluminum
CoolingConvection
Remote ControlsPunch Level Control
(when connected, is linked to "gain control" to provide remote output level)
Visual IndicatorsPower/Protect LED
Circuit Topology ClassClass A/B
Frequency Response20Hz to 250Hz +/-1dB
Dimensions (H x W x D)1.98 x 6.77 x 11.22 (in)
5 x 17.2 x 28.5 (cm)
