MAGNAT Interior IC 62

Purchase this product

RRP: $299.95
Our Price: $299.95

Or 4 payments of $74.99
Info
Enquire about this product Print Product Information

6" 2-WAY RECESSED CEILING SPEAKER


Multi-directivity circuit for optimum adaptation to room acoustics

High-quality crossover with phase and amplitude correction

Two 19 mm aluminium tweeters with neodymium drivers, specially arranged for optimum dispersion characteristics

Specially developed securing system with clamping mechanism for easy fitting

200 mm carbon/fibreglass woofer for tight bass reproduction

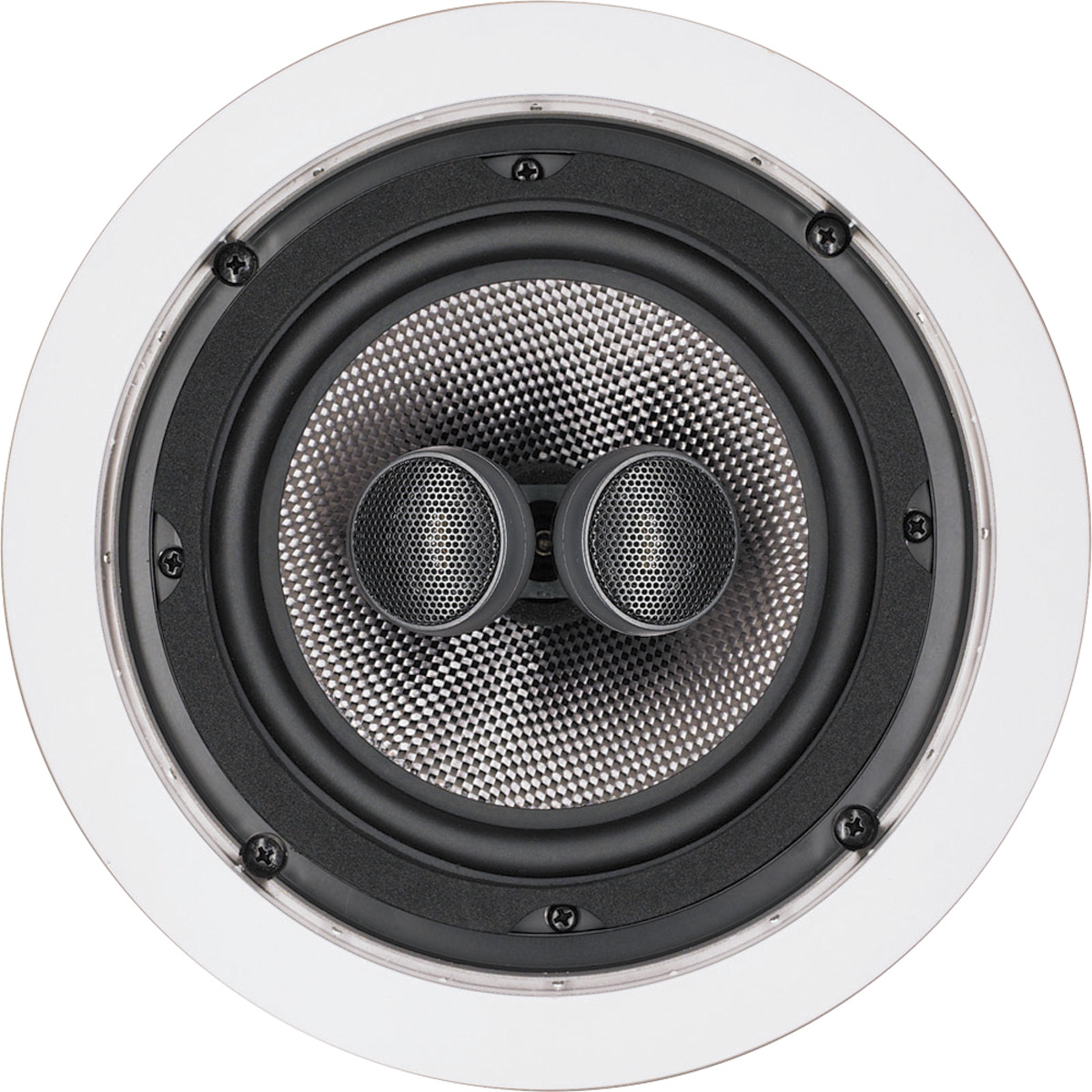

The IC 62 is the smaller of two strong-sounding built-in ceiling loudspeakers in the Interior series. As with all models in the series, the bass/mid-range cone has been manufactured from a carbon-glass-fibre mix – which guarantees extremely high stability and a very clear and dynamic sound. The two built-in coaxial tweeters make two circuit versions possible – sound directed over a wide area or at specific points. A sophisticated fastening system allows the loudspeaker to be quickly installed with extreme ease.

PRINCIPLE - 2-way in-wall/in-ceiling loudspeaker

EQUIPMENT - 2 x 19 mm tweeter 160 mm woofer

POWER HANDLING (RMS/MAX.) - 75 / 140 watts

SENSITIVITY (2.8V/1M) - 90 dB

IMPEDANCE - 4 – 8 Ohms

FREQUENCY RESPONSE - 35 – 35000 Hz

CROSSOVER FREQUENCIES - 3500 Hz

RECOMMENDED AMPLIFIER OUTPUT - 20 - 140 Watts

OUTER DIMENSIONS Ø - 228 mm

CUTTING OUT Ø - 195 mm

MOUNTING DEPTH - 80 mm

HIGHLIGHTS - High-End in-wall/in-ceiling loudspeaker, Simple mounting with special mechanism, Multi-Directivity circuit to optimize the speaker to the room

CROSSOVER - High quality crossover with APOC

CONNECTIONS - Massive connecting terminal

LOUDSPEAKER DRIVERS - Twin tweeter with 19mm aluminium dome and high power Neodym magnet, Special tweeter alignement for best sound, Woofer and midrange with carbon fibre cone and phase plug
