LENKENG LKV379

Purchase this product

RRP: $458.00
Our Price: $399.00

Enquire about this product Print Product Information

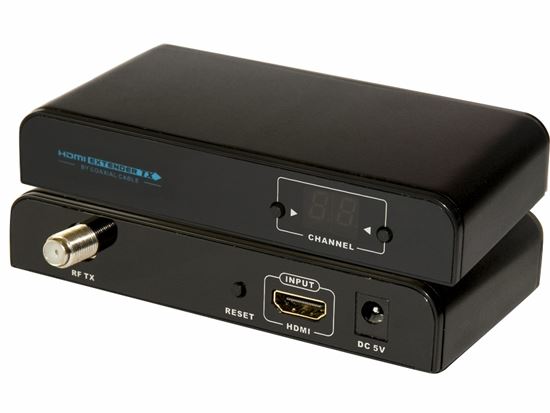

HDMI Extender Over Coaxial

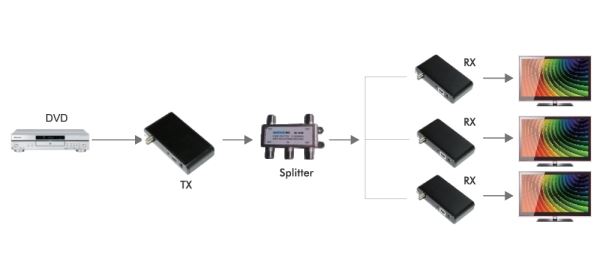

LENKENG HDMI Extender over Coaxial RG6 Cable Kit. Kit includes 1 x TX and 1 x RX. Solution can support one TX to multi RX or Multi RX to multi TX. ***Coax runs shorter than 100M Require 20dB Attentators

This product is designed to convert HDMI signal to HD digital TV signal based on DVB-T CATV transmission mode. Being different from traditional analogue CATV signal, it uses 64QAM mode to realise the HD signal to HD digital TV signal conversion and transmit via coaxial cable for long distance.

With the advantages of good image quality, strong resistance to interface and hundreds of channels available, it can be widely applied in CCTV, outer large screen, shopping mall advertisement, media education and digital KVM fields etc

Power Supply 5V 1A. DC
Support Input Resolution 480i@60Hz, 480p@60Hz,
576i@50Hz, 576p@50Hz,
720p@50/60Hz, 1080i@50/60Hz,
1080p@50/60Hz
Support Output Resolution 480i@60Hz, 480p@60Hz,
576i@50Hz, 576p@50Hz,
720p@50/60Hz, 1080i@50/60Hz,
1080p@50/60Hz
Supports HDMI
Graphics Resolution Up to 1920 x 1080@60Hz
Video Encoding H.264
Audio Encoding MPEG2
Coaxial Cable RG6, RG7, RG11 etc
Frequency Point 100-1000MHz
Effective Bit Rate Max 31.6M bits
Insertion Loss <2dBm
RF TX Output
Consumption +0dBm
RF Connector Imperial System (75Ω Type F)
Transmission Delay 500ms
Power Consumption Tx: <3.5W: Rx:<3W
Product Dimension (LxWxH) 130 x 68 x 24mm
