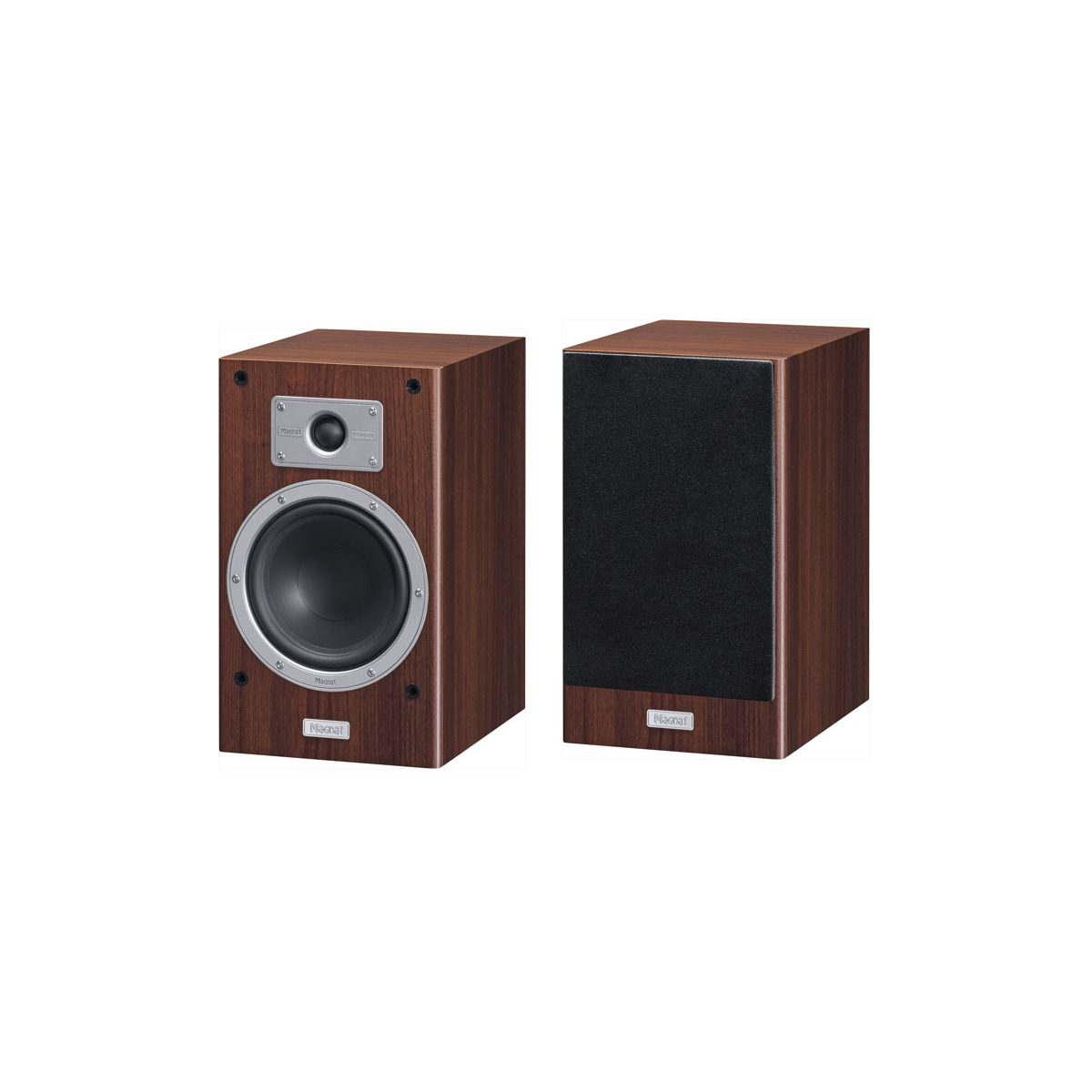

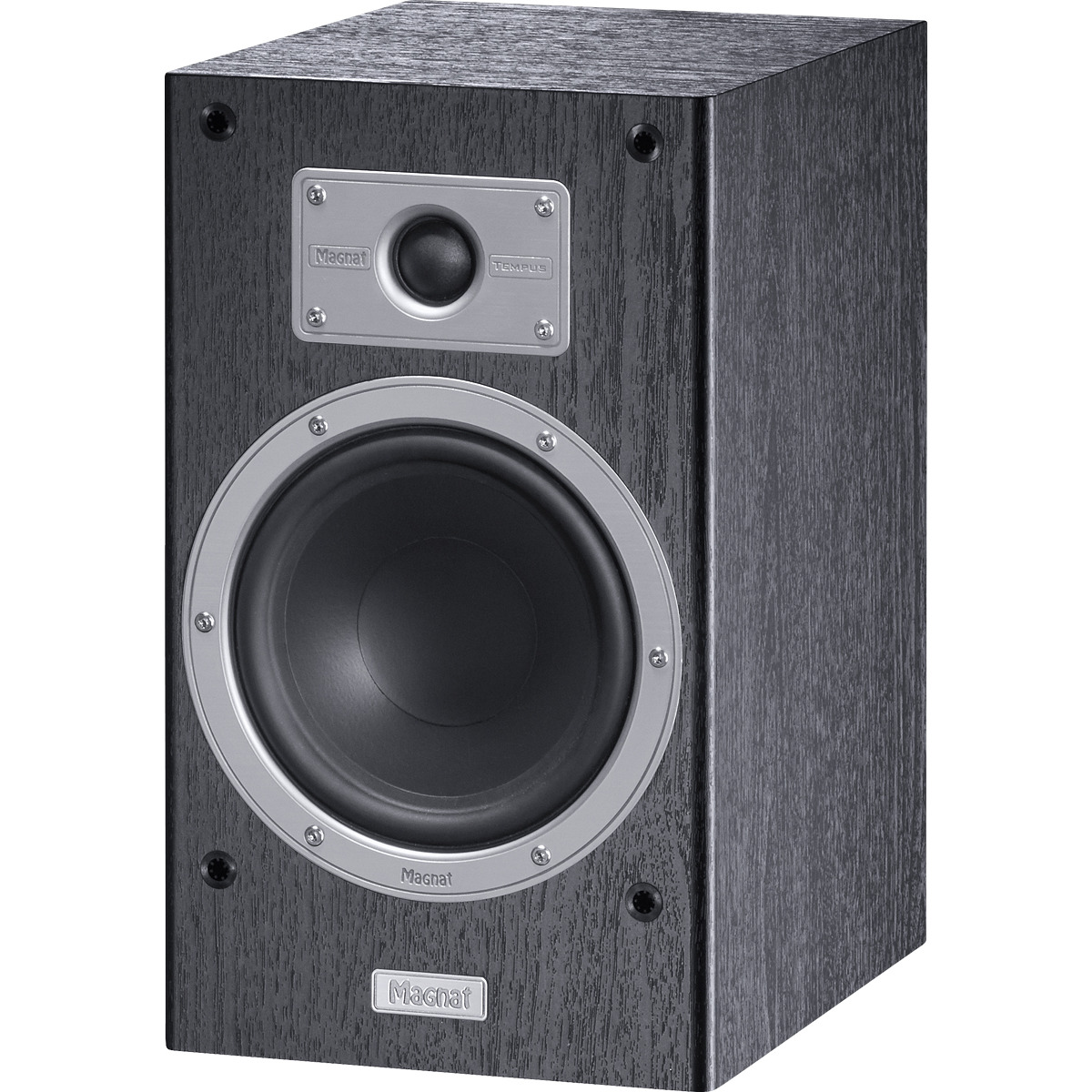

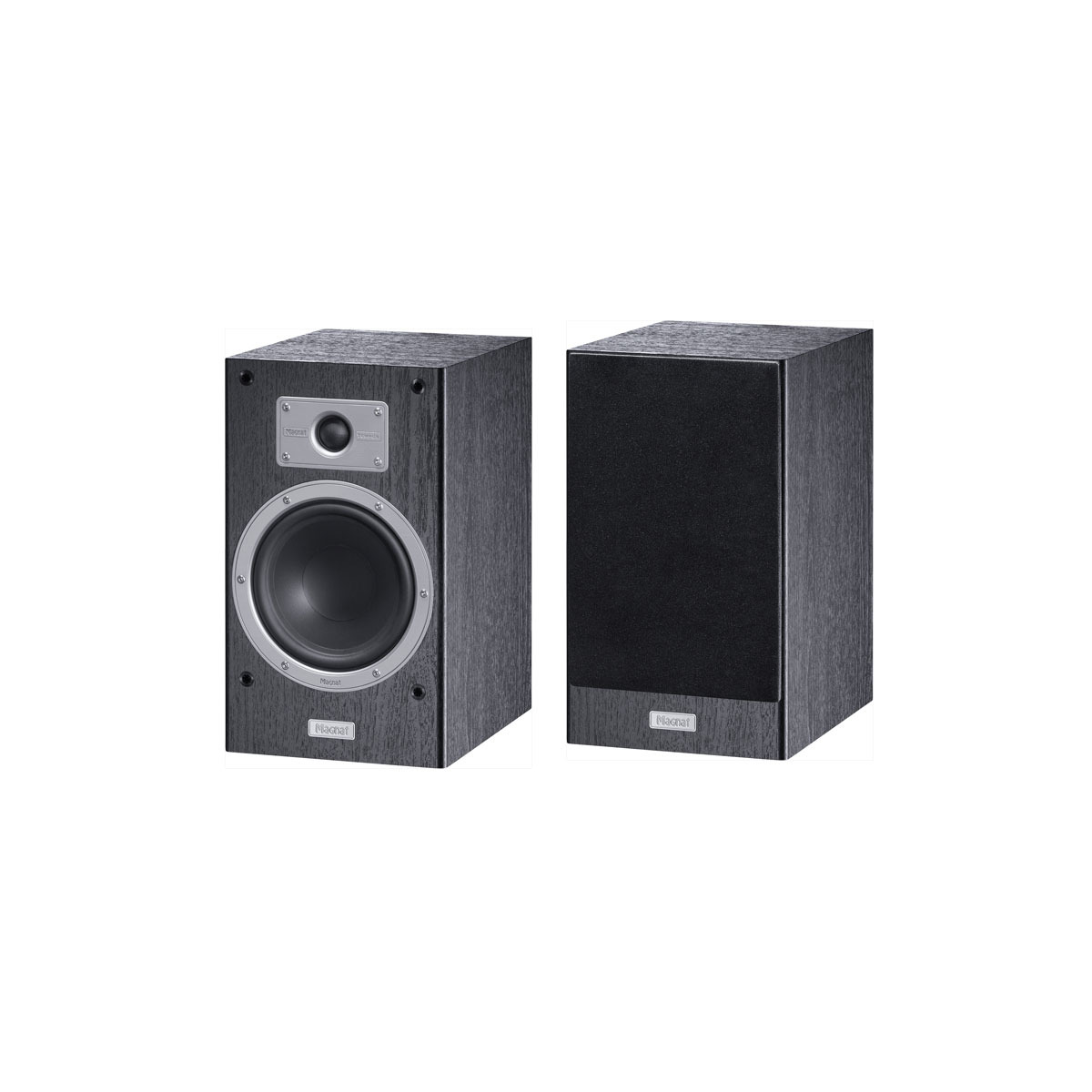

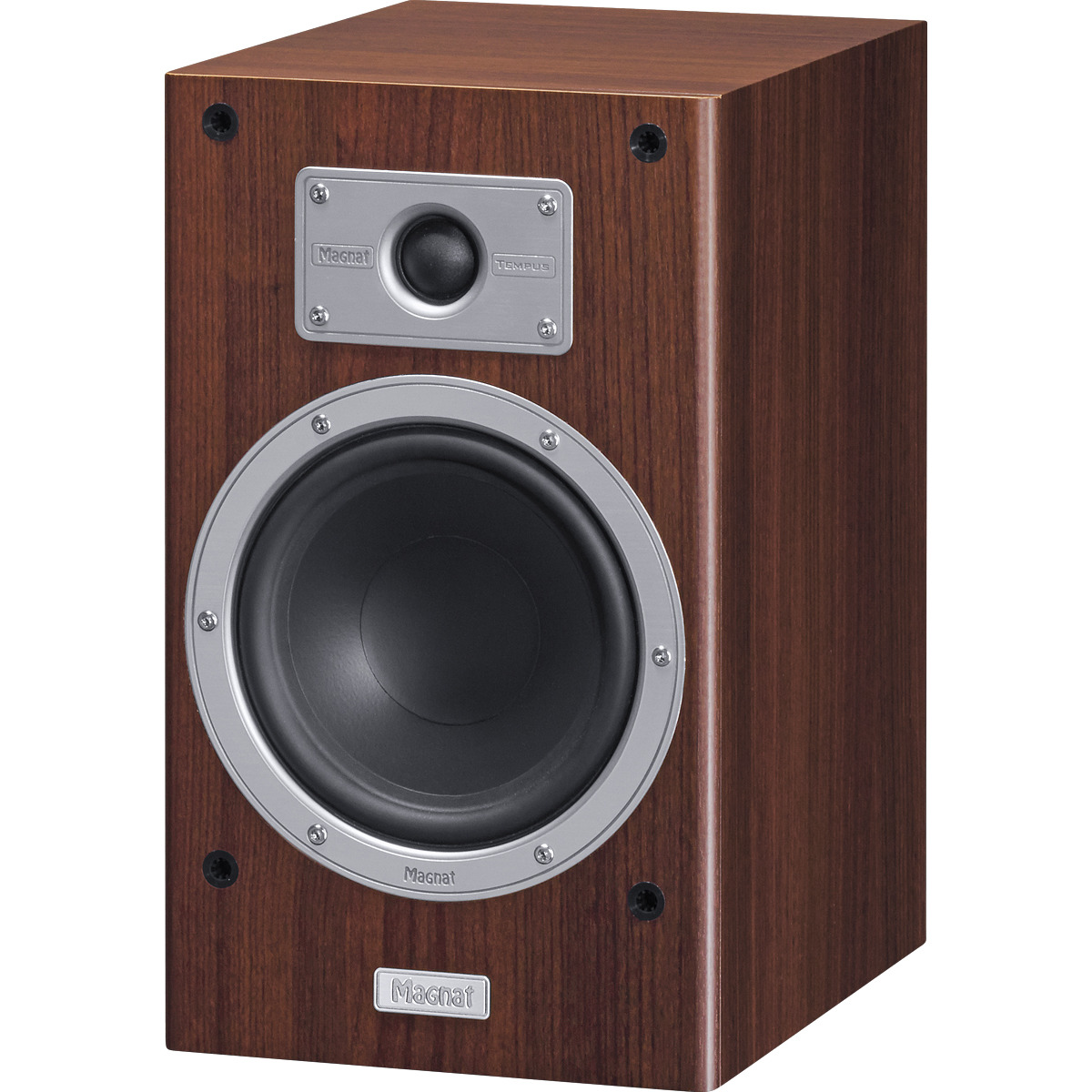

2-WAY BASS REFLEX SHELF SPEAKER
Hi-fi sound in shelf-top format: simple design, outstanding sound
Detailed stereo sound thanks to meticulous development and coordination
25 mm fmax dome tweeter with dispersion-optimized sound guide and powerful neodymium drive for the best resolution
Klippel-optimized 170 mm FE Dynamics chassis: High-quality woofer for high resilience and precision
Sturdy, particularly low-resonance enclosure structure made of E1 MDF timber boards
A 170 mm diameter FE Dynamics bass-midrange driver and a 25 mm fmax tweeter are used in the Tempus series shelf speakers. An identical configuration enables a particularly well-balanced and homogeneous soundscape to be generated in combination with the other Tempus components. Despite its compact dimensions, the Tempus 33 is capable of reaching a low frequency of 33 Hz, while a housing consisting of E1-MDF panels ensures a low resonance performance. The upper frequency range extends to 45,000 Hz, which means the Tempus components are also ideally suited for playing high-resolution audio signals.
PRINCIPLE - 2 way bass reflex
EQUIPMENT - 25 mm tweeter 170 mm woofer-midrange
POWER HANDLING (RMS/MAX.) - 85 / 150 watts
SENSITIVITY (2.8V/1M) - 91 dB
IMPEDANCE - 4 – 8 Ohms
FREQUENCY RESPONSE - 33 - 45.000 Hz
CROSSOVER FREQUENCIES - 3.300 Hz
RECOMMENDED AMPLIFIER OUTPUT - > 20 Watts
DIMENSIONS (WXHXD) - 200 x 345 x 270 mm
WEIGHT - 5 kg
WOOFER / MIDRANGE - coated paper cone, Ventilated voice-coil unit for maximum capacity. Klippel® optimised construction. FE-Dynamics woofer-midrange. Solid metal basket with generous ventilation openings. Cover rings for bass and mid-range speakers in a high quality metal finish.
TWEETER - Newly developed 25 mm fmax dome tweeter with dispersion-optimized sound guide and powerful neodymium drive for an optimum resolution
CROSSOVER - Amplitude and phase-optimised crossover with acoustical 24dB filters and high-quality components, Large connection panel with generously dimensioned screw terminals and gold-plated contacts.
CABINET - Airflex port with rounded reflex opening to minimize annoying resonances, Solid low-resonance cabinet construction using E1-MDF panels. Removable cloth grille
