HDMI & IR Extender Kit Over

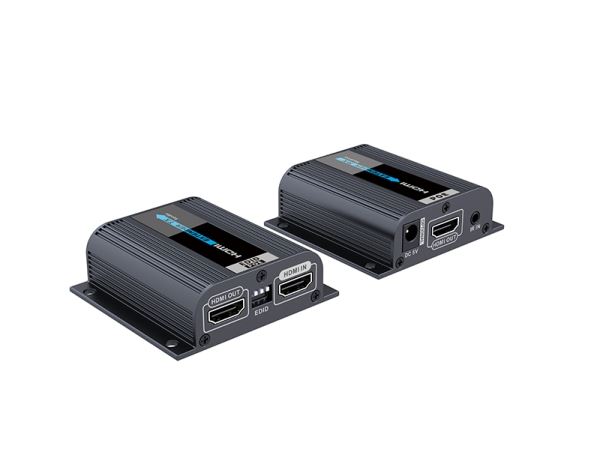

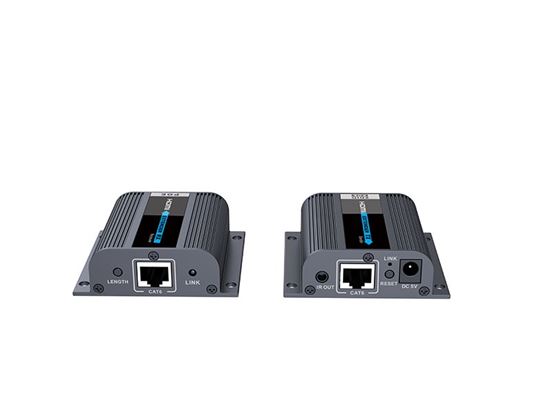

LENKENG HDMI & IR Extender Kit over Cat 6 w/ EDID switch. Local HDMI Connection Port on Transmitter 1080p up to 40m. Supports PoE.


Include a transmitter unit (TX) and a receiver unit (RX), working as a pair.
Support resolution is up to full HD 1080p@60Hz.
Use CAT6/6A/7 for long distance transmission.
Transmission distance up to 40 meters via CAT6 cable.
Uncompressed and zero latency.
With EDID switch for setting a very needed HDMI signal format
Support POE to power the receiver from the transmitter.
Support IR passback for remote control source device from receiver site easily.
Plug and play, without installation.

HDMI signal HDMI1.4a
Support resolutions 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 3D:1080p@60Hz
Network cable Low resistance and consumption oxygen-free copper core (CAT6, CAT6A, CAT7)
Transmit distance Full HD resolution 1080p@60Hz up to 40 meters via cat6 cable
IR remote control Support 20~60kHz wide frequency IR remote control
EDID Support EDID setting function
Audio format PCM, AC3, DTS
Working temperature 0°C~60°C
Power supply 5V2A
Power consumption TX
Product dimension 71.6(L)×66.9(W)×22.6(H)mm *2pcs
Weight TX: 70g RX: 70g
Color Black
