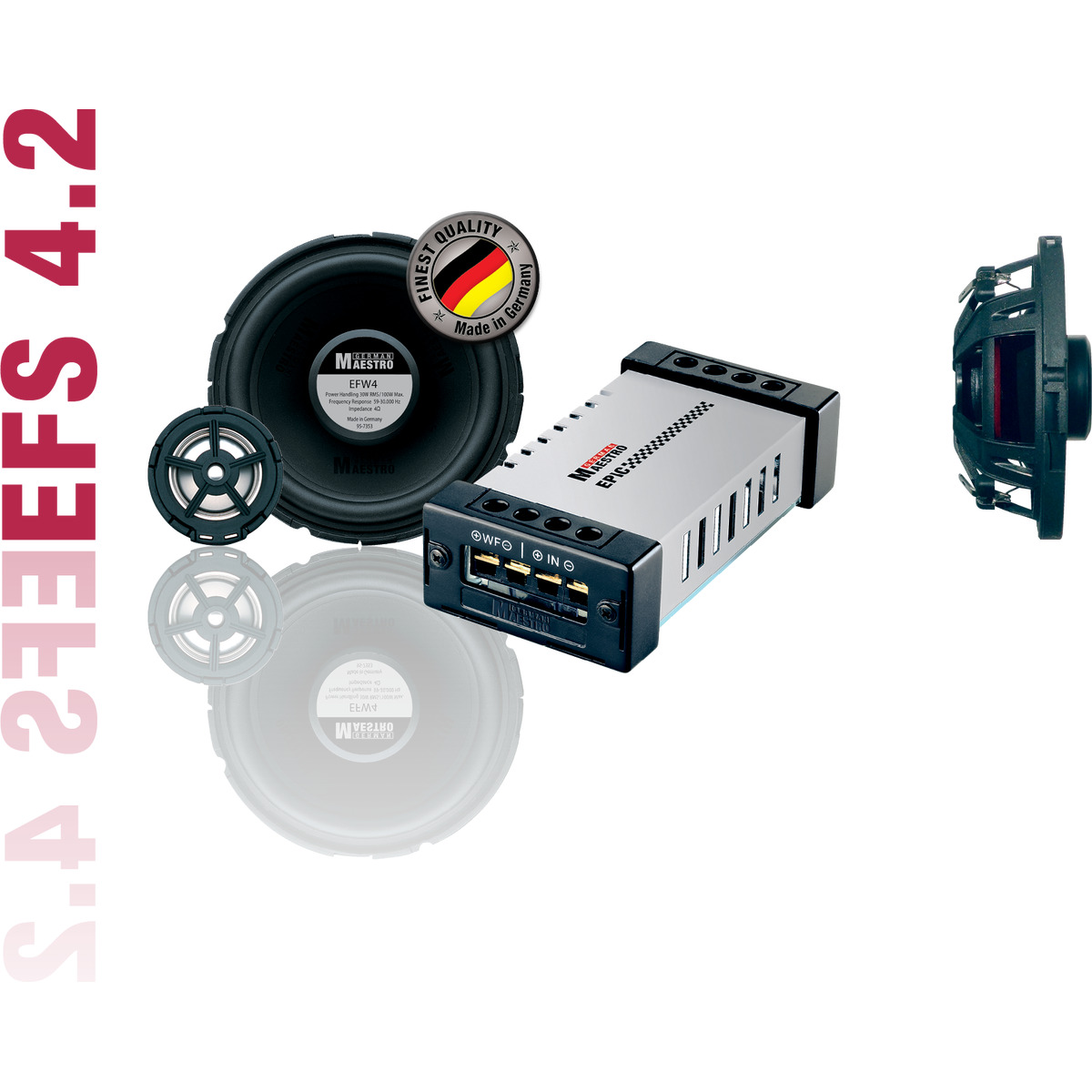

EFS4.2 – Made in Germany

Overview

The GermanMAESTRO EPIC-line convinces by the extreme wide range of possible applications. No matter if 4”, 5”, 6.5”, 6x8 or 6x9 System, the EPIC-line provides the comfort to conveniently switch the installation-scenario from a component installation with the tweeter placed at a random position to a coaxial installation with woofer and tweeter on same axis.

The magnetic lock system allows you to mount the tweeter in the center of the woofer with an easy hand grip. Further, there are ultra-flat 4”, 5”, and 6.5“component systems available with a front-magnet system made from high energy neodymium magnets. The most shallow system has a total mounting depth of just 1.27”/32,25mm. For extraordinary installations, there is also an 8” 2-way and 3-way system available.

 Another specialty of EPIC-line is the extremely compact titanium-dome tweeter ET 20 WS with no more than 0.8”/20mm dome diameter. Regardless of this very compact size, this tweeter in MegaSphere™ technology is still very SPL capable and has a very fine sound reproduction and is also available as a separate upgrade-kit.

Features

• Woofer with extremely shallow plastic chassis for optimized installation in stock locations with limited mounting depths
• Encapsulated, front-mounted neodymium magnet system supported by Concerted Thermal Compensation (CTC)
• 1" tweeter with titanium dome in plastic housing
• EPIC crossover with unique MultiMOUNT System (MMS) for limitless mounting possibilities. Three-level tweeter output

Specifications

• Diameter T/W: 25 mm (1“) / 10 cm (4“)
• Principle: 2-Way-Component-System
• Power Handling: 30 W RMS / 100 W Max.
• Freq. Response: 59 – 30.000 Hz
• Impedance: 4Ω
• Crossover Frequency: 3.800 Hz (12 dB/Okt.)
• Sensitivity: 84 dB (2,83V/1m)
