PH-10 - Made in Italy (Special Order Only)
Overview
THE ULTIMATE PHONO STAGE
The PH-10 is an ultra-versatile phono preamplifier that offers unique features, including EQ CURVES, LOAD, and GAIN adjustments: a fully analogue design, engineered exclusively with the best components to recreate the musical event in the most natural way possible.

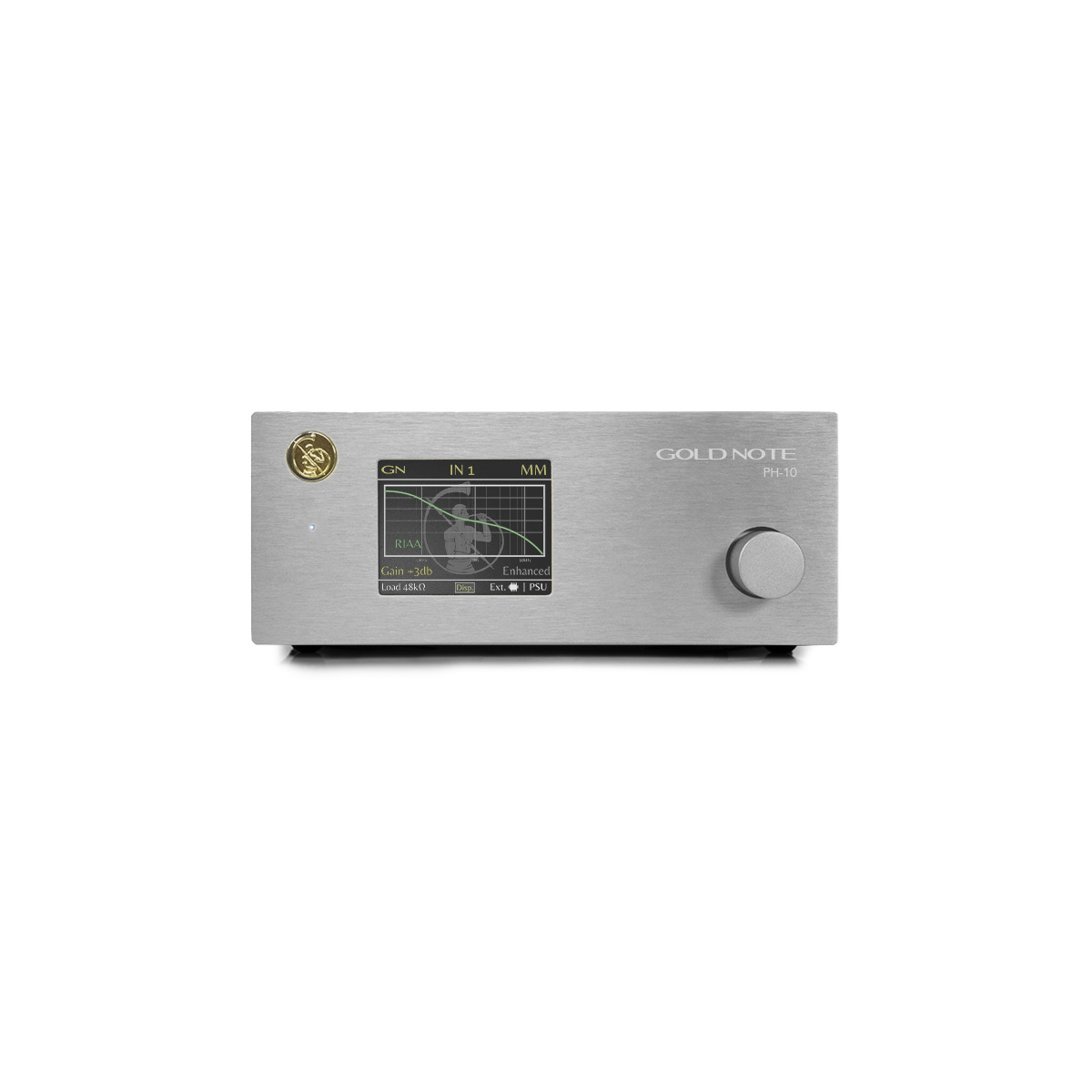

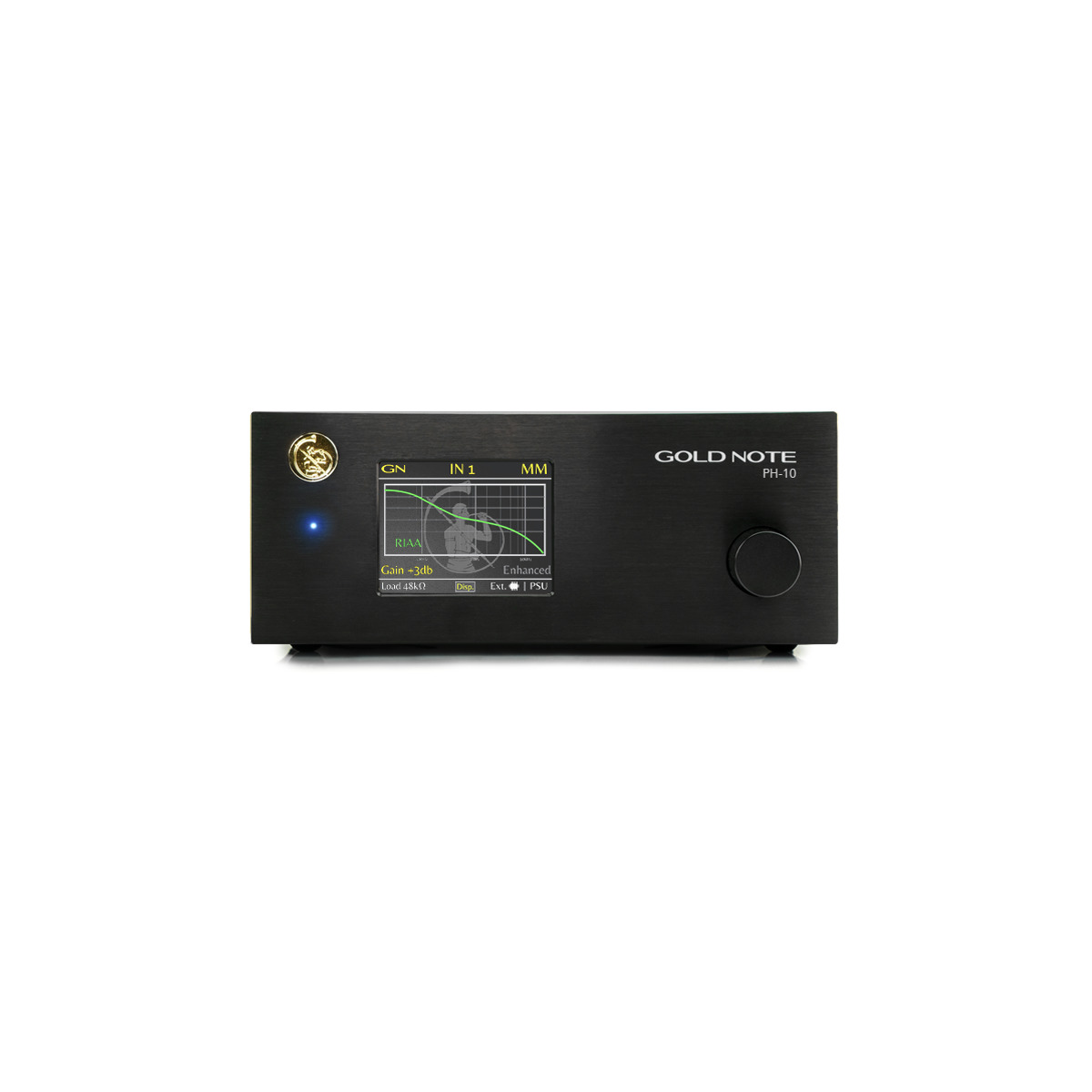

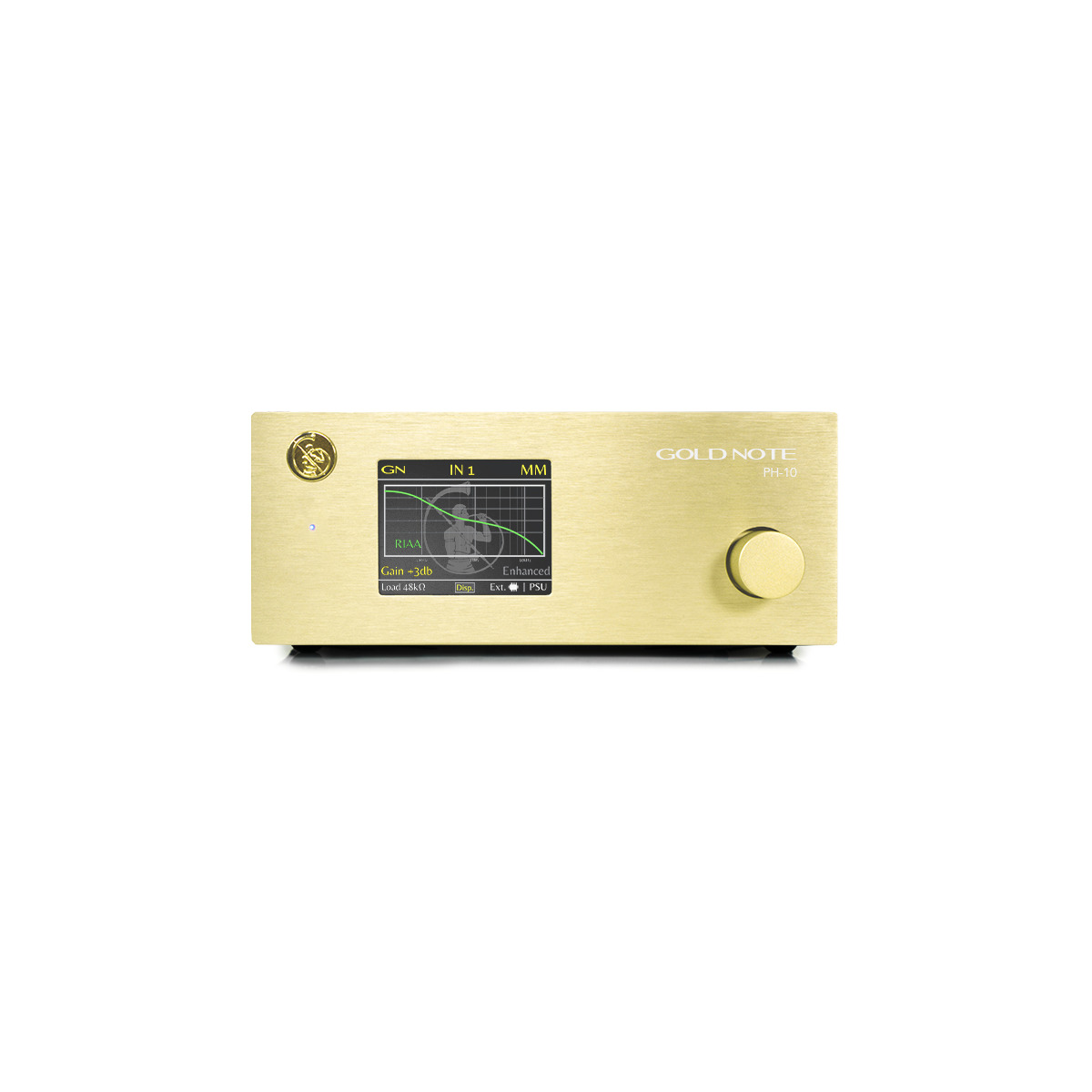

To control the PH-10 we developed the user-friendly Single Knob Control (SKC). Combined with the color display this rotary joggle allows quick adjustments of any function in real-time during music playback.
The PH-10 lets you select the most appropriate EQ curve for every record: the RIAA, the DECCA LONDON, or the AMERICAN COLUMBIA, and all selection appears clearly on the display.
Each curve can be “enhanced” with our proprietary technology inspired by the Neumann Cutting Lathe for superior dynamic and musicality.
9 different LOAD options [10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22kΩ, 47kΩ] and 4 different selectable GAIN options [0dB, ± 3dB, +6dB] will let you adjust the preamplifier accurately to achieve the best sound experience with any kind of MM and MC cartridges.
With his two separate RCA inputs, the PH-10 can be connected to two different tonearms, each with independently adjustable settings stored into memory, even when the unit is switched off, guaranteeing flexibility and impressive user-friendliness.
To maximize the performance of the PH-10 we also developed the PSU-10, a dedicated external super inductive power supply that allows the phono stage to achieve its fullest potential, reaching an even higher degree of musical realism, better dynamics, and greater three-dimensionality sound.
Specifications
- EQUALISATION CURVE CONTROL 3 EQ curves (RIAA, Decca London, American Columbia) all with Enhanced option
- INFRASONIC FILTER 10Hz/36dB octave
- FREQUENCY RESPONSE 20Hz /20kHz [Enhanced 20Hz-50kHz] @ +/-0.3dB
- THD (Total Harmonic Distortion) <0.05% @1kHz
- SIGNAL TO NOISE RATIO 89dB
- DYNAMIC RESPONSE 105dB
- ANALOGUE INPUTS MM/MC two independent stereo RCA
- INPUT SENSITIVITY 0.1mV MC up to 10.0mV MM
- INPUT IMPEDANCE 9 options [10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22kΩ, 47kΩ]
- GAIN 45dB MM to 65dB MC with 4 options [0dB, ± 3dB, + 6dB]
- CAPACITANCE (MM ONLY) 220pF

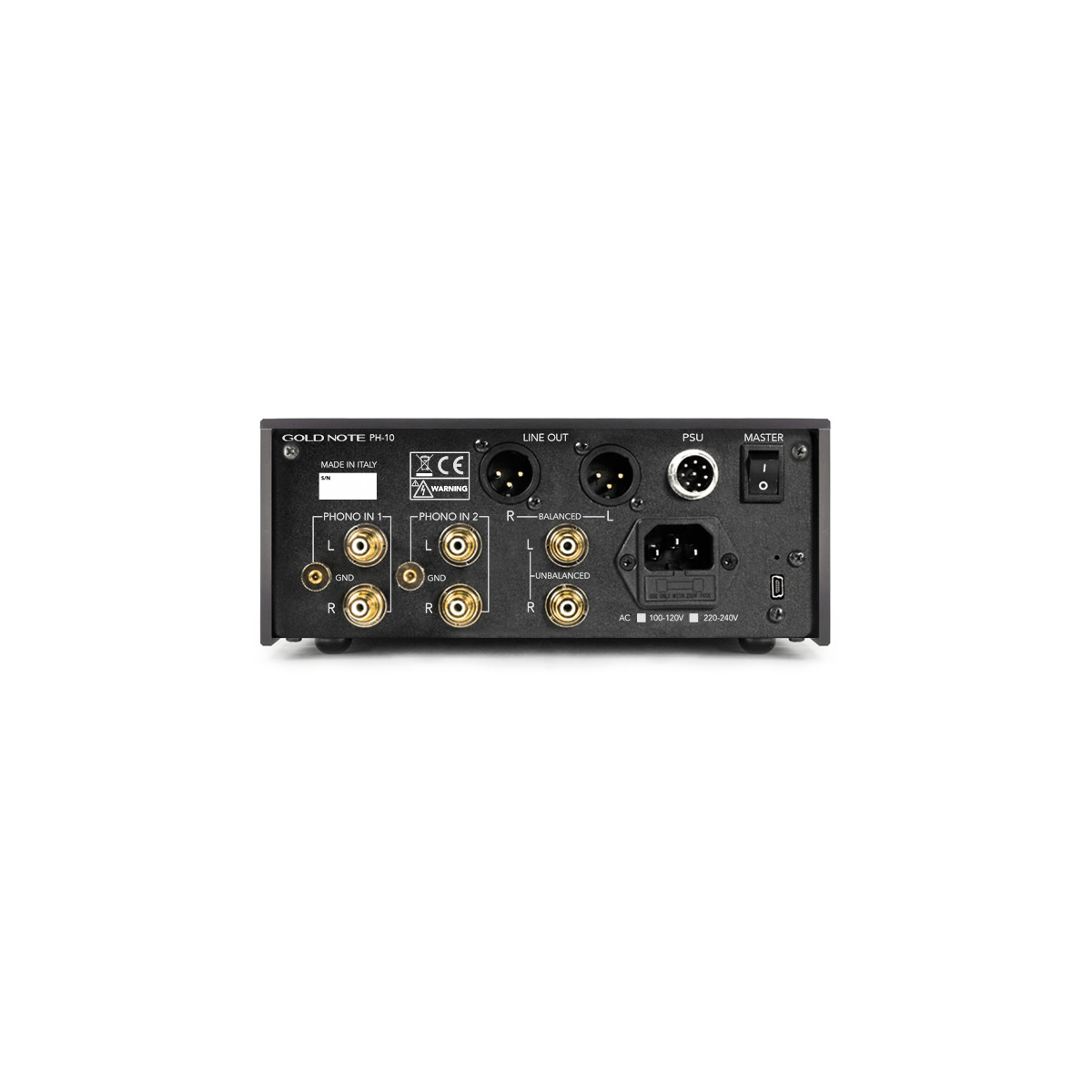

- AUDIO OUTPUTS 1x unbalanced RCA 1x balanced XLR
- LINE OUTPUT LEVELS (fixed) RCA @ 2V XLR @4V
- OUTPUT IMPEDANCE 50Ω
- POWER CONSUMPTION 10W Super Linear supply
- STANDBY CONSUMPTION < 0,5W
- POWER SUPPLY 100-120V or 220-240V, 50/60Hz
- FUSE 0,5A F/T
- DIMENSIONS 200W | 80H | 260D mm | 290W | 180H | 390D mm – boxed
- WEIGHT Kg. 3 – net Kg. 4 – boxed
