Xcelsus Audio XP6.2B

Purchase this product

RRP: $349.00
Our Price: $339.00

Or 4 payments of $84.75
Enquire about this product Print Product Information

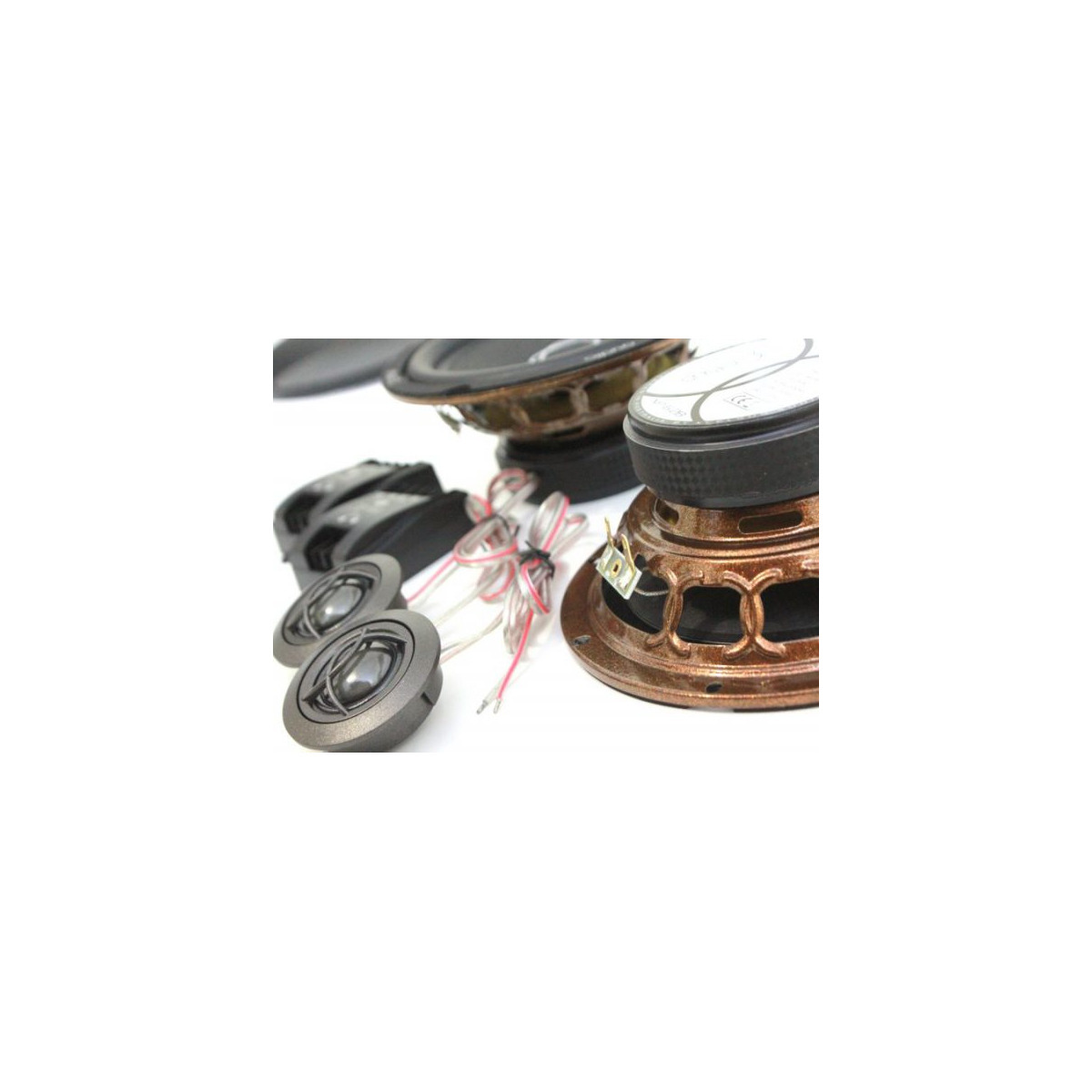

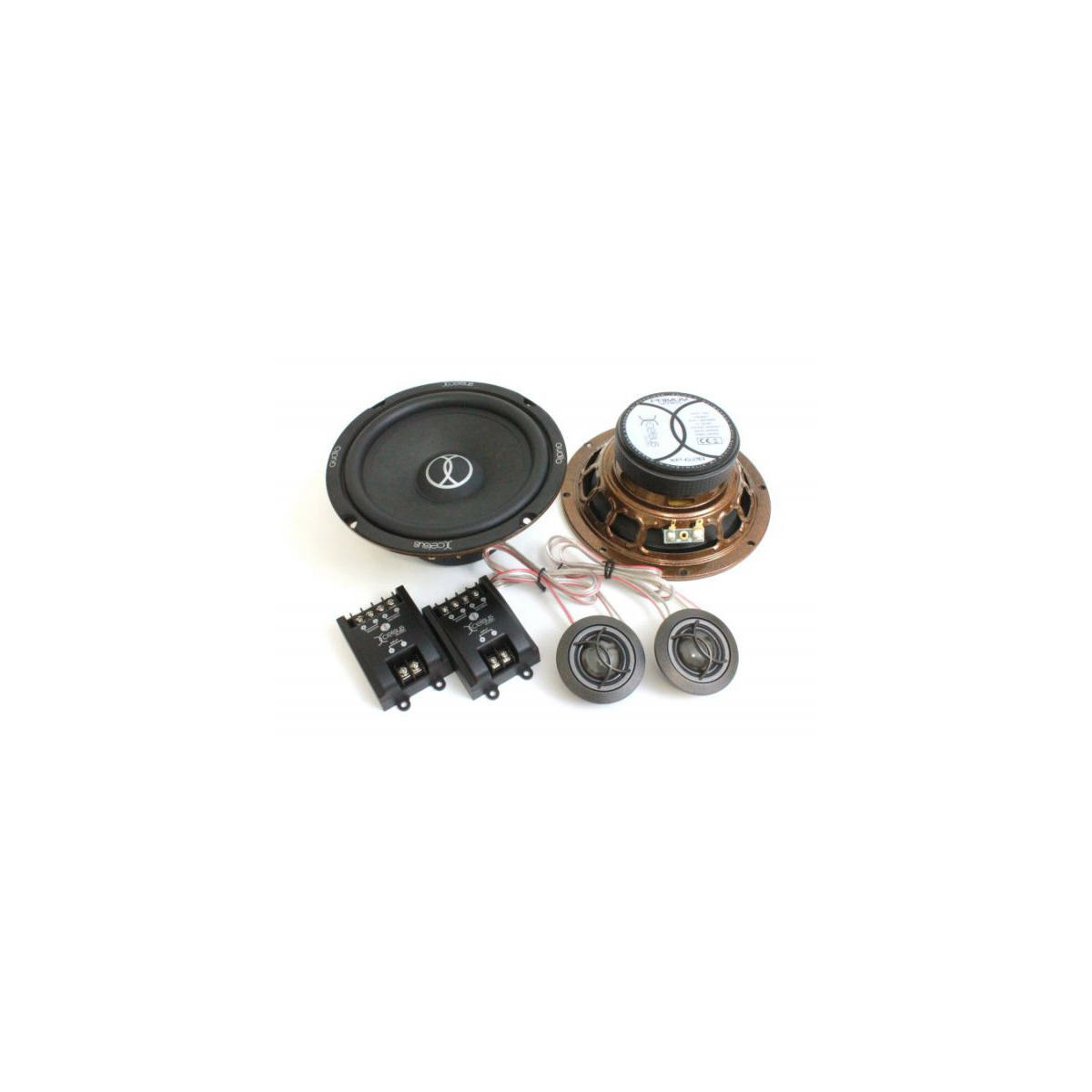

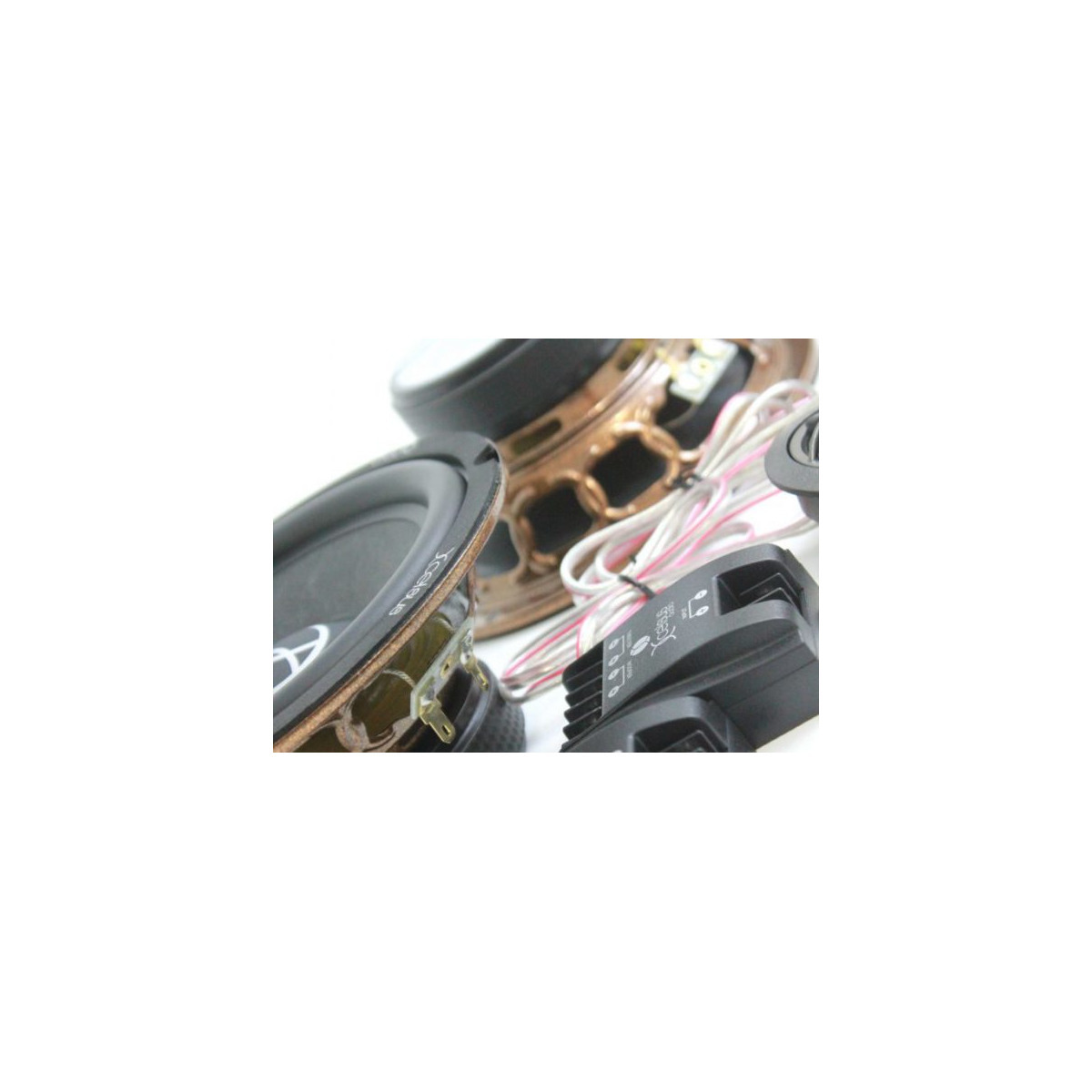

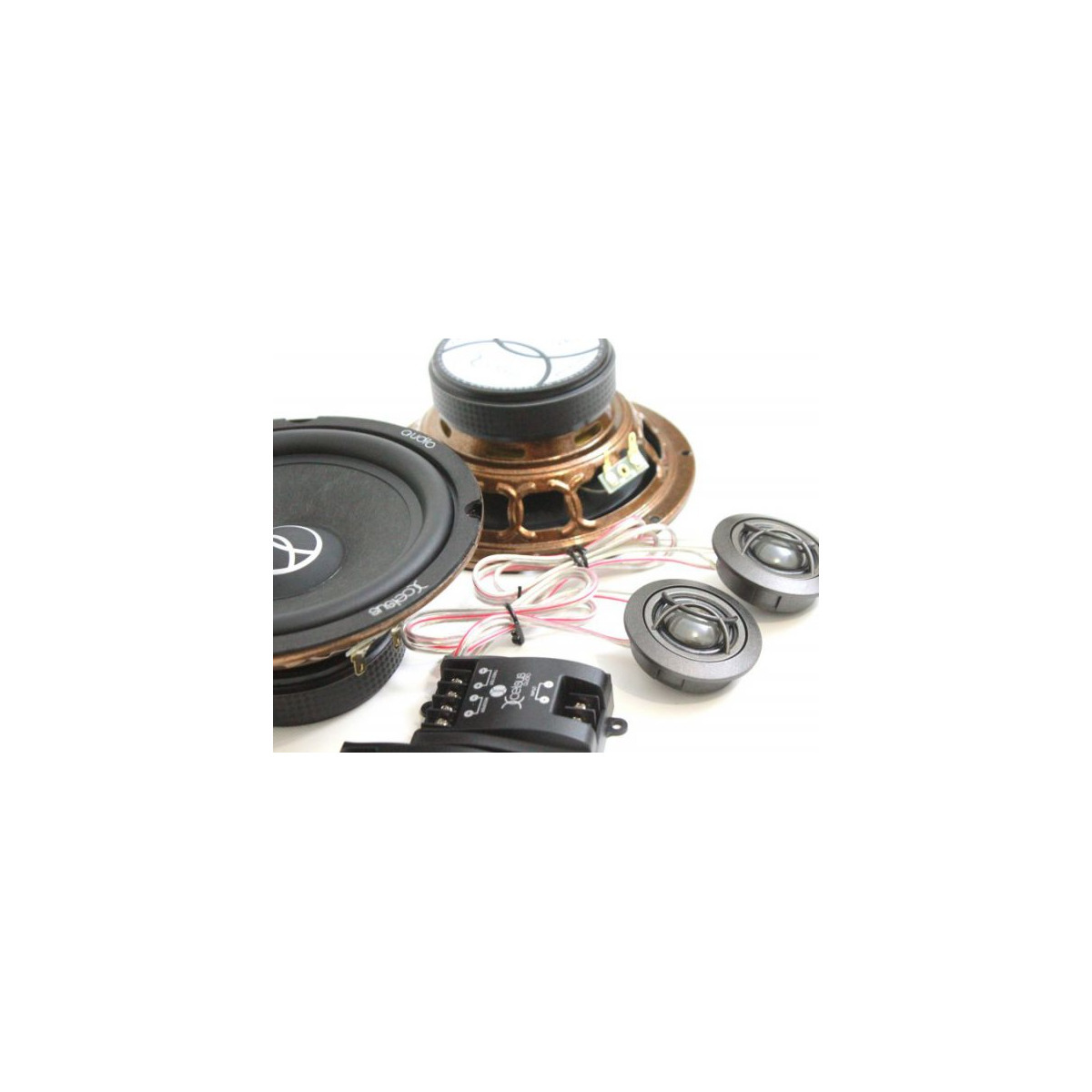

XP6.2B Component car speaker 6.5 ", (165 mm) Xcelsus Primum series, Tweeter XT20

The design premise behind this set was to achieve a smooth & well-balanced natural sound that would truthfully reproduce a large variety of music types.

This is no easy feat, and our goal was only achieved after successfully striking the optimal balance between moving mass, surround, cone, voice coil, winding length, spider, and magnet power.

The cone is made from semi non-pressed paper coupled to a 25mm hi-temperature voice coil & is controlled by an optimized motor design.

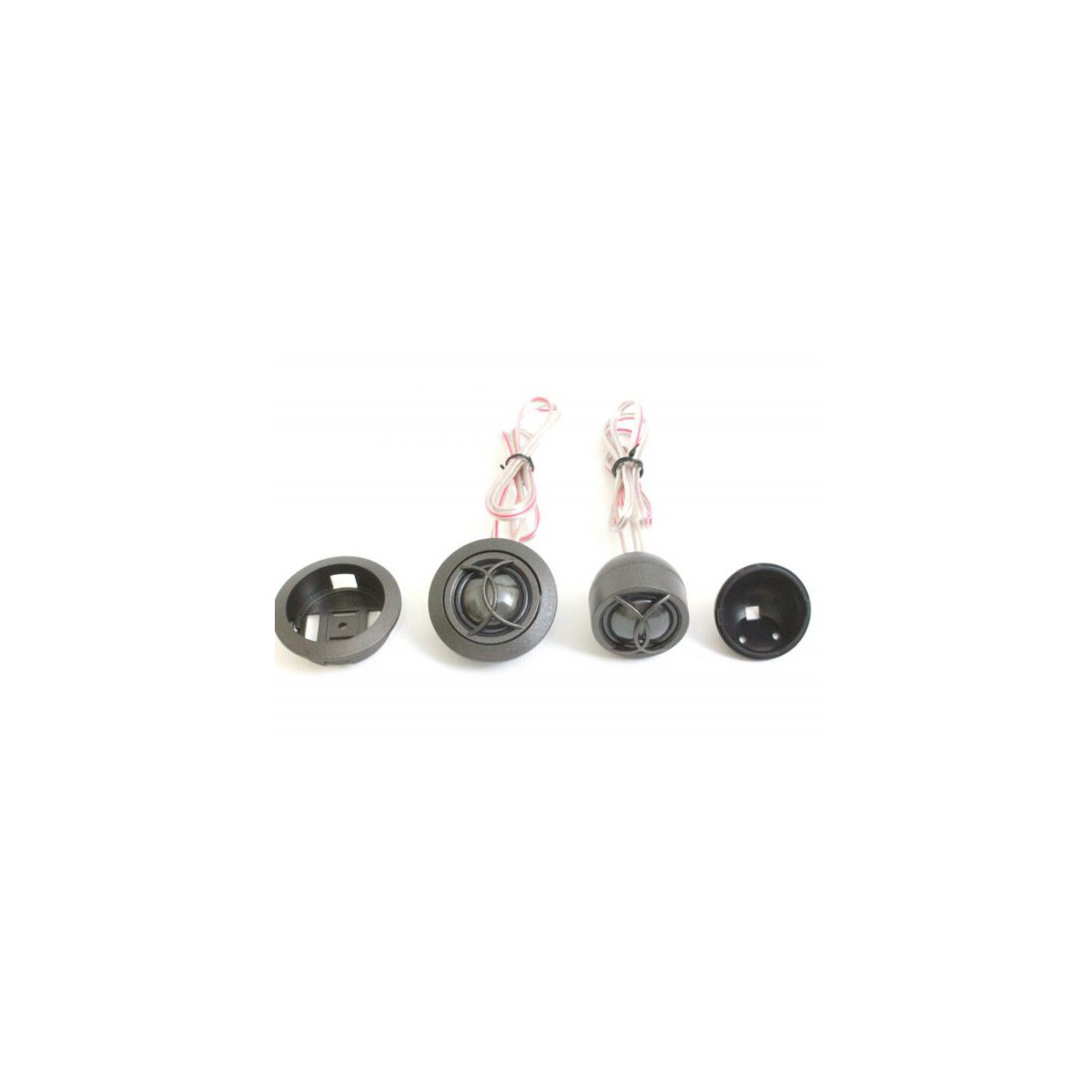

The tweeter is a 25mm soft textile dome housed in a liquid-cooled neodymium motor. Its compact size allows for ease of fitment in a large variety of factory tweeter locations.

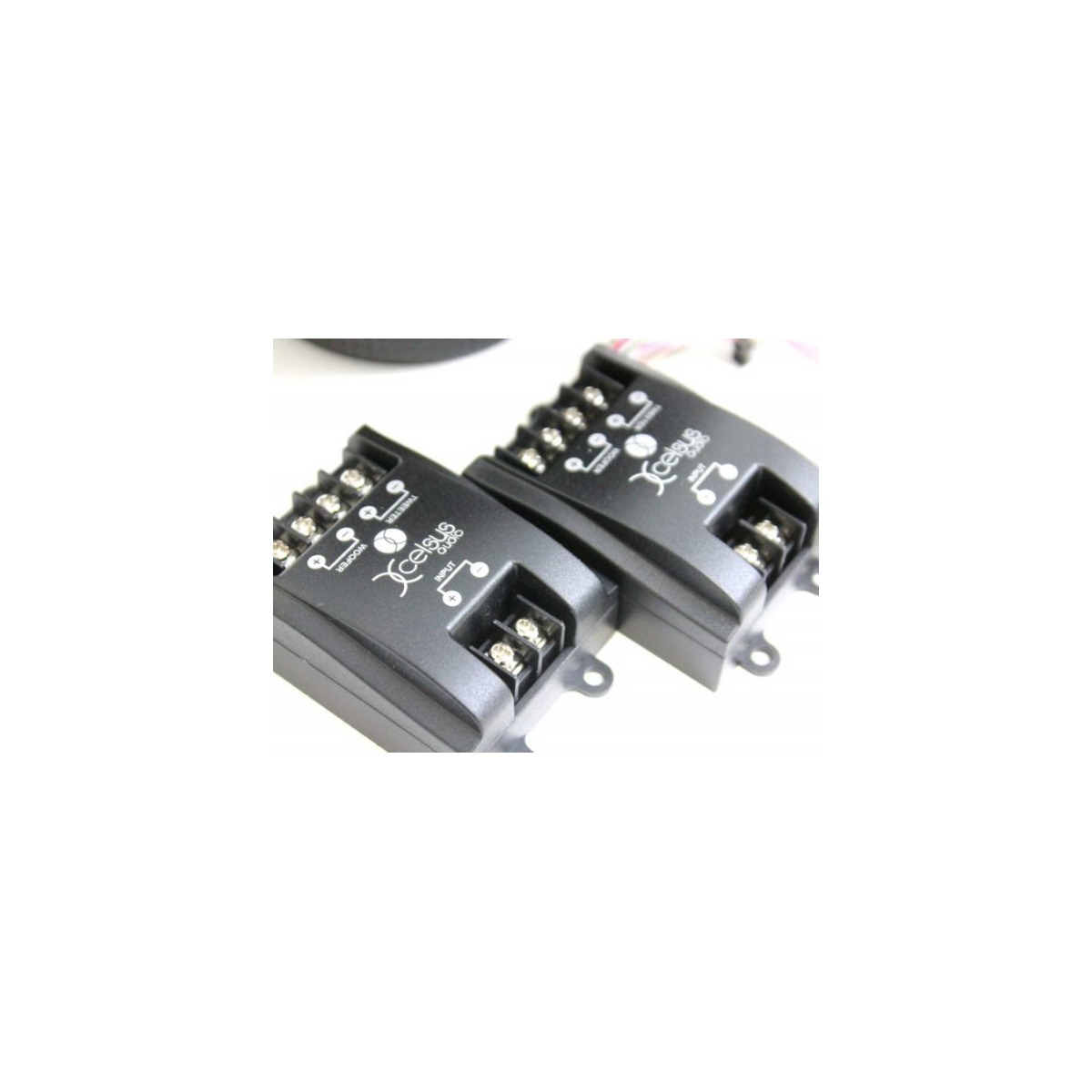

Crossover components are of high quality & feature or Phase Shift Technology. The result is an exceptionally good-sounding component that will run perfectly well from a hi-power head unit or amplifier.


  • Power Rating (RMS) 80 watts
  • Maximum / Peak Power 120/200 Watt
  • Crossover frequency 5500 Hz
  • Tweeter Fabric domed shape
  • Resistance 4 ohm
  • Operating frequency range 50 - 20,000 Hz
  • Sensitivity 88 dB (1/1 W / m)
  • Crossover Separate filter
  • Filter dimensions 120 x 65 x 33 mm
  • Length x Tweeter Width 1 "x 1" (25 mm x 25 mm)
  • Outside Diameter Midbass 6.5 "(165 mm)
  • Magnet diameter 3.54 "(90 mm)
  • Installation depth 2.56 "(65 mm)
  • Mounting hole  5.75 "x 5.75" (145 mm x 145 mm)
