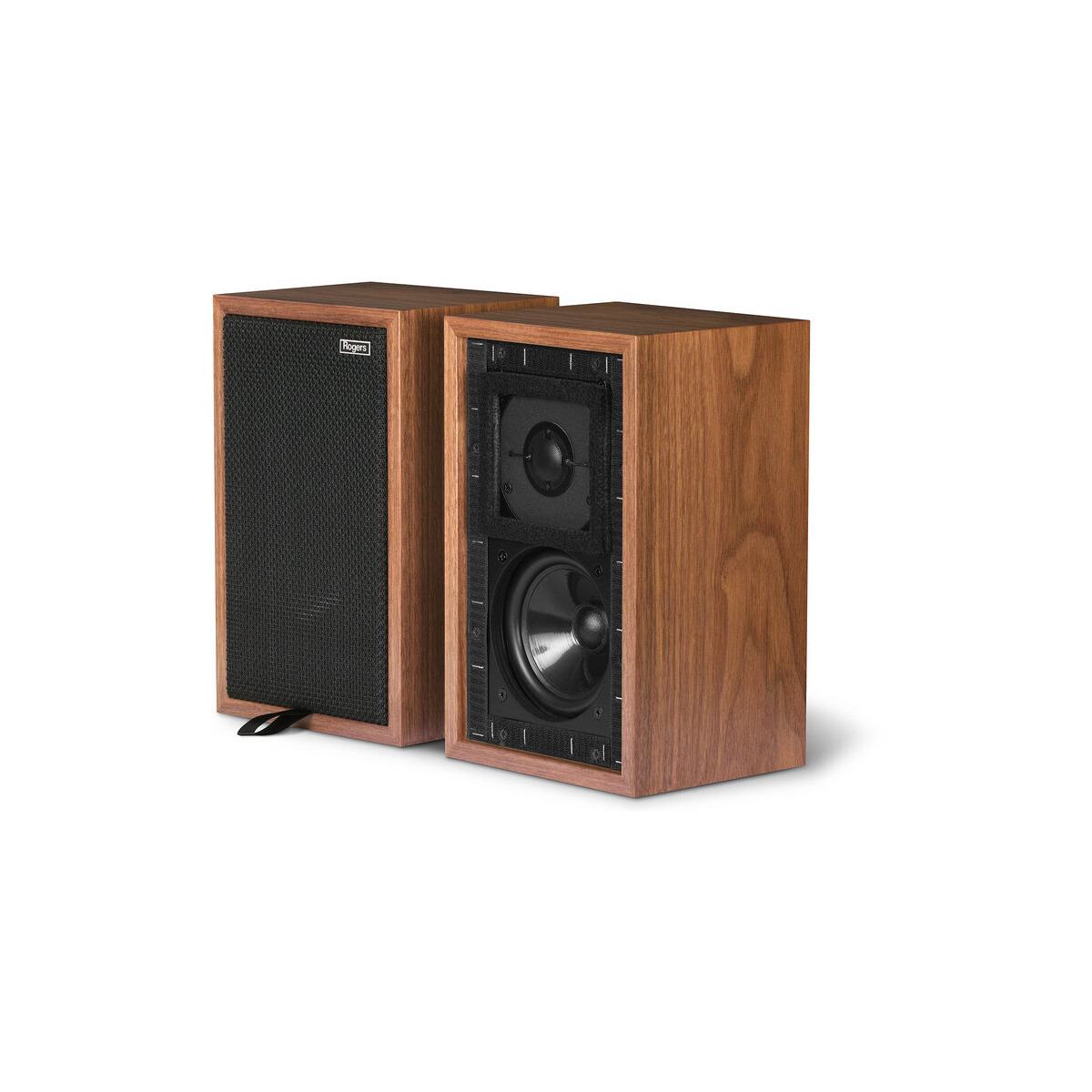

LS35A - Made in Britain (Special Order Only)
Features
- Critically damped 12mm Russian birch ply enclosure
- Hardwood beech fillets
- Balanced real wood veneers
- 12mm birch ply baffle
- Beautiful black Tygan grille
- Walnut, Rosewood, and Olive finishes as standard
- Other finishes to special order, please ask
- Single layer one ounce copper track fiberglass PCB
- M6 laminated transformer cored crossover inductors
- M6 laminated transformer cored auto transformer
- (for tweeter level matching)
- High voltage Metalised capacitors
- All components hand soldered with silver solder
- Mylar dome tweeter with kraft nomex voice coil former
- Doped Bextrene cone bass unit
- Hand-finished and painstakingly pair matched in the UK at Rogers
- Every pair’s measurements are recorded and stored against its serial no*
- allowing for easy driver replacement in the future if required

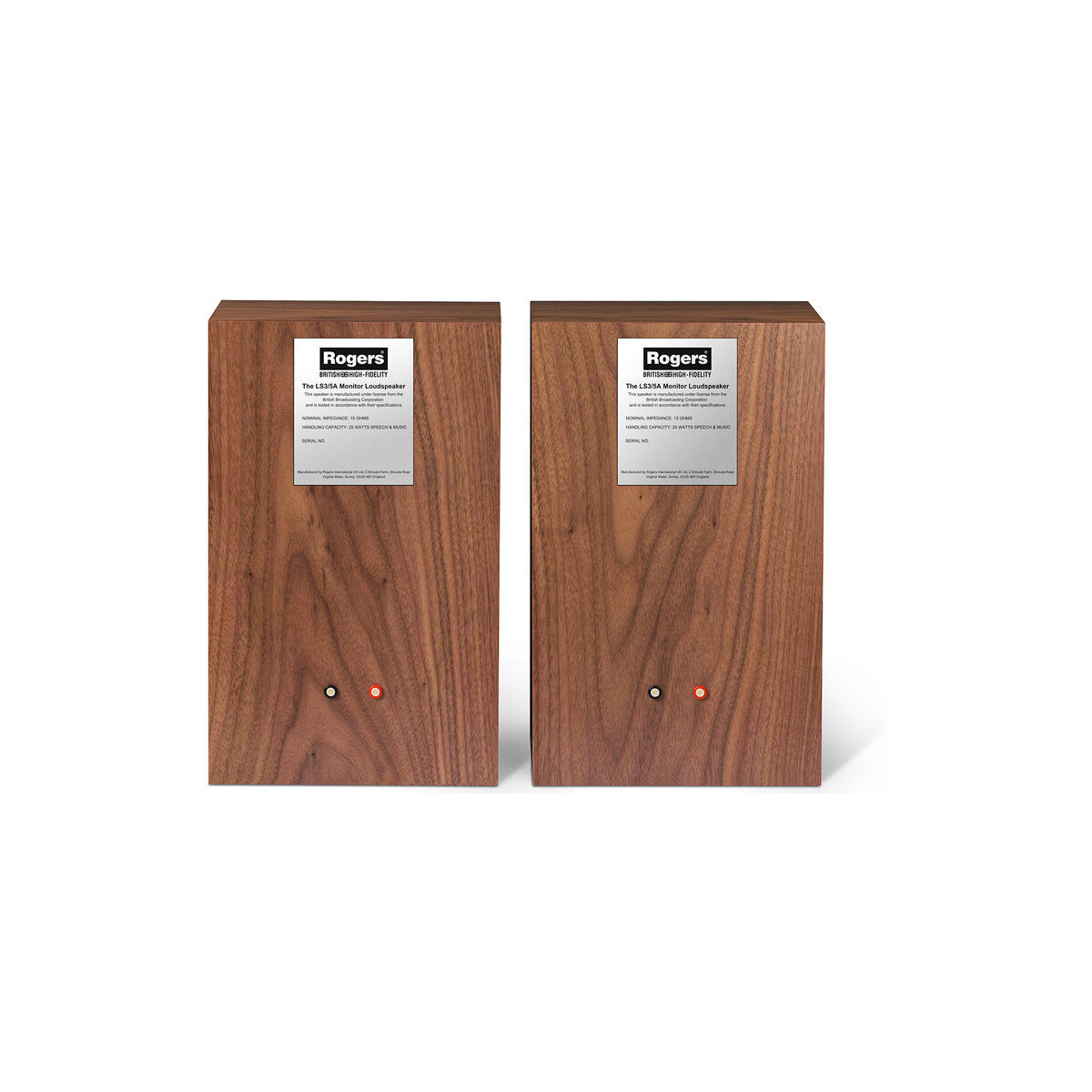

- Single wire, 4mm multi-contact sockets
- Sockets are silver plated for the best connection
- Choice of beautiful real-wood book-matched veneers
- Finishes: rosewood, walnut and olive
- Handmade by master-craftsman
Specifications
- System type: Two way infinite baffle
- Frequency response: 80Hz-20KHz +/-3dB
- Nominal Impedance: 15 Ohms
- Bass/midrange: 110mm Bextrene cone
- Tweeter: 19mm Mylar dome
- Crossover frequency: 3KHz
- Sensitivity: 82.5dB/W/M
- Finish: Walnut, Rosewood and Olive
- Grille: Black Tygan
- Dimensions: 305 x 190 x 165mm (HxWxD)
- Weight: 4.9Kg (each speaker)
- Recommended amplifier range 30-80 Watts
- BBC-licensed LS3/5A
