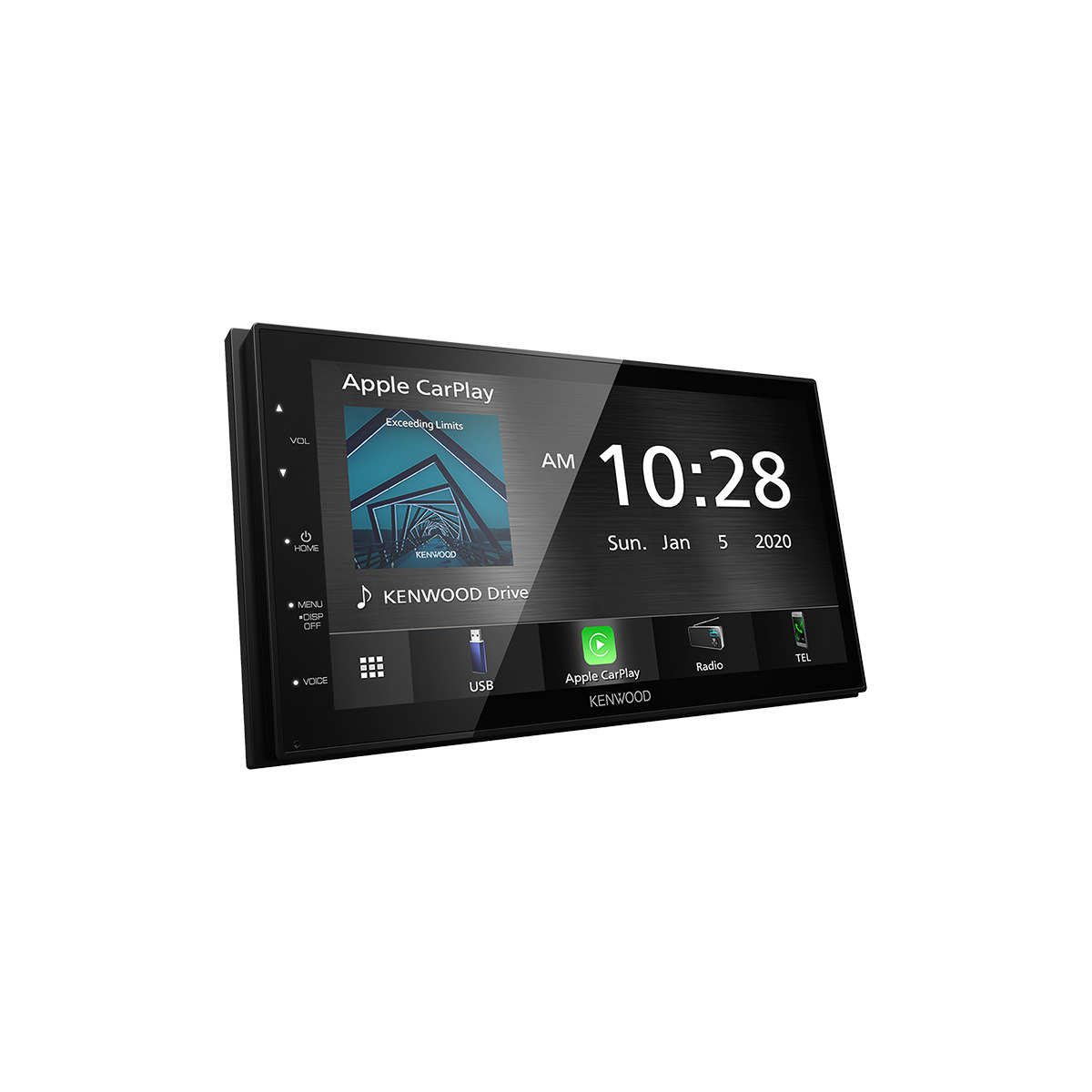

Digital Multimedia Receiver with 6.8 inch WVGA Display
· Capacitive 6.75” (diagonal) wide
· W x H 151.8 x 79.7mm
· Apple CarPlay™/ Android Auto™
· USB Mirroring for Android
· 13 Band EQ & Digital Time Alignment
· Built-in Bluetooth
· Short Chassis
· 2V 2Preouts & Subwoofer Out
Safe, Smart and Comprehensive Control with Apple CarPlay
Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, listen to music and access messages with just a word or a touch. Additionally, Google Maps™ and Waze™ support has been added with the latest iOS version (iOS 12.0 and higher).

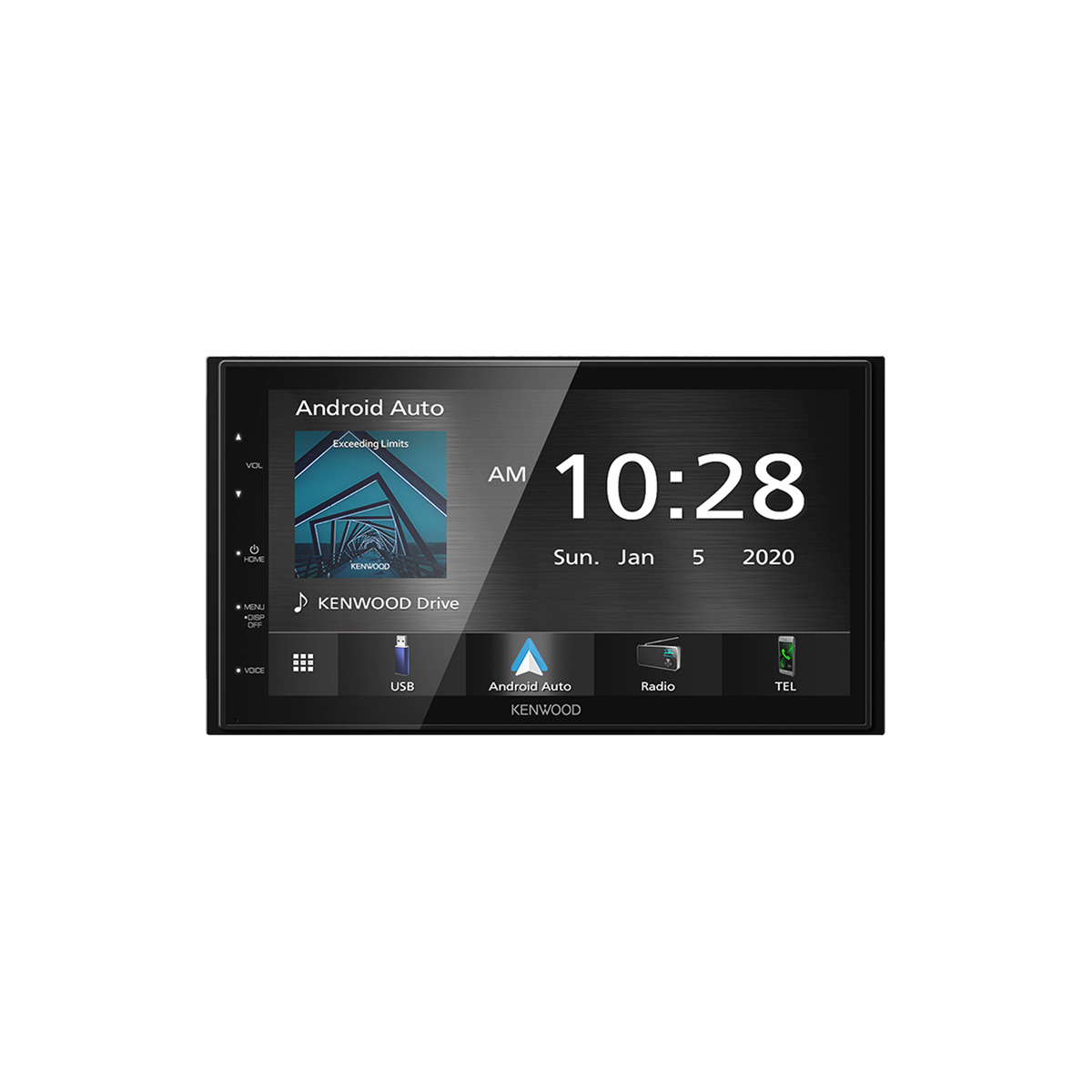

Android Auto via USB
Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. KENWOOD’s multimedia receivers combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. You can even listen to and control music from your favorite streaming service like Spotify. Navigate to where you need to with Google Maps or Waze.(compatible phone required).
True Mirroring via USB, 2-Way Touch Control for Android
It allows you to display and control your Android smartphone on the screen of the head unit. You can enjoy your favorite apps on a large display and with impressive sound quality. Before starting, just install the free app “Mirroring OA for KENWOOD” on your smartphone and connect it to KENWOOD receiver via a USB cable and Bluetooth.
Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.
Sound Adjustment Features & Playable FULL HD Video Files
To meet your high expectations, you can play back from USB devices audio and video files compressed in various formats.
Rear View Camera Input with Parking Guide Lines
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.
Short Chassis Design
Only 75mm of depth for more flexible installation
Specifications:
| Monitor Section | Picture size | 6.75inches(diagonal) wide | |
| W x H | 151.8 x 79.7mm | ||
| Display system | Transparent TN LCD panel | ||
| Drive system | TFT active matrix system | ||
| Number of pixels | 1,152,000 | ||
| 800H x 480V x RGB | |||
| Effective pixels | 99.99% | ||
| Pixel arrangement | RGB striped arrangement | ||
| Back lighting | LED | ||
| USB I/F Section | USB Standard | USB2.0 High Speed | |
| File System | FAT 16/32 , exFAT | ||
| Maximum Power Supply Current | DC5V=1.5A | ||
| D/A Converter | 24Bit | ||
| Audio Decoder | MP3 / WMA / AAC / WAV / FLAC | ||
| Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / .mkv | ||
| Frequency response | 192k Sampling | 20 - 20,000 Hz | |
| 96k Sampling | 20 - 20,000 Hz | ||
| 48k Sampling | 20 - 20,000 Hz | ||
| 44.1k Sampling | 20 - 20,000 Hz | ||
| Total harmonic distortion 1kHz | 0.2 | ||
| Signal to Noise ratio | 75dB | ||
| Dynamic range | 75dB | ||
| Bluetooth Section | Technology | Bluetooth Ver4.1 | |
| Frequency | 2.402 – 2.480 GHz | ||
| RF Output Power (E.I.R.P.) | +8dBm (Avg.), Power Class 1 | ||
| Maximum Communication range | Line of sight approx.10m(32.8ft) | ||
| Audio Codec | SBC / AAC | ||
| Multi Profile Support | Multi Profile | ||
| Profile | HFP (V1.6) (Hands Free Profile) | ||
| SPP (Serial Port Profile) | |||
| A2DP (Advanced Audio Distribution Profile) | |||
| AVRCP (V1.5) (Audio/Video Remote Control Profile) | |||
| PBAP (Phonebook Access Profile) | |||
| DSP Section | Graphics equalizer | ||
| BAND | 13 Band | ||
| frequency (Hz) (BAND1-13) | 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/ 6.3k 10k/ 16k | ||
| Gain | -09 to +09 (-9dB to +9dB) | ||
| 2Way X'Over | |||
| HIGH PASS FILTER frequency (Hz) | Through/ 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 | ||
| SLOPE | -6/ -12/ -18/ -24 dB/Oct. | ||
| Gain | -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB | ||
| LOW PASS FILTER frequency (Hz) | 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250/ Through | ||
| SLOPE | -6/ -12/ -18/ -24 dB/Oct. | ||
| Gain | -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB | ||
| Position | |||
| Front / Rear /Subwoofer Delay | 0 to 6.1m (0.01m Step) | ||
| Gain | -8 to 0dB | ||
| Subwoofer Level | -40 to +6dB | ||
| FM | Frequency Range | 87.5 - 108.0 MHz | |
| (Frequency step) | (50kHz) | ||
| Usable sensitivity | 16.2dBf | ||
| S/N:30dB | 1.8μV/75 Ohms | ||
| Quieting sensitivity | - | ||
| DIN S/N 46dB | - | ||
| Frequency response | 30Hz - 14kHz | ||
| (±3.0dB) | |||
| S/N (dB) | 50dB (MONO) | ||
| Selectivity | - | ||
| Stereo separation | 35dB (1kHz) | ||
| AM | Frequency Range | 531kHz - 1611kHz | |
| (Frequency step) | (9kHz) | ||
| Usable sensitivity | 99μV(40dBμ) | ||
| Video | Color system of external video input | NTSC/ PAL | |
| External video input level (Mini jacks) | 1.0Vp-p / 75 Ohms | ||
| External audio max input level (RCA jacks) | 1.5V / 25k Ohms | ||
| Video Output level (RCA jacks) | 1.0Vp-p / 75 Ohms | ||
| Audio | Maximum Power Output (Front&Rear) | 45Wx4 | |
| Full Bandwidth Power | 21Wx4 | ||
| (at less than 1%THD) | |||
| Output frequency band | 20 - 20,000Hz | ||
| Preout level (V) | 2.0V / 10k Ohms | ||
| Preout impedance (Ω) | 1.4k Ohms | ||
| Speaker Impedance (Ω) | 4-8 Ohms | ||
| General | Operating voltage | 12V DC Car Battery | |
| Installation Dimensions WxHxD | 178 x 100 x 75 (mm) | ||
| Weight Main unit | 1.1 kg | ||
