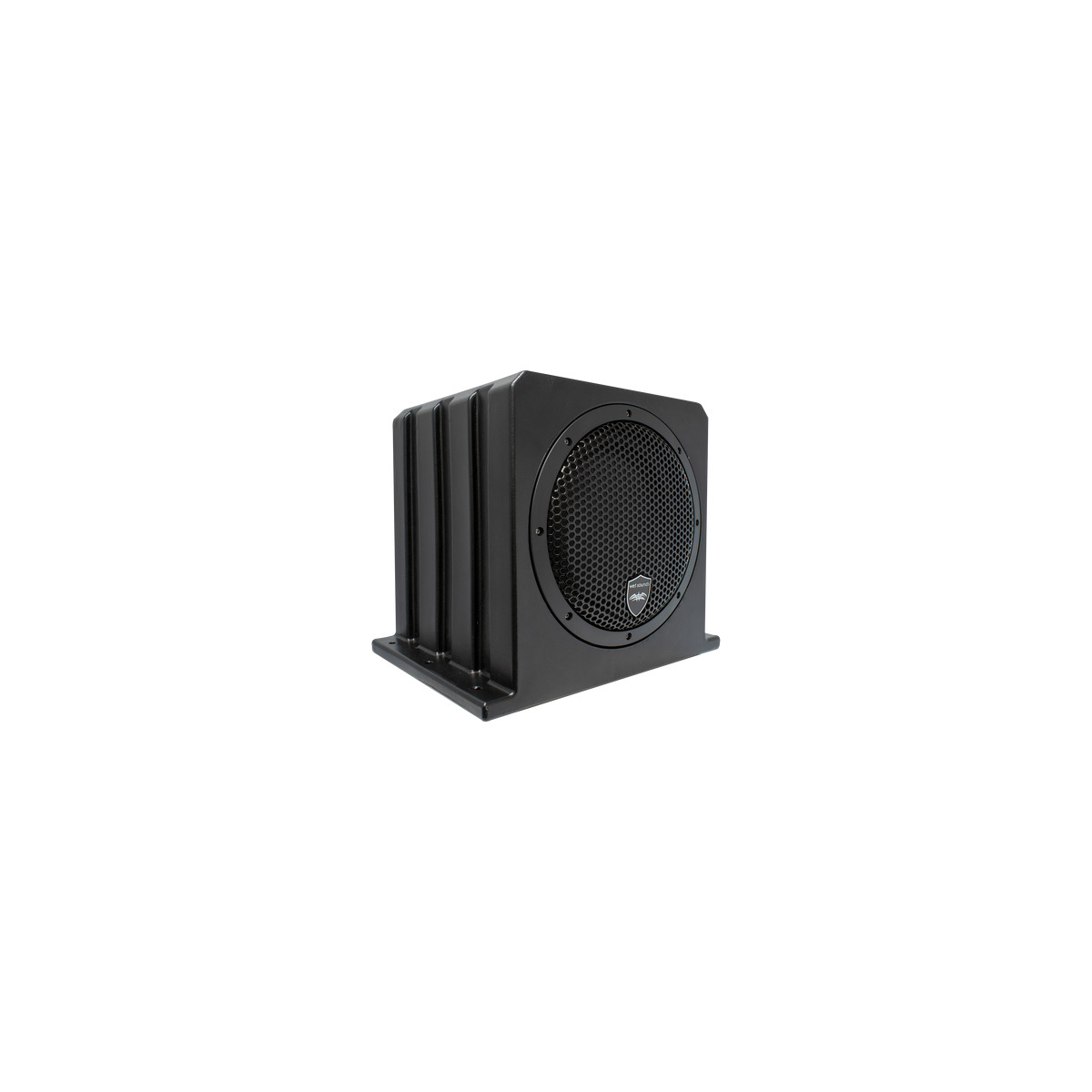

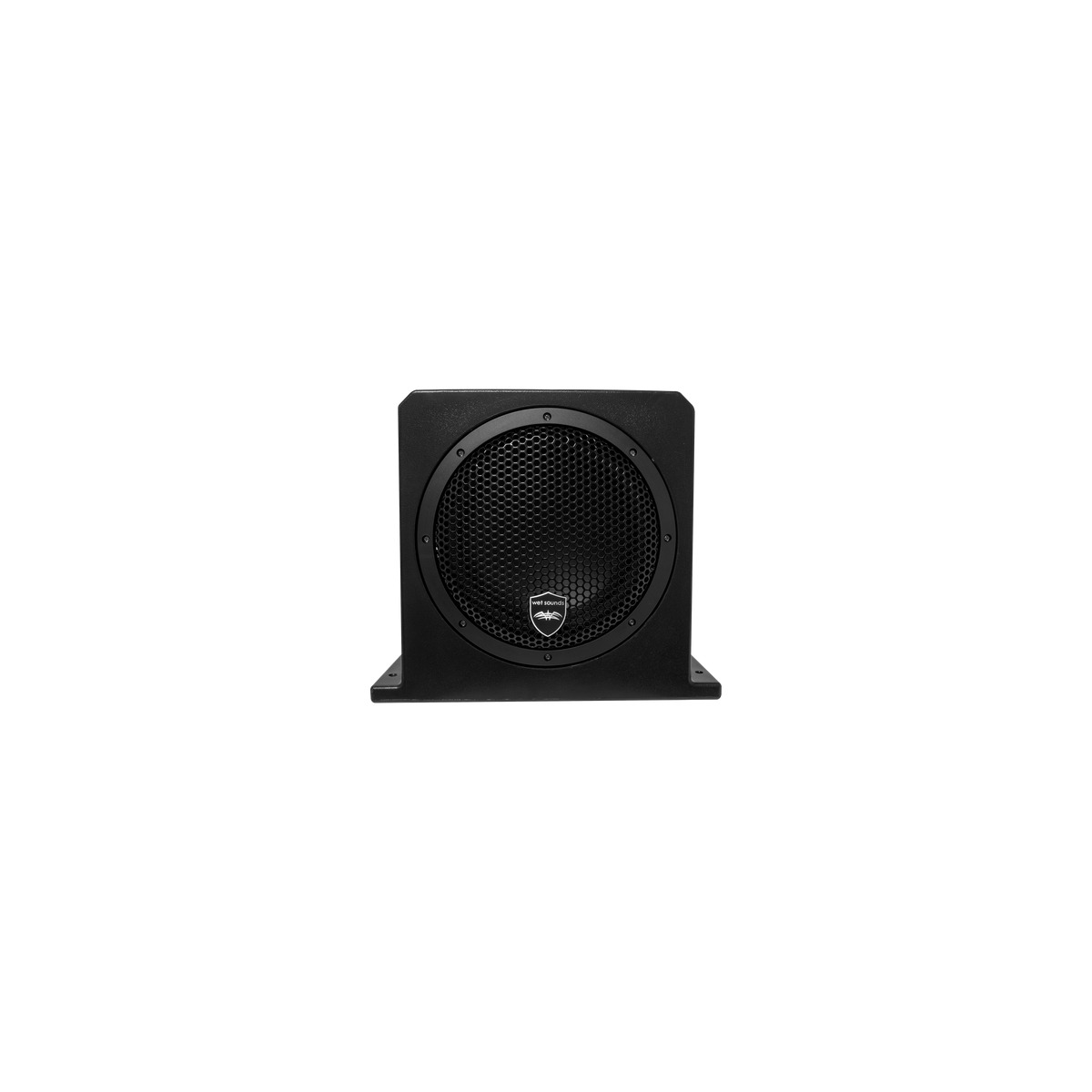

Active Subwoofer System

·         The Active Powered Subwoofer line brings Wet Sounds™ performance technology to the marine environment, in a complete all‐in‐one package.

This complete solution is designed with a 500 watt Class‐D high efficiency amplifier in a reinforced fiberglass sealed enclosure.

The Active 10 will bring the bass thumping power on the boat with minimal current draw to keep the party rocking on the water.

Specifications:
Output Power @ 14.4V    1 – 500 Watts
Frequency Response    (-3dB)20Hz-150Hz
S/N Ratio (A-weight)    >95dB
THD with 22k filter    <0.2%
Low Input Level    100mV-4V
Hi Input Level    8V
Battery Voltage Range    10.5VDC-16VDC
Crossover Type    LP
Variable Low Pass Range    35Hz-150Hz
Crossover Slope    12dB/Oct
Bass Boost ( 45Hz)    0-12dB
Subsonic Filter    24dB @ 20Hz
Variable Phase    0 / 180
Remote Bass Control    Yes
Remote Auto Start    Yes
Protection Circuit    Thermal, Over & Under Voltage
Amplifier Fuse & Holder    1 x 25A
Size L x W x H (IN)    11.5″ x 14.5″ x 12.75″
Net Weight    13.6kg / 30 lbs
