COMPACT ACTIVE BASS REFLEX SUBWOOFER WITH HIGH POWER OUTPUT

Overview

Compact dimensions, concentrated power. The active Sub 108A from the Mac Mobil Street series impresses with 200 watts of maximum power output and high-quality components.

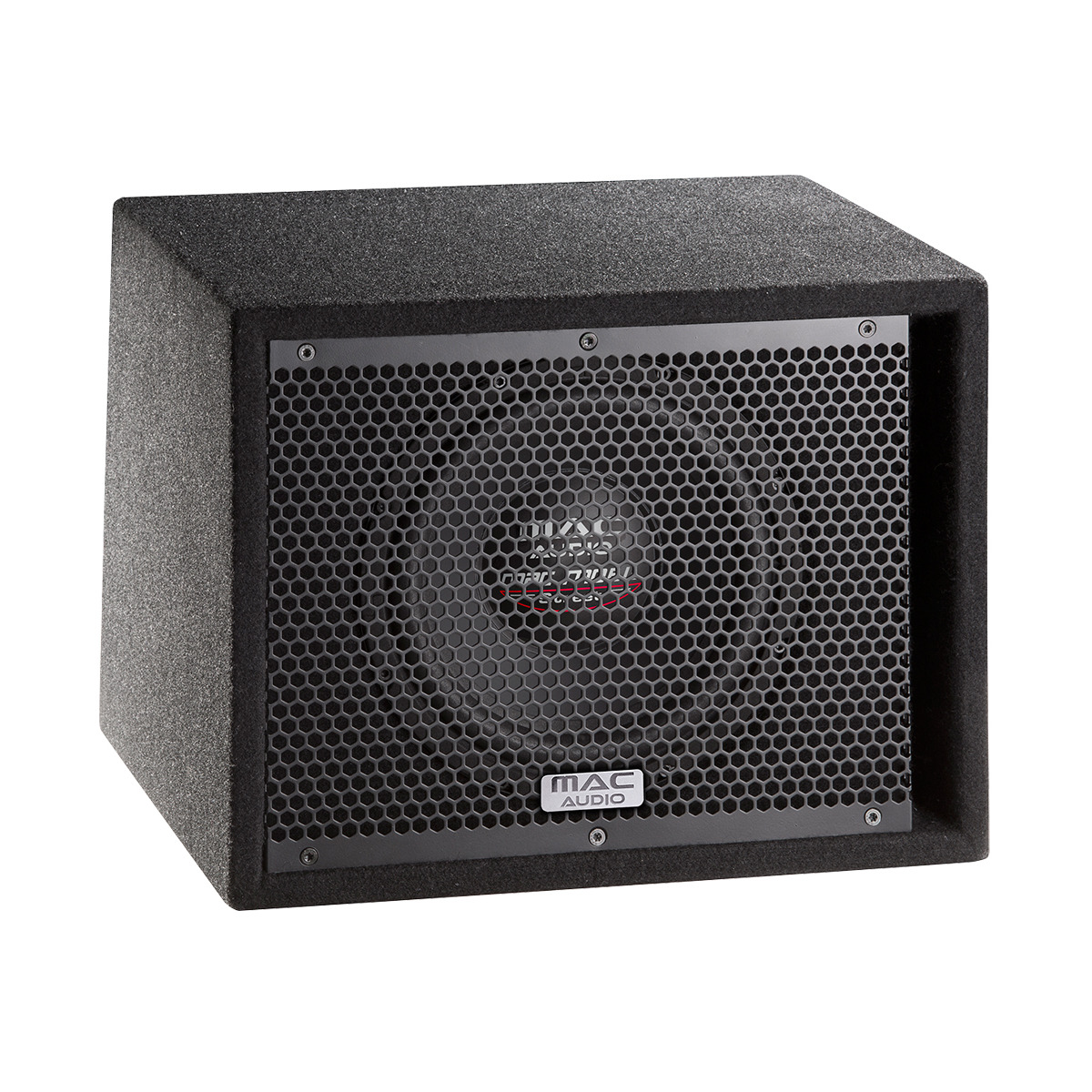

Despite its not all too prominent dimensions there is concentrated power in the base reflex subwoofer Sub 108 A from the Mac Mobil Street series. The 8" woofer with 22oz high-performance magnet and 1.5" double voice coil is driven by a digital Class D high efficiency amplifier module with a maximum power output of 200 watts. Thanks to the innovative design disruptive background noise are effectively prevented with a flow-optimized bass reflex tube, the baffle of the subwoofer is made from high-quality MDF material. A stable protective grille and the non-slip upholstery the Sub 108A not only bestows safety but also a chic appearance.

Features

• High level inputs
• Low level RCA outputs
• Loudspeaker fastenings with metric screws
• Air-flow optimized bass-reflex por
• 8" powered bassreflex subwoofer
• High efficiency class-D amplifier module with a power output of 200 watts max

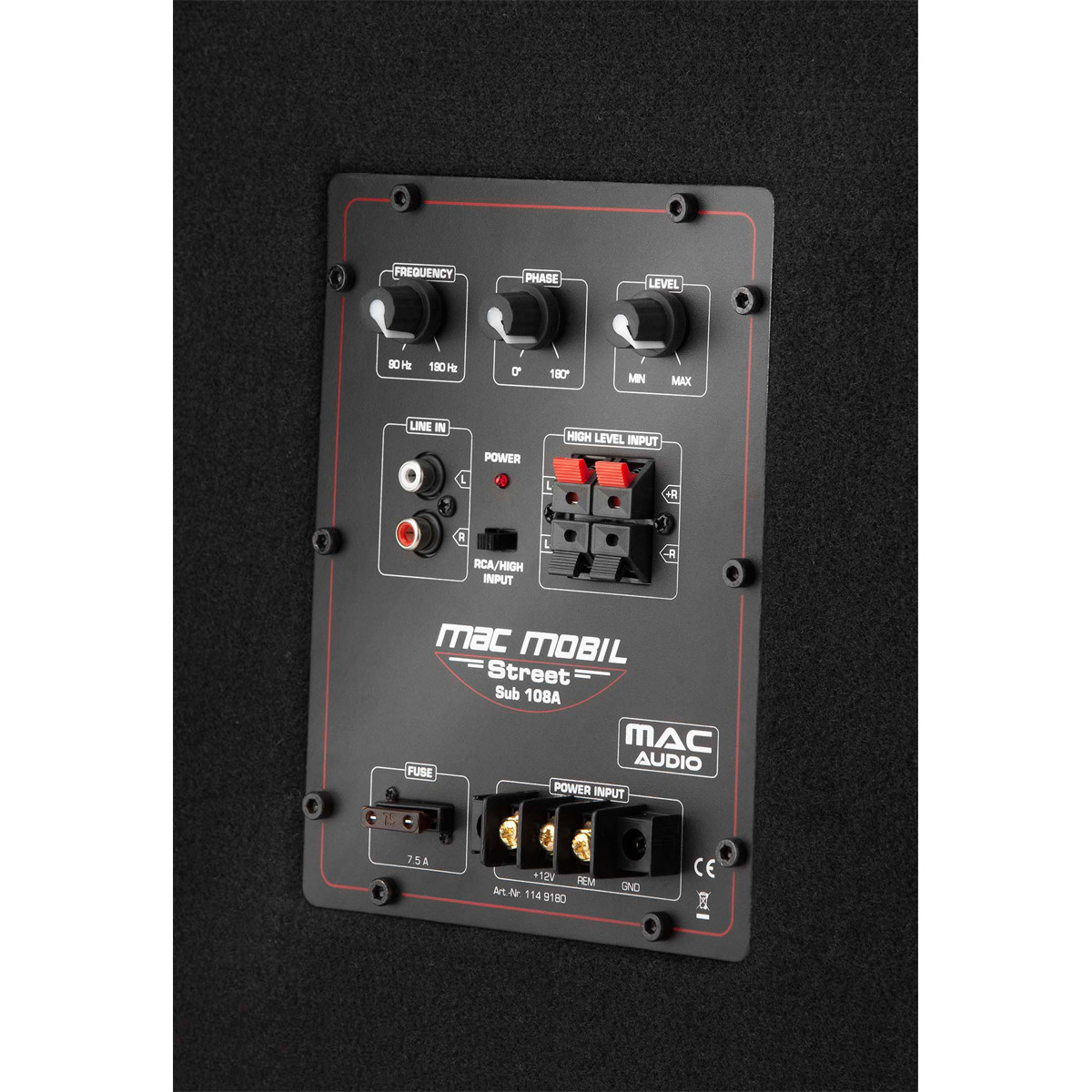

• Continuously variable volume control
• Variable phase control 0 – 180 degrees

Specifications

• PRINCIPLE 8" powered bassreflex subwoofer
• RMS POWER OUTPUT INTO 14.4V (SINE BURST 2:8, 1 KHZ) 200 Watts
• RMS POWER OUTPUT INTO 1 OHM, 14.4V (DIN 45 324) 80 Watts
• FREQUENCY RESPONSE 26 – 190 Hz
• SUPPLY VOLTAGE 12 V
• INPUT SENSIVITY Line in 200mV, High Level 600mV
• INPUT IMPEDANCE Line in 10 kOhm, High Level 500 Ohm
• DIMENSIONS (W X H X D) 355 x 275 x 292/265 mm
• WEIGHT 7,35 kg
