'Magnifico' 4 Channel Amplifier
The Xcelsus Magnifico 4 is a compact, lightweight, and high performing 4 channel 500w amplifier designed to satisfy those discerning music lovers & bass heads.

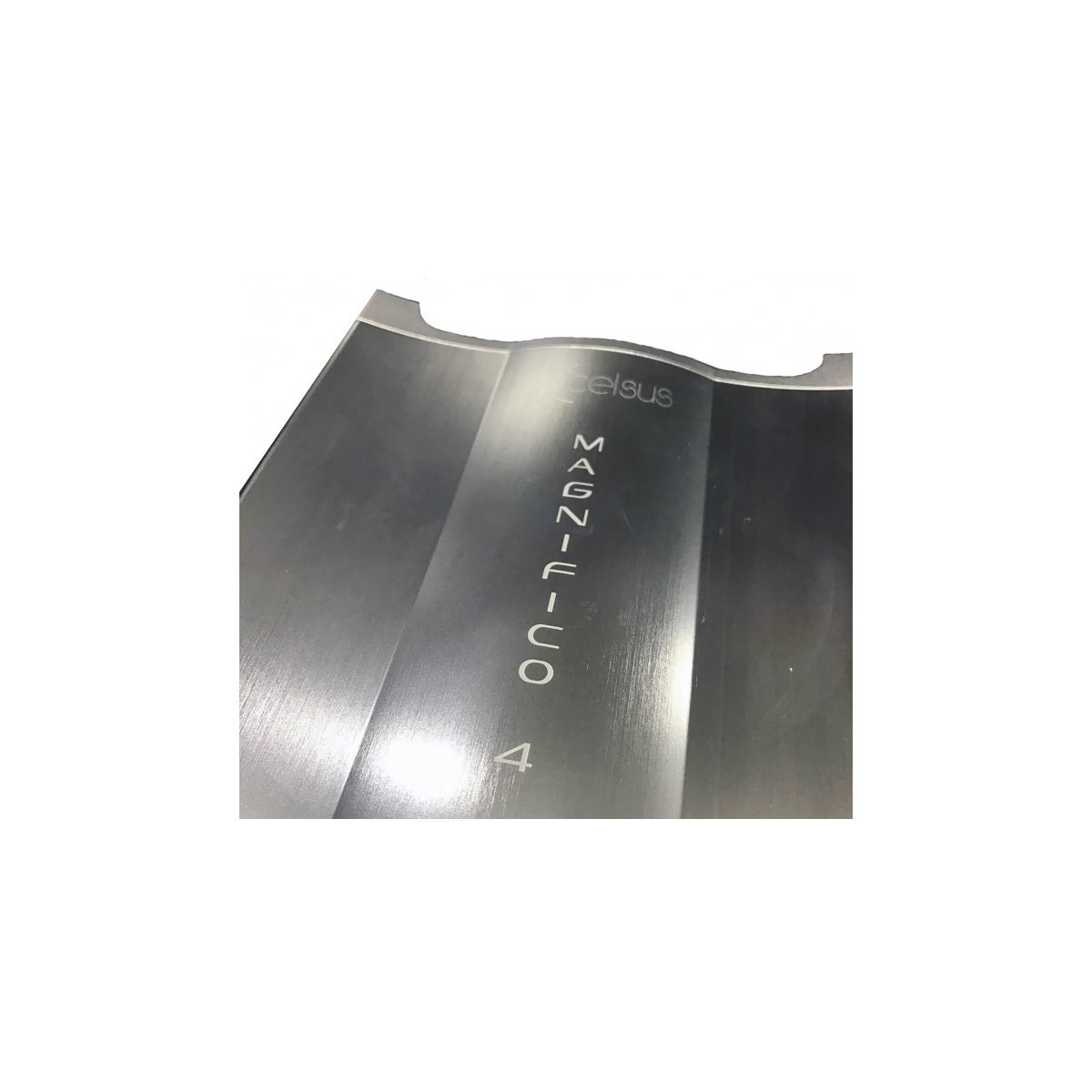

The Magnifico 4 is sound tuned in Australia by the same audio experts as the famous ULTIMATE ; REFERENCE and TA-2 Xcelsus Amplifiers; featuring high level input, high/low pass filters, overload and short-circut protection built-in, and a durable brushed aluminimum casing.
Take at look at the most recent review here:
https://www.youtube.com/watch?v=t0QmJU5UK8E
Specifications:
- Dimensions 54 x 135 x 308 mm
- Weight 2.4 Kg
- Supply voltage 12 v
- External fuse 60 A
- Internal fuse Not
- Built-in cooling fan Yes
- Maximum current 64 (35) A
- Standby Current Consumption 0.7 (0.35) A
- Bass EQ @ 60 Hz Yes
- High pass filter (on / off) 50-500 Hz
- Low pass filter (on / off) 50-500 Hz
- High level entrance Yes
- Input sensitivity 1-4 V
- Input impedance, high level 45 ohm
- Input impedance, low 5000 ohm
- Operating frequency range 10-60000 Hz
- Attenuation coefficient > 300
- Signal to noise ratio, weighted average 110 dB
- Bridge power 2 channels of 220 W each
- Power at 2 Ohm (RMS) 4 x 150w
- Power at 4 Ohm (RMS) 4 x 80w
- Amplifier class A / B
- Number of channels: 4
