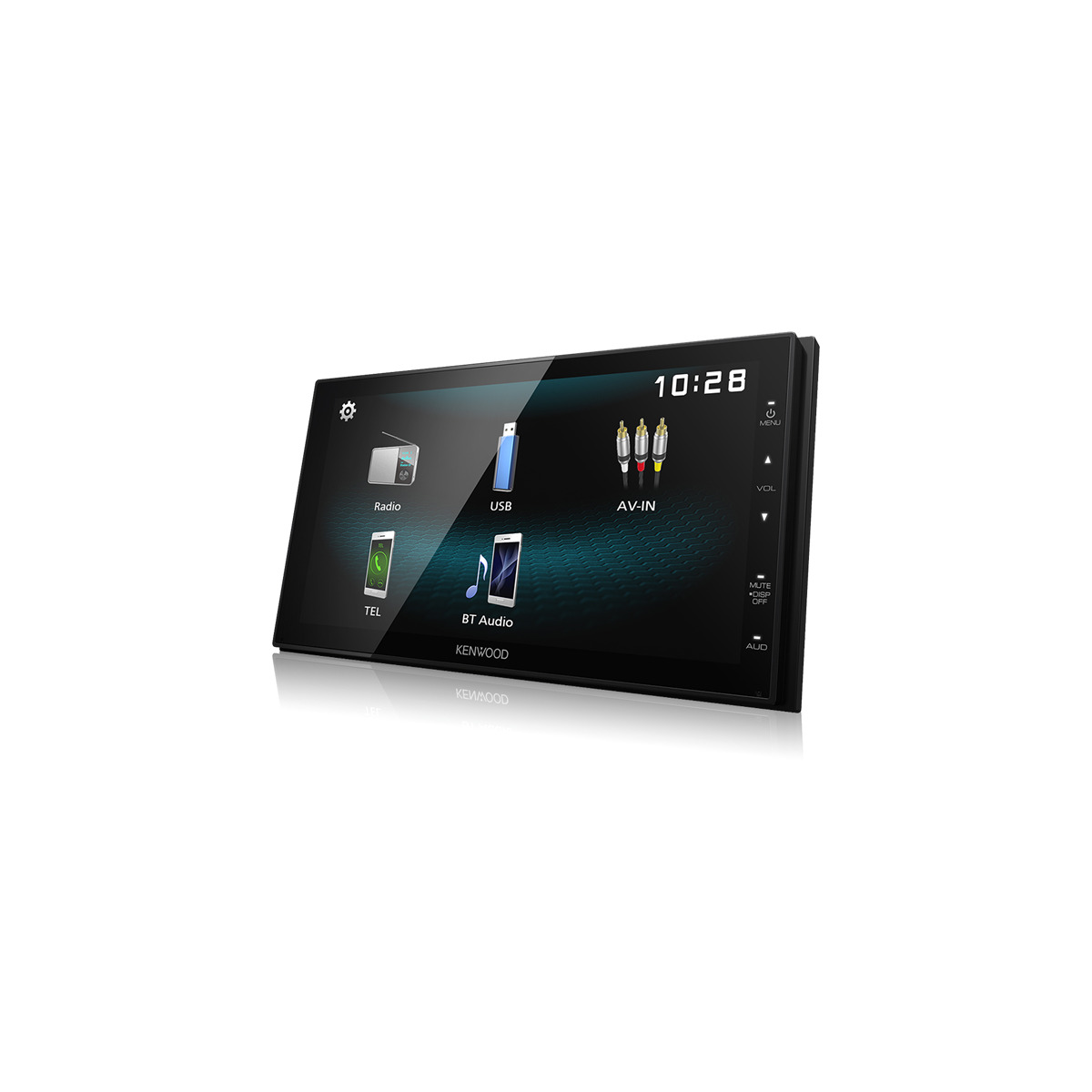

Digital Media Receiver with 6.8" WVGA Capacitive Display

True Mirroring via USB, 2-Way Touch Control for Android
It allows you to display and control your Android smartphone on the screen of the head unit. You can enjoy your favourite apps on a large display and with impressive sound quality.
Before starting, just install the free app “Mirroring OB for KENWOOD” on your smartphone and connect it to DMX1025BT via a USB cable and Bluetooth.

The Best Audio Experience
Sound quality enthusiasts will love the playback support of various types of music formats, including compatibility with FLAC files. Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.

Rear View Camera Input with Parking Guidelines
An optional rear-view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.

Convenient and Easy-to-Use Capacitive Touch Panel
Provides a high contrast ratio, crystal clear display and vivid text.


          6.8" WVGA Capacitive Display

          USB Mirroring for Android

          Bluetooth connection - 2 phone calling or 5 phone music streaming

          Newly designed panel with right side key layout

          Rear USB & AUX inputs for digital playback

          MP3/WMA/AAC/WAV/FLAC/DIVX/MPEG1/MPEG2 Supported formats

          External microphone included

          13 Band equalizer with digital time alignment

          FM/AM Radio

          Short Chassis- only 75mm depth

          13 Band EQ & Digital Time Alignment

          2 Preouts 2V & Subwoofer Out


·         Drive system: TFT active matrix system

·         Number of pixels: 1,152,000

·         800H x 480V x RGB

·         Effective pixels: 99.99%

·         Pixel arrangement: RGB striped arrangement

·         Back lighting: LED

·         USB I/F Section: USB Standard/USB2.0 High Speed

·         File System: FAT 16 / 32 / NTFS

·         Maximum Power Supply Current: DC 5V = 1.0A

·         D/A Converter 24Bit

·         Audio Decoder: MP3/ WMA/ WAV/ AAC/ FLAC

·         Video Decoder: MPEG1/ MPEG2/ MPEG4/ H.264/ MKV

·         Frequency response: 96k Sampling    20 - 20,000 Hz

·         48k Sampling: 20 - 20,000 Hz

·         44.1k Sampling: 20 - 20,000 Hz

·         Bluetooth: Bluetooth V4.2

·         Frequency: 2.402 – 2.480 GHz

·         RF Output Power (E.I.R.P.): +8dBm (MAX), Power Class 1

·         Maximum Communication range: Line of sight approx.10m(32.8ft)

·         Video Input level (RCA jacks)  1.0Vp-p / 75 Ohms

·         Video Output level (RCA jacks): 1.0Vp-p / 75 Ohms

·         Audio   Maximum Power (Front&Rear): 45Wx4

·         Full Bandwidth Power (Front&Rear): 16Wx4

·         Output frequency band: 20 - 20,000Hz

·         Preout level(V): 2V / 10k Ohms

·         Preout impedance(Ω): 1.4k Ohms

·         Speaker Impedance(Ω): 4-8 Ohms
