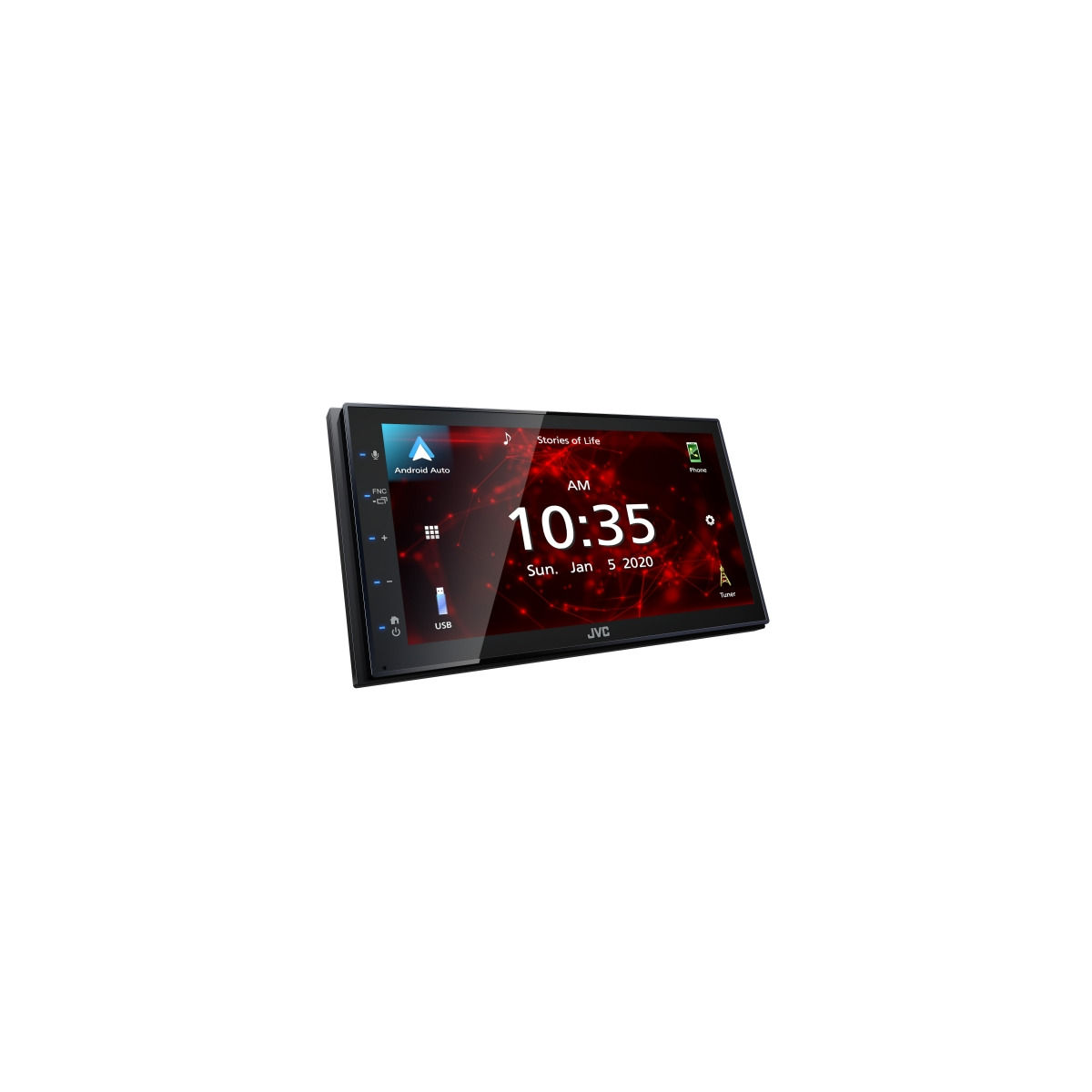

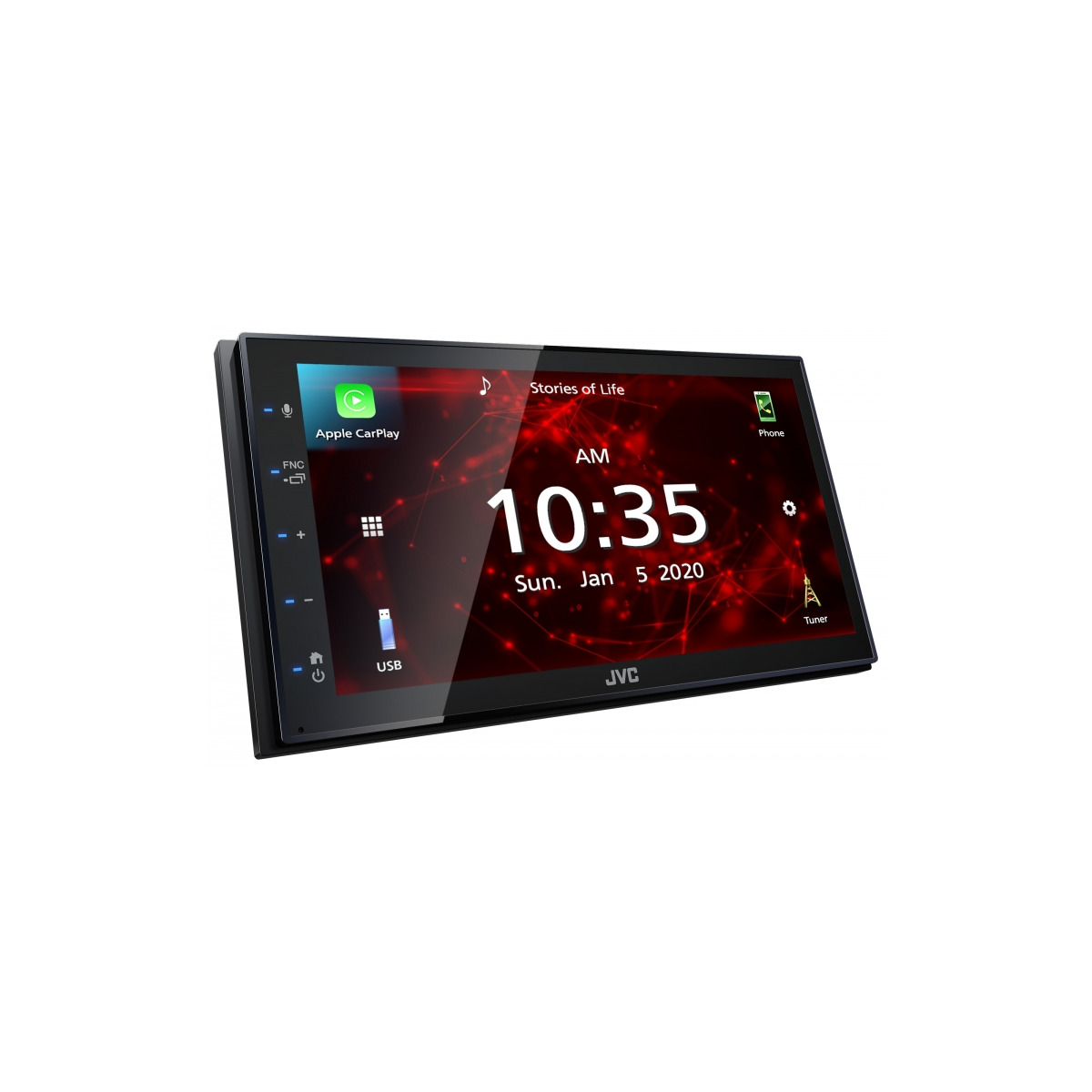

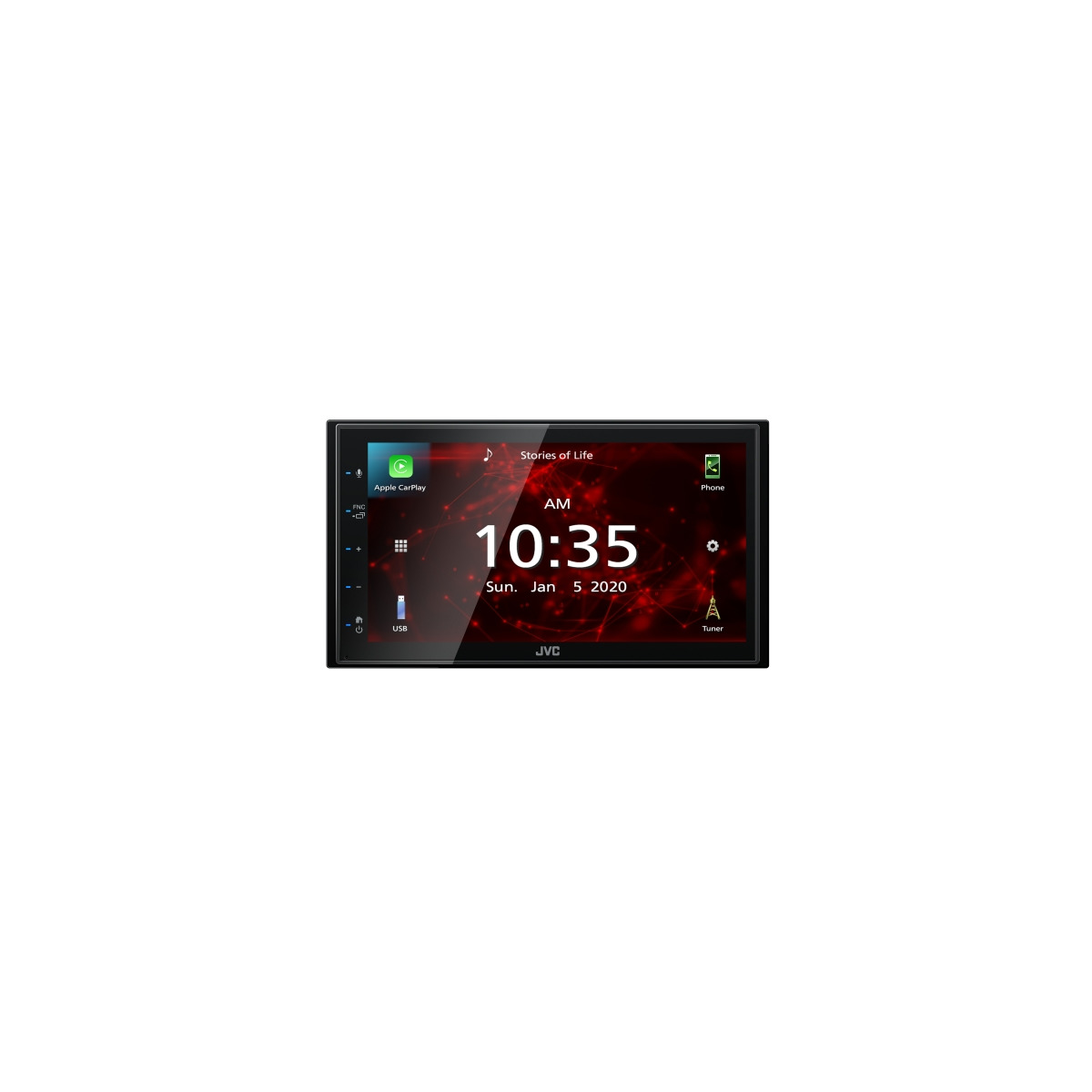

JVC KW-M560BT

Purchase this product

RRP: $649.00
Our Price: $549.00

Enquire about this product Print Product Information

2-DIN AV Receiver


Overview


JVC multimedia receivers interface your smartphone with your car to enrich your driving experience. Enjoy your favorite apps and view content on a big screen, in comfort and safety.

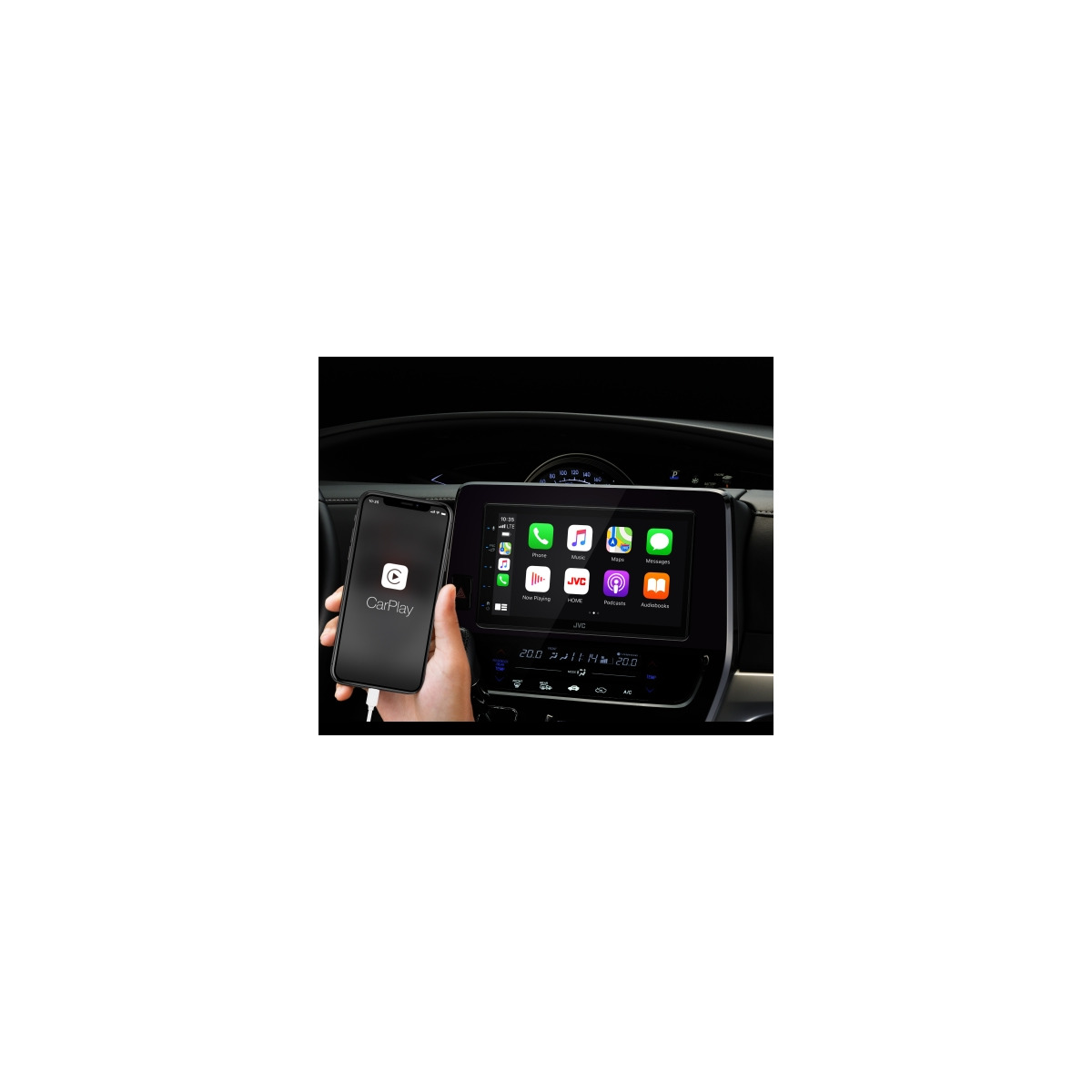

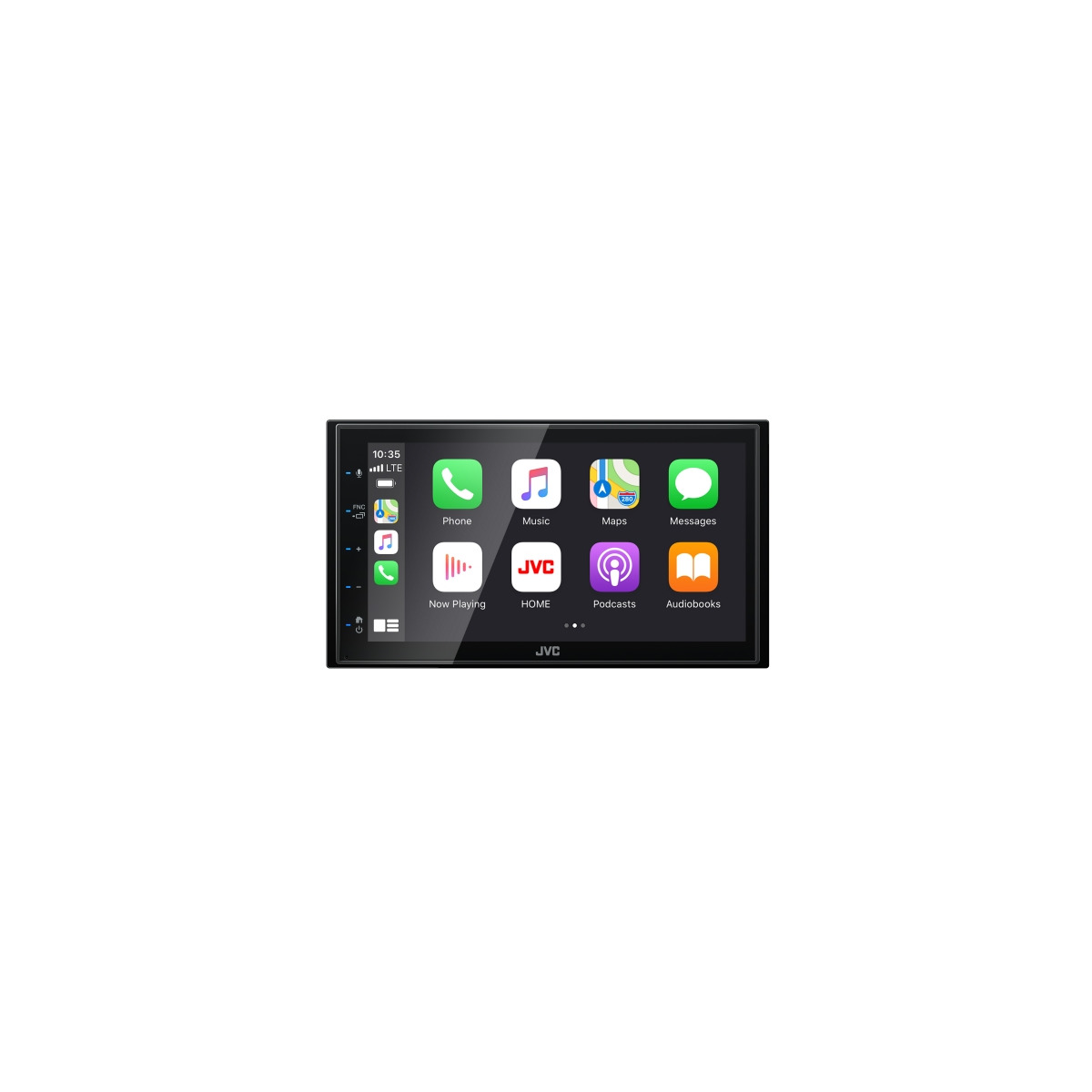

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch. With the latest iOS version (iOS 13.0 and higher), 3rd party navigation apps like Google Maps and Waze are supported.

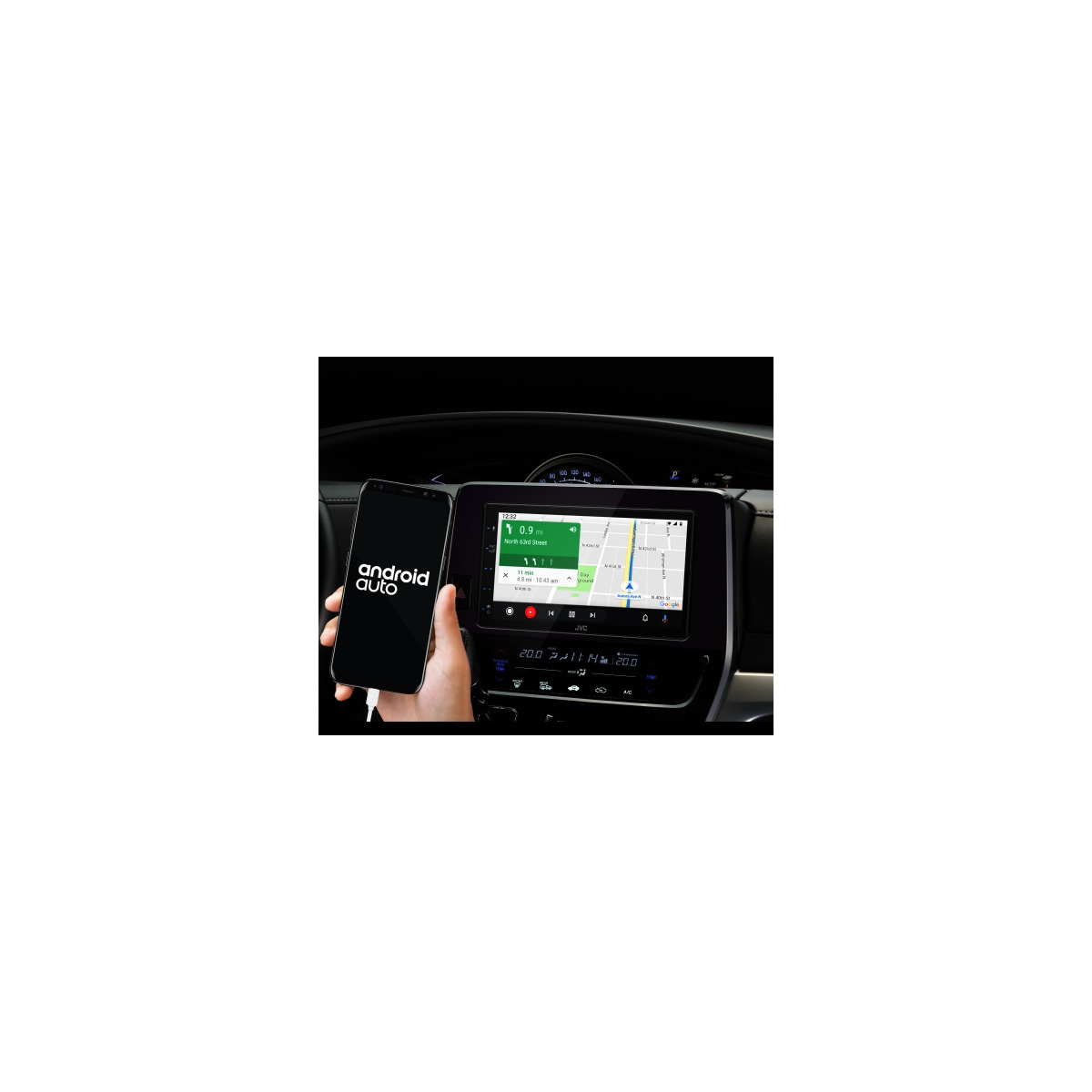

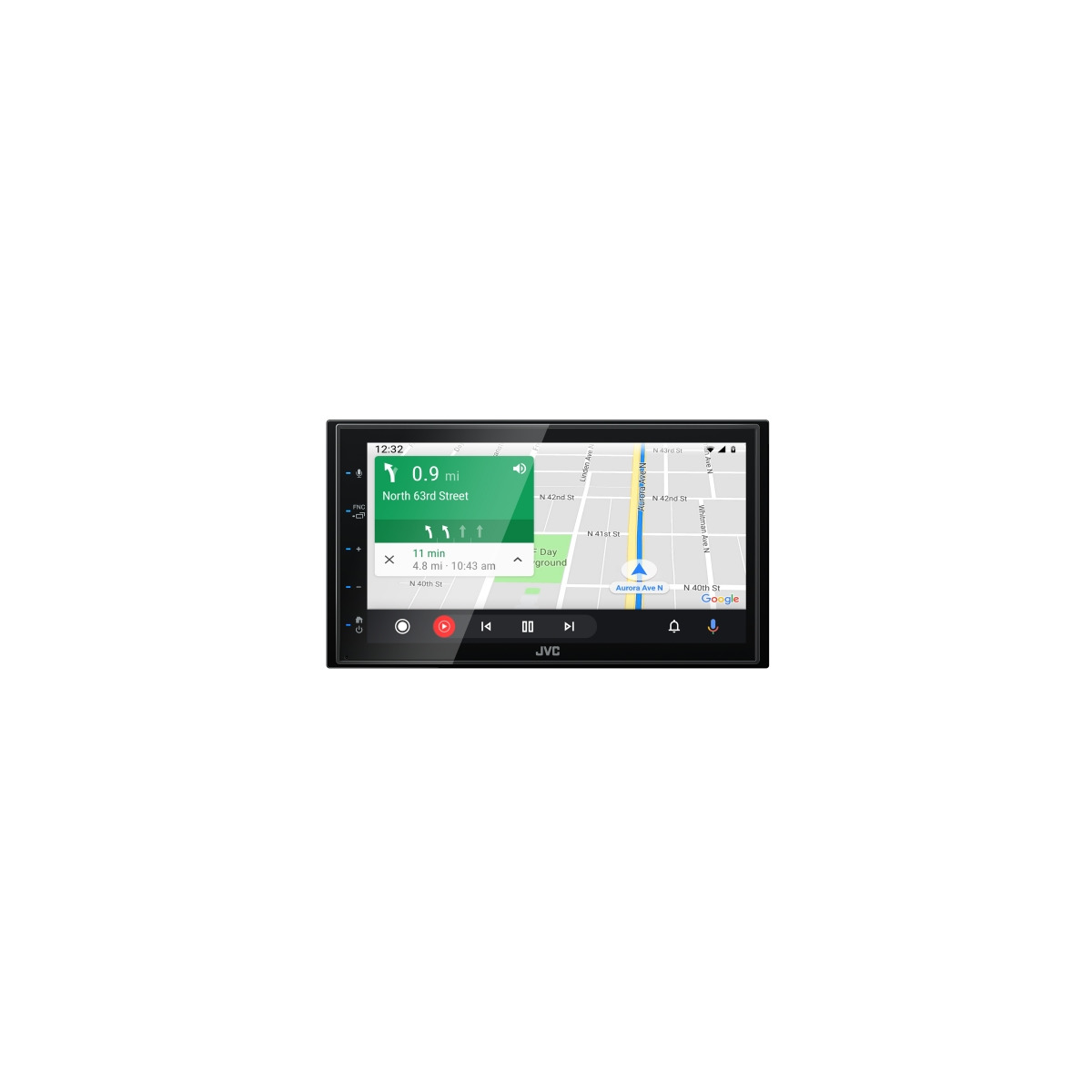

Android Auto was designed with safety in mind. With a simple and intuitive interface and powerful voice actions, it’s designed to minimize distraction so that you can stay focused on the road.


By installing the “Mirroring OA for JVC” app, your Android phone is seamlessly displayed on the receiver's screen via USB. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and smartphone.


By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.


The Capacitive touch screen provides high clarity and uses a superior touch control, requiring lighter contact with greater accuracy.


Just touch and move your finger over the screen for various operations corresponding to your finger movements. Intuitive control provides safer operation for in-car entertainment.


Rapidly charge your smartphone using the USB port, with up to a maximum of 1.5A. *Compatibility depends on the smartphone.


The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.


The Rear View Camera input allows you to connect an optional rear view camera (sold separately).


Rear view cameras allow you to safely back up your vehicle, monitor towing, and more.





Features


-Digital Media Receiver featuring 6.8" Capacitive Touch Monitor


-Apple CarPlay


-Android Auto


-USB Mirroring for Android Phones


-Bluetooth


-13-Band EQ


-Shallow Chassis





Specifications


-Screen Size 6.8"W VGA Screen


-Touch Panel Capacitive


-Monitor Touch Control  Yes


-Customisable GUI Yes


-Key Illumination Color Blue


-Dimmer Yes


-Multilingual Display Yes[4]


-MP3 Compatible with Tag USB


-WMA Compatible with Tag USB


-WAV Compatible with Tag USB


-AAC Compatible with Tag USB


-FLAC Compatible with Tag USB


-H.264 Compatible USB


-WMV Compatible USB


-MPEG 1/2 Compatible USB


-MPEG 4 Compatible USB


-AVI/MKV Compatible USB


-Built-in Bluetooth[1] Yes (Wired-Mic included)


-Hands Free Call Yes (HFP1.6 Wideband Speech)


-Audio Streaming & Control (A2DP, AVRCP) Yes


-Supported Audio Formats AAC / SBC


-Voice Dialing (voice recognition compatible mobile phone required) Yes


-Phone Book Access Profile (PBAP) Yes


-Alphabetical Search for Phone Book Yes


-Auto Pairing for iPhone/Android Yes (Android only)


-Android Auto[2] Yes (via USB)


-Mirroring for Android Yes (via USB) *Need mirroring App


-Android Music Playback Yes (via Bluetooth(R))


-CarPlay[3] Yes (via USB)


-USB Port x 1 (High Speed)


-Position Rear


-USB Power Supply Yes (1.5A High Current Charging)


-Radio Data System Yes


-Preset Stations  20(FM:15ch, AM:5ch)


-Automatic Presetting (Strong Station Sequential Memory) Yes


-FM Frequency Range 87.5-108.0MHz


-AM Frequency Response 531-1,611kHz


-Maximum Power Output (Front & Rear) 50Wx4


-Full Bandwidth Power (Front & Rear) 22W x 4 (Full Bandwidth Power, at less than 1% THD)


-EQ Yes (13-Band Graphic EQ)


-Preset EQ Yes (7Preset + 3user)


-Bass Boost Yes


-High-Pass Filter/Low-Pass Filter Yes/Yes


-Time Alignment Yes


-AV Input mini jack (AV-IN or Camera switchable)


-Video Out RCA


-Rear view camera Input Yes


-Line Output Terminals 2Preouts (Terminal) + Sub WF (Cable)


-Pre-output Level/Impedance 2.0V / 10k ohms


-Subwoofer Output with Level/Frequency Control Yes


-Back Up Memory Yes


-Wireless Remote Control Type Ready (RM-RK258 required)


-Steering Remote Control Ready Yes


-Learning Direct OEM Remote Yes


-ISO Connector Yes


-Dimensions (W x H x D)


-Installation Size 178 x 100 x 75 (mm)


-Weight 1.1kg


-Unit weight in individual package 1.8kg
