PH694 – 6″ X 9″ PRO FULL-RANGE CO-AX HORN SPEAKER

FEATURES:

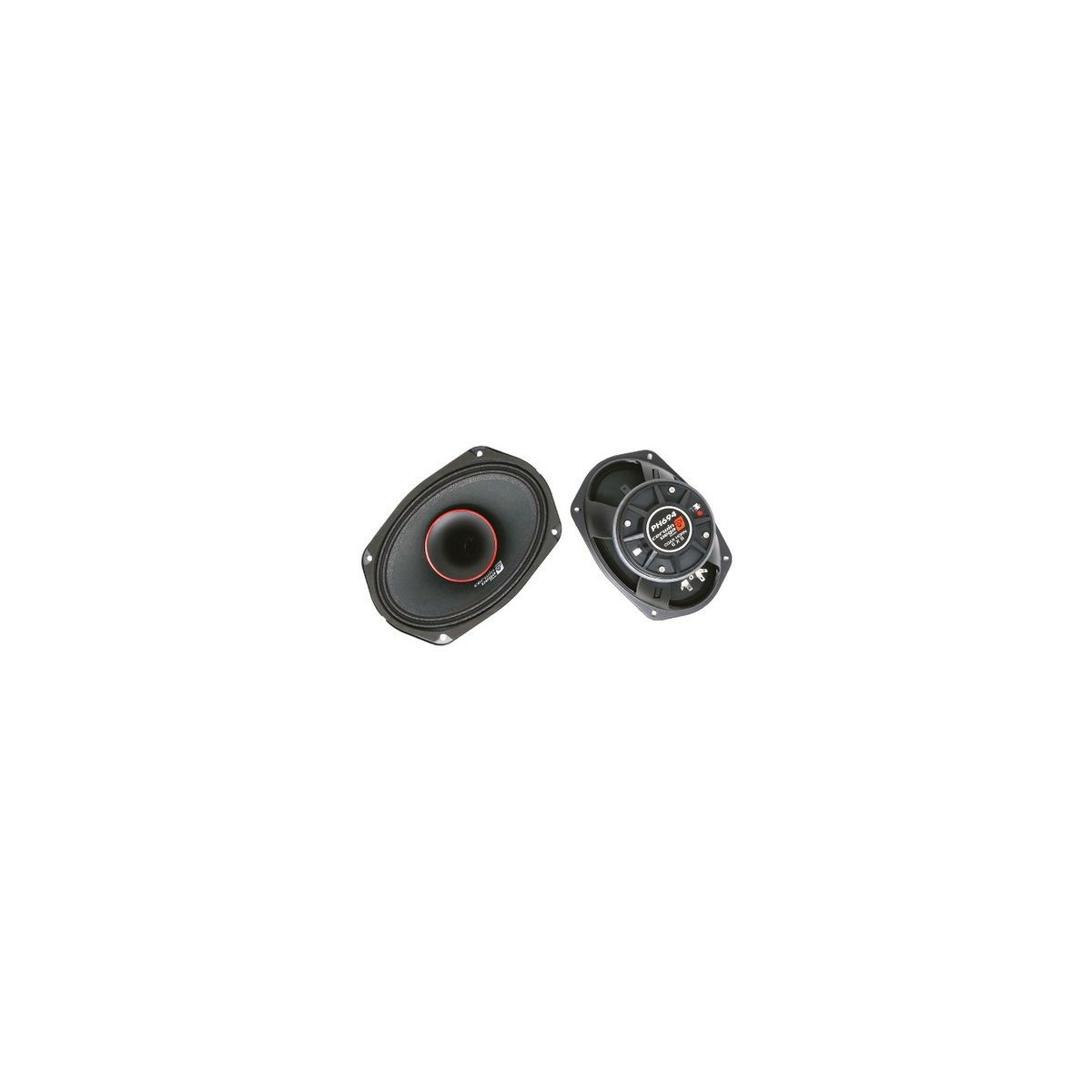

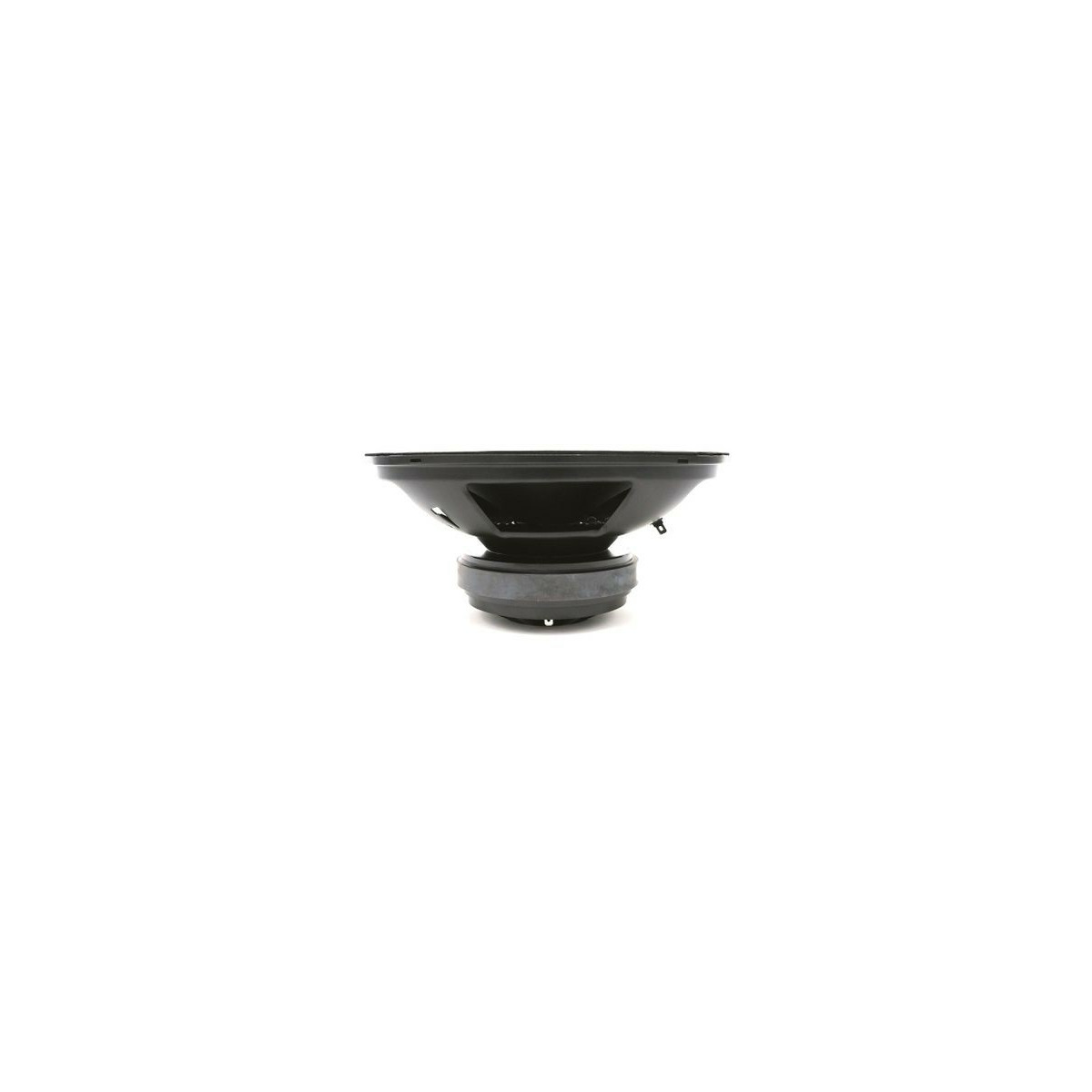

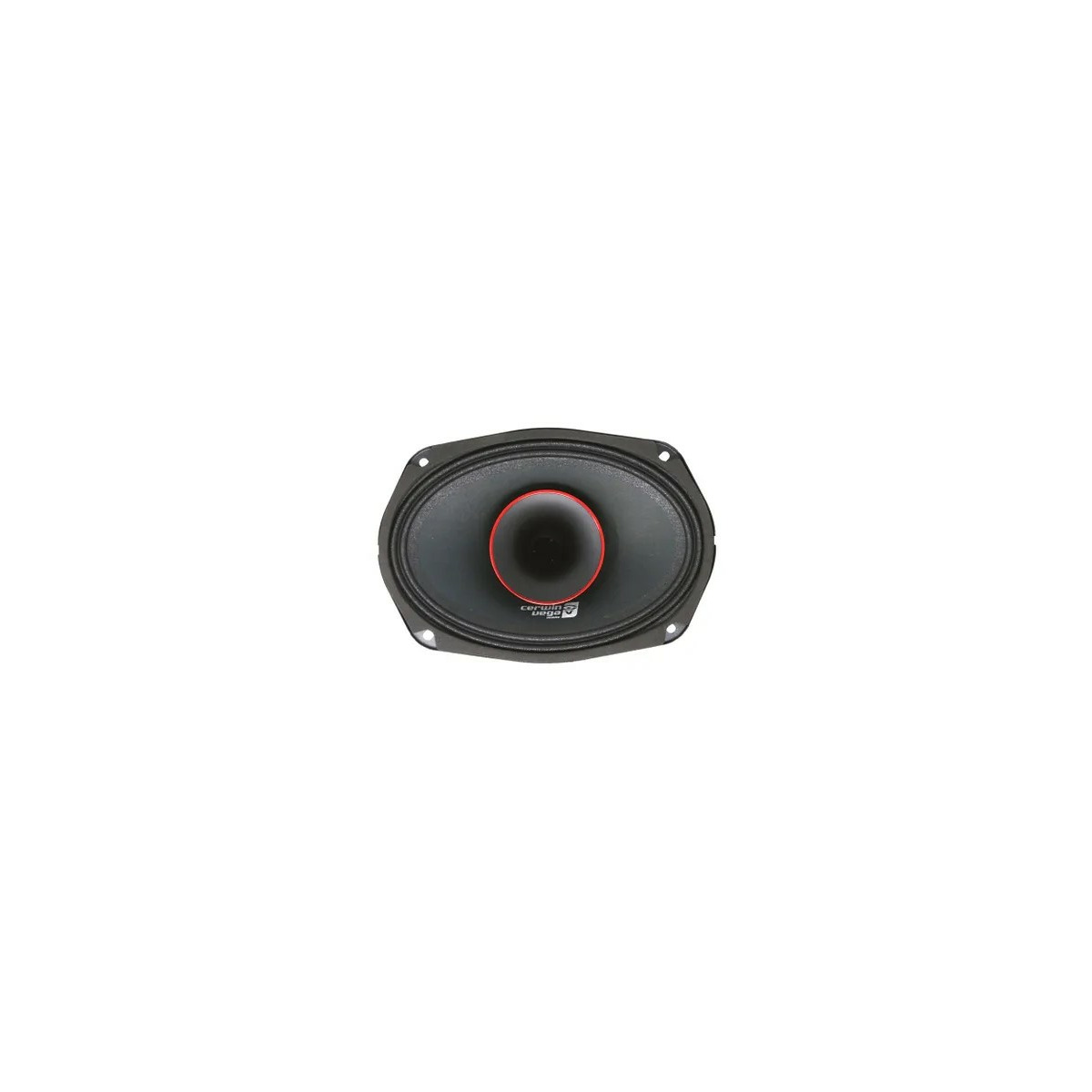

• 6" X 9” PRO Full-Range Co-Ax Horn Speaker, Pair

• Ferrite Strontium High Temp Magnet Structure

• Heavy Duty Stamped Steel Basket

• Advanced Voice Coil Heat Sink Design for better heat dissipation

• 1.5” Single Layer High Temp Voice Coil with Black Coated Voice Coil former for Woofer

• 1.0” Single Layer High Temp Voice Coil with Black Coated Voice Coil former for Tweeter

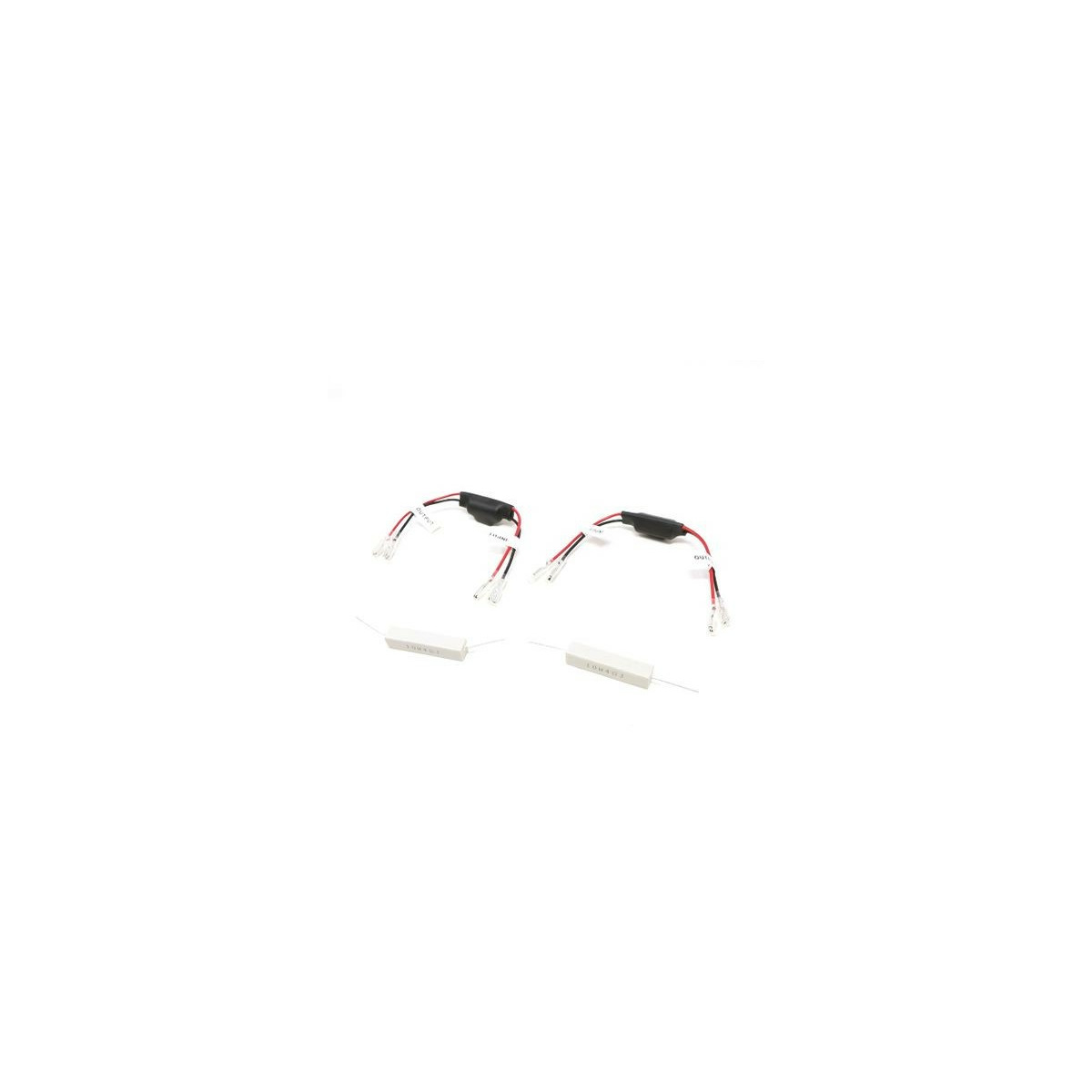

• 12dB 2nd Order Filter Crossover for better Protection of the Tweeter

SPECIFICATIONS:

• 160W RMS / 320W MAX Power Handling

• Mounting Depth: 3.90” / 99mm

• Mounting Diameter: 8.74” x 5.98” / 222mm x 152mm

• Frequency Response: 80Hz -18Khz

• High Sensitivity 103dB 1W/1M
