Magnat Signature IWT 262

Purchase this product

RRP: $1,299.95
Our Price: $1,299.95

Enquire about this product Print Product Information

High end in-wall


Overview
The largest model for wall installation is the Signature IWT 262, which features two 16 cm woofers and a tweeter. The heavy-duty built-in speaker is ideal for use in a demanding stereo environment or as a front speaker (L/C/R) in a home cinema setup. Thanks to its balanced dispersion properties, it can be used in both a vertical and horizontal configuration. The latter version makes it perfect for installation underneath projector screens and flat screen TVs. A rather low installation depth of just 100 mm ensures an uncomplicated installation process, even in rooms where space is at a premium. The treble level can be adjusted in three stages, which allows the sound to be adapted to different room acoustics.

Features
-
High-end chassis technology with ceramic/aluminum bass-midrange drivers and a coated fabric dome
-
High load capacity with compact dimensions
-
Uncomplicated installation thanks to a sophisticated mounting system
-
Tonal structure perfectly coordinated with the Signature series, therefore can be individually combined
-

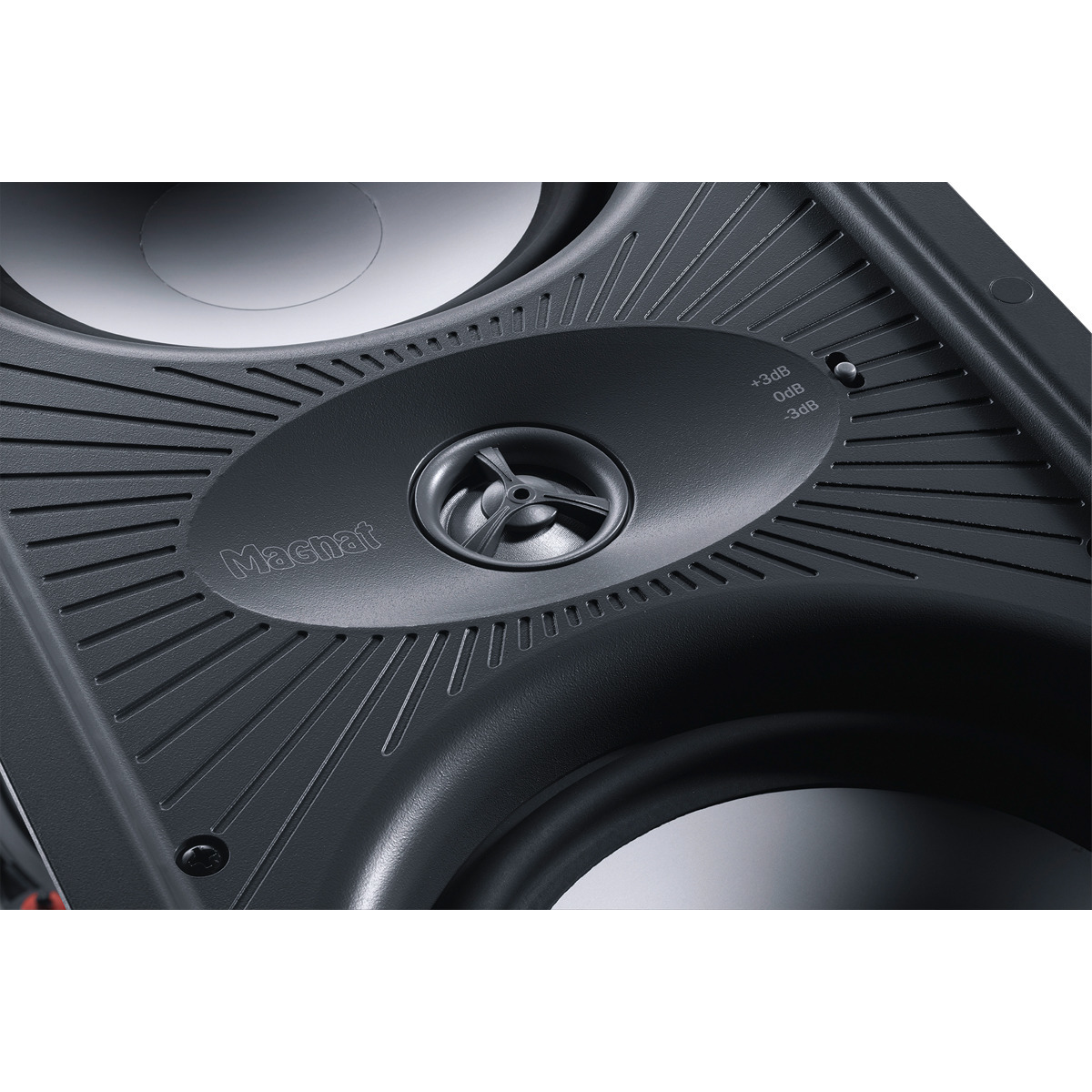

Treble level can be adjusted in 3 stages
-

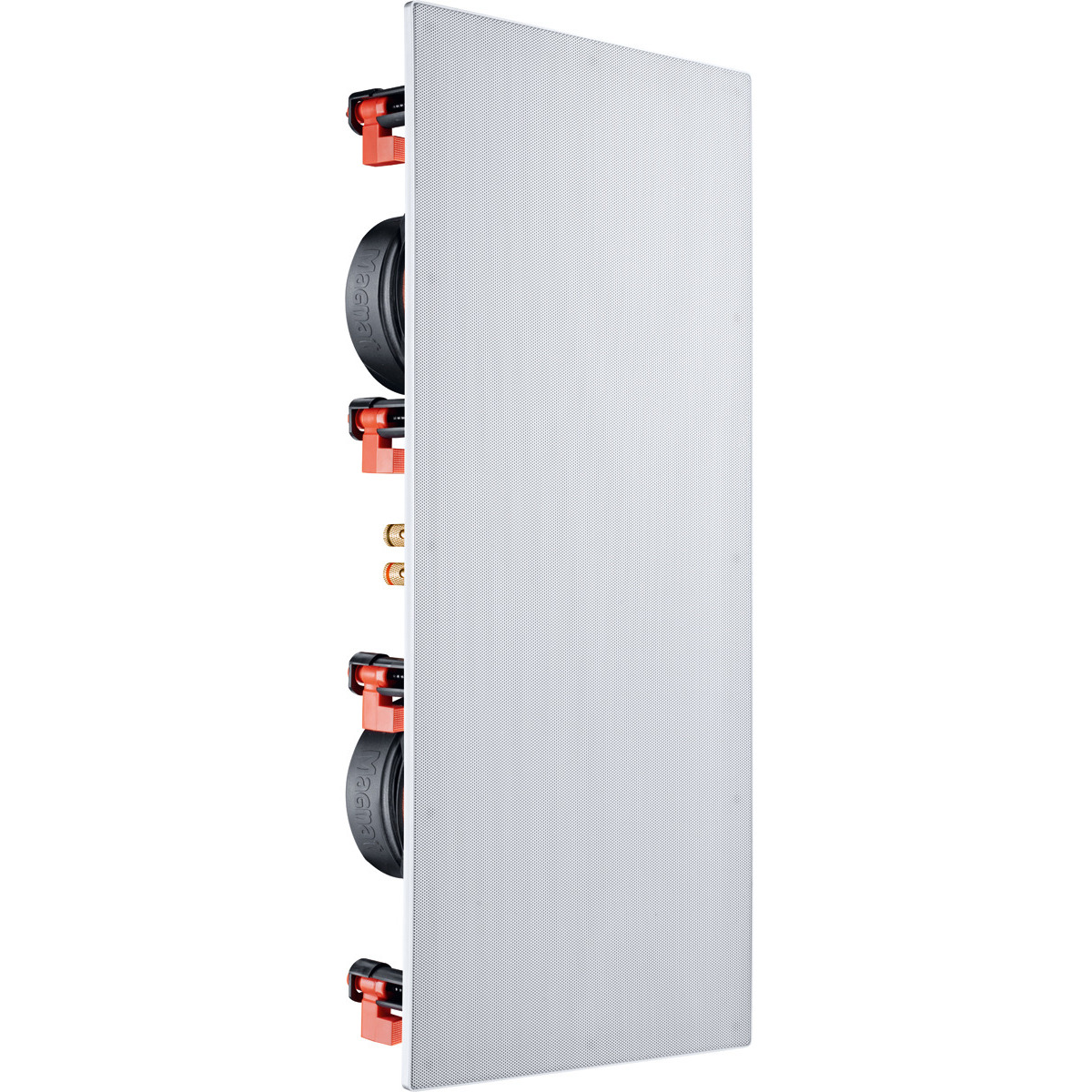

Removable magnetic metal grill with fine perforations and very slim design for an elegant appearance
-
Gold-plated push terminals for cables with cross-sections of up to 6 mm²
-
Large high-end fabric dome with protective diffusor for excellent dynamics and harmonic coupling to the woofer-midrange
-
Woofer-midrange with powerful drive system and 3-layer aluminium/ceramic sandwich cone for deep bass reproduction and highest sound precision
-
Durable long-throw rubber surrounds for linear operation of the woofer-midrange drivers to handle even large cone excursions
-
Woofer-midranges with magnet protection cover to prevent any damage and undesirable background noise
-

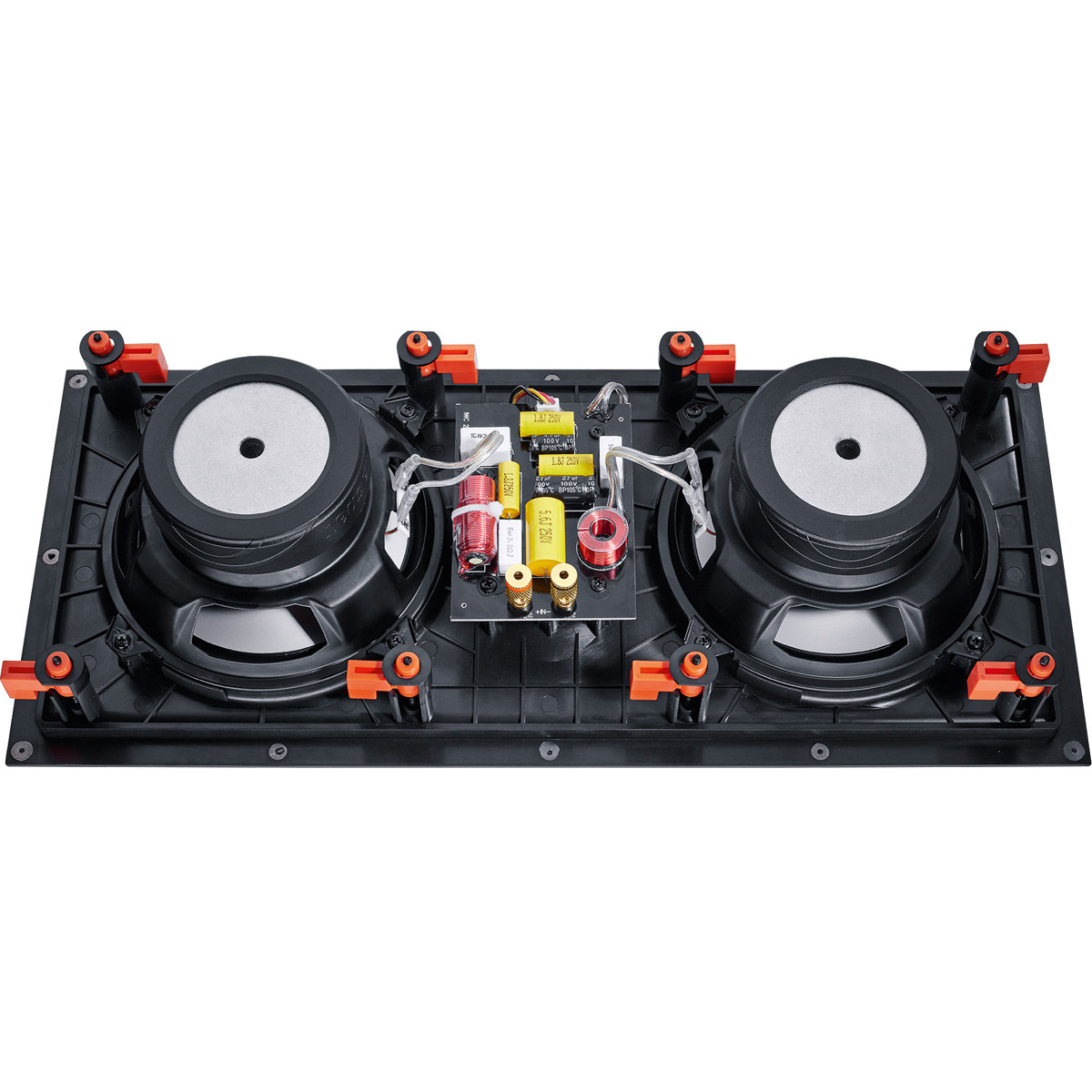

Elaborate phase-optimized crossover with 3 settings for the tweeter level
-
Designed for installation in drywalls (no housing required) or in closed volumes (30 liters or more)
-
6fold clamping mechanism for very easy and robust installation in surfaces of up to 30 mm thickness
-
Klippel®-optimized speaker drivers for high efficiency and maximum level

Specifications
FREQUENCY RESPONSE 30 - 28000 Hz
PRINCIPLE 2-way in-wall loudspeaker, double woofer
EQUIPMENT 2 x 6.5“ woofer-midrange
POWER HANDLING (RMS/MAX.) 30 / 200 Watts
IMPEDANCE 4 Ohms
CROSSOVER FREQUENCIES 2900 Hz
SENSITIVITY (2.8V/1M) 91 dB
OUTER DIMENSIONS Ø 220 x 491 mm
MOUNTING DEPTH 100 mm
WEIGHT 3.42 kg
CUTTING OUT (WXH) 186 x 456 mm
