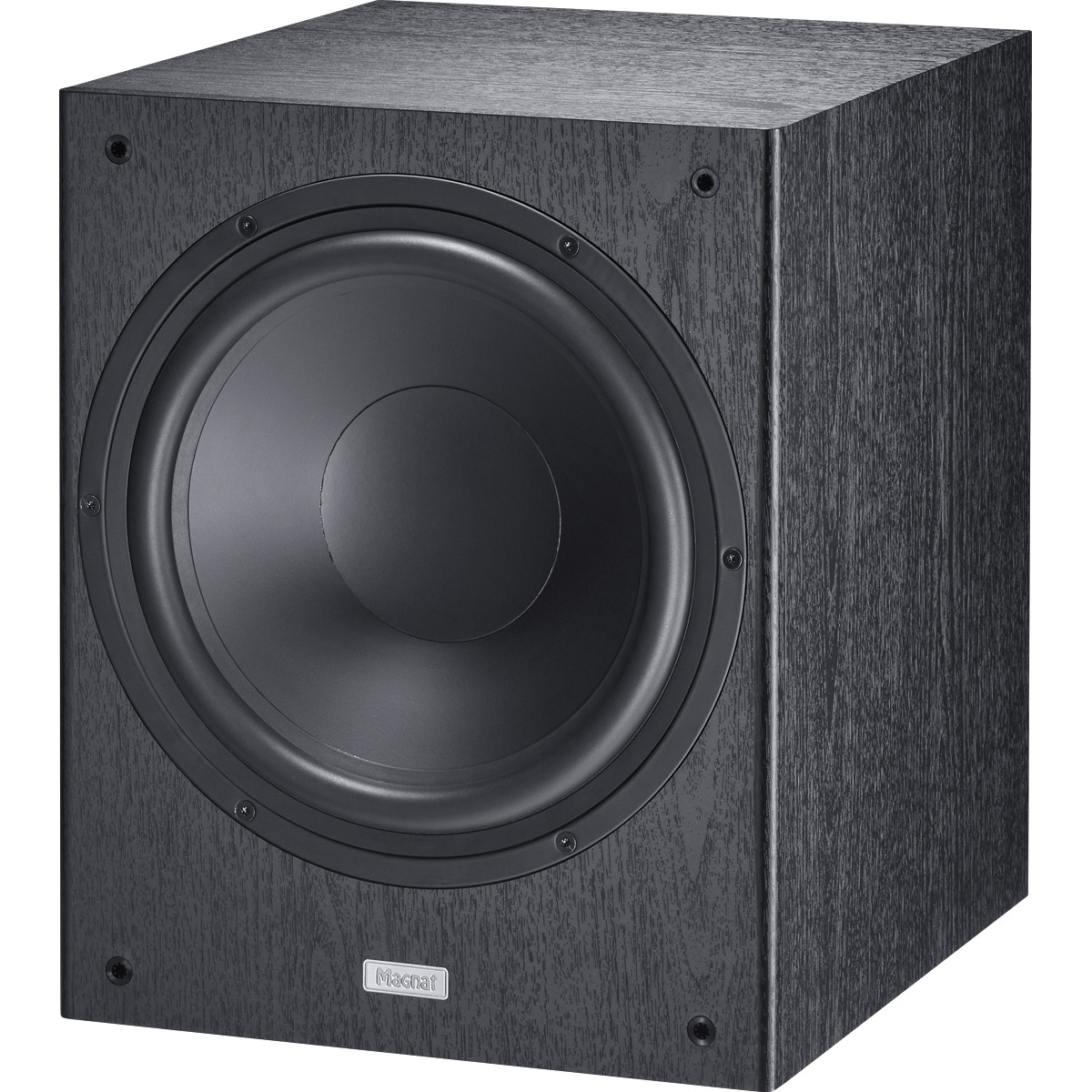

ACTIVE BASS REFLEX SUBWOOFER

Bass upgrade for the Tempus system with great power and strong bass

Subwoofer for additional bass and thrilling reproduction of action scenes

120 watts RMS power output thanks to the high-performance Class D amplifier

300 mm high-power long excursion woofer with coated paper membrane plus bass reflex for powerful bass reproduction

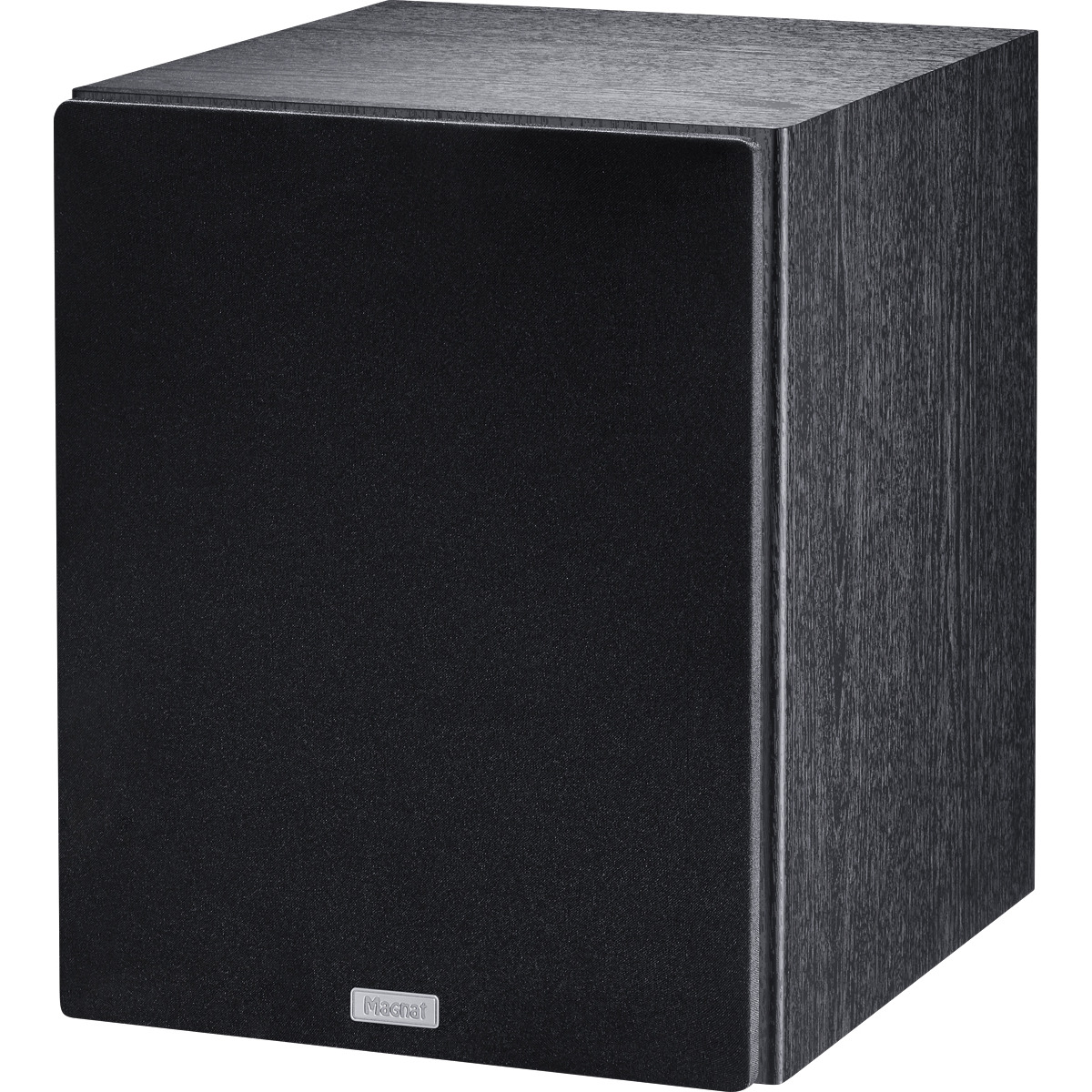

Sturdy MDF housing with elaborate bracing and removable front grille

A 120 watt RMS class-D high performance amplifier, which is housed in the active bass reflex subwoofer of the Tempus series, provides the relentless powerful drive for the 300 mm long-throw woofer with its coated paper cone. With a Klippel-optimized magnet system and ventilated high-performance voice coil it is capable of generating a solid and voluminous, yet extremely precise deep bass range. To ensure no resonance or flow noise is produced, despite the huge movement of air that is created, the sturdy MDF housing has been equipped with elaborate bracing and two generously dimensioned Airflex ports. Volume, crossover frequency and phase can naturally be adjusted, while the active frequency response equalization system optimizes levels in the sub-bass range. The Tempus Sub 300A also features an automatic standby function with a power consumption of less than 0.5 watts.

PRINCIPLE - Powered bassreflex subwoofer, frontfire

EQUIPMENT - 300 mm Woofer

OUTPUT POWER (RMS/MAX.) - 120 / 240 watts

FREQUENCY RESPONSE - 20 – 200 Hz

CROSSOVER FREQUENCIES - 50 - 150 Hz adjustable

PHASE - switchable 0°/180°

DIMENSIONS (WXHXD) - 355 x 447 x 422 mm 355 x 447 x 445 mm (incl. base)

WEIGHT - 16.3 kg

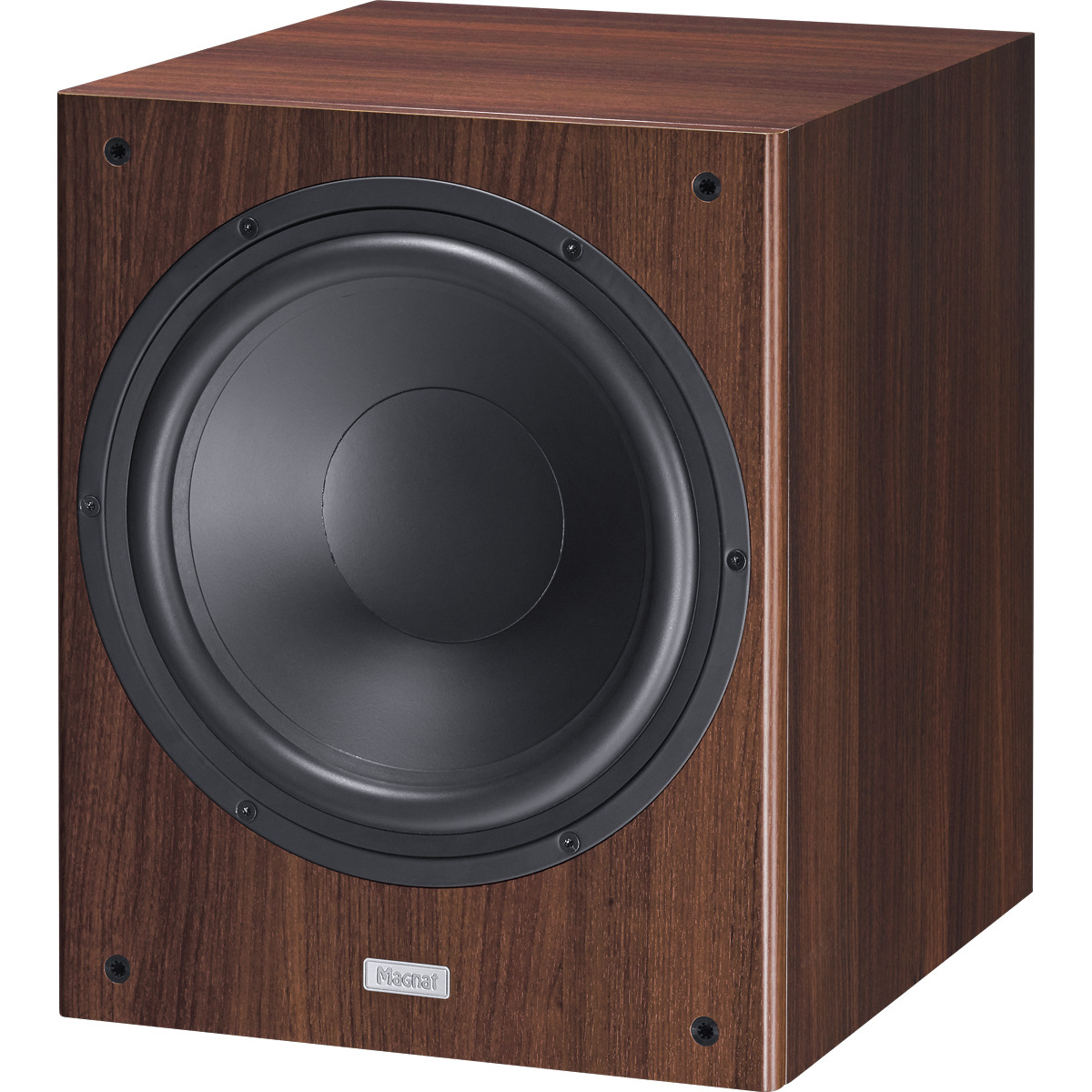

CABINET SURFACE - Ash decor Black Ash decor mocca

WOOFER - 300 mm high-power long-throw woofer with Klippel®-optimized magnet system. Ventilated high-performance voice coil to guarantee highest operational reliability. The coated paper cone ensures a profound audio reproduction

CONNECTIONS - Stereo low level inputs. Stereo high level inputs. Mains supply

CABINET - Front-fire construction. Two generously dimensioned Airflex ports with low flow resistance. Sturdy MDF housing with elaborate bracing and removable front grille. Resonance-damping rubber spikes included in delivery

AMPLIFIERS -  - Mains voltage 110 – 240V, Active frequency response equalization up to 150 Hz (LPC circuit) for seamless integration in AV environments. Automatic standby function with low power consumption <0.5 watts (can be switched off). Power switch, Phase switchable from 0° to 180°, Adjustable volume and crossover frequency, High performance class-D amplifier
