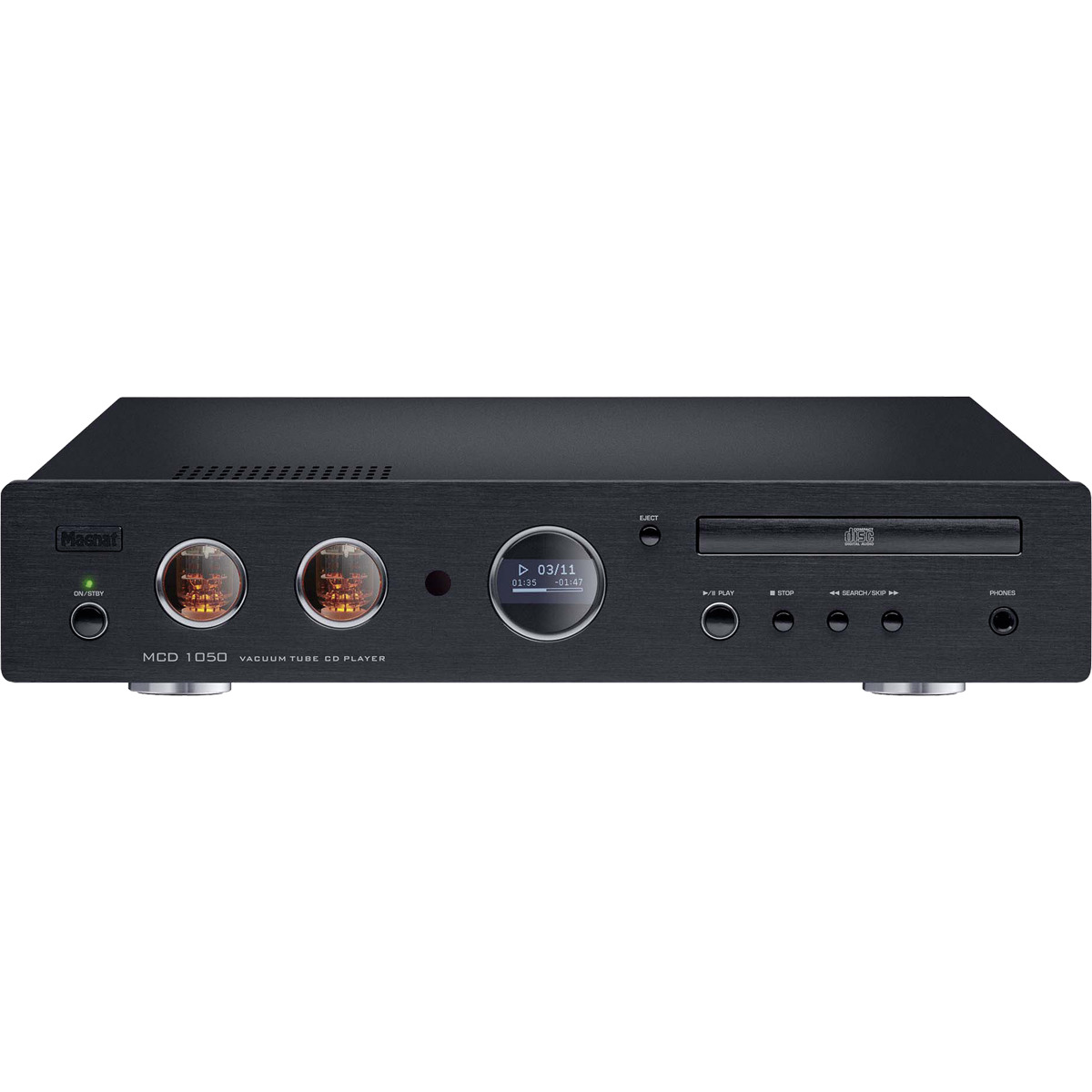

MAGNAT MCD1050

Purchase this product

RRP: $5,769.95
Our Price: $5,481.45

Enquire about this product Print Product Information

HIGH-END CD PLAYER WITH TUBE OUTPUT


Elaborately designed CD player for highest audiophile demands


High-quality Pure CD drive with Sanyo laser unit


24-bit Burr Brown D/A converter for loss-free data conversion


Audiophile tube output stage with selected ECC 88 tubes


Stylish enclosure design and modern operating convenience thanks to a high-quality system remote control


The MCD 1050 is a very cleanly designed high-end CD player with integrated tube pre-amplifier! It delivers both highest precision from cleanly scanned signals and highest resolution for digitally sourced signals. The pure CD drive ensures that optical media are precisely scanned – but the best things about this product are the digital inputs for scanning rates of up to 192 kHz/24 bits. Digital optical, coaxial and USB sources may be connected to the MCD 1050 to utilise its high-quality D/A converter section. This high-end player also possesses a switchable upsampling function to 192 kHz/24 bits for CD and digital inputs.


PLAYABLE FORMATS - CD-DA CD-R CD-RW HDCD


DIGITAL INPUTS - USB 2.0, type B connector optical (Toslink™) coaxial (cinch) Supported sampling frequencies: 44.1/48/88.2/96/176.4/192kHz Supported bit depth: 16/24bits


DIGITAL OUTPUT - optical and coaxial


FREQUENCY RESPONSE - CD: 5 Hz – 20 kHz (+/- 0.5 dB)


IMPEDANCE - 2,0 V / 10 Ohm


CHANNEL SEPARATION/ - > 106 dB (1 kHz)


POWER CONSUMPTION - Typ 25 W Standby < 0,5 W


MAINS VOLTAGE - 230 VAC / 50 Hz


S/N RATIO - > 109dB (20Hz – 20kHz, A)


DIMENSIONS (WXHXD) - 434 x 90 x 330 mm (345 mm incl. controls and connectors) Remote control: 47 x 198 x 23 mm


WEIGHT - 7.5 kg


COLOR - Black


HIGHLIGHTS -


Separate standby power supply for low power consumption in standby mode


Sophisticated power supply with R-core transformer

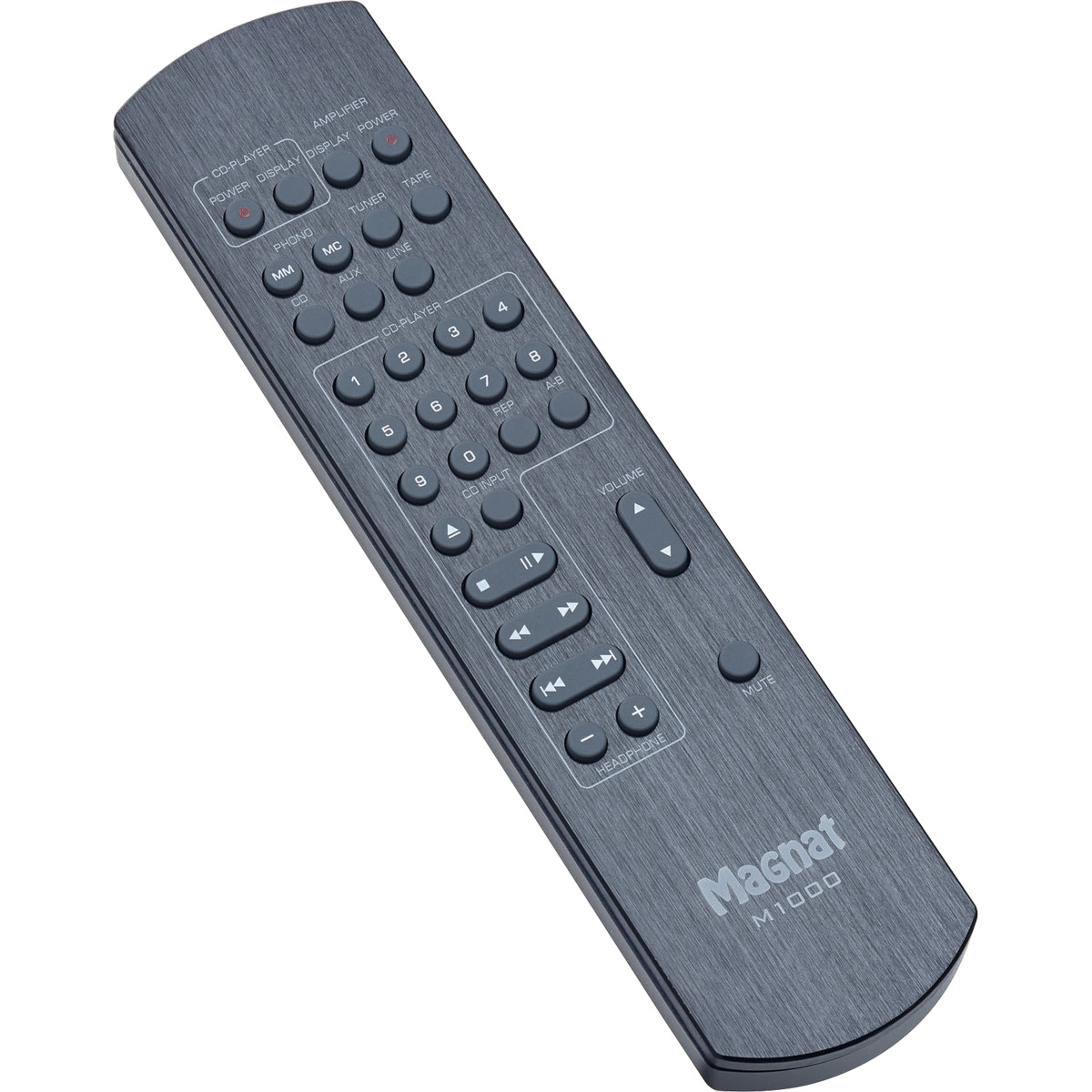

Handy remote control to access all functions


High-contrast, state-of-the-art "Organic LED" display


Two different display modes available


High quality headphone amplifier with volume adjustment via remote control

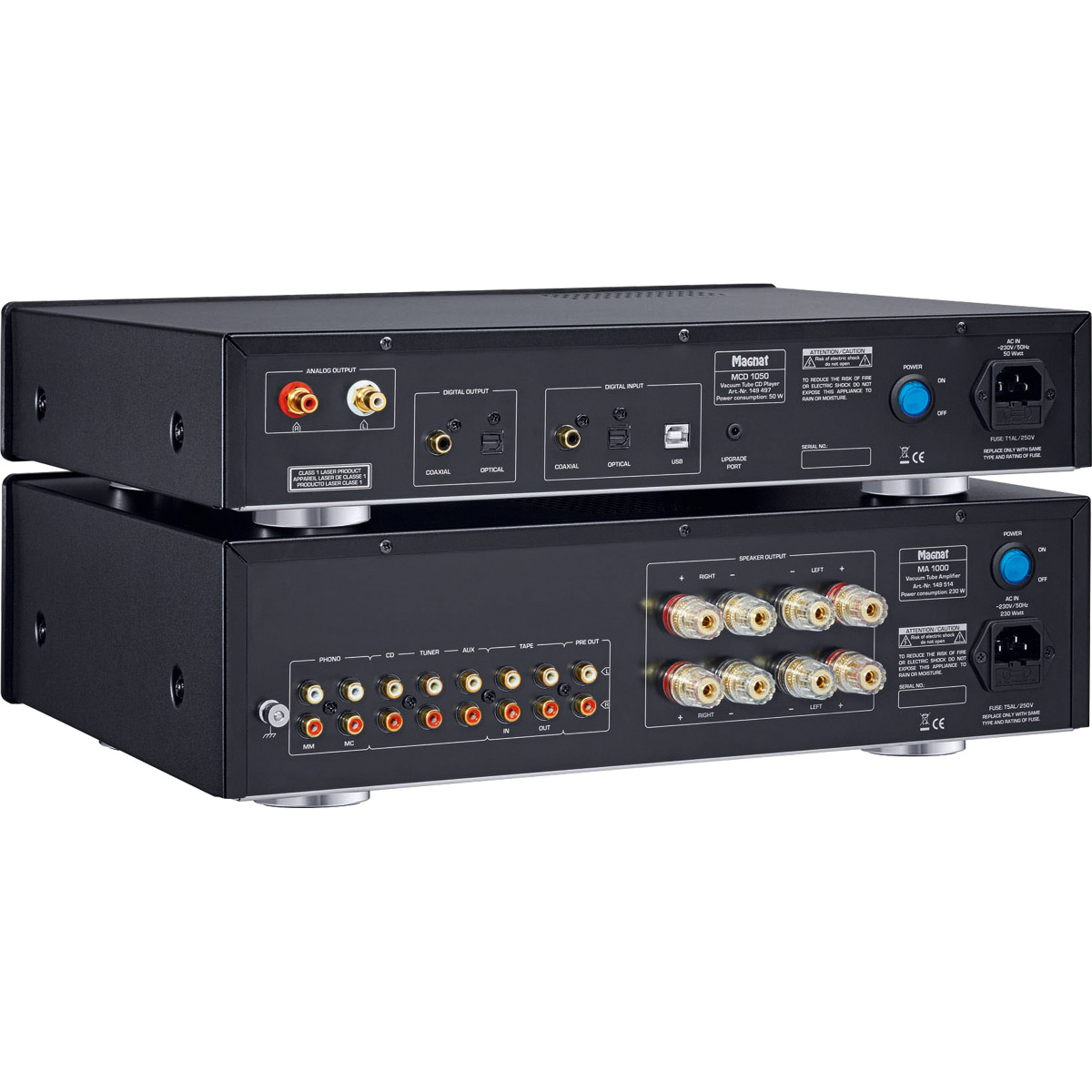

CONNECTIONS -


Digital outputs (optical and coaxial)


High-quality RCA output connectors


Digital inputs (optical and coaxial) for sampling frequencies up to 192kHz/24Bit


USB 2.0 input supports sampling frequencies up to 192kHz/24Bit


CABINET - Robust housing with milled, 8 mm thick aluminium front panel, Solid aluminium control elements
