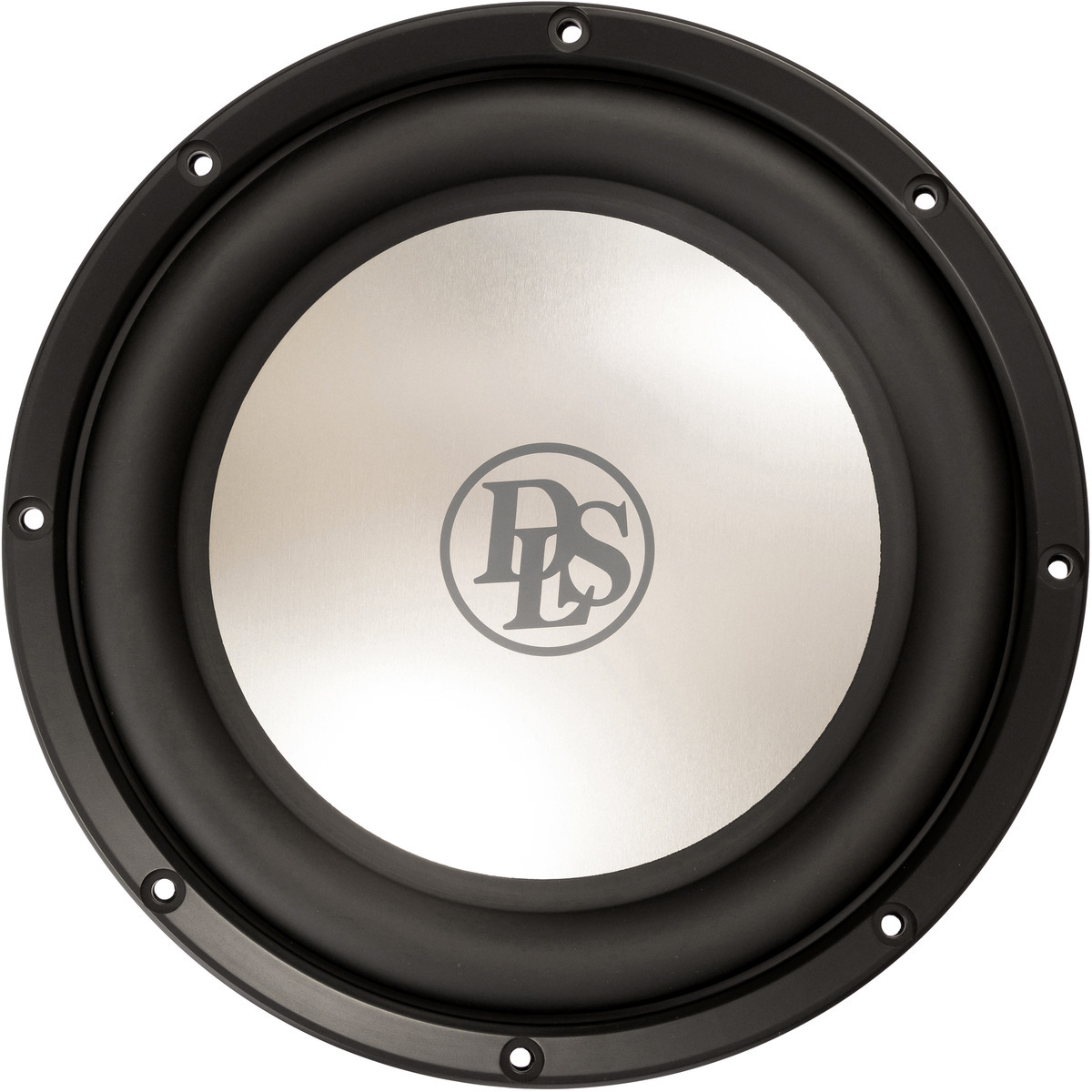

DLS RCW10 Reference Series 10" 4 Ohm 800 Watt Car Subwoofer

Overview

RCW10 is a brand new10" subwoofer in Reference series with the latest technology giving the sub fantastic sound quality

Dual 4 ohm voice coils, Use single voice coil connection or connect in parallel to 2 ohms for maximum output power from your mono amplifier

Specifications

• Woofer size 10" (25 cm)
• Impedance 2 x 4 ohm
• Power handling capacity 300 W RMS
• Max power handling capacity 600 W
• Peak power 800 W
• Frequency range 25 - 1000 Hz
• Magnet size 160 mm (6,3")
• Sensitivity 84,4 dB (1W/1m)
• Outer diameter of woofer 266 mm (10,5")
• Mounting depth 133 mm (5,23")
• Mounting hole 235 mm ( 9,25")
• X-max +- 9 mm (0,35")
• Weight 5,3 kg (11,7 lbs)
