COMPACT HIGH-END STEREO CD RECEIVER WITH HI-RES QUALITY

Amplifier and digital-to-analogue converter in certified Hi-Res quality

High-quality CD drive with precision laser unit and DAB+/FM tuner with large station memory

Bluetooth® streaming (4.0) with the high-end audio standard Qualcomm® aptX™

Digital inputs (e.g. for direct connection of a TV) plus additional analog inputs and subwoofer output

Sturdy full-metal enclosure with solid aluminium front plate and controls

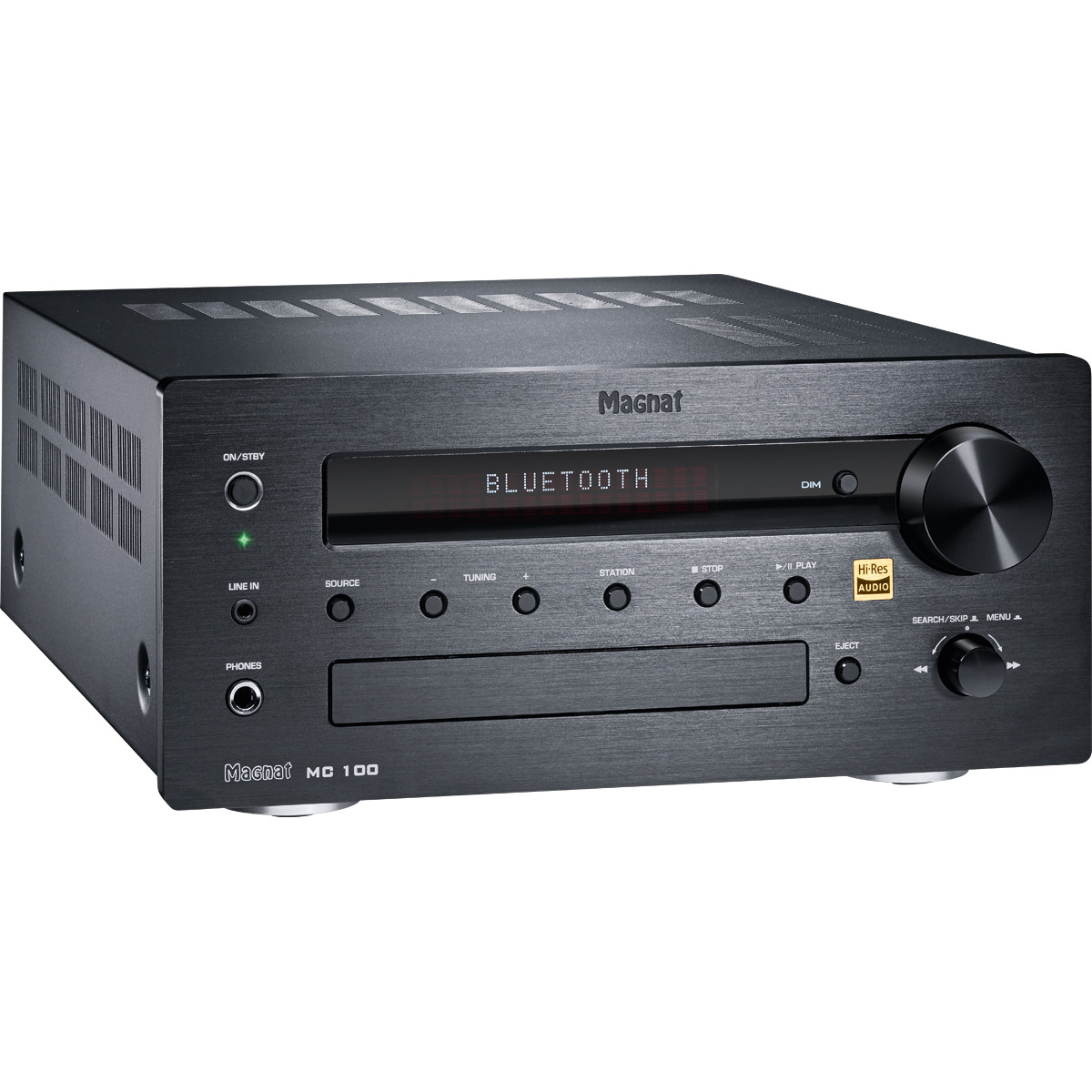

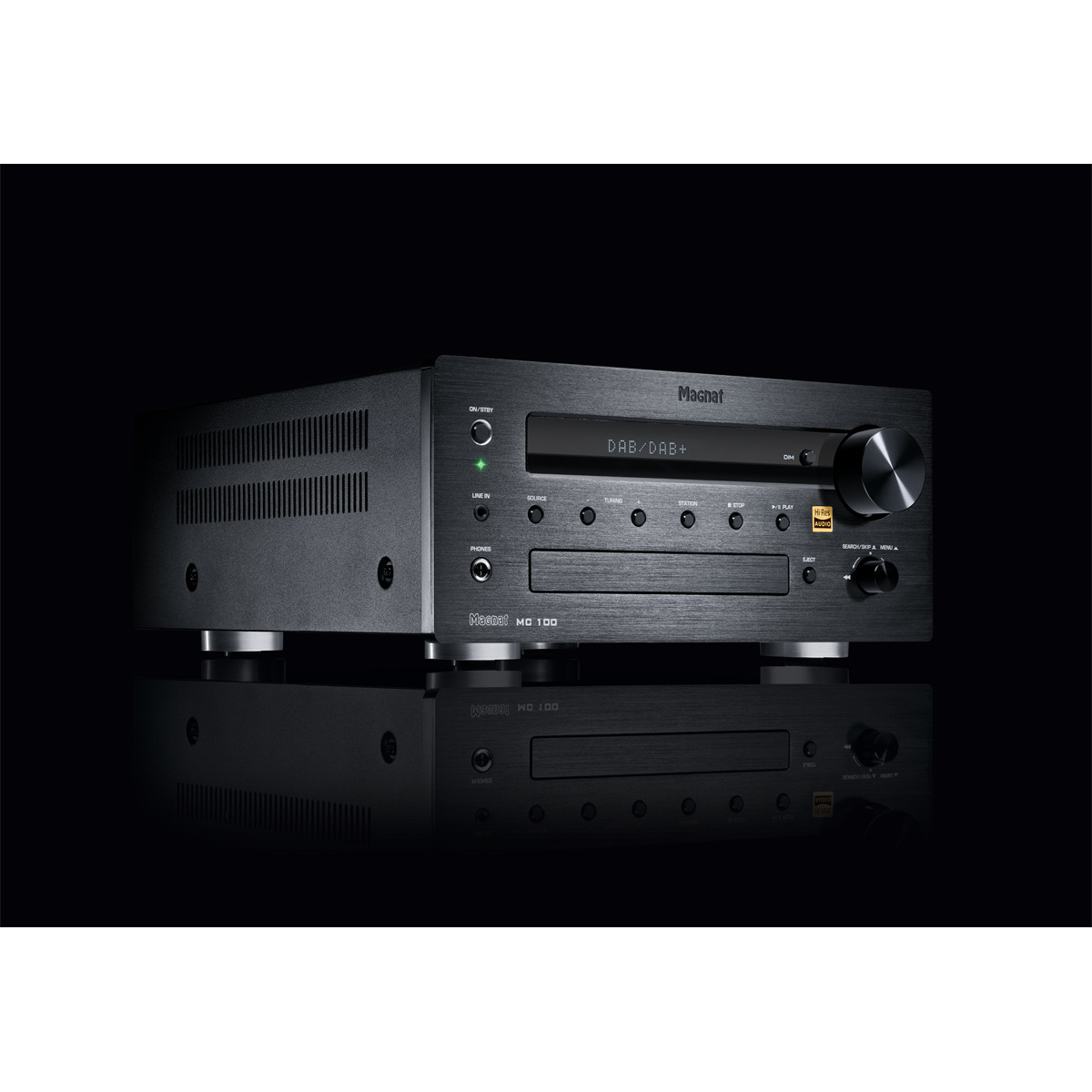

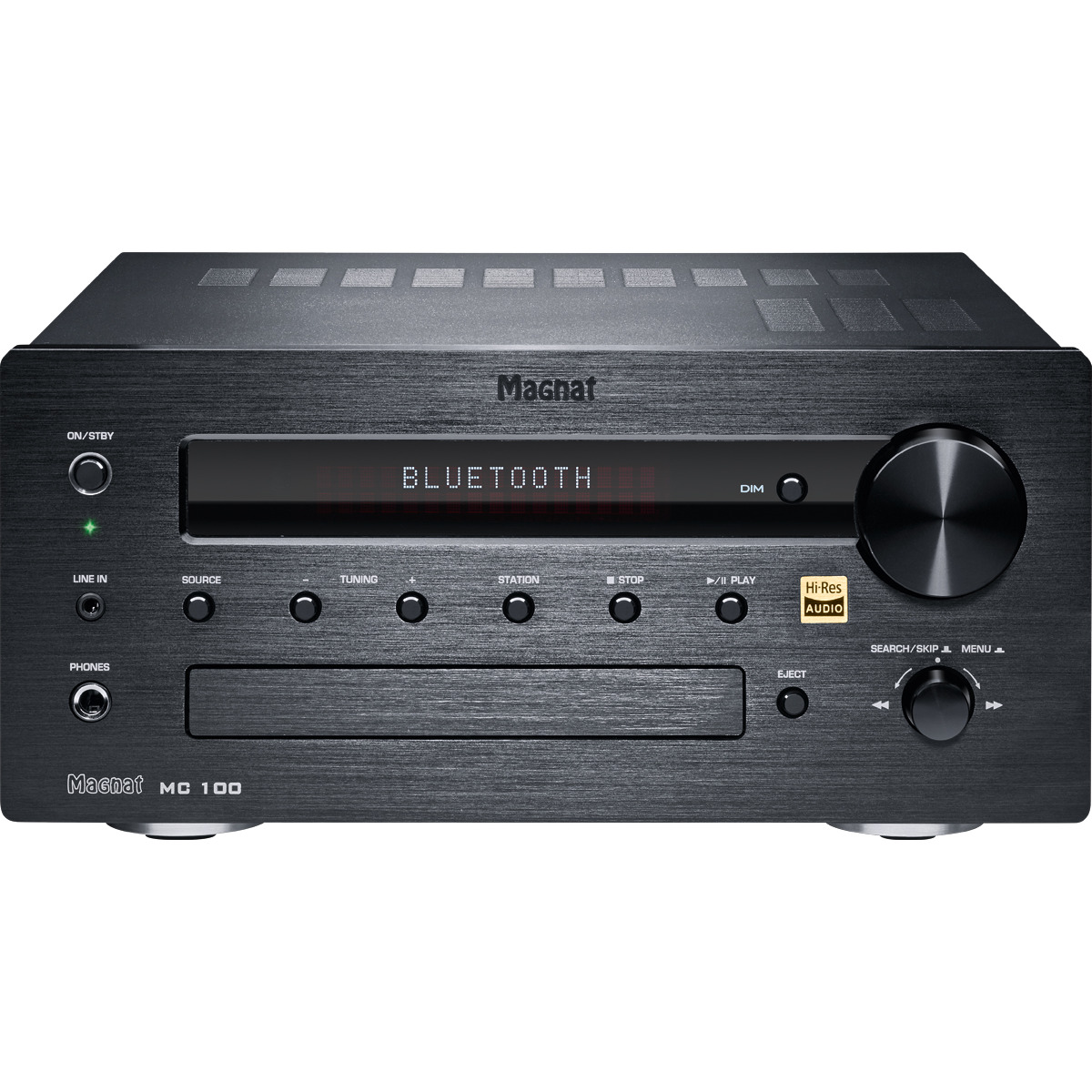

The Magnat MC 100 is a compact all-rounder with audiophile sound. Its exclusive Hi-Res certified converter and amplifier section makes it a high flier in terms of sound and, with its stable power amps, it is the perfect partner for high-quality loudspeakers. Despite its compact dimensions, it offers the full range of modern and classic media: In addition to the high-quality CD drive, it also features a UKW tuner, a future-proof, digital DAB+ receiver as well as the best sounding Bluetooth version, aptX™. The range of sources is rounded off by analogue and digital inputs. This is all packaged in a high-quality, solid-metal enclosure with a brushed aluminium front panel. With the controls also made of aluminium, the MC 100 can be controlled just as intuitively as with the remote control provided. Clear communication is ensured by the elegant 2-line display on the front panel.

FREQUENCY RANGE FM - 87.5 – 108 MHz

FREQUENCY RANGE DAB/DAB+ - 174.928 – 239.2 MHz (Band III)

SENSITIVITY FM - - 108 dBm

SENSITIVITY DAB/DAB+ - -100 dBm

PLAYABLE FORMATS - CD-Audio, CD-R, CD-RW, MP3, WMA

OUTPUT POWER / NOMINAL - 20 Hz – 20 kHz, THD < 1.0%, 4 Ohms, 2 x 35 W  20 Hz – 20 kHz, THD < 1.0%, 8 Ohms, 2 x 25 W

FREQUENCY RESPONSE - CD/Aux/Line: 10 Hz – 80 kHz (-3,0 dB), 20 Hz – 20 kHz (+/-0,5 dB)

INPUT SENSIVITY - Aux/Line 470 mV/100 kΩ

POWER CONSUMPTION - Standby < 0,5 W

DIGITAL INPUTS - optical (Toslink™) coaxial (cinch) Supported sampling frequencies: 44.1/48/88.2/96/176.4/192kHz Supported bit depth: 16/24bits

S/N RATIO - CD/Aux/Line: 98 dB (A), Digital inputs -

BLUETOOTH® INPUT - Bluetooth® 4.0 / Qualcomm® aptX™

DIMENSIONS (WXHXD) - Main Unit: 277 x 132 x 330 mm  277 x 132 x 370 mm (incl. controls and connectors) Remote Control: 45 x 175 x 20 mm

WEIGHT - 5.8 kg

COLOR - Black

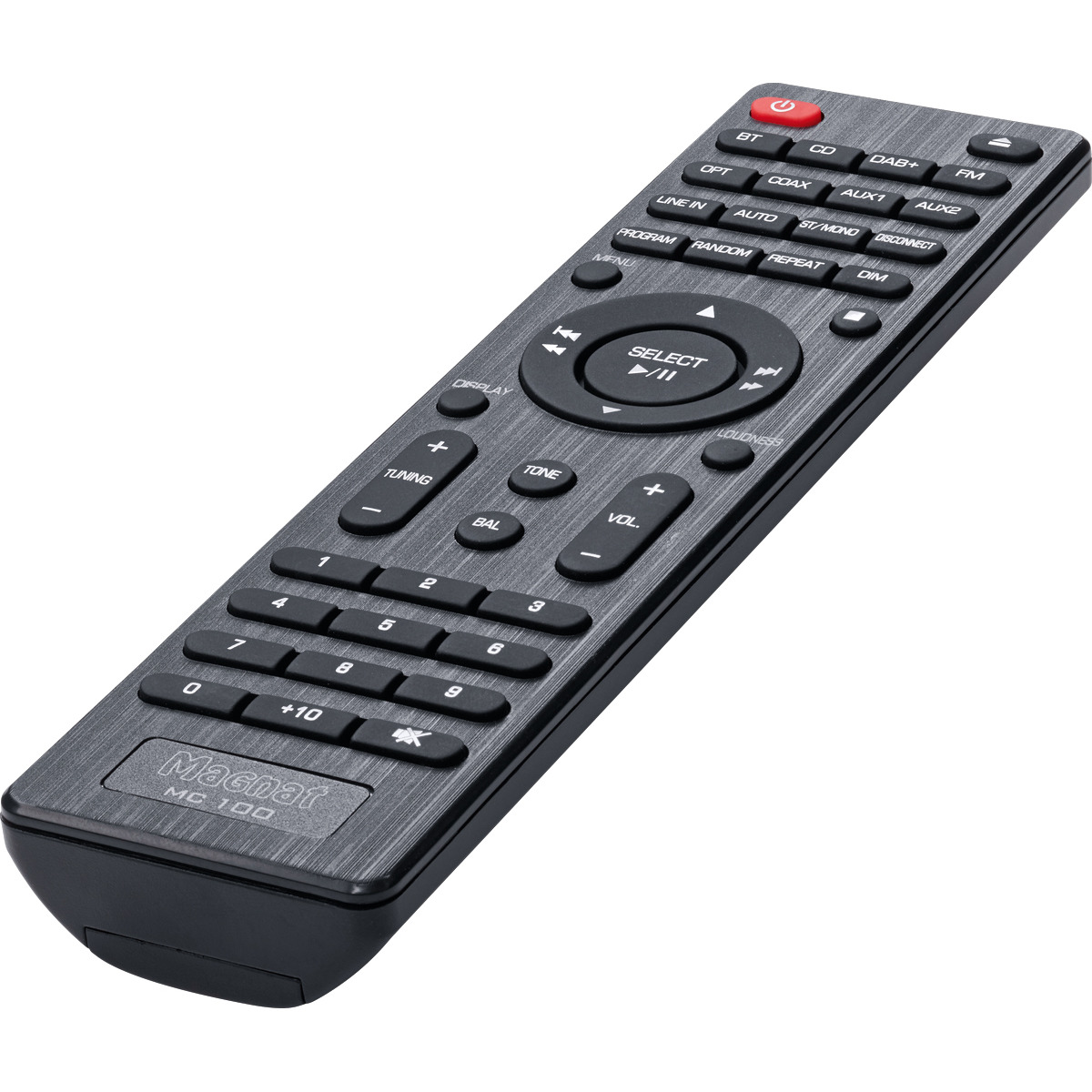

HIGHLIGHTS - Stable feet with damping rubber insert. Readable, two-line clear text display with adjustable brightness (3 stages). System remote control for all functions

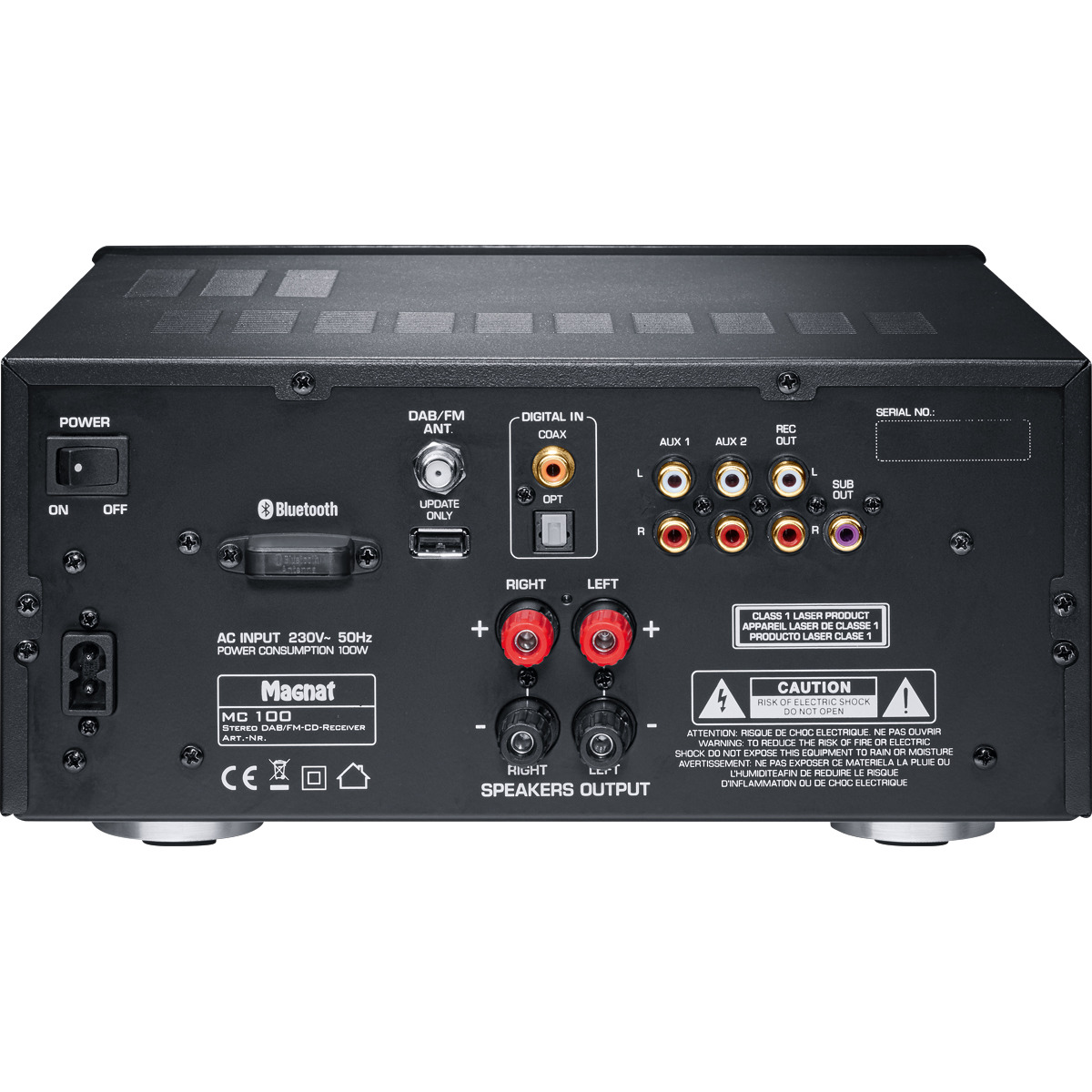

AMPLIFIER AND POWER SUPPLY -

Two analogue high-level inputs

Additional 3.5 mm audio input on the front panel for connecting portable devices

Digital inputs (1 x optical and 1 x coaxial) for sampling frequencies up to 192kHz/24bits, Hi-Res certified

Bluetooth® input (4.0) supports the high-end audio standard Qualcomm® aptX™

Analogue output for connecting a powered subwoofer

Record Out fixed level output

Headphone output with 6.3 mm jack

Output power: 35 Watt of sine power per channel (4 ohms)

Elaborate mains adapter

Shielded toroidal transformer

Standby power supply for low power consumption in standby mode

SCOPE OF DELIVERY - MC 100 receiver, Remote control incl. batteries, FM/DAB areal antenna, power cord, Instruction manual

CABINET - Solid aluminium control elements. Sturdy full-metal enclosure with solid, brushed aluminium front
