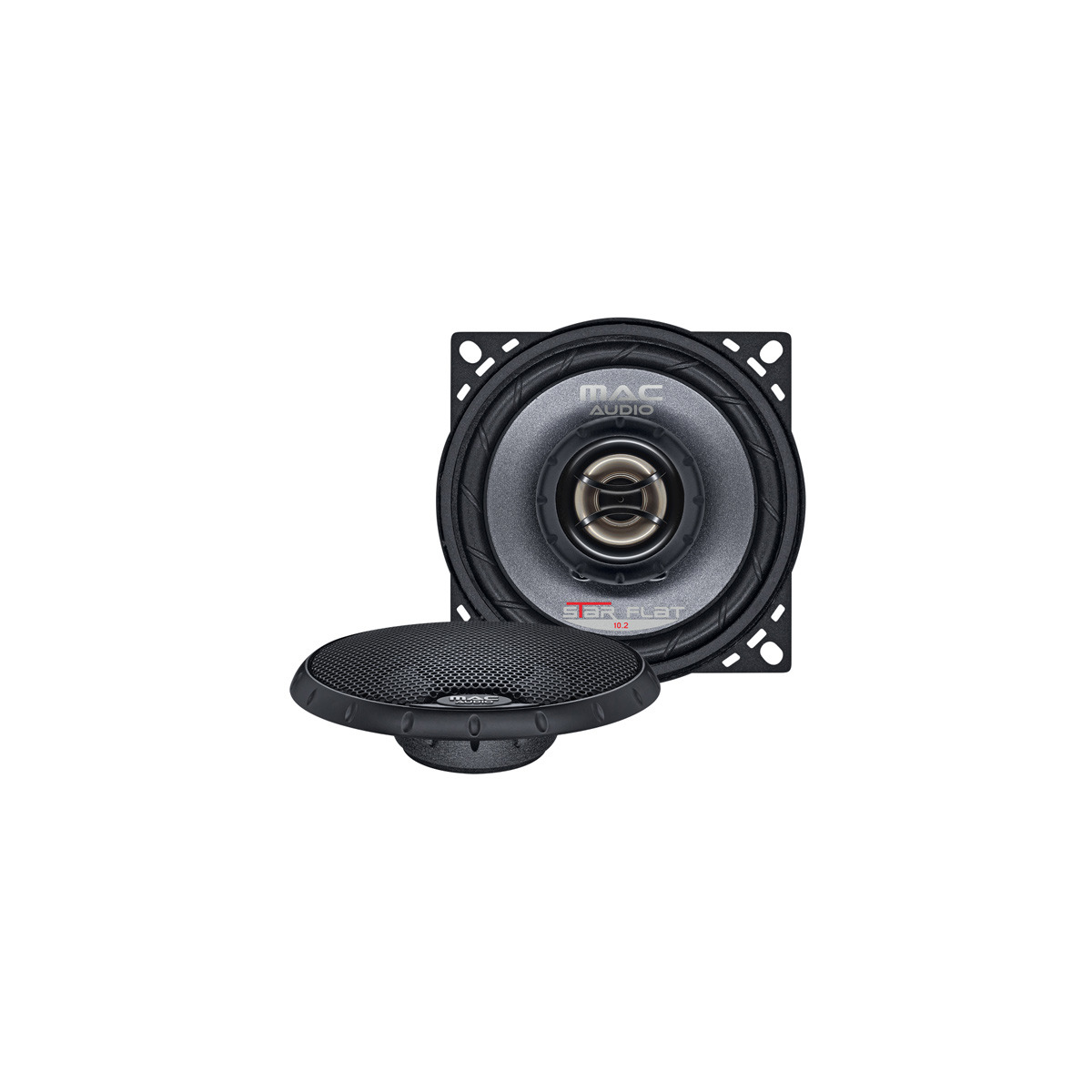

MAC AUDIO STAR FLAT 4" SPEAKERS

Compact, powerful and efficient – three attributes that describe the Star Flat 10.2 2-way coaxial system of the Star Flat range perfectly. Despite the minimal installation depth, the system produces powerful, dynamic sound from the high-power ferrite magnet drive and 100 mm bass loudspeaker with a coated Star Flat paper cone and still develops acoustic pressure of 89 dB. The internal titanium-coated polycarbonate tweeter ensures a precise and transparent treble range. The two speakers are protected by a multi-part cover grille, including the diamond cut logo and black rubber coating.

FEATURES

Multi-part protection grille including diamond cut logo

Euro DIN basket for universal usage

Low mounting depth due to Pro Flat technology

Solid steel basket with low-resonance structured coating

Internal high power ferrite magnet system

Dynamic foam surround for high efficiency

Coated Star Flat cellulose cone (woofer)

MEMBRANE CAPACITY

Woofer: coated cellulose

Titanium coated polycarbonate

TWEETER

Titanium-coated polycarbonate tweeter

PRINCIPLE - 2 way coaxial system

POWER HANDLING - 60 / 200 watts

SOUND PRESSURE LEVEL - 89 dB

IMPEDANCE - 4 Ohms

FREQUENCY RANGE - 38 – 28000 Hz

CROSSOVER FREQUENCIES - 3400 Hz

CUTTING OUT - Woofer: 94 mm

MOUNTING DEPTH - Woofer: 35 mm

MOUNTING HIGHT - Woofer: 17 mm
