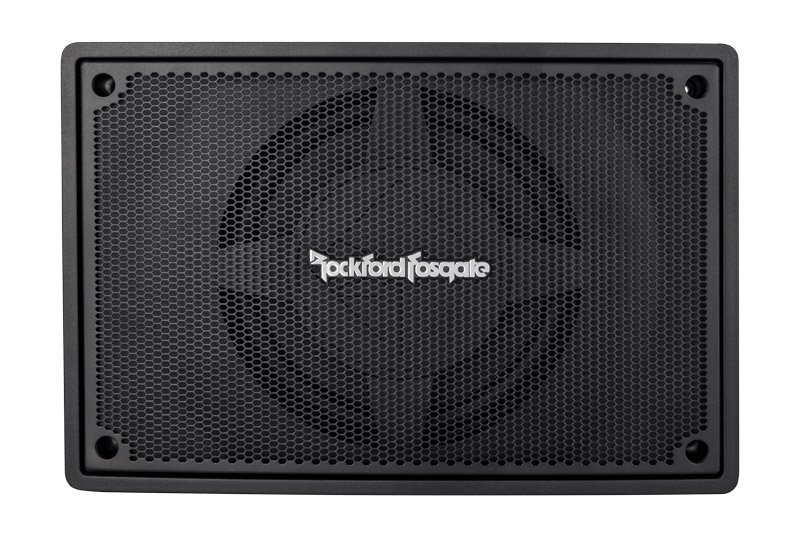

Punch Single 8" Amplified Loaded Enclosure

The Punch PS-8 is an self-contained amplified subwoofer system featuring a single Punch 8" driver in a sealed enclosure and a built-in 150 watt amplifier.

- "Closed-loop" design ensures optimum performance between woofer, amplifier and enclosure

- 150 Watt Class D Amplifier and 8" Shallow Woofer

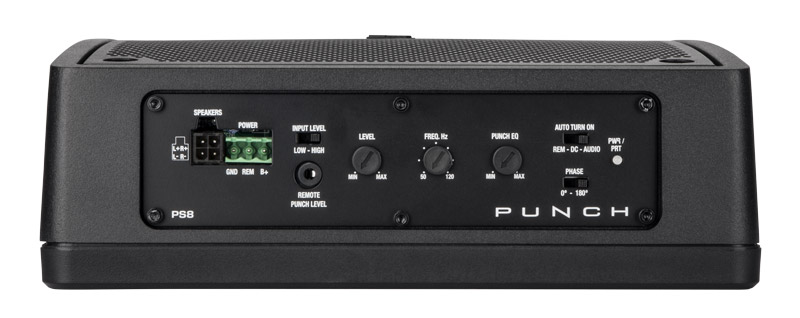

- Adjustable 12db/Octave low pass crossover

- Built-in adjustable bass boost EQ

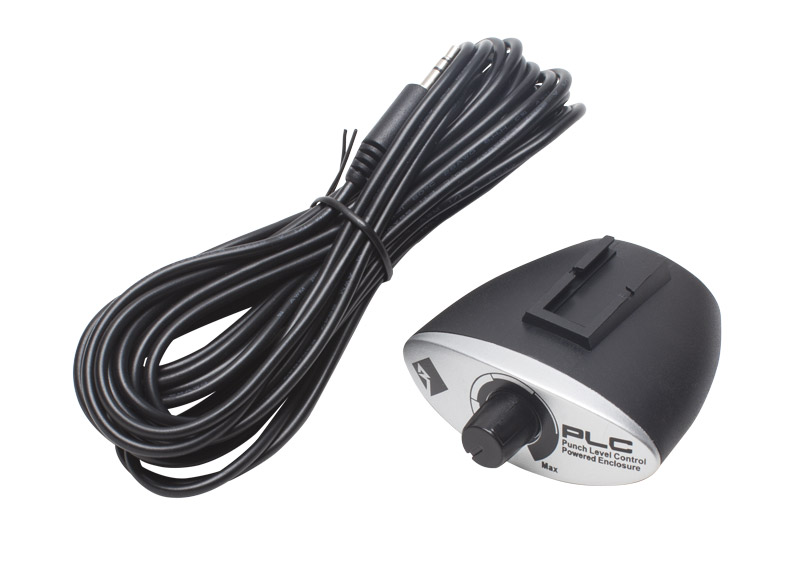

- Remote bass level control included

- Hi-level/low-level inputs

- Built-in 0/180 phase switch

- Remote/DC Offset/Signal Sense turn on select

Short circuit, thermal, and reverse polarity protection

- Quick disconnect power and signal connections

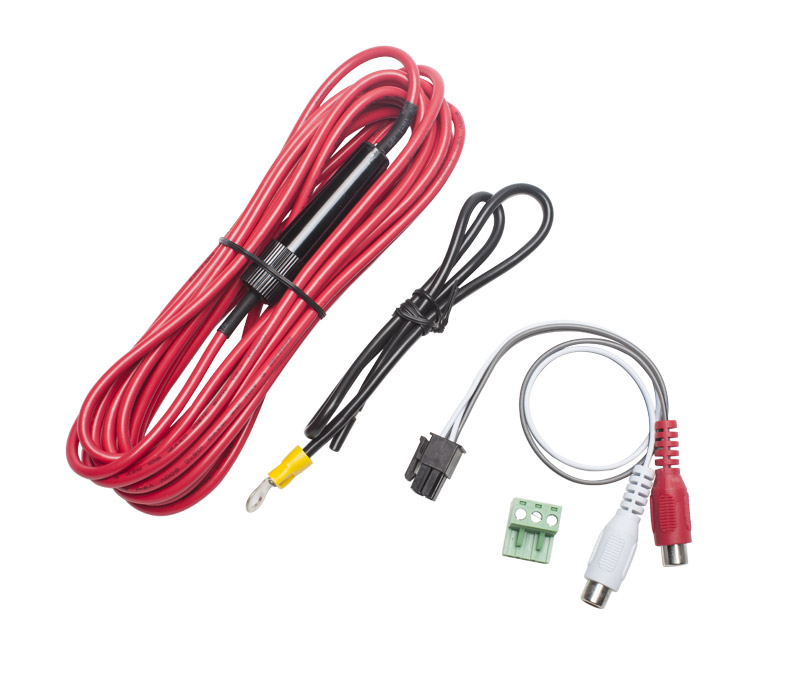

- Includes all power, ground, and turn-on wires

- Includes mounting hardware

If you need to quickly add bass to a system but don't have much space or height to make it happen? Then the PS-8 is a perfect candidate! The PS-8 features a Punch 8 subwoofer in a custom sealed enclosure and is powered by a mighty 150 Watt amplifier. The system is all-inclusive, so you only need to run power, ground and a signal from the source to get this baby moving. Features a durable exterior that resists scrapes and bumps while in the trunk or cargo area.

Specifications:

Woofer Quantity 1

Woofer Series: Proprietary

Nominal Impedance (ea)—

Power Handling (Watts RMS)150 Watts RMS

Enclosure Type: Amplified

Enclosure Material: Cast aluminum w/ ABS backplate

Speaker Connector: N/A

Dimensions:

Box (H x W x D)Wedge (H x W x D1 x D2)

14.4 x 9.4 x 3.3 (in)

36.5 x 23.8 x 8.3 (cm)

Frequency Response: 25Hz to 150Hz

Integrated Amplifier: 150 Watts RMS

Crossover Controls: Variable 50Hz to 120Hz @ 12dB/Octave Butterworth

Tone Controls: Gain & Bass Boost

Signal Input: Low-Level: 1 RCA Pair

High-Level: Left/Right Summed Inputs

Power Input Connector: Removable Connector

Power/Ground/Remote

Remote Control: Included

Visual Indicators: Power

Woofer Size: 8"

Power Wire Gauge: Included

Heat Sink Type: Cast Aluminum

Cooling: Convection
