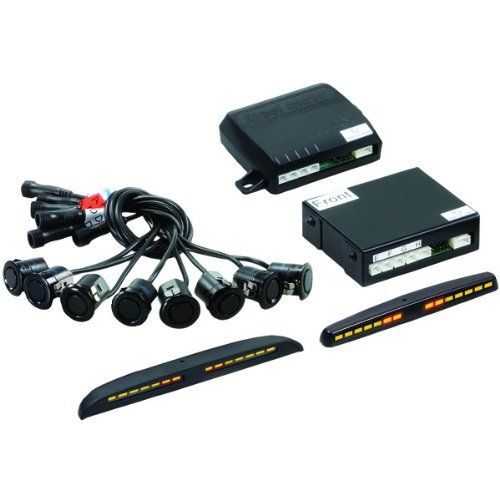

Front & Rear Parking system with Ultra-Slim LED Display
The PTS810MM features a Front & Rear Parking system with Ultra-Slim LED Display.
This front & rear parking sensor system comes with two ulta-slim LED displays that offers precise detection using digital sensing technology that uses real-time feedback and sophisticated DSP to provide the fastest and most accurate detection possible. The front slim display can be mounted on top of the rearview mirror or on the dashboard. The second slim diplay is designed to be mounted upside down to the rear headliner area of the vehicle, next to the top of the back window. The rear display can also be mounted on the rear parcel shelf or third brake light. This display can be colour matched to the vehicles interior. The displays show stages and emit audible beep prompts.The front sensors are activate when foot brake is applied. The front system will remain ON for 5 seconds after the brake is released. The kit features audible beep alerts with an adjustable volume setting High/Low and Off. Another great feature this kit offers is Intelligent detection, this teachers the sensors to ignore fixed objects such as metal bars with spotlights, tow-bars, spare wheels. Also this system is great when pulling in or out of tight spaces. While in reverse, the two outer front sensors remain ON to monitor the corners of the vehicle so that when the vehicle is turning into a space the driver knows how much room they have between the vehicle and any obstruction. While moving forward, all front sensors are ON whilst foot brake is applied. The Automatic audio mute function allows the system to automatically mute the radio volume so that the driver can hear the alerts while parking the vehicle. The self test feature reassures the kit is always working, this is performed automatically upon starting the vehicle.
Features and Specifications
Voltage Input: 9~16V DC
Display range: 0.3~2.5m
Rear Detection range: 0.1~2.5m
Front Detection Range: 0.3~1m
Operating temperature: -40~+85
Beeper SPL: 70~90dB
Intelligent detection for towbar/spare tyre
Beep Volume Adjustable High/low/Off
Rear view mirror/Dashboard/ rear headliner/ parcel shelf Mountable display
Self test function
