4 In 2 Out HDMI 4K2K Matrix

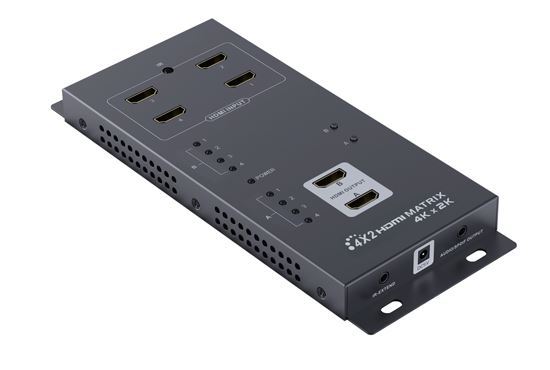

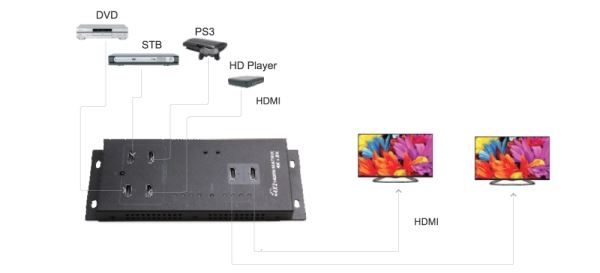

LENKENG 4 in 2 out HDMI 4K2K Matrix Switch. This 4x2 HDMI Matrix Switch is with 4x HDMI inputs and 2x HDMI outputs. It is a true matrix and can distribute any one of 4 sources to either of 2 displays and can work as a splitter to show the same source on 2 displays simultaneously. Analog R/L audio and digital SPDIF audio can be extracted from HDMI signal. It supports 3D HDMI and HDMI1.4 (4K2K). Features Routes four Ultra Hi-Def sources to two Ultra HD displays Supports resolutions up to Ultra HD 4K2K (3840 x 2160@30Hz) and 1080p Full HD Supports 12-bit Deep Color Supports PCM, Dolby Digital™, and DTS Digital Surround™ Support audio output simultaneously (from output A) HDMI input/output cables may be up to 10/15 meters with 1080p/8-bit resolution Supports HDMI/MHL dual mode input (input1) Supports CEC Supports HDCP Supports IR remote control Supports surface-mountable Specifications Power Supply 5V/3A Input Ports HDMI x4 Output Ports HDMI x2 Power Indicator LED Yellow LED x1 Signal Indicator LED Blue LED x8 Frequency Range 25MHz - 340MHz Max Transmission Rate 3.4G x 3 = 10.2Gbps Colour Depth Supports 12-bit DeepFull HD, Full 3D and 4K2K Video Audio Supports Standard Audio and DSD (Direct Stream Digital) Audio and HD (HBR) Audio HDMI Resolution 480i@60hz. 480o@60Hz, 576i@50Hz, 576P@50Hz, 720p@50@60Hz,1080i@50@60Hz, 1080p@50@60Hz, 3D HDMI (720p@50@60Hz, 1080p@24Hz), 3840 x 2160p@24@25@30Hz Dimension 213 x 86 x 19mm Net Weight 390g Colour Black Working Temperature 0°C~60°C
