Kenwood CMOS-320

Purchase this product

Currently out of stock

RRP: $329.95
Our Price: $299.00

Enquire about this product Print Product Information

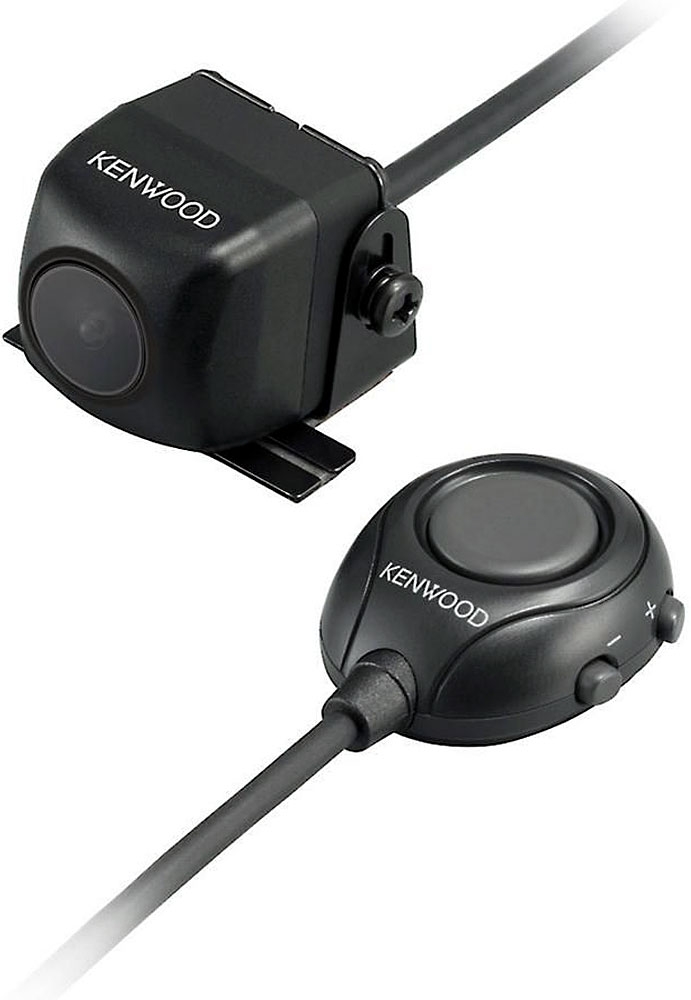

Universal Multi View Camera


The CMOS-320 multi-view camera is equipped with an advanced image processor that is capable of altering viewing angles and increasing the number of viewing options including corner views and adding graphic guidelines to the camera image. Easily switch between the many viewing options using the touch screen from a compatible DNN, DNX or DDX receiver.

Key Features:

- Universal Multi View Camera

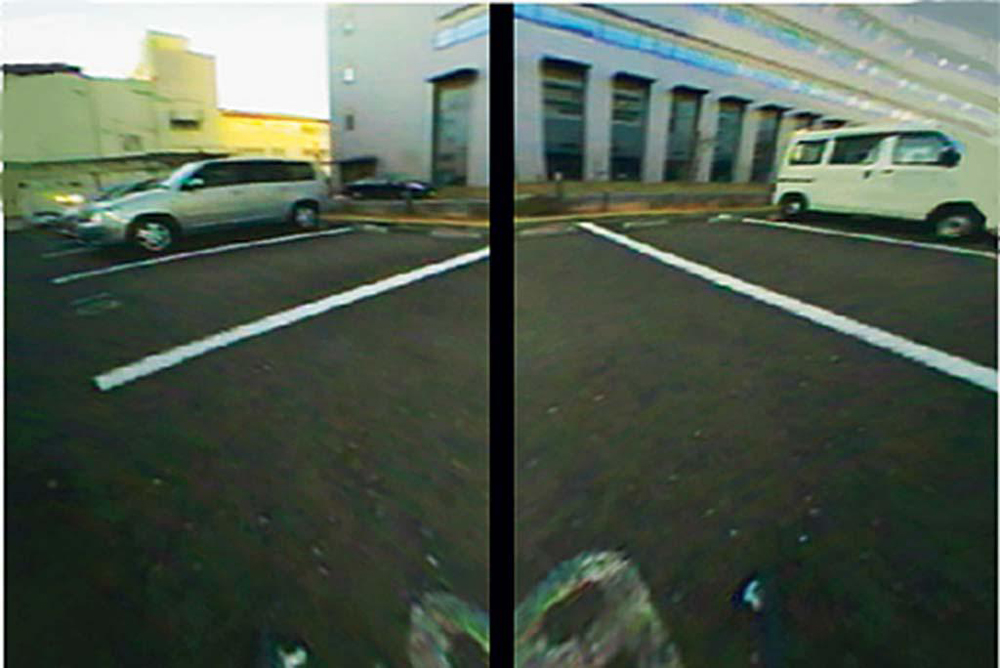

- Night, Normal, Wide, Corner & Overhead View
- Switch Unit Included
- 1/3.6" Colour CMOS sensor
- Waterproof unit with flexible mount base
- NTSC Video Signal Out (RCA)
- Can be installed on the front or rear side of the car

Camera Specifications:

- Camera Type 1/3.6" colour CMOS sensor
- Colour type Yes
- Effective number of pixels roughly 330000
- High sensitivity Pixels Yes
- Output video Wide-angle Mirror Image (for rearview)/Wide-Angle normal Image (for Front View
- Waterproof chassis Yes
- Mounting system Fexible mount base
- Installation positions Rear
- Camera ID setting Yes
- Rear view switching Reverse line
- Front view switching by remote or Kenwood unit

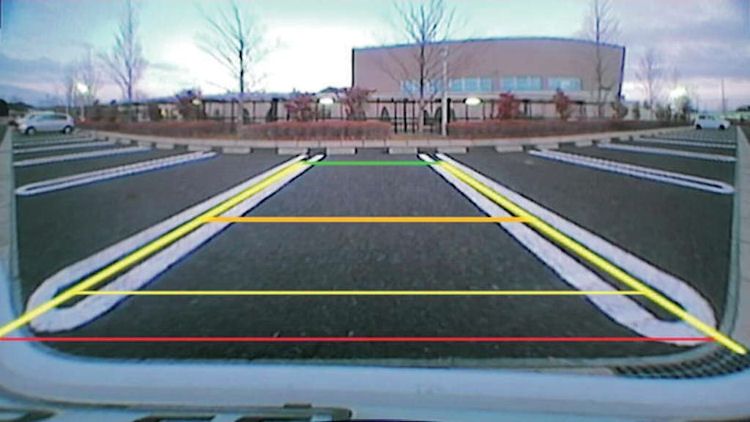

- Guideline view Yes
- Guideline Adjustments Size, Horizontal Direction, Red Line Position
- Image Adjustments Centering, Right-and-Left, Up-And-Down Angle
- High voltage protection Yes
- Wide angle lens Yes
- Focal length f: 1.05mm, F value 2
- Horizontal Angle view +/- 195°
- Vertical Angle View +/- 145°
- Illumination range approx. 0.9 to 100000 lux
- Iris System Electronic
- White balance Automatically
- Scanning System Interlace
- Synchronizing System Internal
- Video output level 1Vpp, 75Ω
- Video signal format NTSC (Mirror view)
- Connection cable (DC+video) 5 m

General Specifications:

- Operating voltage 14.5V (9 ~ 16V Allowable)
- Maximum Current Consumption 0.1A
- Dimensions (WxHxD) 23.4 x 23.4 x 26.1mm
- Weight 23 gr.
- Dimensions Switch Unit (WxHxD) 27.5 x 32.8 x 12 mm
- Weight Switch Unit 10 gr.
- Operation Temperature Range -30°C ~ 70°C
- Storage Temperature Range -40°C ~ 80°C
