KEF CI160TR

Purchase this product

RRP: $599.00
Our Price: $569.00

Enquire about this product Print Product Information

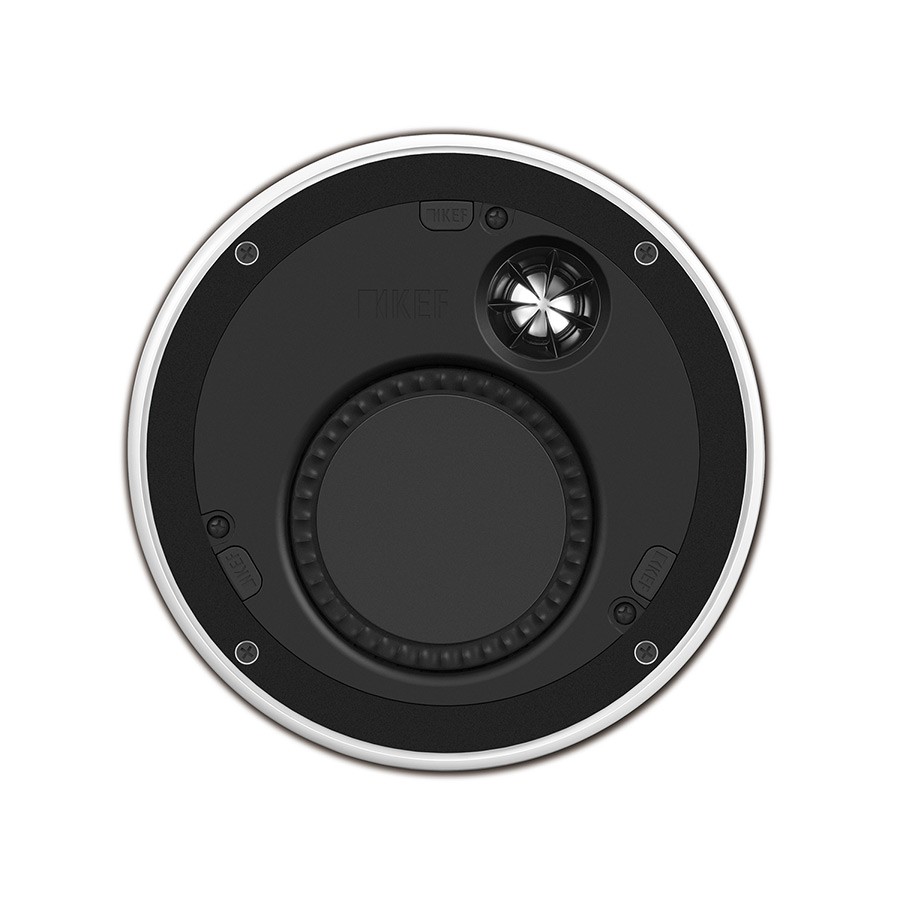

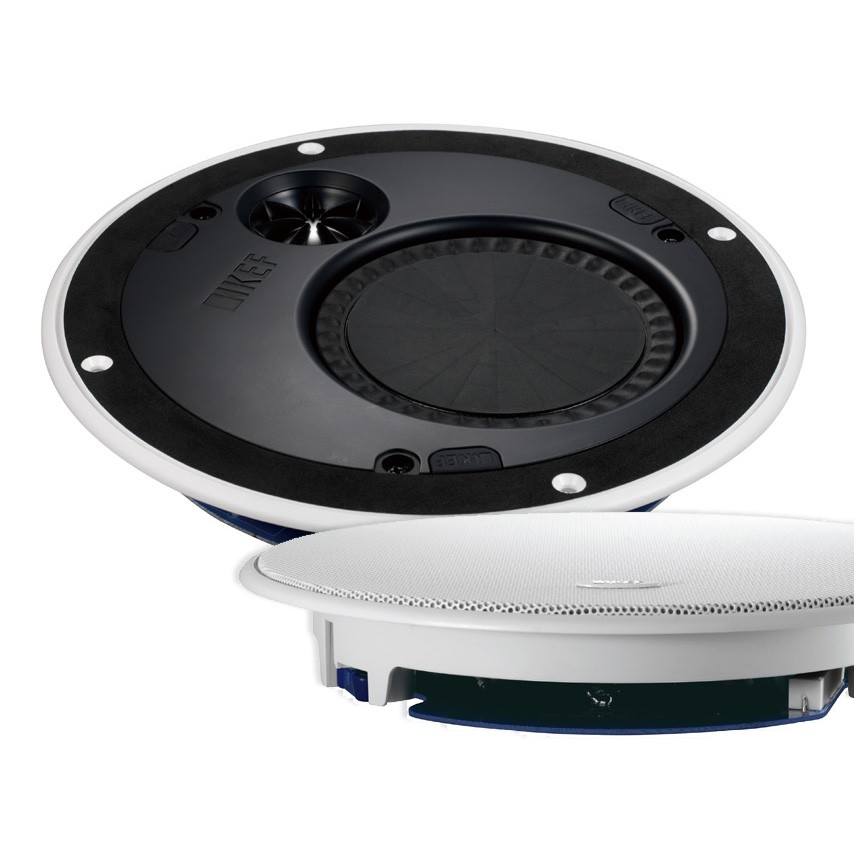

CI160TR Bezel 4.5" In Ceiling Speaker


Requiring less than 36mm of mounting depth, the Ci160TR fits snugly in very narrow ceiling spaces and is therefore specified for demanding applications such as today’s luxury high-rise apartments and super-premium motor yachts.

Ci160TR
Boasting the latest incarnation of our formidable 4.5in. mid/bass T Series driver and powerful 1in. tweeter, the ultra-slim new T Series Ci speakers open up new possibilities for enjoying KEF’s uncompromised sound quality where space above the ceiling is at a premium. Requiring less than 36mm of mounting depth, the Ci160TR fits snugly in very narrow ceiling spaces and is therefore specified for demanding applications such as today’s luxury high-rise apartments and super-premium motor yachts.



Key Features

<36mm mounting depth allows fitment to very restricted cavities
Ultra-low profile LF unit with excellent bass extension
Vented tweeter with KEF's unique 'tangerine' waveguide for natural HF response and wide, even dispersion
Rigid flat diaphragm assures clean upper bass and mid-range response

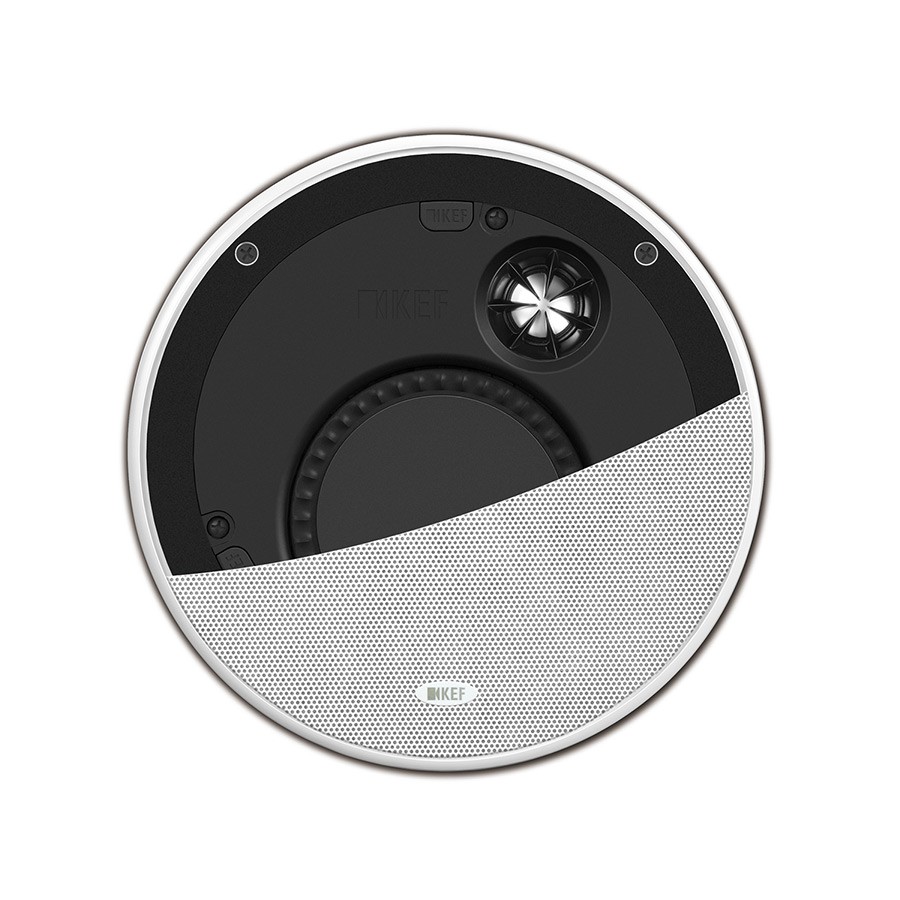

Paintable Ultra-Thin Bezel (UTB) and magnetic grille to blend unobtrusively with décor
Fast, versatile installation on virtually any surface via dogleg or direct screw fastening

NOMINAL IMPEDANCE 8 Ω
SENSITIVITY 87dB (2.83V/ 1m)
FREQUENCY RESPONSE 110Hz - 24kHz (±6dB) open backed
CROSSOVER FREQUENCIES 1.7kHz
DRIVE UNITS LF: 115mm (4.5 in.) dual layer MF
HF: 25mm (1 in.) aluminium HF
AMPLIFIER POWER 10-100W
PRODUCT EXTERNAL DIMENSIONS Diameter: 234.6mm (9.24 in.)
Depth: 40mm (1.57 in.)
CUT-OUT DIMENSIONS 196mm (7.71 in.)
MOUNTING DEPTH FROM SURFACE 36mm (1.42 in.)
MINIMUM WALL THICKNESS 10mm (0.39 in.)
MAXIMUM WALL THICKNESS 25.5mm (1 in.)
OPTIONAL ROUGH IN FRAME RIF160R
OPTIONAL REAR ENCLOSURE RNC160R
NET WEIGHT 1 kg
UNIT MEASUREMENT Piece
