Gator GT700SD

Purchase this product

RRP: $376.74
Our Price: $369.00

Enquire about this product Print Product Information

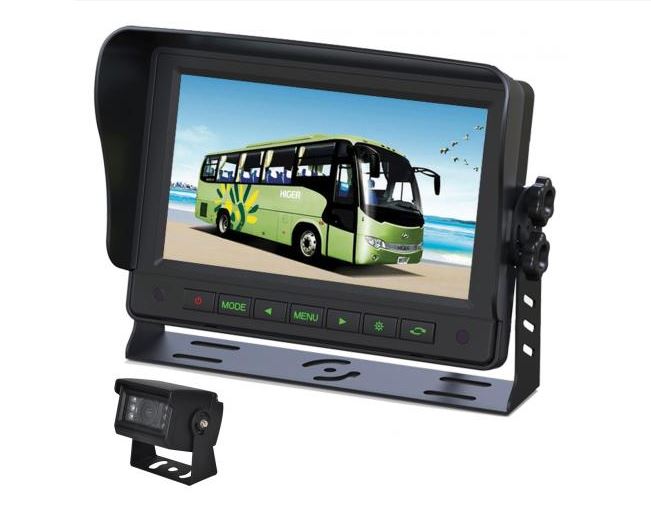

GT Series Heavy Duty 7" Monitor and Camera Kit


Description:
Whether it be a Heavy Truck, Mining Loader, Industrial or Construction vehicle, these can be some of the most difficult vehicles to operate safely. The Gator GT range of enhanced vision systems gives the driver vastly superior, all round vehicle awareness. Making these vehicles safer not only for the driver but also the people around them. With a much greater awareness of what surrounds the vehicle, the driver is more productive and is less likely to cause damage to the vehicle and/or objects around them. The GT series brings to market the very latest in heavy duty display panels, digital video encoding technology and installation versatility.

Important AHD info:

AHD cameras will NOT display on non-AHD monitors.
Non-AHD cameras will NOT work with AHD monitors.


Monitor:
7" Display
Heavy Duty Design
3x PROLINK2 Camera Inputs
12V and 24V Compatible
High/Low Voltage Cutoff
Built-in Short Circuit Protection
Optional Windscreen Suction Mount Available (GTSM1)
3-Year Warranty

Camera:

Heavy Duty Design
10 IR LED's for Night Vision
Prolink II Connector
3-Year Warranty


Specs:
Monitor:

Display Size: 7" (Diagonal)

Mounting Options: Adjustable Metal Bracket and Windscreen Suction Mount (GTSM1 Sold Separately)
AHD: No
AHD Resolution: N/A
Display Resolution: 800(H) x 480(V)
Colour System: RGB
Display Brightness: 350CD
Picture Aspect Ratio: 16:9
Input Voltage: 12V/24V
Camera Output Voltage: 12V
Number of Video Inputs: 3
Number of Video Triggers: 2
Split Screen Display Options: None (Displays Single Camera)
Video Input Connection Type: Prolink II
PAL or NTSC: Both (Auto Switching)
Picture Adjustment:
Brightness: Yes
Contrast: Yes
Saturation: Yes
Reverse (Mirror) Image: Yes (Selectable)
Dimensions (Monitor Only):
129mm(H) x 195mm(W) x 30mm(L)
Dimensions (Monitor & Bracket):
156mm(H) x 215mm(W) x 73mm(L) - Measurement with Bracket In Vertical Position, with Sunshade Fitted
Other Features:

Camera:

Mount Type: Surface Mount U-Shaped Bracket

Reverse or Rear View: Rear View
Lens Angle: 120 Degrees
CMOS or CCD: CMOS
AHD: No
AHD Resolution: N/A
Parking Gridlines: No
PAL or NTSC: PAL
IP Rating: IP68
Voltage: 12V
Minimum Illumination: 0 LUX
Number Of LED'S: 10
LED Type: Infrared
Plug Type Camera End: Prolink II
Plug Type Monitor End: N/A
Length of Video Cable: 400mm
Reverse Trigger on Video Cable: N/A
Dimensions (Camera Only):
42mm(H) x 52mm(W) x 55mm(L)
Dimensions (Camera & Housing):
60mm(H) x 63mm(W) x 55mm(L)
Other Features:

Kit Notes: Camera inputs and triggers are located at the far-end of the 6M main harness. Power input is located at the monitor end of the 6m main harness.

Kit Inclusions: 7" Monitor, Adjustable Metal Bracket for Monitor, 4x Thumbscrews, Removable Sunshade, IR Remote Control with CR2025 Battery, GT14SD - GT Series Smaller Footprint Heavy Duty Camera, 6M(L) Input Harness, User Manual
