Epson EB-520

Purchase this product

RRP: $1,399.00
Our Price: $1,249.00

Enquire about this product Print Product Information

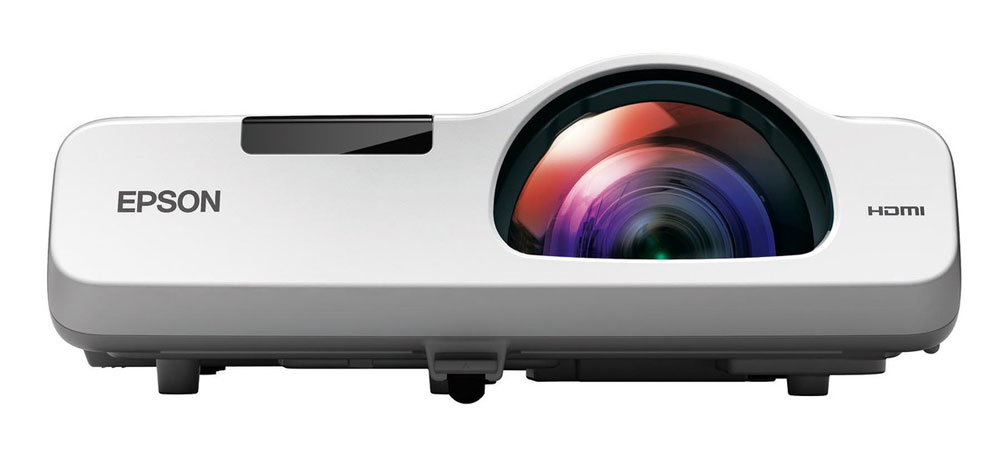

High Performance Short Throw Projector


Epson EB-520 short throw projectors provide ultra-bright image quality up to 2,700 lumens both in high colour brightness and in white brightness with 3LCD, 3-chip technology. The EB-520 short throw projectors are ideal for delivering large and engaging presentation content in the classroom or office without having the restriction of space. The EB-520 also features a newly developed high precision short throw lens with greater sharpness and improved focus levels. The long lasting lamp, projecting up to 10,000 lamp hours in ECO mode gives an extended period of reliable performance. Suitable for desktop use with convenient table top placement or using the optional wall mount (ELP-MB45), the EB-520 short throw offers flexible installation in any environment.
KEY FEATURES & BENEFITS
- 3 x Brighter Colours and reliable performance – 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness.
- Crisp Clear Resolution – Featuring XGA image resolution (4:3).
- Large and engaging presentations, even in small spaces – Project large images from short distances with minimal shadows and glare.
- Long Lasting lamp, low-cost lamp maintenance – Up to 10,000 hours in ECO mode.
- Versatile Connectivity – Easily integrate with any system using HDMI and the optional Epson Control box (ELP-CB02).
- Convenient collaboration for BYOD classrooms – Wirelessly share and compare students’ work from multiple devices, simultaneously, with EasyMP® software / Multi-PC Projection functions
WHAT'S IN THE BOX
- Epson EB-5201.8m Computer Cable
- 4.5m power cable Remote Control
- Batteries x 2
- Projector Software Ver. 1.02b (CD ROM)
- Password Protect Sticker
- Manual
TECHNOLOGY
- Projection System Epson 3LCD, 3-chip technology
- LCD Panel 0.55-inch with MLA (D8)
OPTICAL
Zoom 1 - 1.35 (Digital Zoom)
Screen Size 37" to 108"
Projection Distance 82" screen 0.91m
Throw Ratio 0.55 (Zoom: Wide), 0.74 (Zoom: Tele)
Projection Lens F Number 1.60
Projection Lens Focal Length 6.4mm
Focus Method Manual Focus
Offset 12.8:1
- Colour Light Output 2,700 Lumens
- White Light Output 2,700 Lumens
- Resolution XGA
- Native Aspect Ratio 4:3
- Contrast Ratio 16,000:1
- Lamp Hours Normal/Eco: 5,000/10,000 Hours
- Lamp Type 200 W UHE
- Keystone Correction Vertical: -15 to +15 degrees
- Horizontal: -15 to +15 degrees

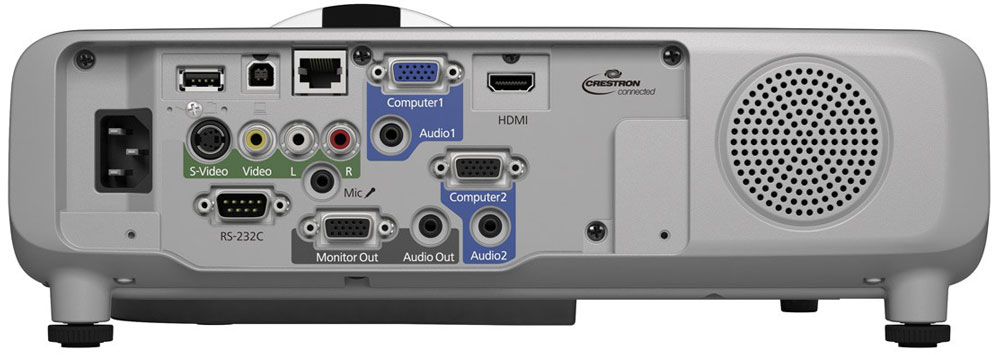

CONNECTIVITY
- Input: Video 1 x RCA (Yellow), 1 x S-Video, 2 x Component (via D-sub 15-pin)
- Input: Computer 2 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B
- Input: USB Memory Device USB Type A Ver.2.0
- Input: Three-In-One USB Display 1 x USB 2.0 type B
- Input: Digital 1 x HDMI
- Input: Audio 1 x RCA (Red/White), 2 x Stereo mini jack
- Input: Control 1 x USB 2.0 type B, RS232C
- Input: Epson USB Document Camera 1 x USB 2.0 type B
- Network I/O: RJ45 x 1 (100Mbps)
- Wireless Connectivity Optional Accessory (ELP-AP07)
- Output: Video D-sub 15 pin (black molding)
- Output: Audio Stereo mini jack x 1
- Speaker Output 16W
ADVANCED FEATURES
- EasyMP Network & Control Yes
- EasyMP Network Projection Yes
- PC Free Presentations Photo / Motion JPEG
- USB Plug 'n Play Yes
- AV Mute Slide Yes
- Instant Off Yes
- Direct Power On/Off Yes
- Security Kensington®-style lock provision
- Padlock
- Security cable hole
- Password protect function
- Colour Modes Dynamic, Theatre,
GENERAL
- Dimensions D x W x H (excluding feet) 314.5 x 344 x 94 mm
- Weight 3.7kg
- Lamp Warranty 12 months or 750 hours*
- Projector Warranty 3 Years
- Power Consumption: Lamp on Normal: 278W / Eco: 219W
- Power Consumption: Standby 0.28W (communication off)
- Noise Level Normal/Eco 35/28dB
