HDMI Inline Enhancer

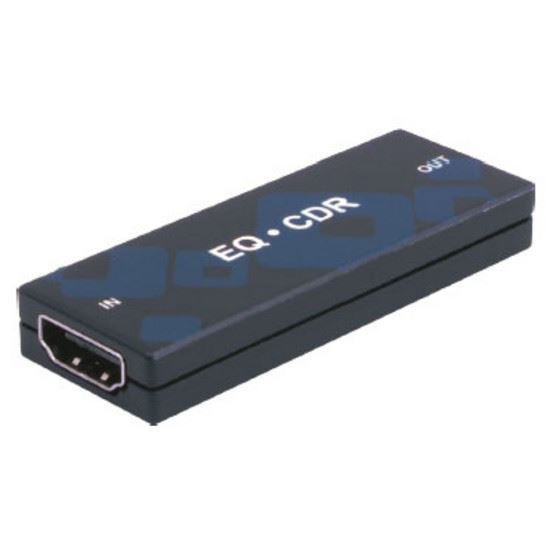

CYP HDMI Inline Enhancer, Supports 2.25Gbps up to 1080P@60Hz. Self powered for 30M total max distance using 2x 15m HDMI cables. The HDMI CDR with Equalizer from Cypress Technology can retransmit a video signal without any loss. An extremely compact device, this system has a built-in CDR (Clock Data Recovery) equaliser that allows for long-range video transmission of Deep Colour Video. The HDMI CDR with Equalizer from Cypress Technology can also serve as an interim booster in complicated installations where dozens of devices are connected and weak signal points can occur due to the cascading of multiple layers of video. Designed to receive power from input equipment, the CS-HH is a compact way to boost weak video signals. Features Support TMDS equaliser and CDR (Clock Data Recovery) for long distance transmission Supports video resolutions up to 1080p@60Hz No power supply is required Specifications Frequency Bandwidth 2.25Gbps (single link) Input Port 1x HDMI (Female type) Output Port 1x HDMI (Female type) Output Resolution HD: 480i ~ 1080p@24/50/60Hz PC: VGA ~ UXGA Input Cable Distance 15M/8 or 12 bits Output Cable Distance 15M/8 or 12 bits ESD Protection Human Body Model: ± 8kV (air-gap discharge) ± 4kV (contact discharge) Dimensions (mm) 65(W) x 24(D) x 10(H)mm Weight (g) 30g Chassis Material Plastic Silkscreen Colour Black Operating Temperature 0°C~40°C/32°F~104°F Storage Temperature -20°C~60°C/-4°F~140°F Relative Humidity 20%~90% RH (no condensation) Power Consumption (W) 2W (Max)
