Audioengine N22

Purchase this product

RRP: $499.00
Our Price: $398.00

Enquire about this product Print Product Information

N22 Desktop Audio Amplifier


Features
Powerful but compact stereo audio amplifier
Cool-running 22 watts RMS per channel
2 inputs for iPod, iPhone, computer, TV, etc.
High-performance headphone output
Variable preamp output
USB charge/power port
Gold-plated speaker connectors
High-quality analog volume control
Detachable power cord
Power-saving idle mode
Hand-finished MDF wood cabinet
Integrated vertical stand

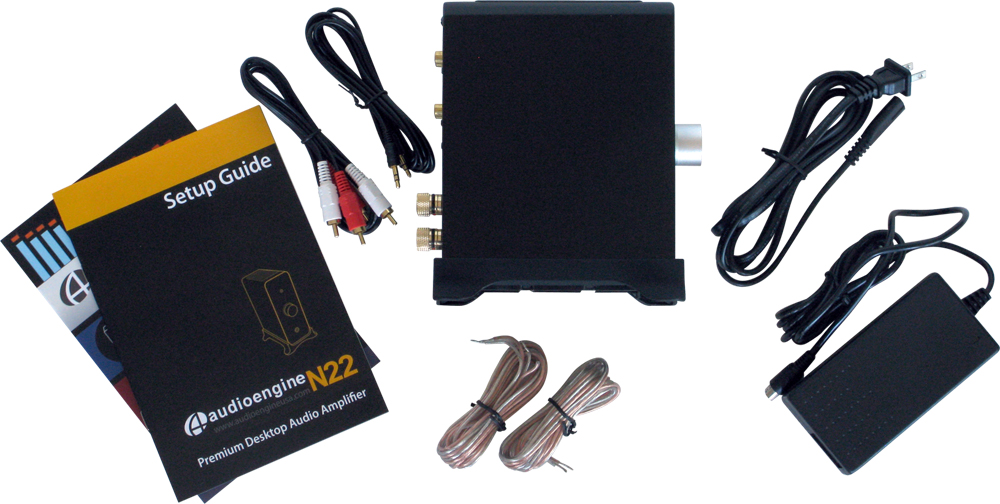

Cables included
Recommended speakers: Audioengine P4

Works With
Audioengine P4 passive speakers
Audioengine wireless audio adapters
Desktop computers and laptops (Mac and PC)
iPods and iPhones
Headphones
Rear channel surround speakers
Any products with mini-jack or RCA audio outputs!

Type
Compact Integrated Stereo Amplifier
Power output
22W RMS / 40W peak per channel (AES)
Amplifier type
Dual Class AB monolithic
Input voltages
110-240V, 50/60Hz auto-switching

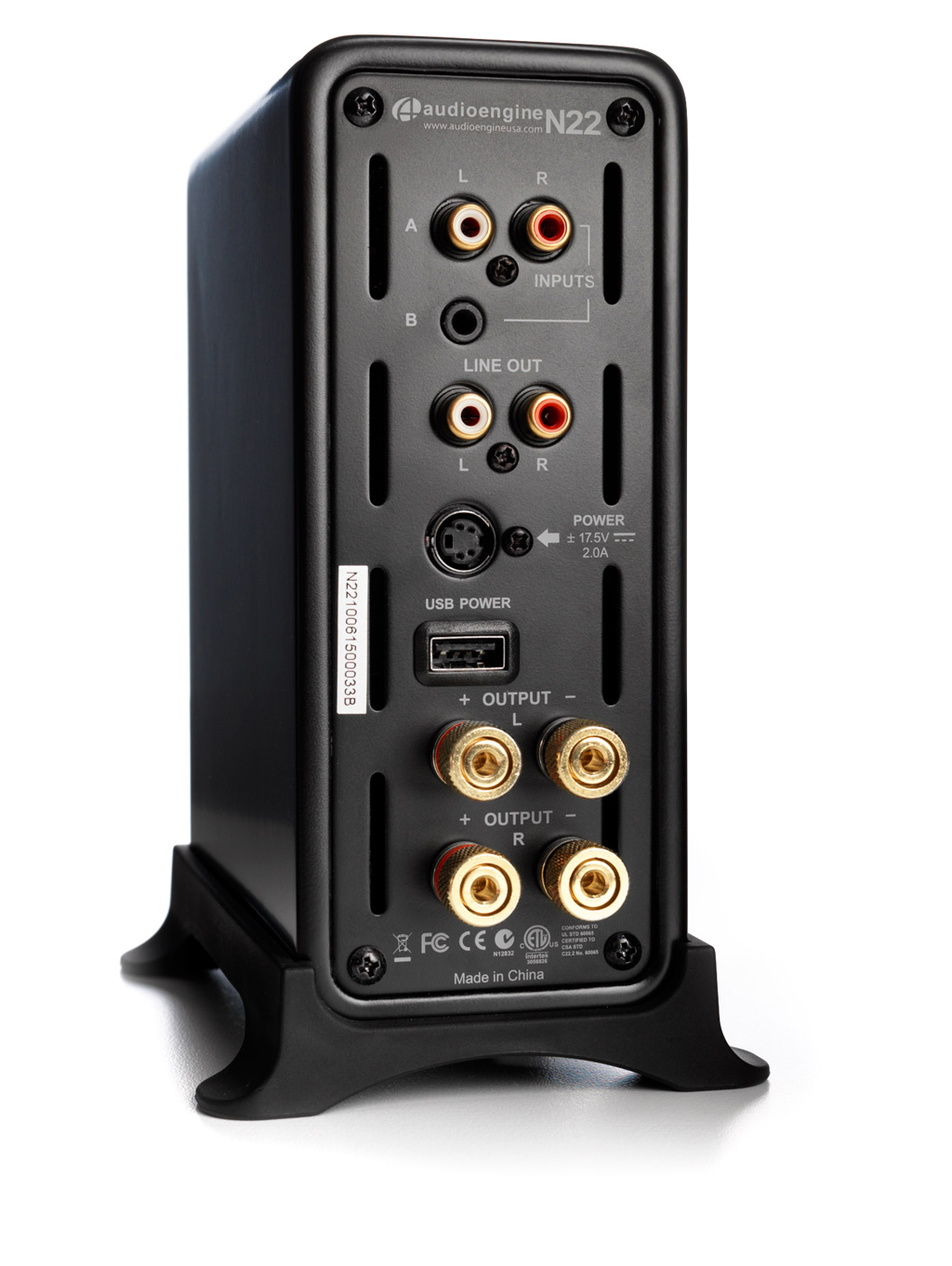

Inputs
RCA and 1/8" (3.5mm) mini-jack
Outputs
RCA variable preamp
Speaker outputs
5-way binding posts
SNR
>95dB A-weighted
THD+N
<0.02% at all power settings
Crosstalk
-50dB
Frequency response
20Hz-22kHz 1dB
Input impedance
10K ohms unbalanced
Input sensitivity
410mV (@max volume)
Protection
Output current limiting, thermal over-temperature, power on/off transient protection
Headphone amplifier
Burr-Brown/TI OPA2134
Dimensions
7"(H) x 2.75"(W) x 5.5"(D)
Weight
3.55 lbs (1.6kg)
Shipping weight
5.0 lbs (4.6kg)
Shipping box dims
11.5"(H) x 7.5"(W) x 9.5"(D)
Finish
Satin Black

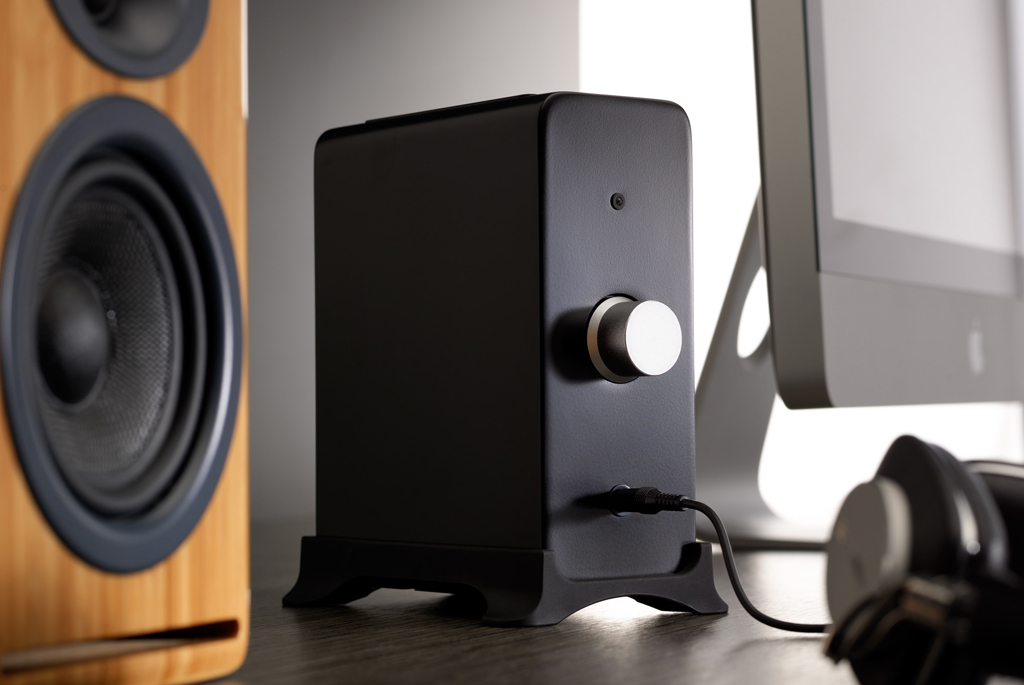

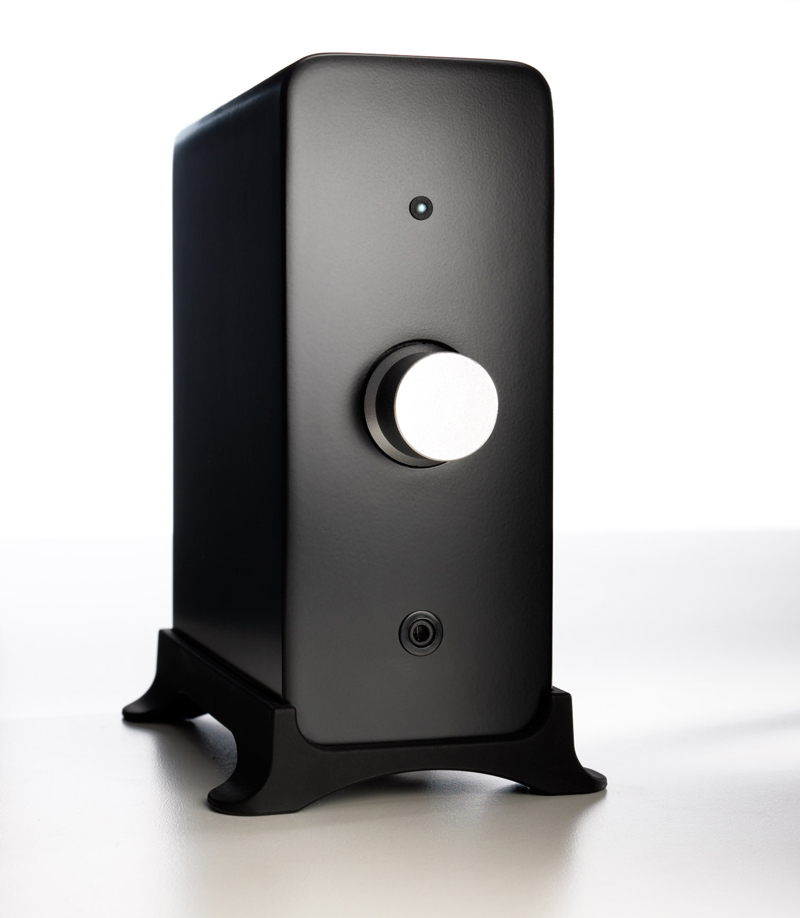

Upstanding design

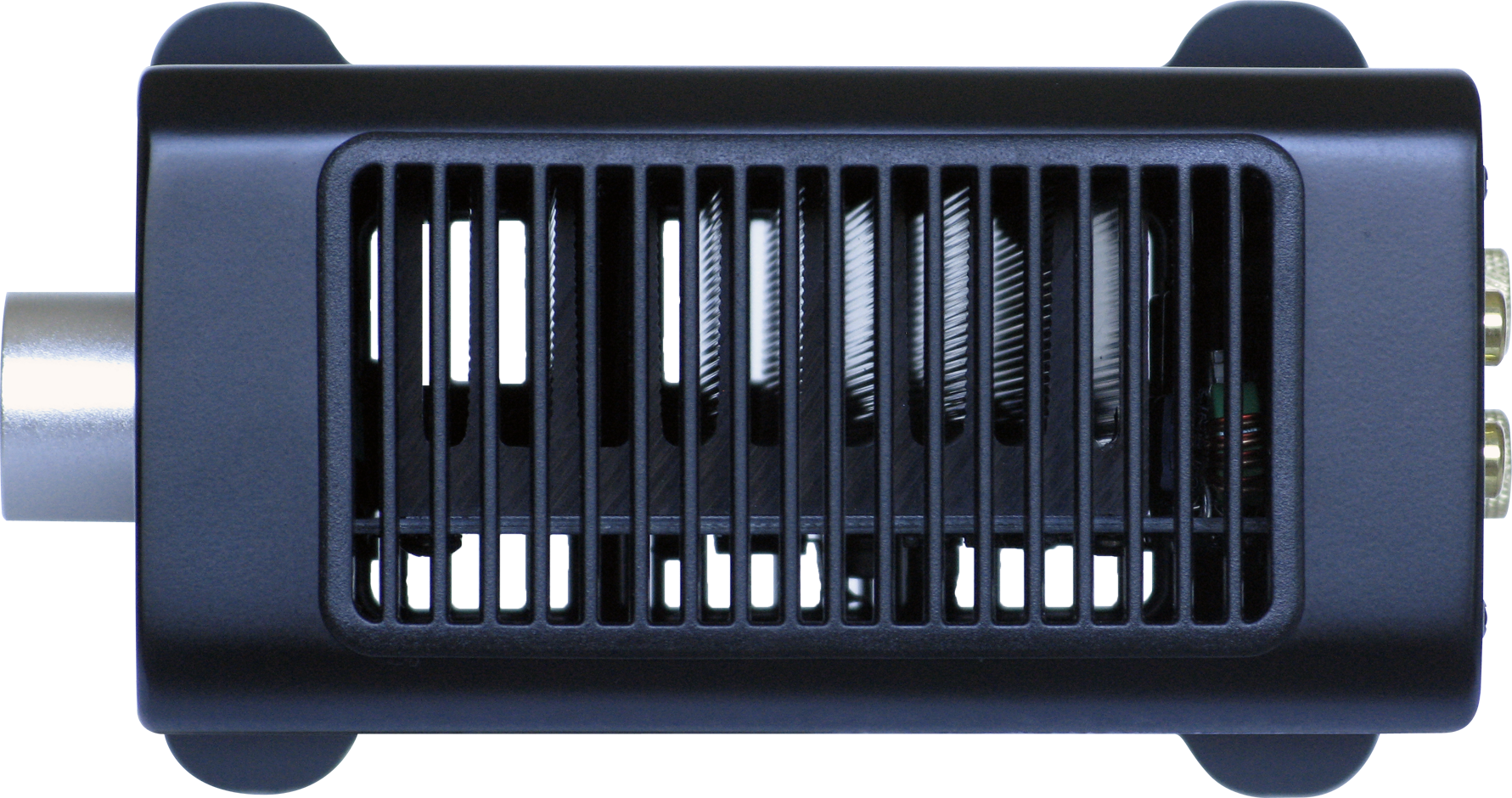

The vertical design of the N22 with its integrated stand allows the 22 watt/per channel stereo class A/B amplifiers to run cool through passive convection without a fan or massive heatsink. The N22 fits easily on your desk and doesn't take up much space.
Discrete headphone amplifier
For headphone enthusiasts the N22 includes a high-performance, low-noise discrete amplifier which works well with all types of headphones and earphones.
USB power

The Audioengine N22 has a built-in power port for iPod charging while listening to your music. The USB connector allows you to charge and power your iPod, iPhone, Audioengine wireless adapters or any other USB powered product. USB is for power only, not USB audio or data transfer.
Variable line out

The N22 includes a variable preamp output so you can connect a subwoofer, external amplifier, or Audioengine wireless adapter and control the volume of the line-out from the front panel.
Simple operation

Both audio inputs on the N22 are active so two audio sources may be connected to the amplifier at the same time without the need for an input switch. A standby idle mode is also included to conserve power when you're not playing music.
Wireless rear speakers
Use the N22 amp, Audioengine P4 passive speakers, and our W3 wireless adapter for a low-cost but great-sounding wireless rear channel setup for your home theater.
