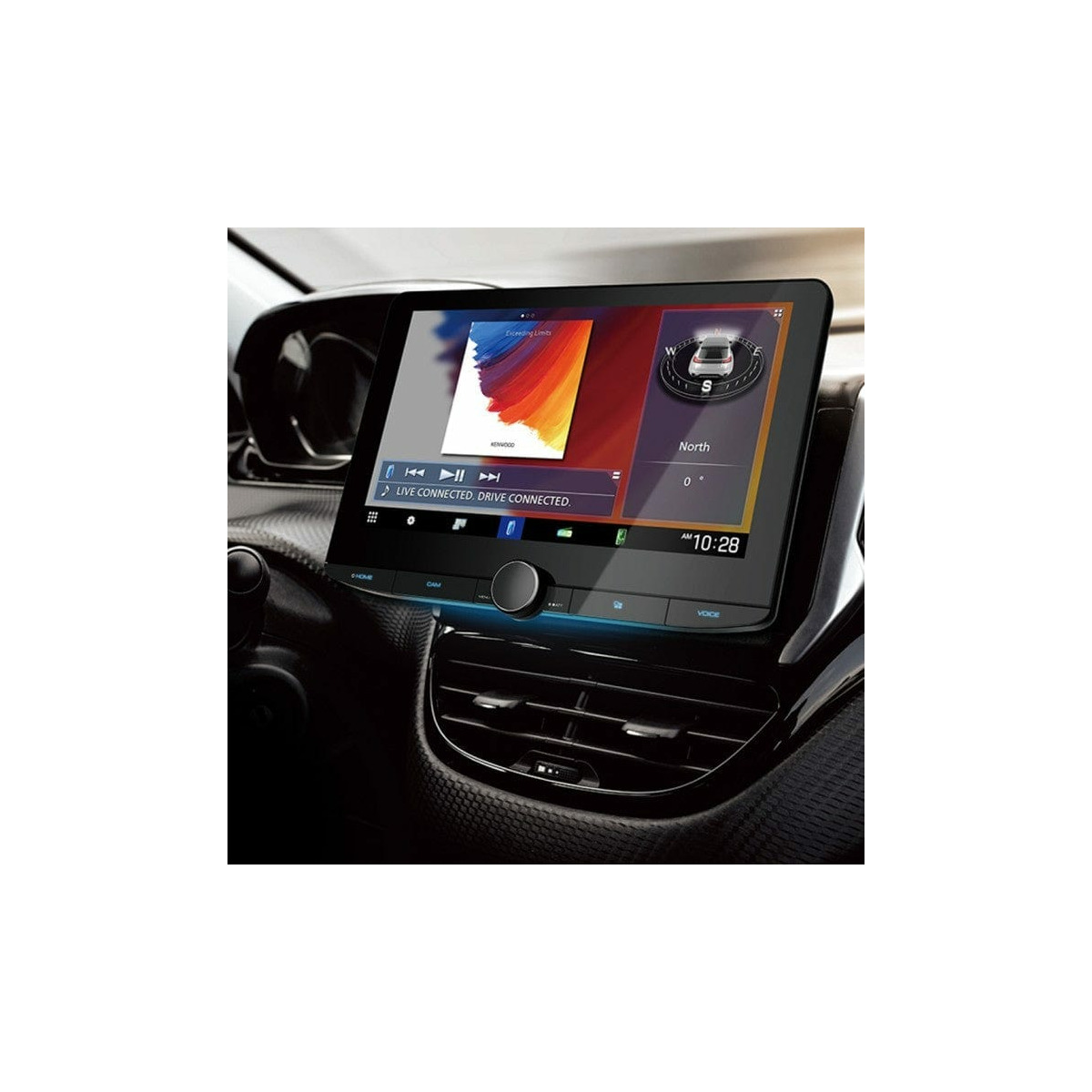

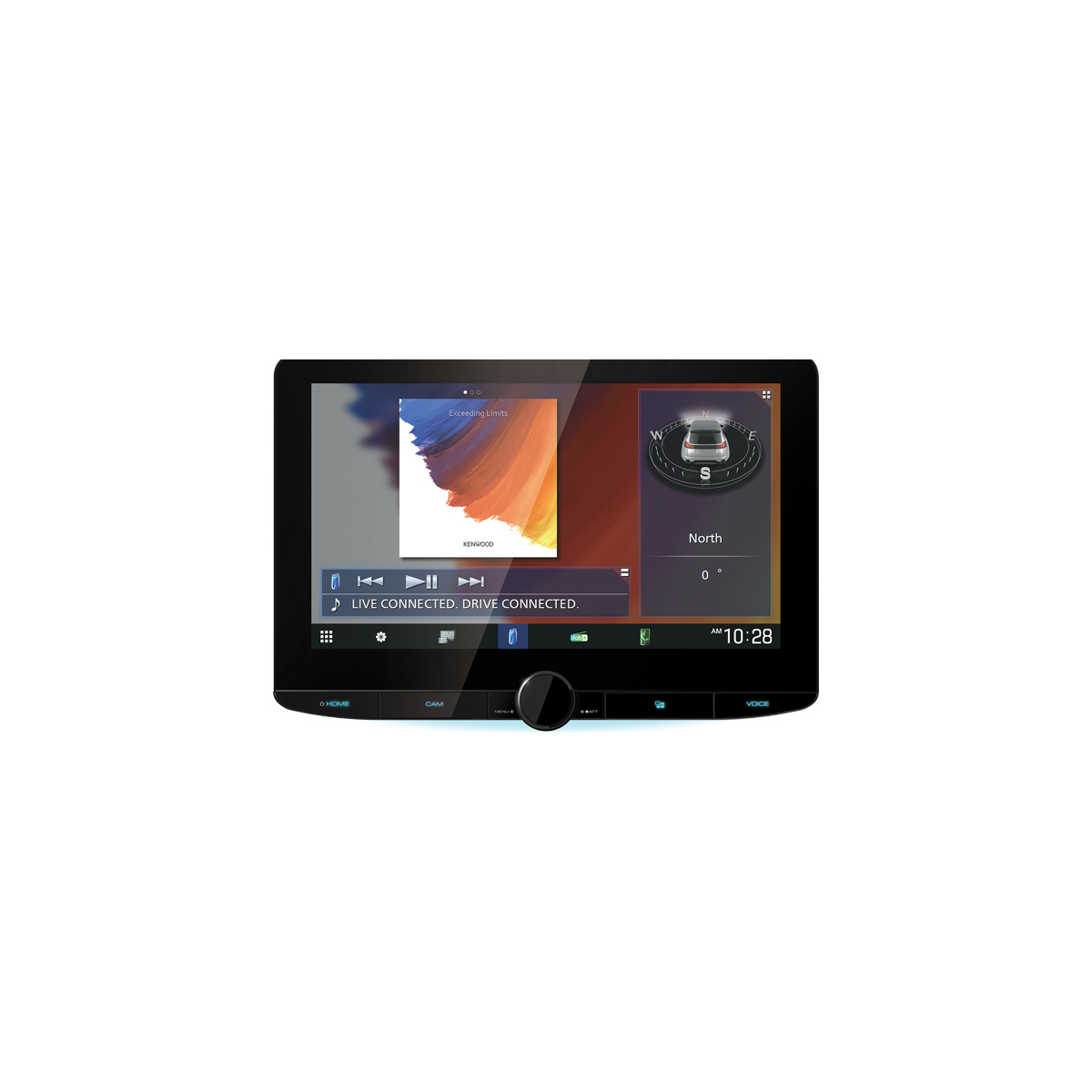

Premium Digital Multimedia Receiver with 10.1” Floating HD Display

The all-new Kenwood DMX9720XDS 10.1″ Car Stereo with Floating HD Digital Media Player & Wireless Apple CarPlay & Android Auto is the first large screen unit Kenwood have ever released.

This unit comes jam packed with features such as a 4x camera input system, HDMI, Hi-Res Audio, Built-in Wifi, Parametric EQ, Wireless Hi-Res Audio, HD screen and lots more.

So many features, so nice to look at, but it has one simple yet crucial feature that’s virtually impossible to find on a quality stereo; a big, easy to use, VOLUME KNOB!

・10.1" High Definition Monitor with Capacitive Touch Panel

・Floating Panel Mechanism with 3-way Position Adjustment

・Wired & Wireless Apple CarPlay

・Android Auto™ & Android Auto™ Wireless

・High-Resolution Audio Wireless

・Wireless Mirroring for Android

・Built-in DAB+ Digital Radio Tuner and Built-in Bluetooth

・4 Camera Inputs

・HD Front/Rear Camera Ready

・3 Preouts 5V

LARGE DISPLAY
Provides room for more information that is large and easy to see with just a glance.

HIGH DEFINITION
10.1" Display features an electrostatic capacitive touch panel and HD 1280 x 720 pixel LCD panel with high luminance white LED backlight and superior wide viewing angles.
Optical Clear Adhesive (OCA) is added between the touch screen and the LCD to eliminate the air layer and suppress light reflection and glare. This feature enhances the contrast and brightness and maintains the visibility of the display in various environments.

WIDER VIEWING ANGLE
The AAS display technology of the LCD panel assures you a wider viewing angle of 170° for both horizontal and vertical directions. Together with the protective film which minimizes reflection and glare from sunlight, you can enjoy clear images even from the passenger or back seats.

DRIVING WIDGET HOME SCREEN
The 10.1" home screen is composed of a Driving Widget as well as a Source Control Widget overlaid on the background. You can move the Driving Widget from side to side or enlarge the Source Control Widget to optimize the screen for your intuitive operation. The Driving Widget allows selection of a clock, compass, or equalizer setting, etc., while the background allows selection of album art, audio visualizer, or photo.

FLOATING PANEL MECHANISM WITH 3-WAY POSITION ADJUSTMENT
Fully adjustable display allows you to change the depth, height and angle for easy vehicle fitment.
§  Forward / Backward 20mm
§  Up / Down 39mm
§  Tilt: -10°/ +45°

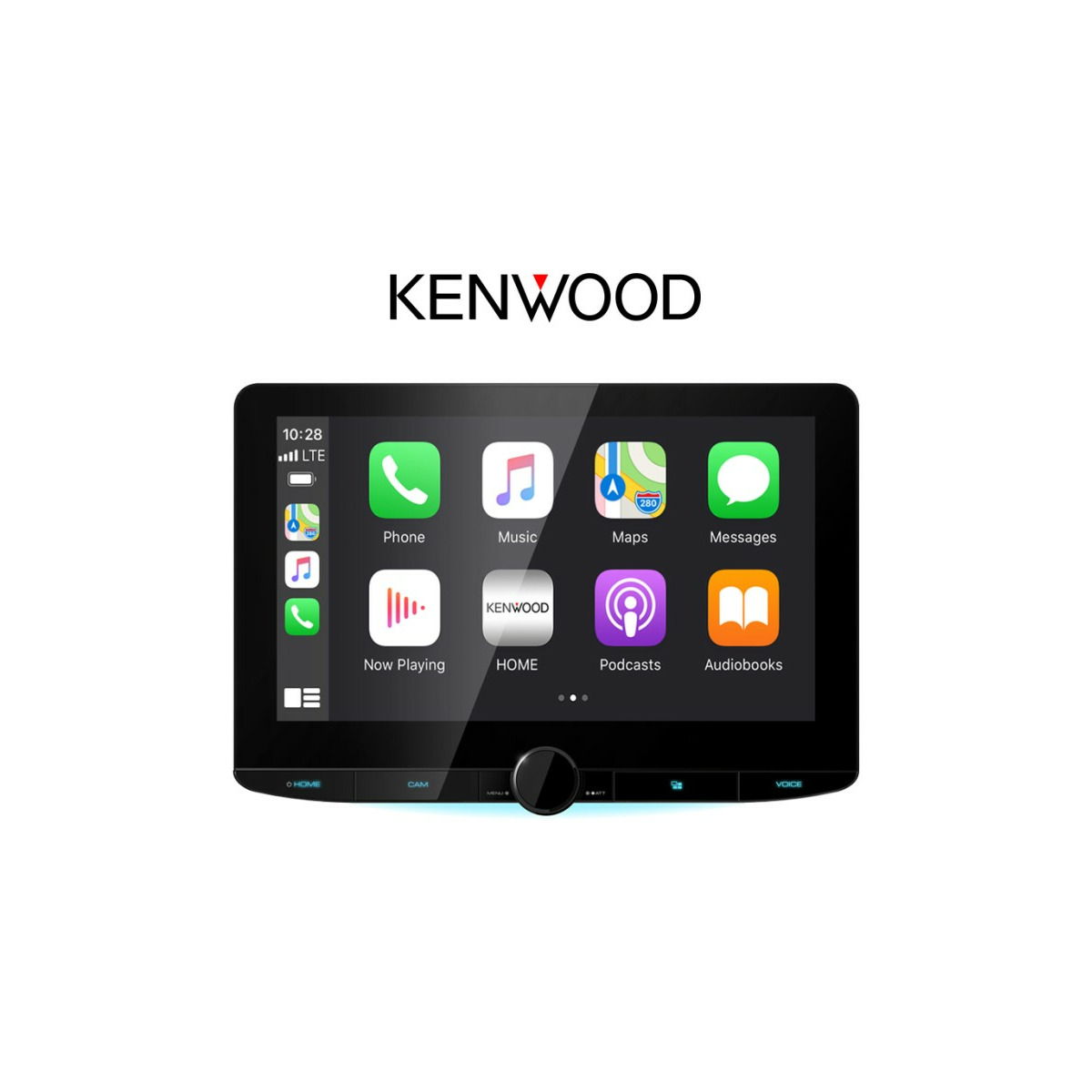

SAFE & SMART CONTROL WITH APPLE CARPLAY
Apple CarPlay™ is a safer way to use your iPhone in the car. Simply talk to Siri or touch the receiver’s display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music from Apple Music or your favorite 3rd party streaming service like Spotify, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps and Waze are also supported.

EASY CONNECTIVITY WITH ANDROID AUTO
Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. KENWOOD’s multimedia receivers combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. You can even listen to and control music from your favorite streaming services like Spotify. Navigate to where you need to with Google Maps or Waze.

HDMI INPUT
Display your smartphone screen or other device via an HDMI cable (and third party adapter as applicable) on the 10.1" monitor.

EQUIPPED WITH KENWOOD MusicMix
Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.

DUAL PHONE CONNECTION
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.

KENWOOD Portal App
Display image files stored in your iPhone or Android on the receiver's photo frame widget and/or wallpaper.

HIGH RESOLUTION AUDIO WIRELESS
High-Resolution Audio is high-quality sound that exceeds CD standard. High-Resolution Audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality listening experience. Selected KENWOOD receivers now support High-Resolution Audio Wirelessly via LDAC. LDAC is an audio coding technology that enables the transmission of High-Resolution Audio over a Bluetooth connection.

OPTIMAL SOUND PERFORMANCE
Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment. Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.

PARAMETRIC EQUALIZER
You can fine-tune advanced sound properties to achieve professional audio sound quality in your vehicle. It allows you to set parameters of Q factor, slope, frequency and gain at 14 points separately (Common: 9 / Front: 2 / Rear: 2 / Subwoofer: 1). With adjustments such as high and low shelving filters, more realistic sound can be delivered.

ONLY THE BEST
High Quality Audio Parts Supporting High-Resolution Audio Reproduction to ensure the best possible sound quality, this receiver uses custom-made and carefully selected parts, such as audio quality power supply capacitors, high quality coupling capacitors. These parts are further optimized through meticulous tuning of the component values and circuit paths.

PLAYABLE FULL HD
You can play back from USB devices audio and video files compressed in various formats.
USB sources are available on rear monitor via video output. The powerful USB provides max 1.5A quick charge for selected Android and 1.0A charge for iPhone.

ENHANCED VEHICLE INTEGRATION
Compatible with both the Automotive Data Solutions iDatalink Maestro RR and RR2 (sold separately)* for enhanced system vehicle integration. In addition to providing the seamless factory integration experience you have become accustomed to with the RR, these models feature expanded support when connected to the RR2, including an Advanced Driver Assistance Systems (ADAS) Widget, Customizable Accessory Controls, and compatibility with specific ESCORT radar detector systems (sold separately).

CAMERA READY WITH PARKING ASSIST GUIDELINES
An optional rear-view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.

FOUR CAMERA INPUTS
To enable a smarter driving experience, receivers featuring 4 camera inputs allow for the utmost in convenience, flexibility, and safety. With 4 camera inputs, you can connect a rear camera, side (blind spot) cameras, and a KENWOOD dashboard camera (DRV-N520 sold separately).  Alternatively, 4 camera inputs can support several other configurations, including the connection of 2 side cameras, a front HD camera, and a rear HD camera (CMOS-740HD sold separately). Camera switching is available using on screen controls, or automatically for side cameras when an optional iDatalink Maestro RR is connected (supported vehicles only).

SPECIFICATIONS:
§  10.1 inch HD Display
§  High Resolution Audio
§  Audiophile Grade Sound
§  Wireless Smartphone Connections
§  Advanced Camera Solutions
§  Driving widget Home Screen
§  Floating Panel Mechanism with 3 way Position Adjustment
§  iDatalink Maestro*optional* currently not available in NZ
§  10.1” 1280 x 720 HD Monitor
§  Floating Screen Design
§  Monitor Vertical Slide Mechanism Adjustment to -42mm
§  Monitor Tilt Angle Mechanism 45° to -10°
§  Apple CarPlay Wireless and Wired
§  Android Auto Wireless and Wired
§  DAB+ (Antenna supplied)
§  4 Camera Input
§  HDMI Input
§  Hi Res Audio Wireless
§  Bluetooth version 5.0 / HFP 1.6
§  2 Phone Bluetooth connection
§  5 Phone A2DP
