Premium 9.4 Channel AV Receiver

Premium 9.4 channel 125-watts-per-channel amplification, Dolby Atmos, DTS:X Auro 3D, and 8K Ultra HD plus HEOS® Built-in streaming. The Marantz CINEMA 40 is a statement piece and reference level A/V Receiver.

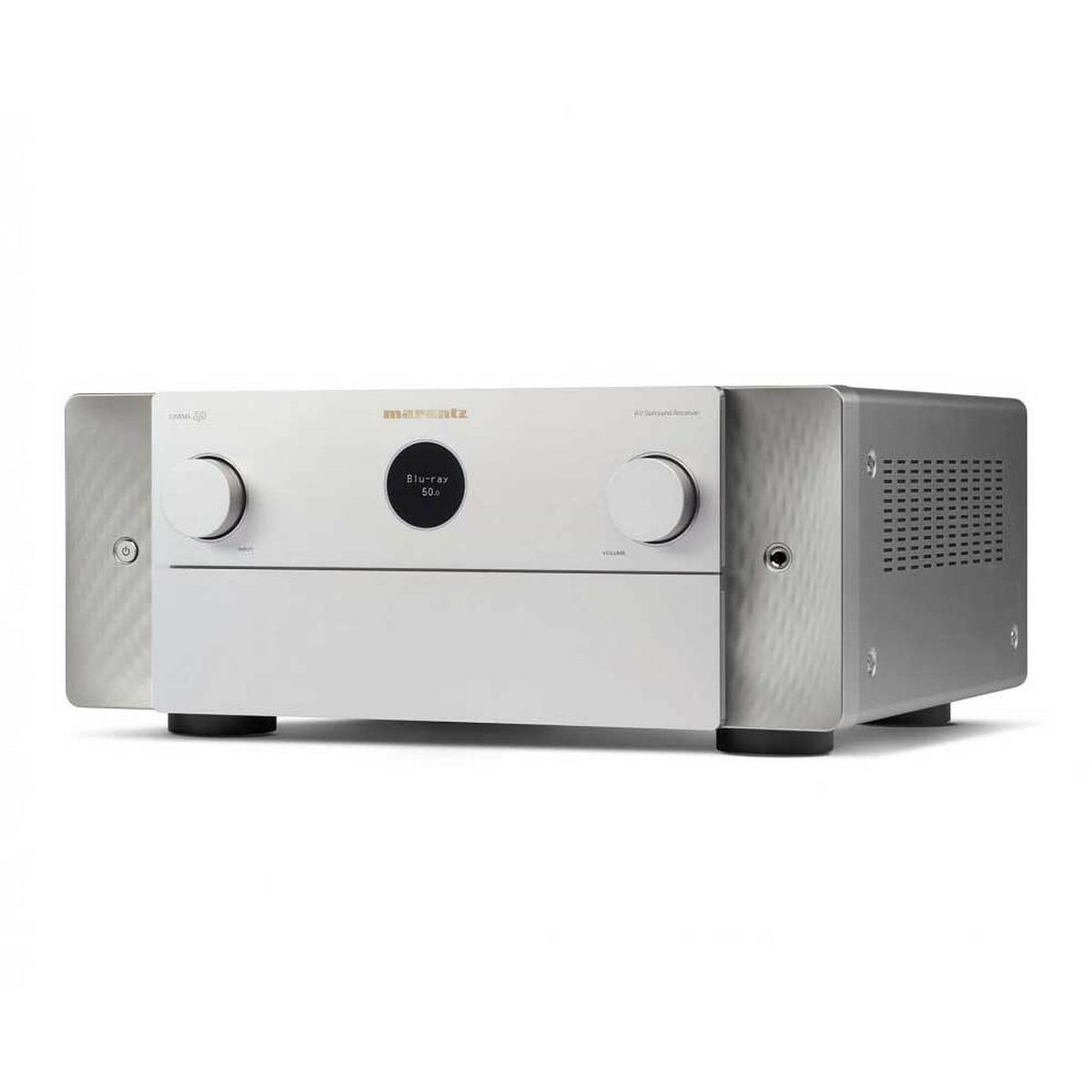

Meet the flagship of Marantz's newly redesigned home theater receiver lineup; the Cinema 40. This receiver looks as good as it sounds, featuring the iconic Marantz porthole display and dimpled front side panels. And these eye-catching design touches only hint at the high-performance audio and video circuitry hiding within the chassis of this sleek receiver.
State-of-the-art 8K video compatibility, nine discrete amplifier channels, and an amazing four subwoofer outputs are only the beginning of the prodigious capabilities of the Cinema 40. At 125 watts per channel, you get plenty of volume and all-encompassing surround sound, great for home theater and music enthusiasts alike. Hyper-Dynamic Amplifier Modules deliver Marantz's warm, detailed, signature sound. Rounding out the high-tech goodness, a high-end digital-to-analog converter decodes high-resolution music files with razor-sharp accuracy.

·         125 watts per channel into 8 ohms (20-20,000 Hz) at 0.05% THD, with 2 channels driven

·         Marantz's Hyper Dynamic Amplifier Modules (HDAM) offer exquisite detail and dynamic range while reducing noise

·         Dolby®, DTS®, and Auro-3D® surround sound decoding

·         Dolby Atmos® and DTS:X processing for use with in-ceiling or "height" speakers for more enveloping home theater sound

·         Dolby Atmos Height Virtualization and DTS Virtual:X create three-dimensional effects without height speakers

·         IMAX® Enhanced reproduces the full dynamic range of specially encoded IMAX soundtracks from compatible sources

·         Audyssey speaker calibration and system optimization

·         MultEQ XT32 auto setup and room calibration delivers balanced, dynamic sound with enhanced surround performance

·         Dynamic Volume anticipates loud sounds to keep volume levels even

·         Dynamic EQ improves dialogue, bass response, and surround channel levels at lower volumes

·         Sub EQ HT provides individual calibration for four subwoofers, for even bass response throughout the room

·         Low Frequency Containment reduces the amount of bass that bleeds into other rooms

Achieve the Best Sound Possible
Dirac Live is an advanced room calibration solution that enables you to optimize the sound quality of your system. This world-class software is now available as an upgrade for CINEMA 40.

Excellence Only Begins with Performance
Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world's most demanding home theaters.

Peerless Performance
Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of the Marantz sound.

Technology Leader
CINEMA 40 comes complete with the latest immersive audio formats, 8K video, room optimization, streaming, and more technology to simplify and elevate your enjoyment.

Exquisite Design
A modern expression of timeless design principles, CINEMA 40 features the iconic Marantz porthole, premium materials, and subtle sidelights that illuminate the front panel.

Performance
The Marantz Sound Master meticulously tuned CINEMA 40 for amazing performance with careful parts selection to create the Most Musical Sound in your home.

Style
Excellence is heard and seen. CINEMA 40 is meticulously crafted with authentic materials in a modern style befitting its rich heritage and stunning performance.

 Customizability
Thoughtfully curated connectivity options and finetuning ability allow you to make CINEMA 40 your own.

Effortless
Included remote, accessible front-panel controls, and an intuitive on-screen setup process make you feel like an expert user right away.

Specifications:
Number of Powered Channels    9

Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)

Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive)  125 W

Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)      165 W

Power Output (6 ohm, 1 kHz, 10% 1ch Drive)        235 W

70% Guarantee Yes

Discrete Power Amplifier               Yes

Amplifier Topology          Class A/B

Current Feedback Topology          Yes

Bi-Amp Drive      assignable

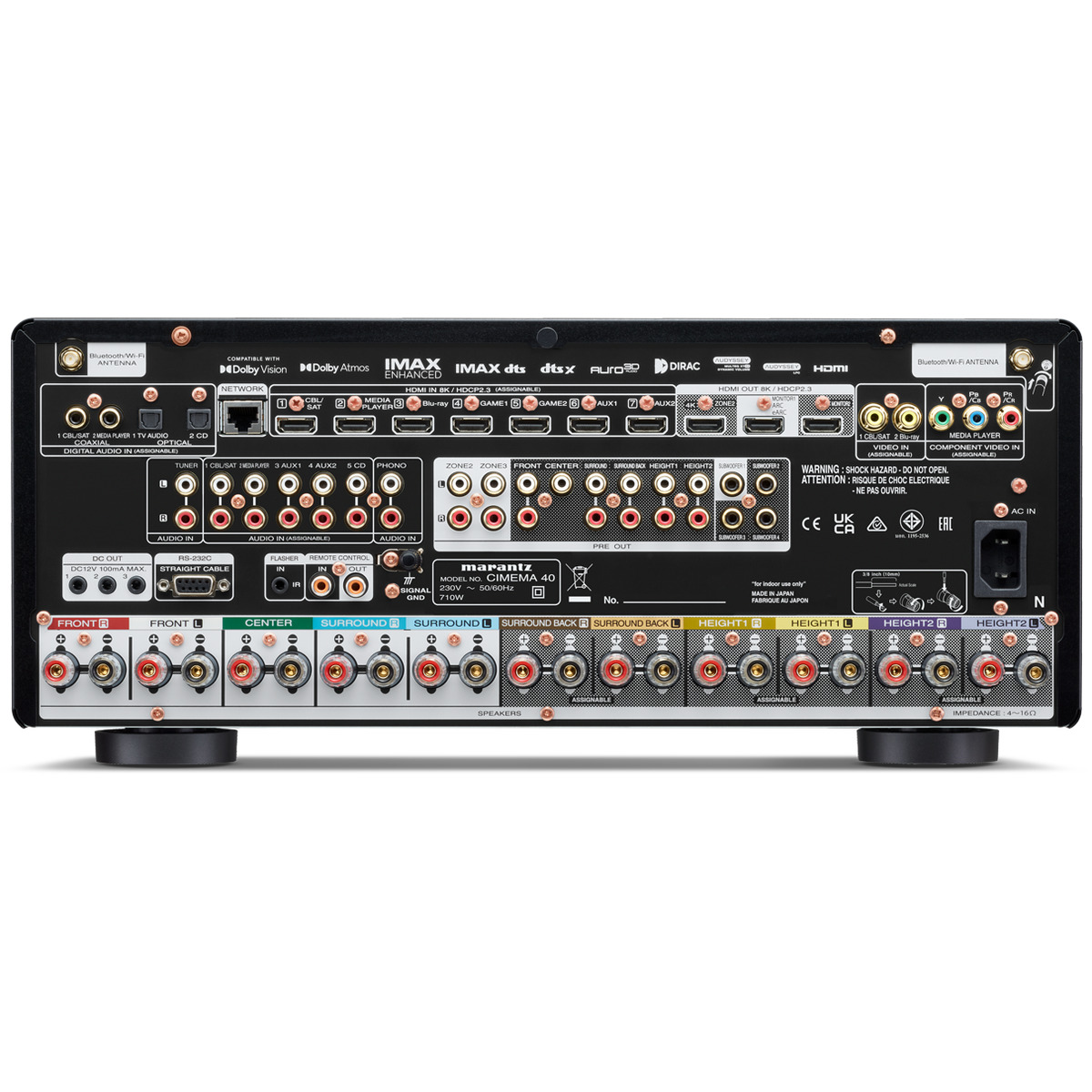

Inputs & Outputs:
Composite In / Out          2 / 0

Component In / Out        1 / 0

HDMI In / Out    7 / 3

Multi-Room Video Out via HDMI                Yes

Analog In / Fixed Level Out           5 in / 0 out

Phono (MM) In Yes

Digital In: Optical / Coaxial            2 / 2

Multi-Room Out: analog / digital                2 / 0

Multichannel Preamp Out            11.4

Subwoofer Out  4 (independent)

7.1 multichannel input   No

Number of Speaker Terminals     11

Speaker A / B      assignable

Multi-Room Speaker Terminal     assignable

Front Inputs       USB-A

USB Audio / Made for iPod / Made for iPhone     Yes / No / No

AM/FM Tuner    Yes

HDMI:
Total HDMI Inputs / No. Support 8K          7 / 7

HDCP2.3 support             Yes

HDMI Outputs: Main / Zone         2 / 1

Analog to HDMI Video Conversion            Yes

HDMI Upscaling 1080P/4K to 8K

Max resolution @ framerate        8K @ 60Hz, 4K @ 120Hz

Audio Return Channel    ARC, eARC

Video Dynamic Range     HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR

ALLM (Auto Low Latency Mode) Pass-through for gaming               Yes

Variable Refresh Rate / Quick Frame Transport    Yes / Yes

HDMI Pass-Through in Standby Mode      Yes

CEC        Yes

DSD Audio over HDMI    Yes

Auto LipSync      Yes

Performance Technologies:
Copper Plated Chassis    No

Toroidal Power Supply Transformer           No

Hyper Dynamic Amplifier Modules (HDAM) (List version) Yes

Pure Direct Mode             Yes

Gold Plated RCA Terminals            Yes

Clock Jitter Reducer         Yes

Front Display      2 line FLD + port hole OLED

GUI Languages  9

Setup Assistant Yes

Smart Select on Remote Yes

Firmware Update by Network / USB         Yes / Yes

Power:
ECO Mode           Yes

Auto Power off  Yes

Sleep Timer

Power Consumption in W             710

Power Consumption No-Sound (ECO on/off) in W               65 / 110

Standby Consumption in W          0.2

CEC Standby Consumption in W 0.5

Network Standby Consumption in W        Less than 2.0

Maximum Dimensions

Antenna:Horizontal:(W x D x H) in inches: 17.3 x 15.8 x 7.3

Antenna:Vertical :(W x D x H) in inches: 17.3 x 16.2 x 10

W/o Antenna:(W x D x H) in inches: 17.3 x 16.2 x 7.3

Weight in lbs.     33.3

What's in the box: Main unit, remote control, batteries, wire labels, quick start guide, Audyssey microphone, microphone stand, 2 External Detachable Antenna, AC cord
