16 Channel 200-watt-per-channel Amplifier
The Marantz AMP 10 is built to impress home theater lovers. It delivers clean, robust power into 16 channels, which can be configured for an expansive 15.2 surround-sound setup, or a muscular bi-amped 7.1 system.
The amp's beefy toroidal transformer, Hyper Dynamic Amplifier Module, and current feedback amplification offer impressive accuracy and control under high-drive conditions.
Make the most of its power by pairing it with the Marantz AV 10 home theater preamp.
· 200 watts per channel into 8 ohms (20-20,000 Hz) at 0.05% THD, with 2 channels driven
· 400 watts per channel into 4 ohms
· Massive toroidal power transformer for high current and low noise
· Selectable auto-standby function
· Hyper Dynamic Amplifier Module (HDAM® SA2) and current feedback amplification for accuracy and control under high-drive conditions
Excellence Only Begins with Performance
Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world's most demanding home theaters.
Peerless Performance
Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of Marantz sound.
Technology Leader
AMP 10 is engineered using best-inclass technologies to enable extraordinary power output; high channel count; and the dynamic, rich, warm sound for which Marantz is highly renowned.
Exquisite Design

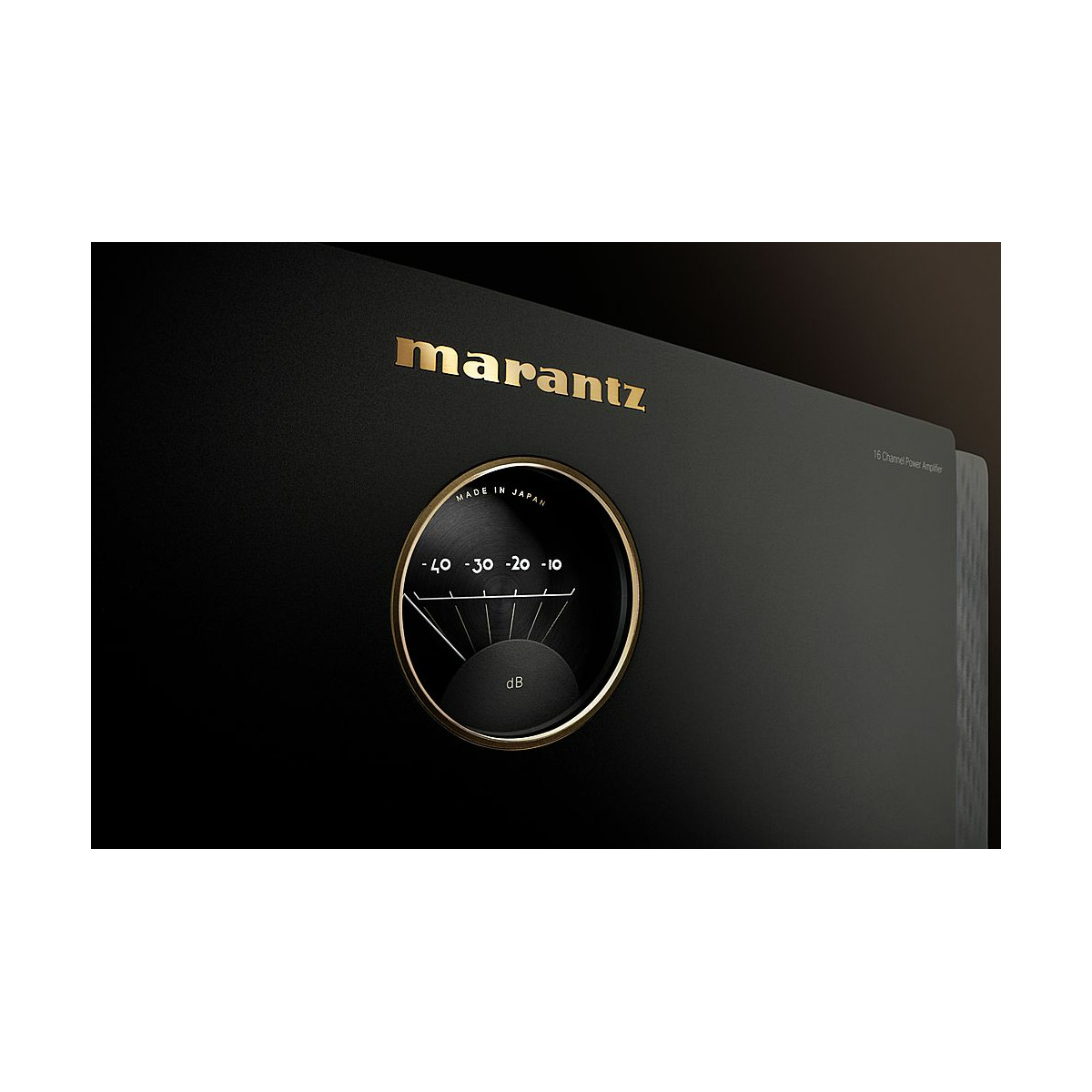

A modern expression of timeless design principles, AMP 10 features the iconic Marantz porthole level meter, premium materials, and subtle sidelights that illuminate the front panel.n
Performance
Our Marantz Sound Master meticulously tuned AV 10 for amazing performance with careful parts selection to create the Most Musical Sound in your home.
Style
Excellence is heard and seen. AV 10 is meticulously crafted with authentic materials in a modern style befitting its rich heritage and stunning performance.
Customizability
Thoughtfully curated connectivity options and fine tuning ability allow you to make AMP 10 your own.
Powerful
AMP 10 gives you 16 channels of commanding power, deftly nuanced.
Specifications:
Multi-Room / CI
IP Control / RS232 Control / Web Control / App Control – No / Yes / No / No
IR Flasher In – Yes
Marantz Remote Bus – Yes
DC Trigger Input/ Output – 1 / 1
Others
Front Display – Level Meter
Firmware Update by Network / USB / RS232C – No / No / No
Auto Power off – Yes
Inputs/Outputs
Main Amplifier in Balanced & Unbalanced: 16ch (Exclusive use by a selector switch.)
Speaker Terminal SPKT-1+
Number of Speaker Terminals – 16
Bi-Amp Drive /BTL Drive – Yes / Yes
Level Meter – Yes
Chasiss Copper Plated
Number of poweramps 16
Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL 200W / 400W
Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal 400W
Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal 200W
70% Guarantee(Normal/Bi-Amp/BTL) – Yes
100% Guarantee(Normal/Bi-Amp) – Yes

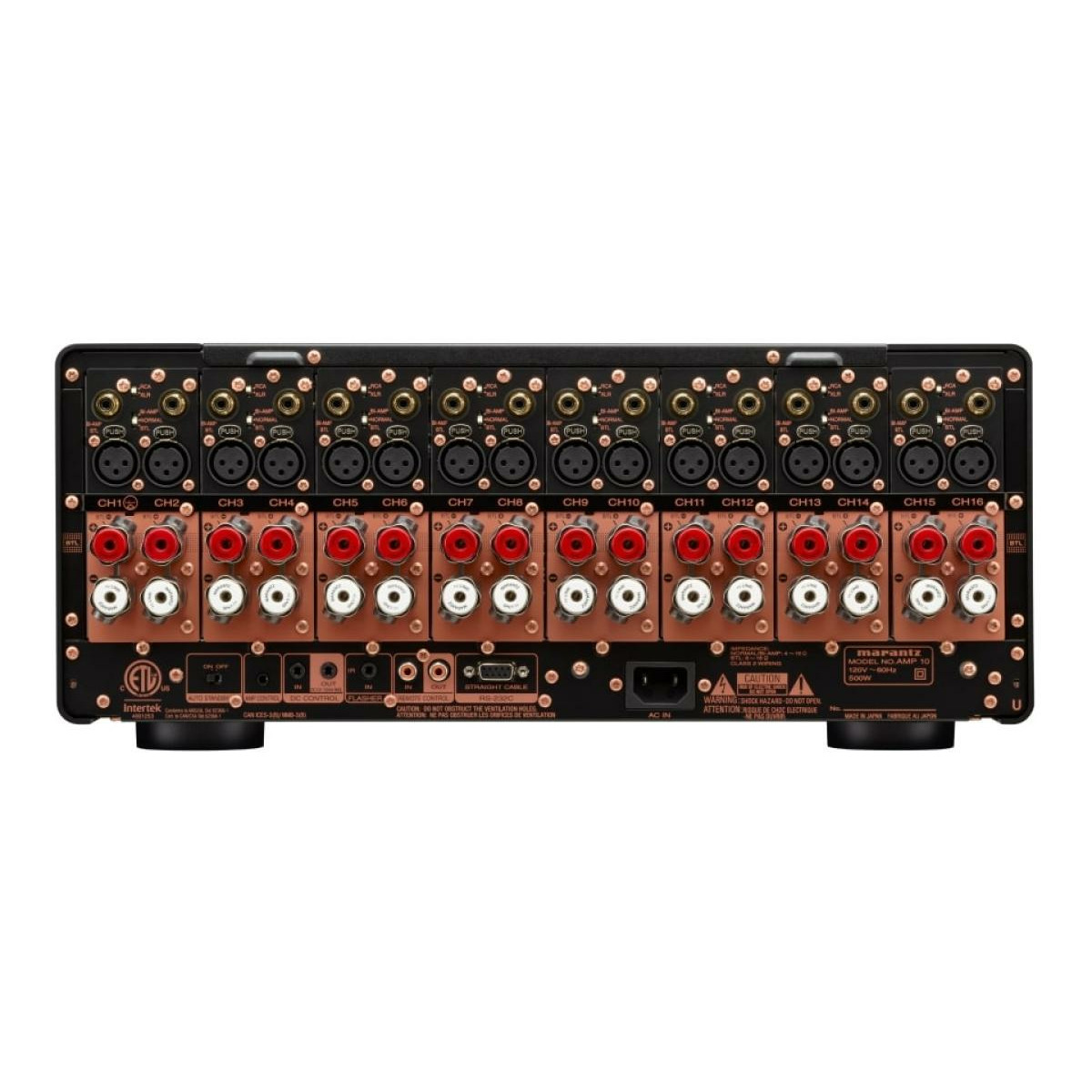

unbalanced stereo RCA and balanced stereo XLR inputs for each channel
binding post speaker terminals for each channel
3.5mm amp control input for syncing functions with a compatible preamp/processor
3.5mm DC trigger input and output
IR flasher input
Marantz RCA remote control input and output
RS-232C port for third-party remote control
What's in the box: Power amplifier, 6' AC power cord, Amp control mono-minijack cable, Remote control mono-RCA cable, SP terminal wrench, Quick Start Guide, Safety Instructions, Warranty Information.
