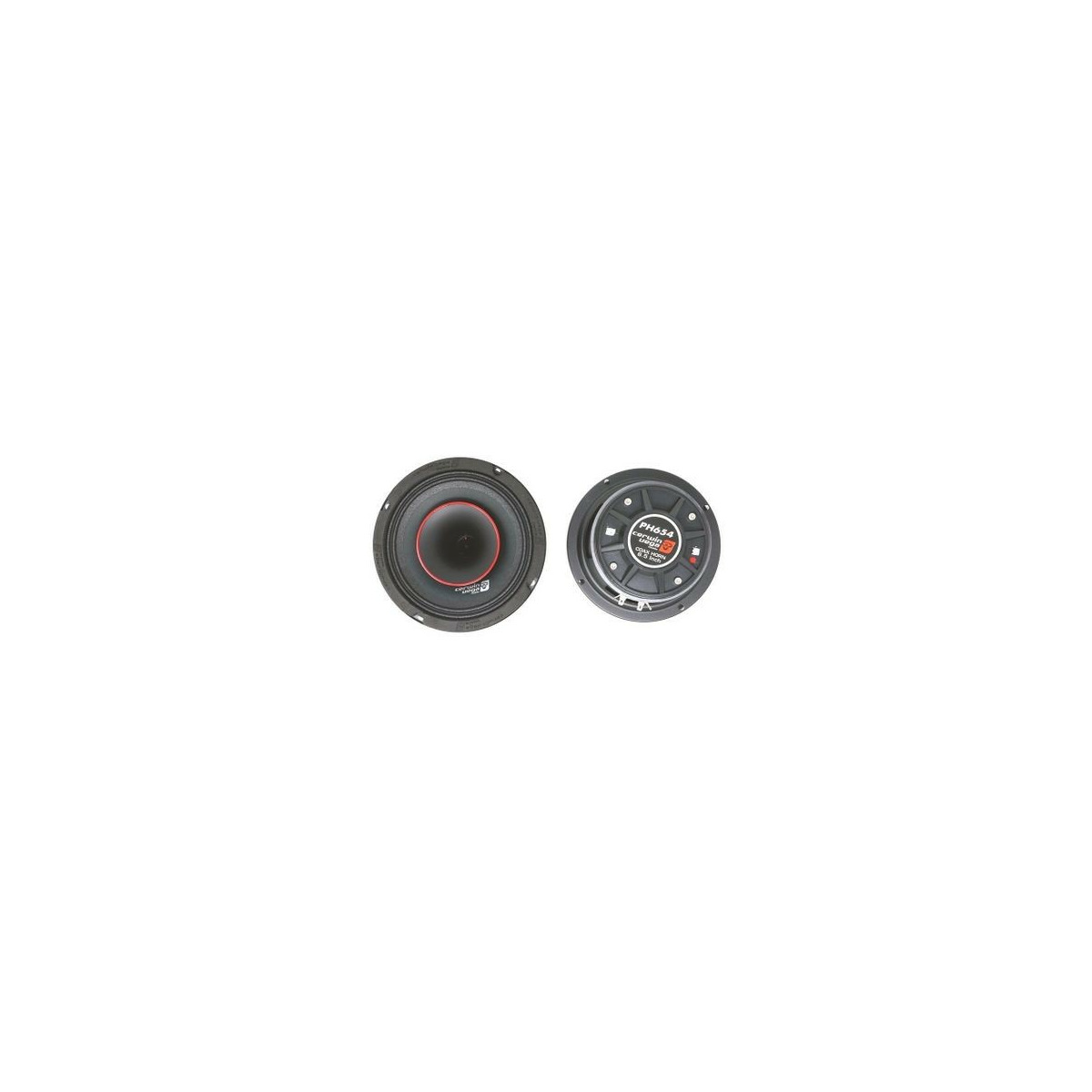

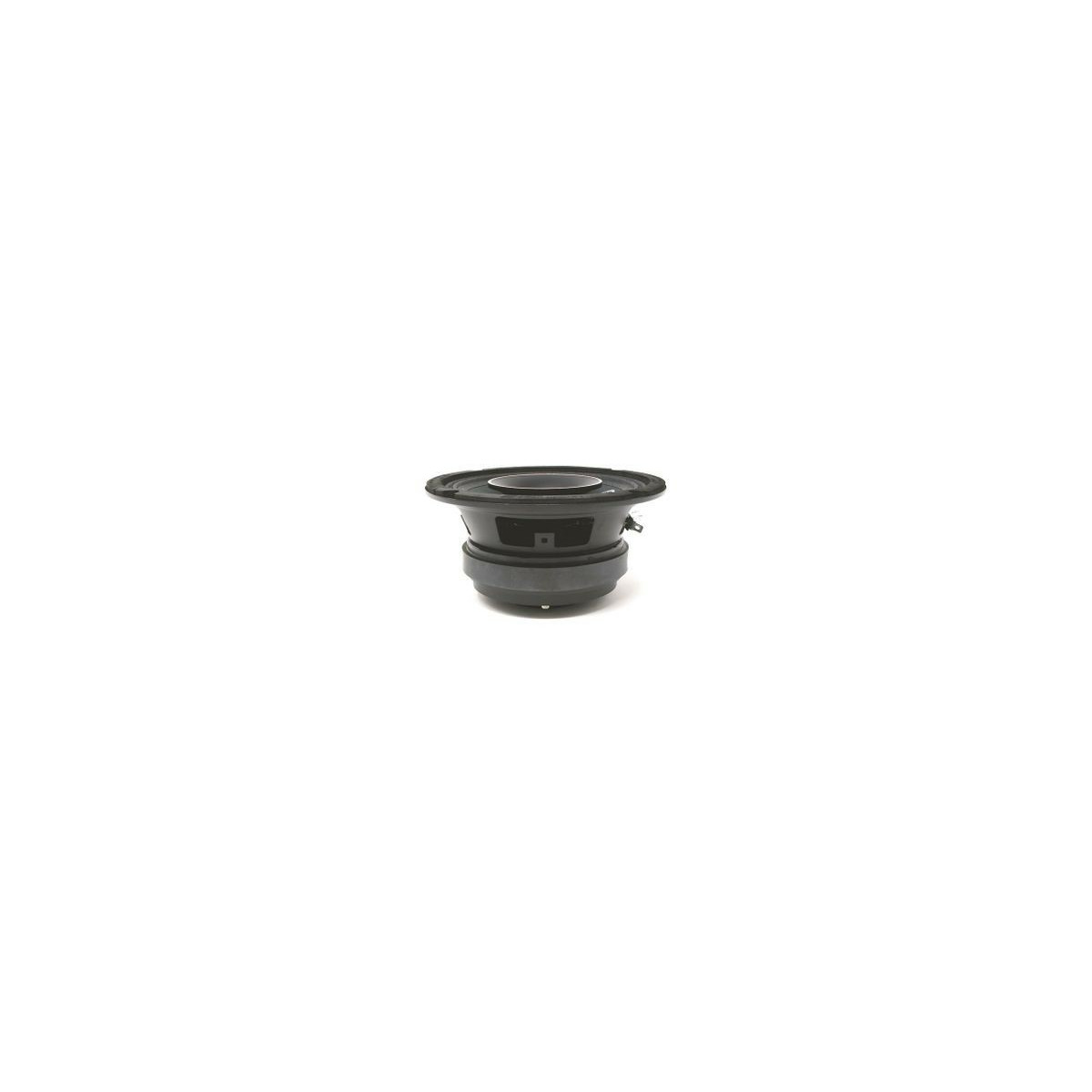

PH654 – 6.5″ PRO FULL-RANGE CO-AX HORN SPEAKER

FEATURES:

6.5” PRO Full-Range Co-Ax Horn Speaker

Ferrite Strontium High Temp Magnet Structure

Heavy Duty Stamped Steel Basket

Advanced Voice Coil Heat Sink Design for better Heat    Dissipation

1.5” Double Layer High Temp Voice Coil with Black Coated Voice Coil former for Woofer

1.0” Single Layer High Temp Voice Coil with Voice Coil former for the Tweeter

12dB 2nd Order Filter Crossover for better Protection of  the Tweeter

SPECIFICATIONS

150W RMS/300W MAX Power Handling

Frequency Response: 110Hz -18Khz

Voice Coil Diameter 1.5" (38.1mm)

Sensitivity 101dB

Mounting Diameter 5.67" (144mm)

Mounting Depth 3.09" (78.5mm)
