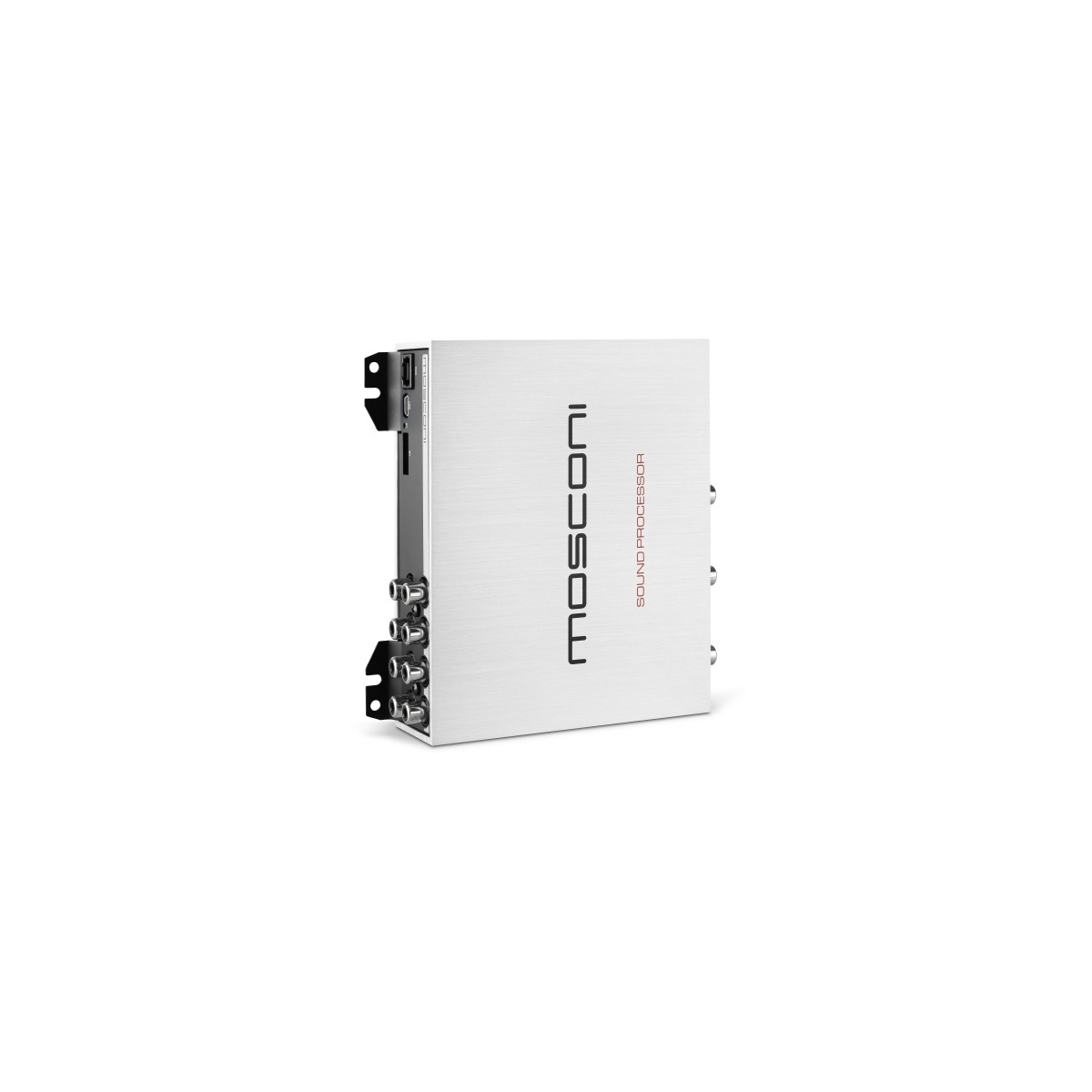

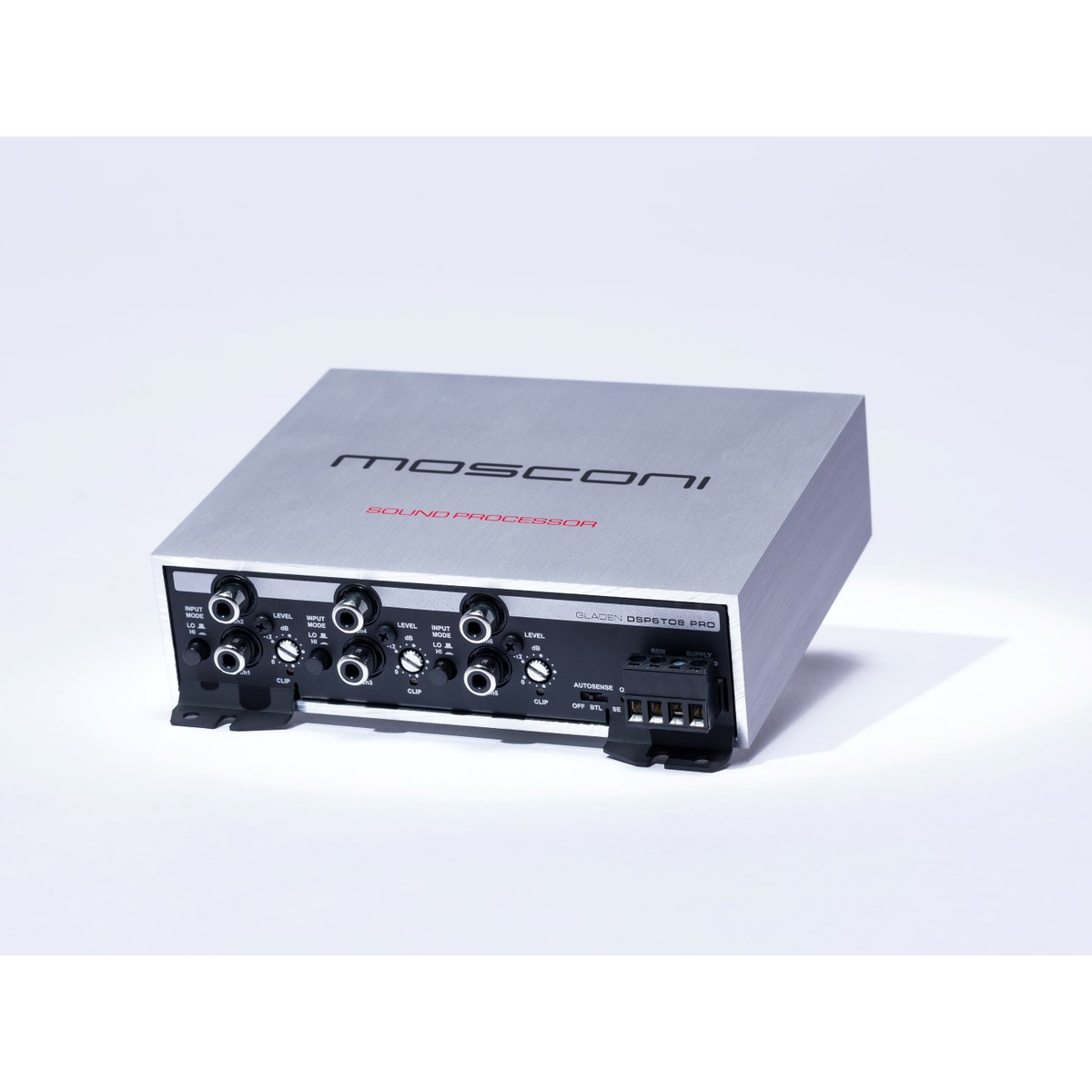

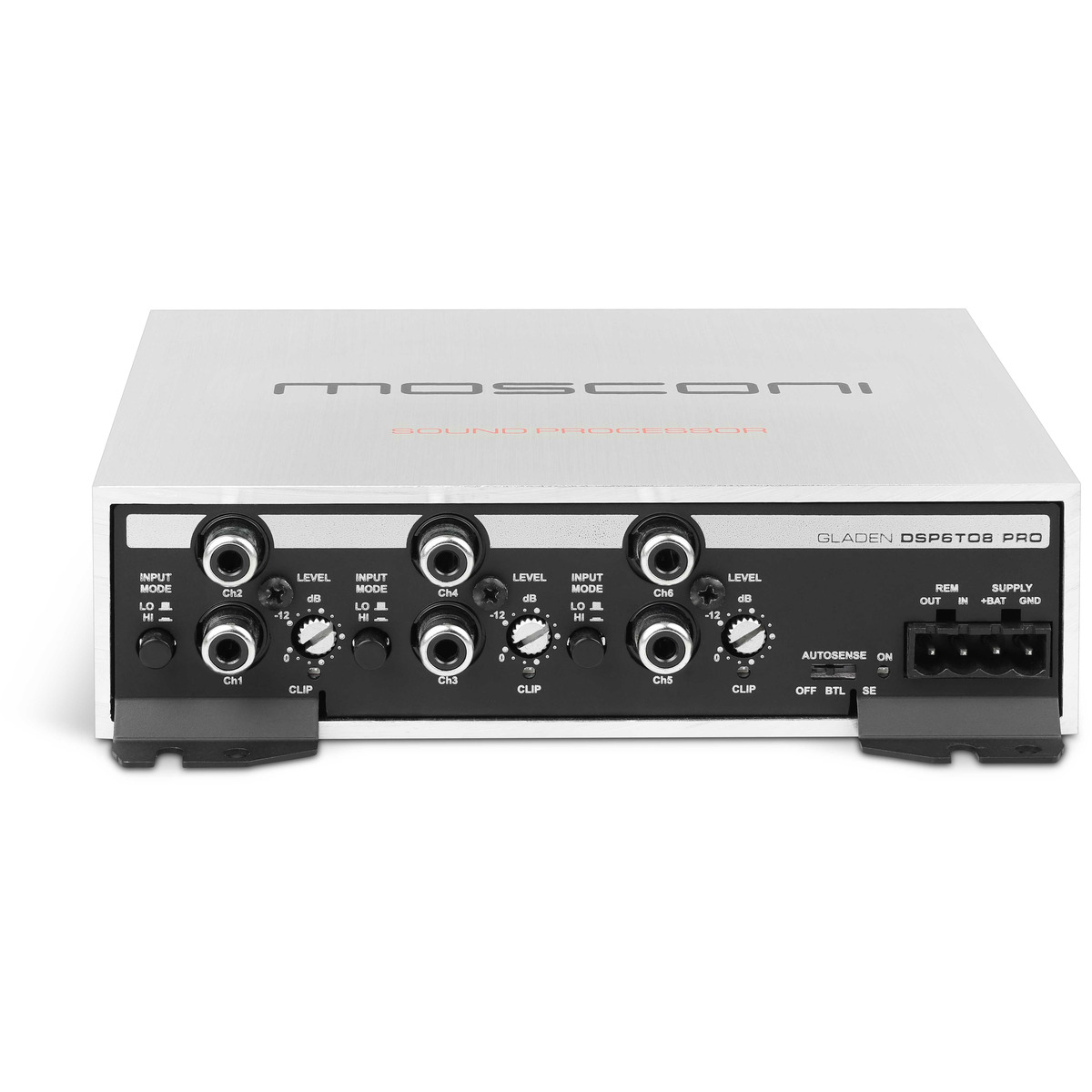

DSP-6-8-PRO - Made in Italy

Overview

The Digital Signal Processor with 6 inputs and 8 outputs.

Sample rate 48KHz / 24bit.

Highest resolution, e.g. time delay in 0,02 msec/step

All settings in real-time

USB and optional BT adapter (MOS-BTM), for adjusting by PC, Android and BlackBerry (*) smart phone apps

Low-Level or High-Level input with auto-sense (only by High-Level)

Aux input with auto-sense for stereo signal

Hands-free and mobile navigation

4 presets

Mixer matrix to realize all possible mixtures and couple input and output channels as desired

Intuitive User Interface and video tutorials to avoid an instruction book.

Operating also without mouse, only with keys for an easy adjusting in the car

DSP Technology made by cooperation MOSCONI-GLADEN

Specifications

• Technical Specifications:
• INPUT MODE: Low Level (LL) / High Level (HL)
• INPUT IMPEDANCE: > 10Kohm (LL) / 47ohm (HL)
• INPUT SENSITIVITY: 2Vrms ÷ 8Vrms (LL) / 5Vrms ÷ 20Vrms (HL)
• INPUT VOLTAGE REGULATION: -12dB ÷ 0dB
• MAX OUTPUT SIGNAL: 8Vrms
• OUTPUT IMPEDANCE: 50 ohm
