PA-1175 MKII - Made in Italy (Special Order Only)
Overview
THE POWER AMPLIFIER FOR THE MOST DEMANDING AUDIOPHILES
A class AB Power Amplifier with a selectable damping factor for easy matching with a wide variety of loudspeakers. It features a proprietary Optical BIAS that delivers high power with ultra-low distortion.
The Optical BIAS controls the voltage of the unit and features optical decoupling to overcome the downgrading solutions of traditional electronics. Analysing optically the signal while it gets completely separated from the audio signal path assures the highest protection and unbeatable performance. The PA-1175 MkII is built to minimise RFI and EMI (interferences), using massive panels of high-quality aluminium that feature the unmistakable Gold Note curved vent design. The BTL technology (Bridge-Tied-Load) allows the unit to be easily bridged in order to work as a mono amplifier. The remarkable 200W @ 8Ω per channel in stereo mode grow up to a considerable 520W per channel in mono. Pushing further the pure audio performance, it allows the PA-1175 MkII to drive easily the most demanding power speakers on the market.

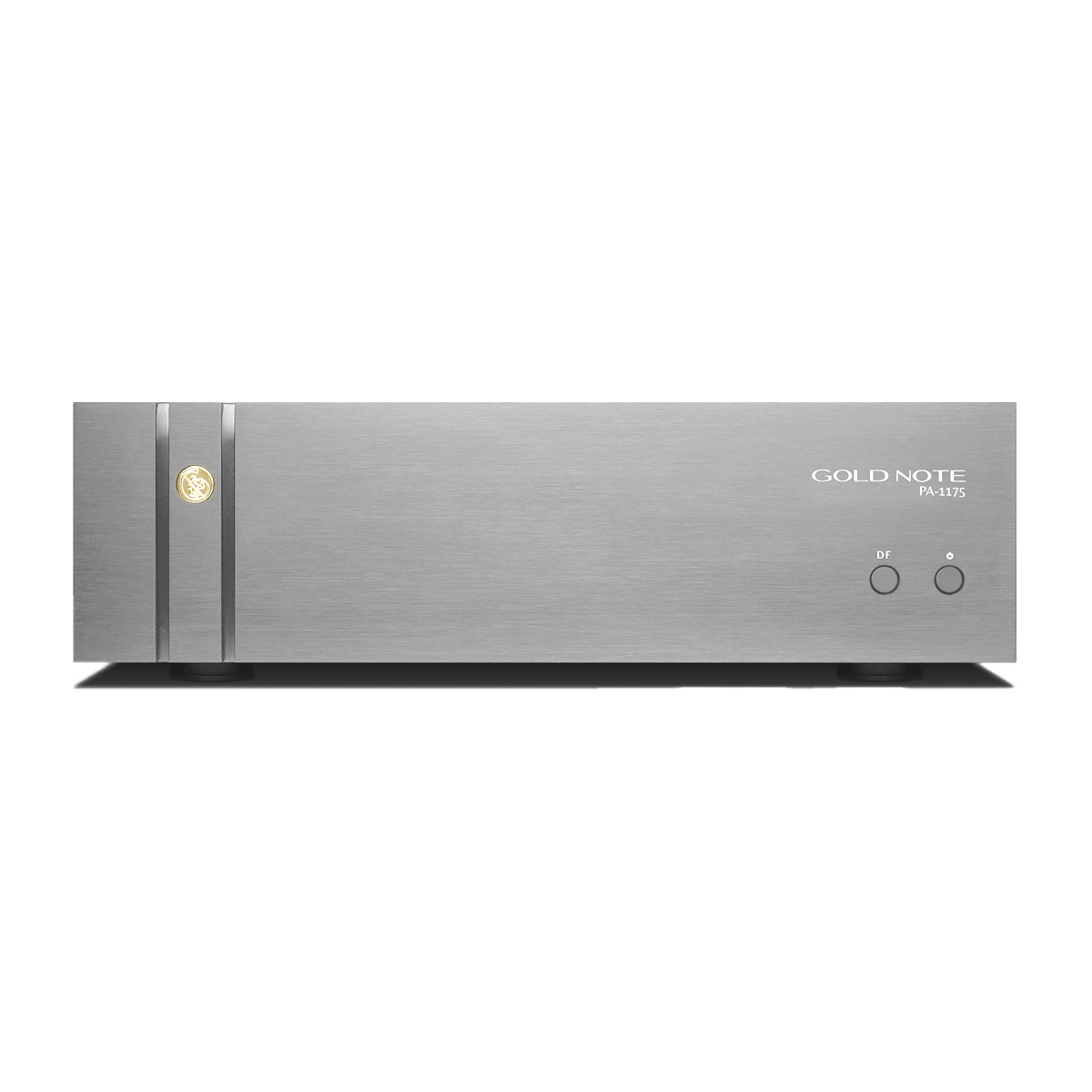

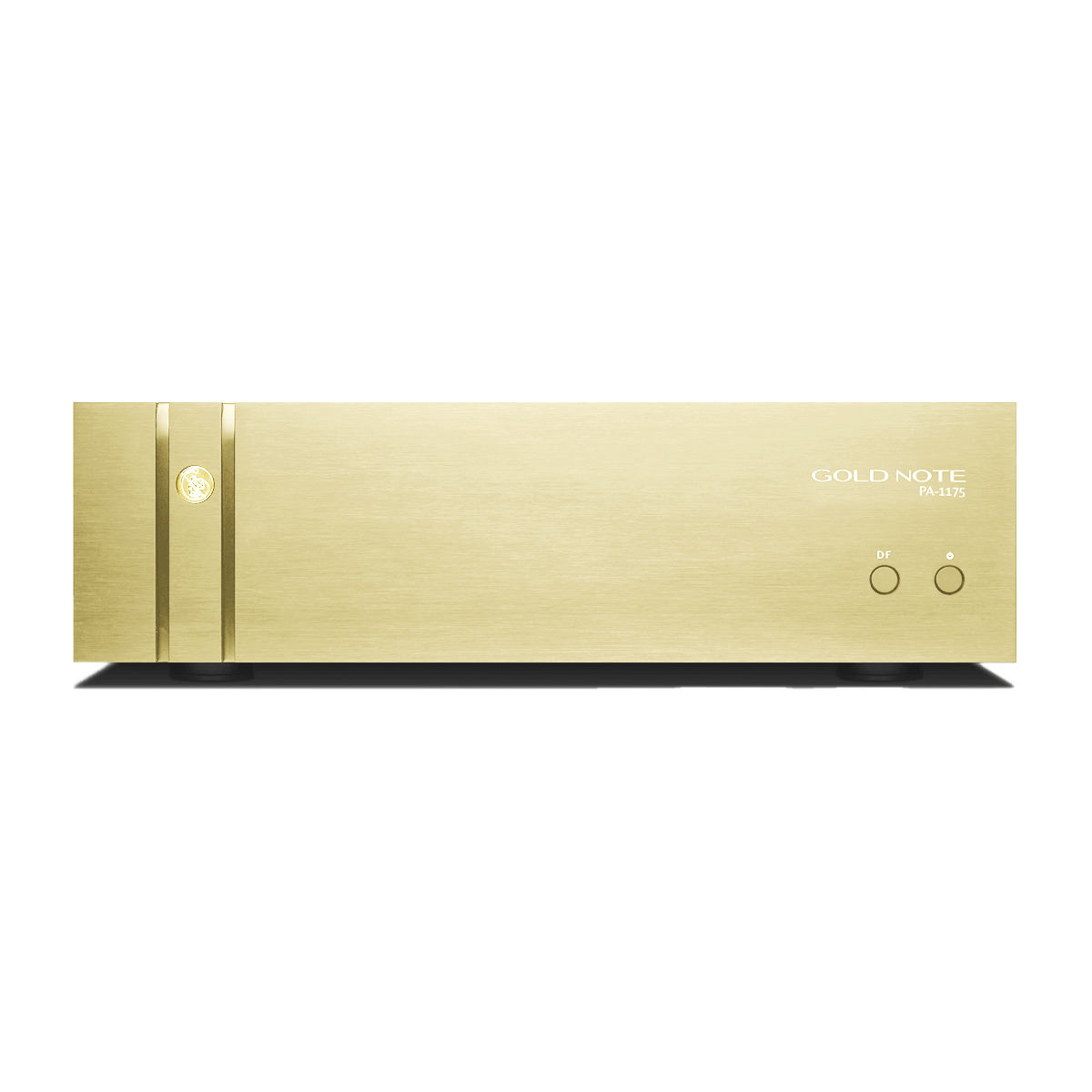

The PA-1175 MkII power transformer is a special toroidal model featuring a unique cut spiral nucleus. The refined mechanical process makes the nucleus completely stable, canceling any mechanical vibration to guarantee a terrific performance and perfect insulation, while small secondary transformer powers the auxiliary functions with dedicated circuits outside of the audio path signal. The PA-1175 MkII features a proprietary adjustable Damping Factor technology that can be easily selected from the front panel. Setting the Damping Factor to 250 or 25 will let you find the ideal match with any kind of speaker. Use it at 250 to get the power and control necessary to drive large, low-sensitivity speakers, or set it at 25 to use the amplifier as if it was a low-power tube amplifier, perfect to drive high-sensitivity and mini-monitor speakers.
Specifications
- POWER OUTPUT 200W@8Ω per channel (520W@8Ω in mono BTL)
- FREQUENCY RESPONSE 1Hz – 100KHz @ ± 1dB
- THD (TOTAL HARMONIC DISTORTION) <0.01% @ 20Hz-20kHz
- SIGNAL TO NOISE RATIO 110dB
- DAMPING FACTOR High (250) or low (25)
- SLEW RATE 20V/µs

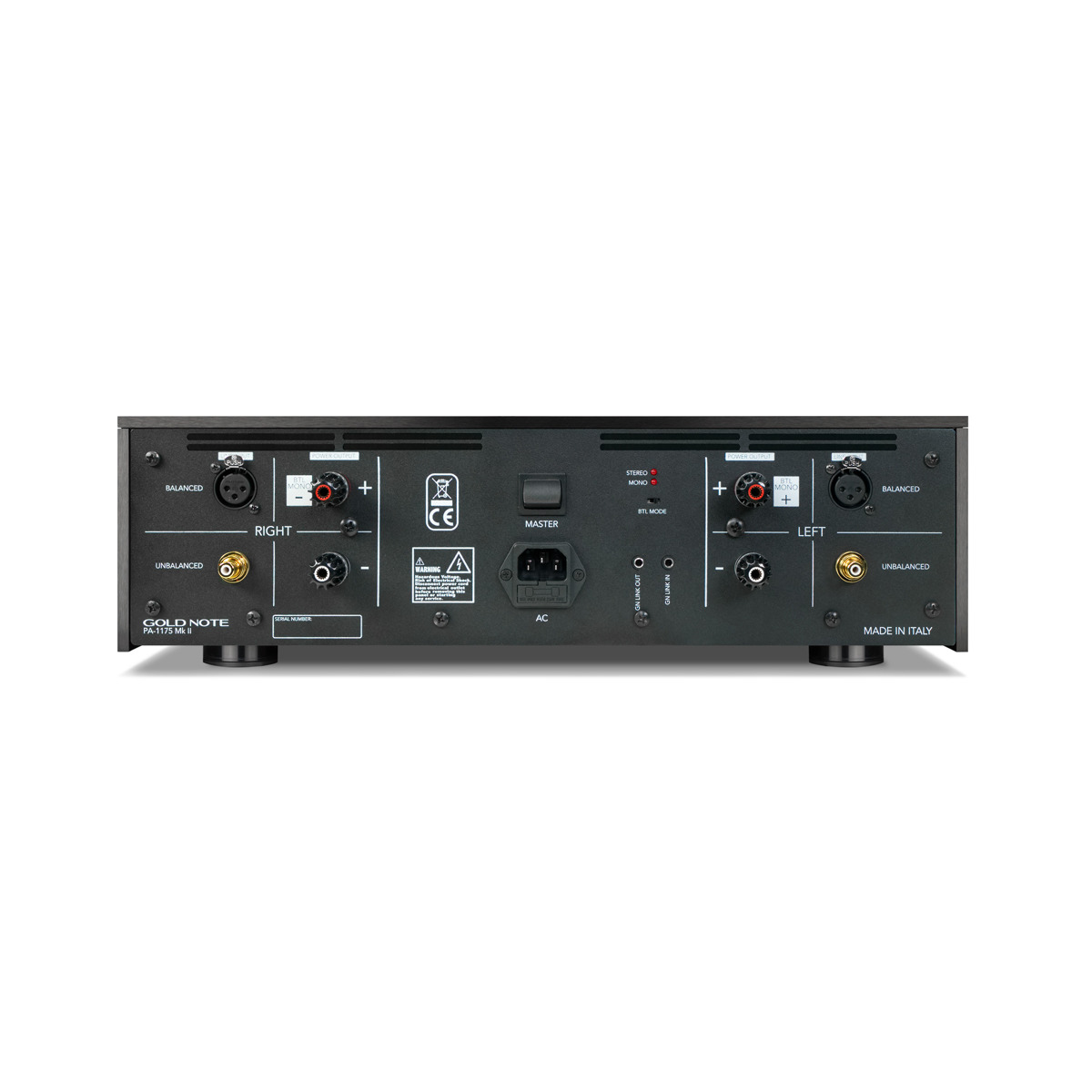

- AUDIO INPUTS 1x RCA unbalanced 1x XLR balanced
- INPUT SENSITIVTY 1V RCA 4V XLR
- INPUT IMPEDANCE 47kΩ
- AUDIO OUTPUTS Speaker terminals: Gold Plated Binding Posts
- POWER CONSUMPTION 1200W max – 1,2W idle
- POWER SUPPLY 100-120V or 220-240V, 50/60Hz
- POWER TRANSFORMERS 640VA
- FUSE 220/240V 6,3A T, 100/120V 10A T
- DIMENSIONS 430mm W | 135mm H | 370mm D
- WEIGHT Kg. 20.5 – net Kg. 27 – boxed
