P-1000 MKII - Made in Italy (Special Order Only)
Overview
A FULL-FUNCTION CLASS-A AUDIO PREAMPLIFIER. FOR REAL MUSIC LOVERS

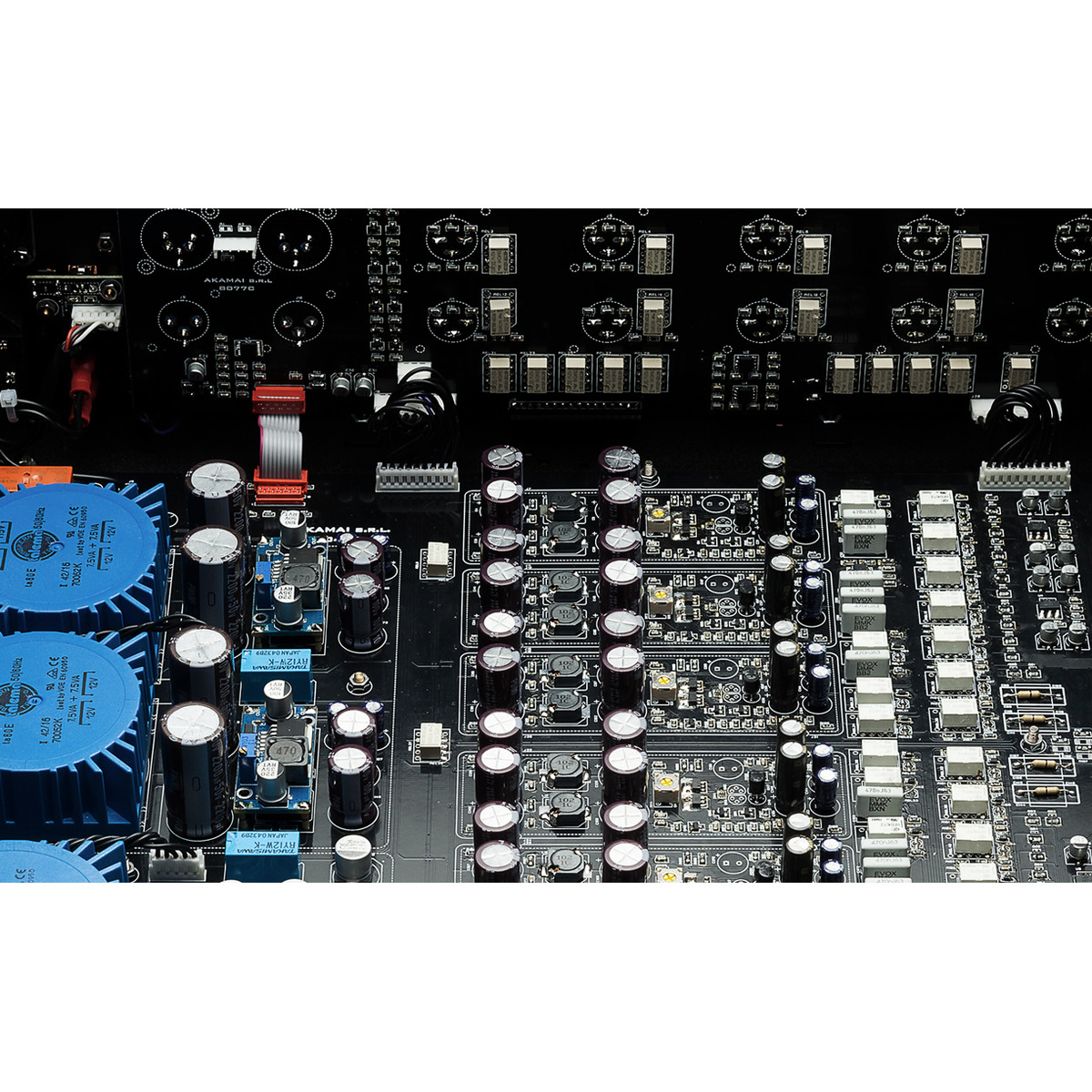

Designed for High-End audio systems, the P-1000 MkII is an innovative class A line preamplifier powered by a new proprietary Six Gain Stage Ultra-Balanced design featuring relays and optical ALPS Encoder volume control.
This preamplifier belongs to a new era of electronics.
Top performances and advanced technology combined to offer an outstanding musical experience, with incredibly low distortion and extended linear bandwidth.
The P-1000 MkII features a three independent linear transformer power supply and 8 stereo inputs: 4 fully balanced XLR and 4 RCA.
It offers, besides, multiple functions: Mono/Stereo selection, Left/ Right channel swap, Absolute Phase swap, Booster technology, fine Balance tuning, and quadruple analogue outputs (two pairs of unbalanced stereo RCA and two pairs of balanced XLR).
To perfectly reproduce even old recordings, the preamplifier can be set into Mono as well as Stereo mode. It also permit swapping the Left & Right channels to enable the reproduction of inverted recordings in addition to the absolute phase swap from 0° to 180°.
The Booster technology of P-1000 MkII allows getting the best out of speakers that require power supplies, providing greater energy in a very specific range of low frequencies. The Booster is completely bypassed when set to OFF.

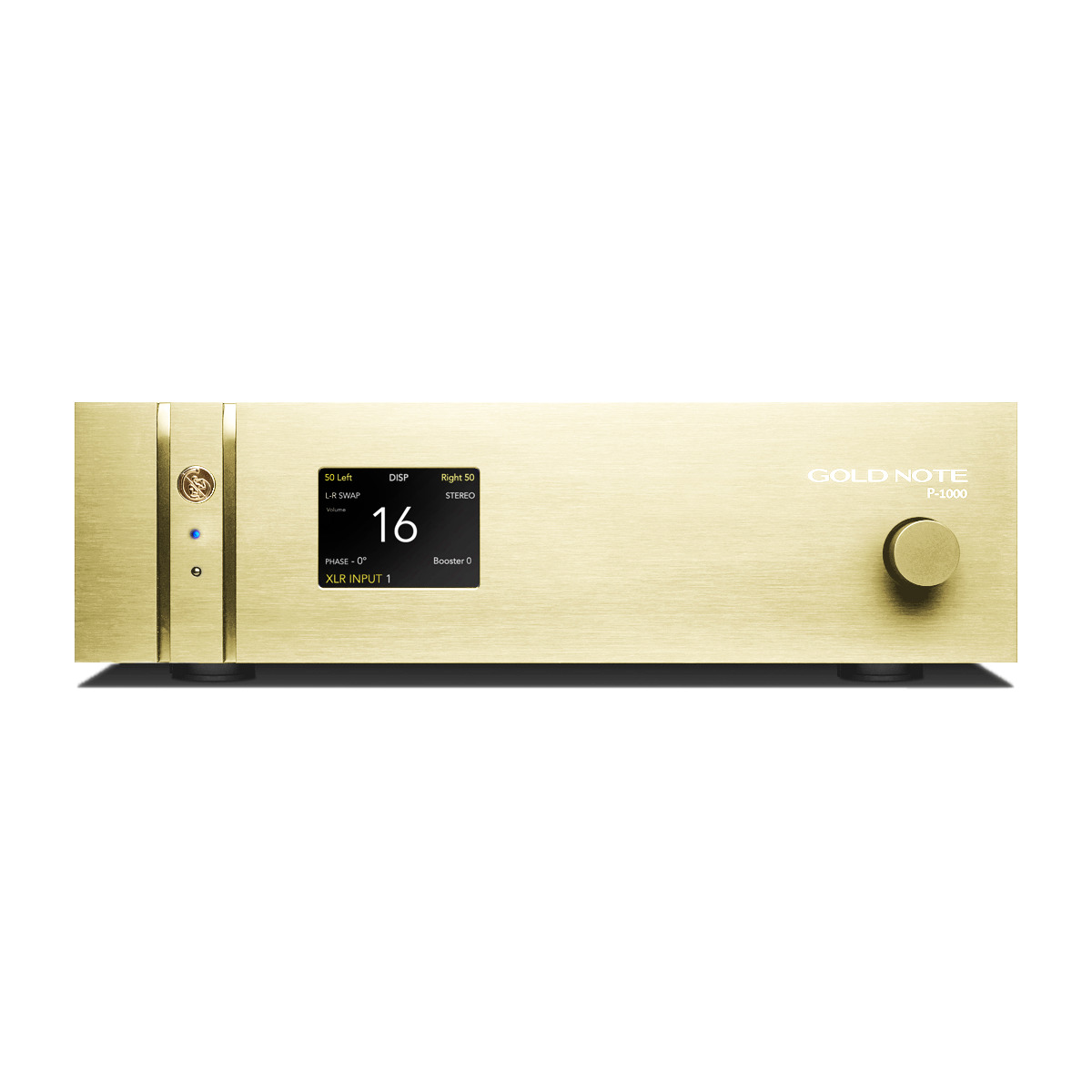

The large colour display of the P-1000 MkII shows all functions and allowing quick and precise fine adjustments, whether using the Single-Knob-Control rotary joggle on the front panel and the IR remote control, making this preamplifier really easy to use.
To enhance the performance of the P-1000 MkII even further, it can be matched with the external super inductive power supply PSU-1250/1000 and the valve output stage TUBE-1012/1006.
Specifications
- FREQUENCY RESPONSE 2Hz – 200kHz @ ± 3dB
- THD (TOTAL HARMONIC DISTORTION) <0.001% @ 1kHz
- GAIN +19dB
- SIGNAL TO NOISE RATIO 110dB
- CHANNEL SEPARATION >118dB
- CHANNEL LEFT/RIGHT Selectable swap
- BOOSTER 3 adjustable levels (by-passable/off)
- MONO/STEREO Yes
- ABSOLUTE PHASE 0°/180°
- BOOSTER 3 adjustable levels (by-passable/off)
- VOLUME 100 steps
- REMOTE CONTROL Included IR receiver on front and back
- ANALOGUE INPUTS 4x RCA unbalanced 4x XLR balanced
- INPUT LEVEL Typical 2Vrms – Max up to 5Vrms on RCA Typical 2Vrms – Max up to 10Vrms on XLR
- INPUT IMPEDANCE 100kΩ XLR & RCA

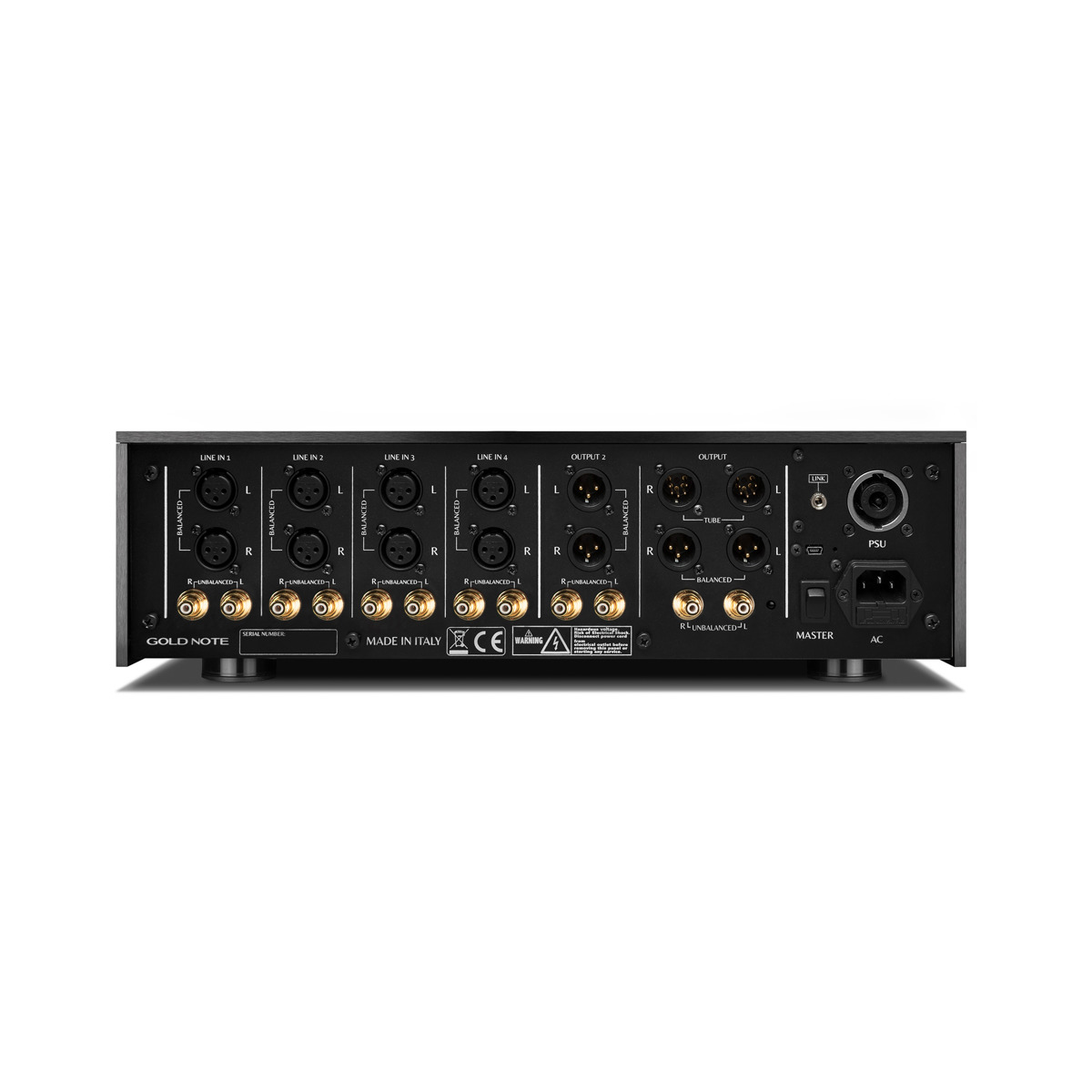

- AUDIO OUTPUTS 2x RCA unbalanced 2x XLR balanced 1x TUBE-1012
- OUTPUT LEVEL Max up to 20Vrms on XLR & 10Vrms on RCA
- OUTPUT IMPEDANCE <50Ω XLR & RCA
- POWER SUPPLY 100-120V or 220-240V, 50/60Hz Ultra Linear power supply with 3 transformers
- POWER CONSUMPTION max 30W
- DIMENSIONS 430mm W | 135mm H | 375mm D
- WEIGHT Kg. 11 – net Kg. 16 – boxed
- REMOTE CONTROL Multifunctional remote control included
