Rubicon Water-Resistant Subwoofer Amplifier

Overview

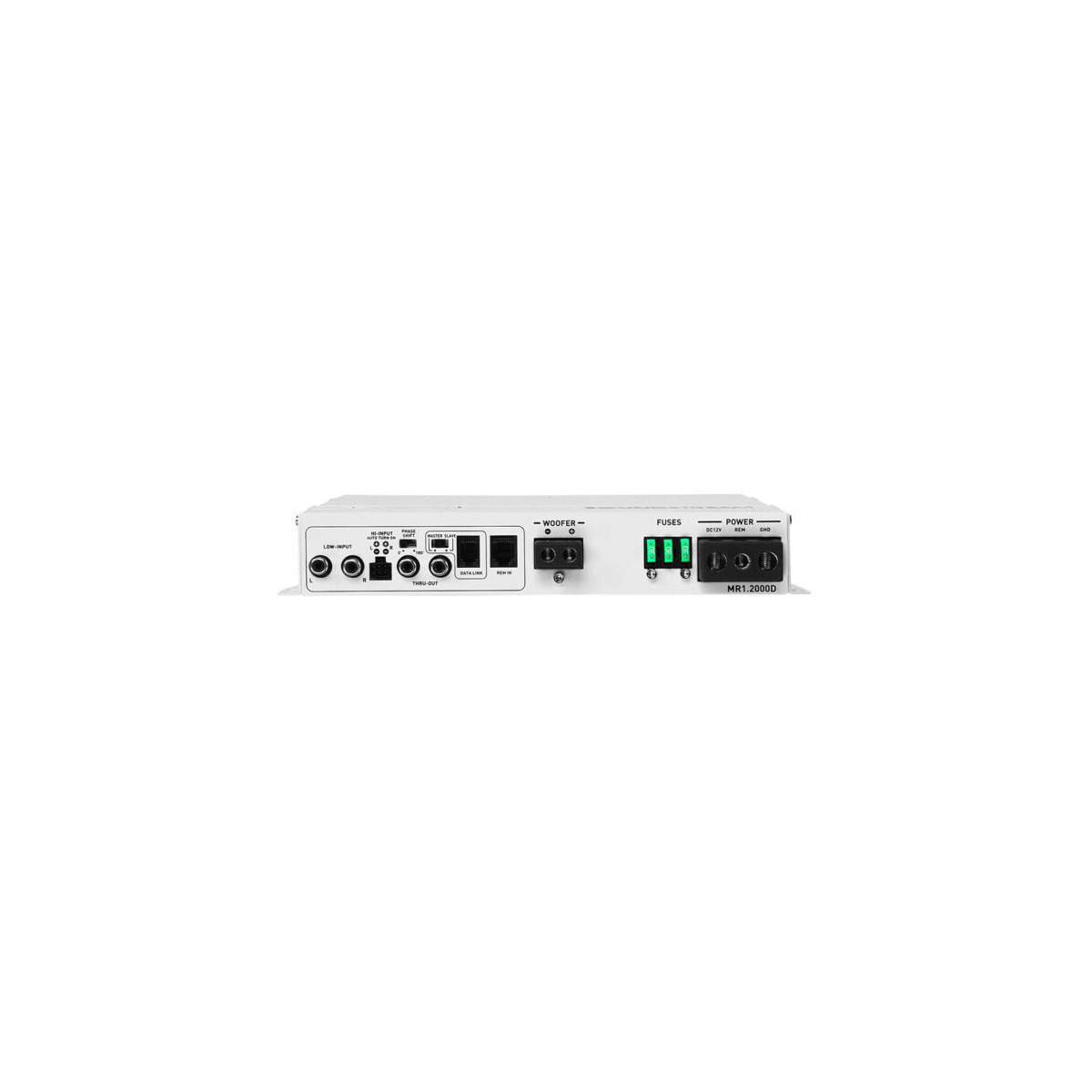

We’ve adopted the most optimum Class D performance, reliability, and smaller footprint platform for the Rubicon Nano series amplifiers and present to you Rubicon Nano. At first glance, you’ll notice this amplifier’s color; that’s the coat and finish to help this marinized model work for Marine or Powersports applications. Rubicon Nano’s signal inputs, power/ground, and speaker connections are all relocated to the leading edge of the chassis for an easier, more attractive install. All pre-amp & crossover options are appropriately located on the top surface, making adjustments after installation conceivable. You might not notice embellishments to the circuit board, including increased power supply & output stage components & Monoblock bridging capability.

Specifications

• Max Power 2,000 Watts
• RMS Power @ 4Ω 400W x 1
• RMS Power @ 2Ω 600W x 1
• RMS Power @ 1Ω 1,000W x 1

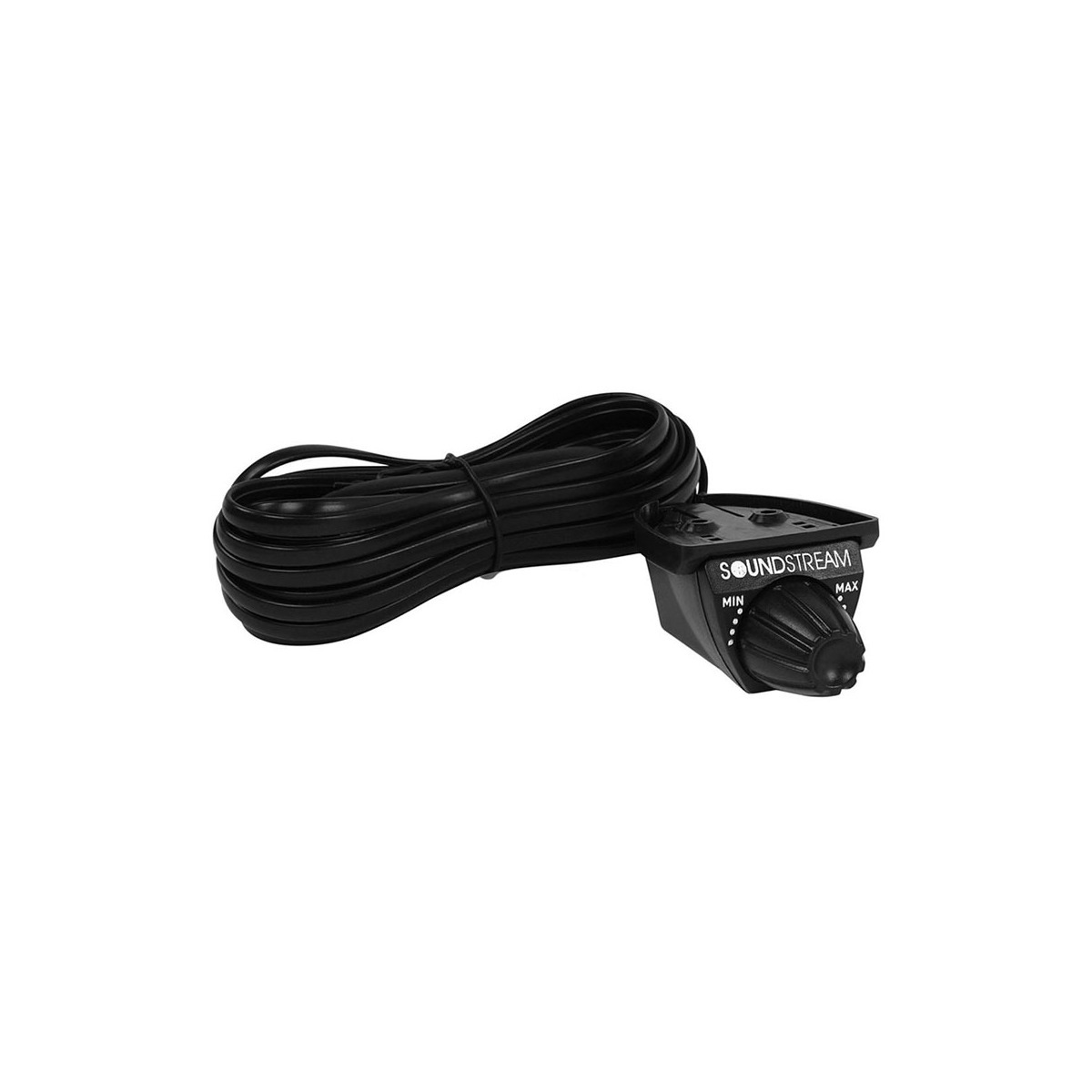

• Remote Gain Control Included
• Low Pass Filter 50Hz-500Hz
• High Pass Filter N/A
• Bass Boost 0-12dB
• Bass Boost Frequency 45Hz
• Subsonic Filter 20Hz-50Hz
• Frequency Response 20Hz-22KHz
• S/N 104dB
• Input Sensitivity 200Mv-6V
• THD <0.1%
• Operation Voltage 9V-16V DC
• Fuse Rating 30A x 4
• Dimensions
• (8.25″W x 2.75″H) 10″ L
• RMS Power 4Ω  400W x 1
• RMS Power 2Ω  600W x 1
• RMS Power 1Ω  1,000W x 1
