AMPLID - Made in Italy (Special Order Only)

Class D Stereo Power Amplifier

Overview

AmpliD is the first of a new line of switching amplifiers from Pathos. Completely balanced in Class-D, it features 70 watts of output power on each channel at 8 ohm, and 130 W at 4 ohm.

Specifications

• Type: Stereo power amplifier in pure class D, fully balanced
• Output power: 70 W @ 8 ohm, 130 W @ 4 ohm
• Frequency response: 1 Hz – 100 KHz
• THD: < 0.04%
• Damping factor: 50
• S/N ratio: 98 dB
• Input impedance: 47 kOhm

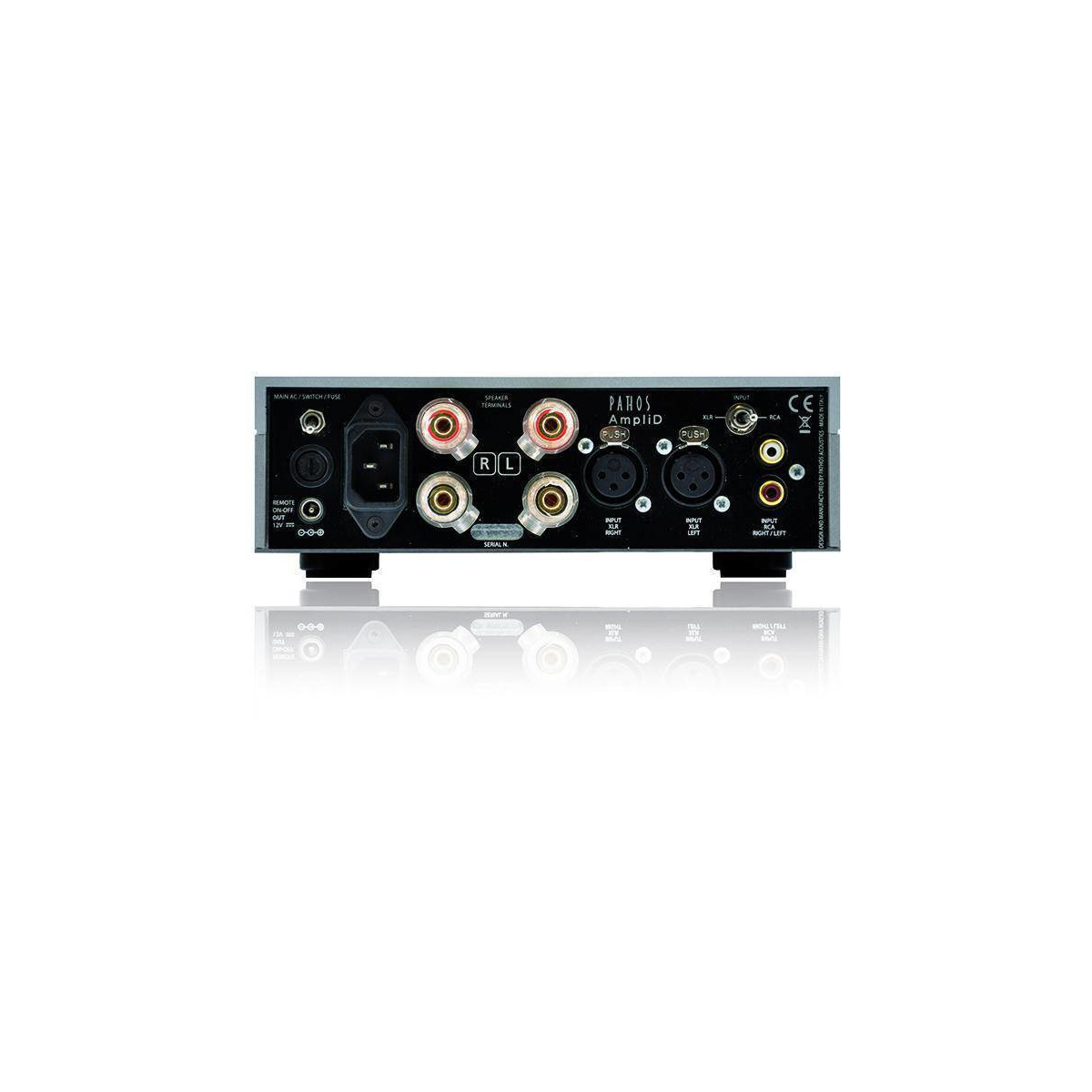

• Analog line inputs: 1 x balanced XLR, 1 x RCA
• Input sensitivity: 0.8 V RMS unbalanced, 0.8+0.8 V RMS balanced
• Output impedance: 0.16 ohm
• Gain: 29 dB unbalanced, 23 dB balanced
• Power consumption: 8 W min, 300 W max, <0.5 W standby
• Size: 9" (D) x 7.8" (W) x 2.7" (H)
• Weight (net/packed): 11 lb (5 kg) / 13.2 lb (6 kg)
