Revolution Series 6×9 HLCD with Surface Mountable Roto-Mold Enclosure + Grill
The REV6X9SM is a 6×9 HLCD speaker enclosed in a durable marine-grade surface mountable housing.

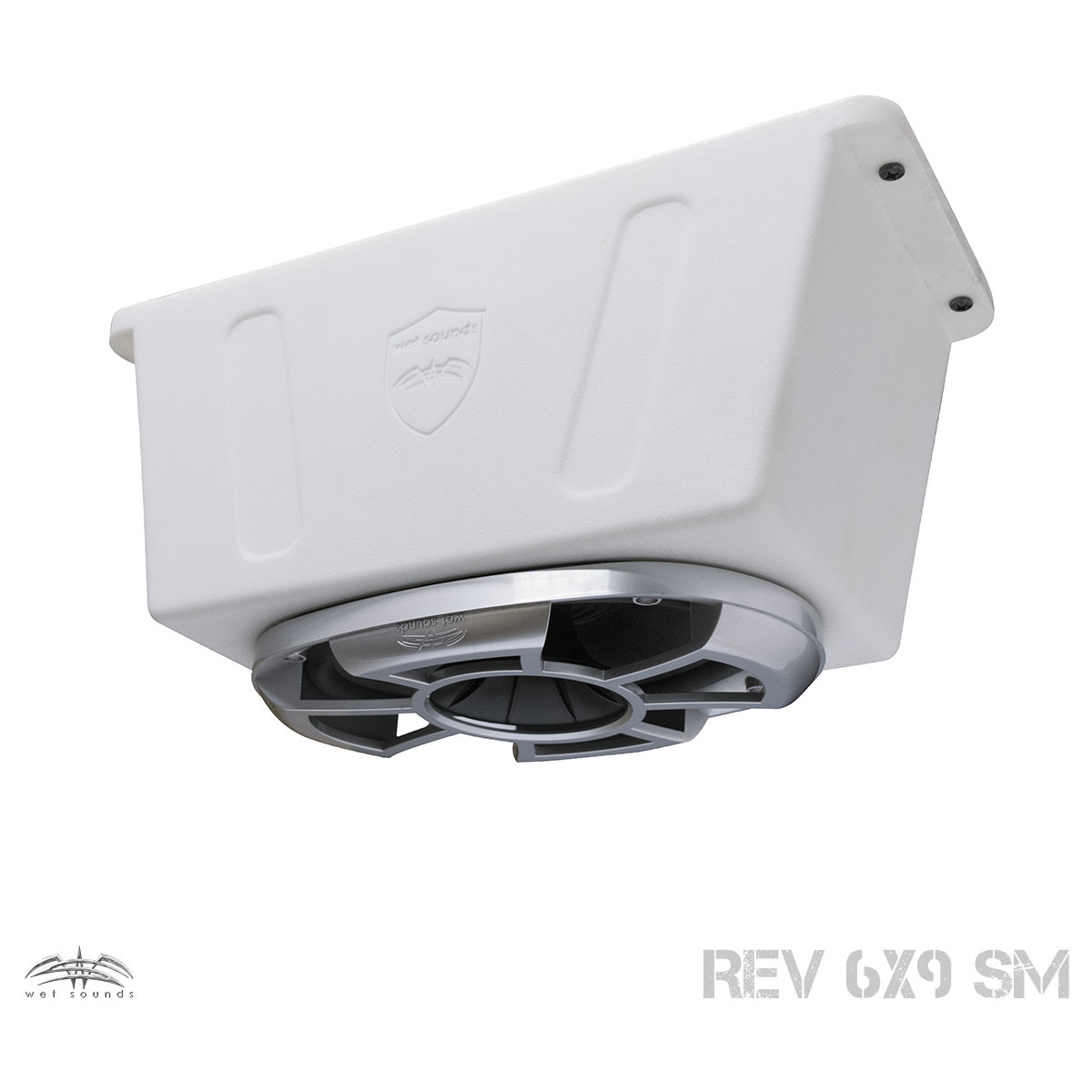

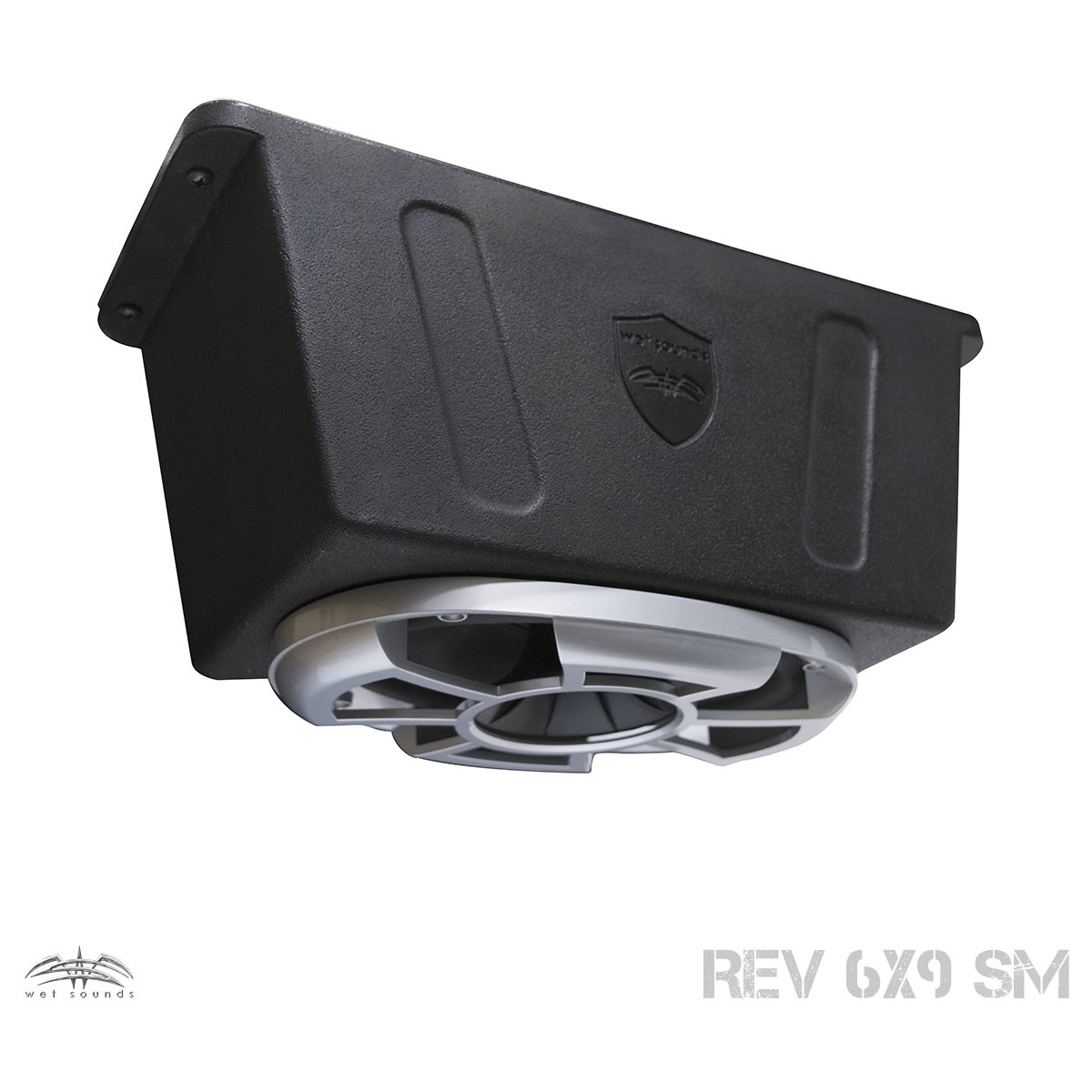

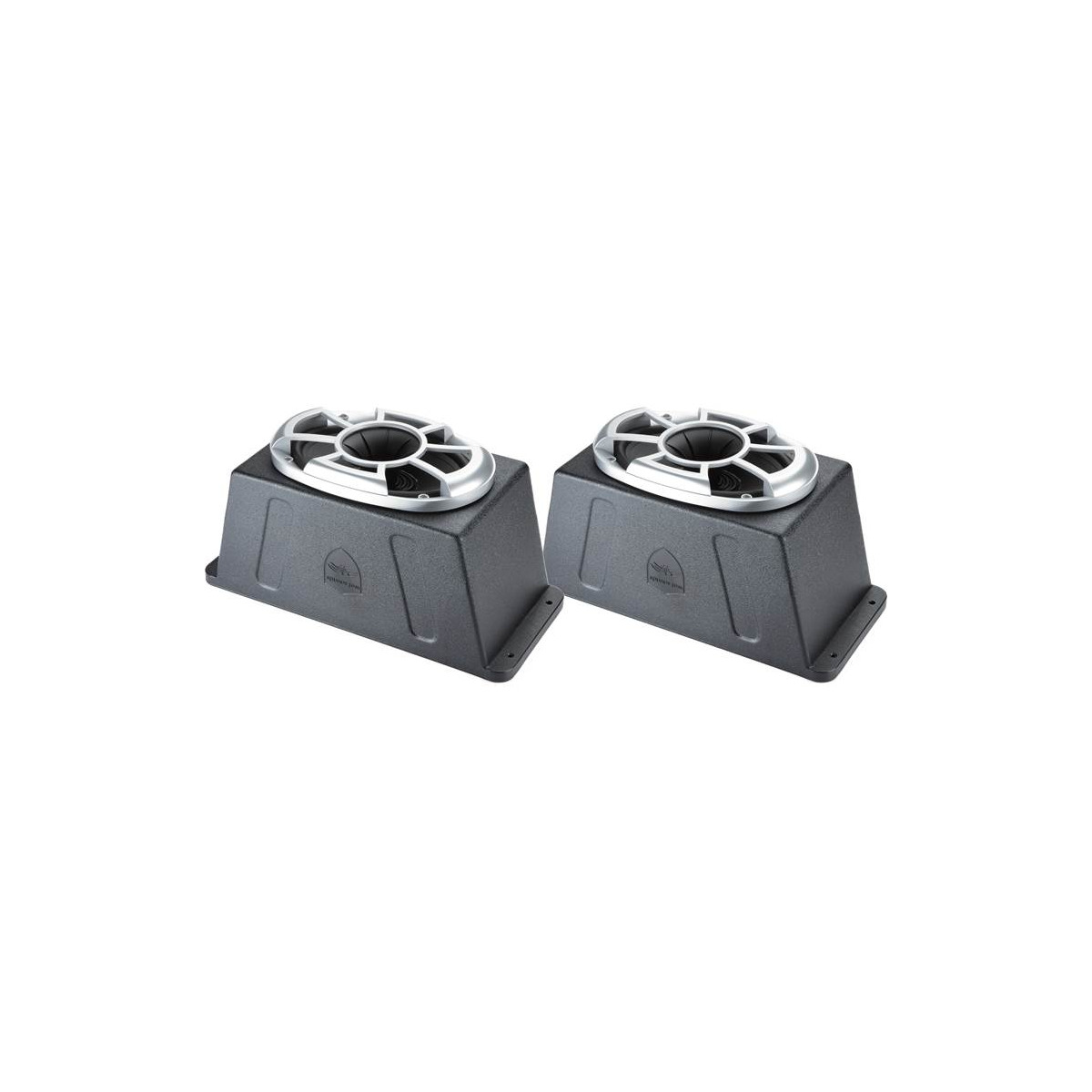

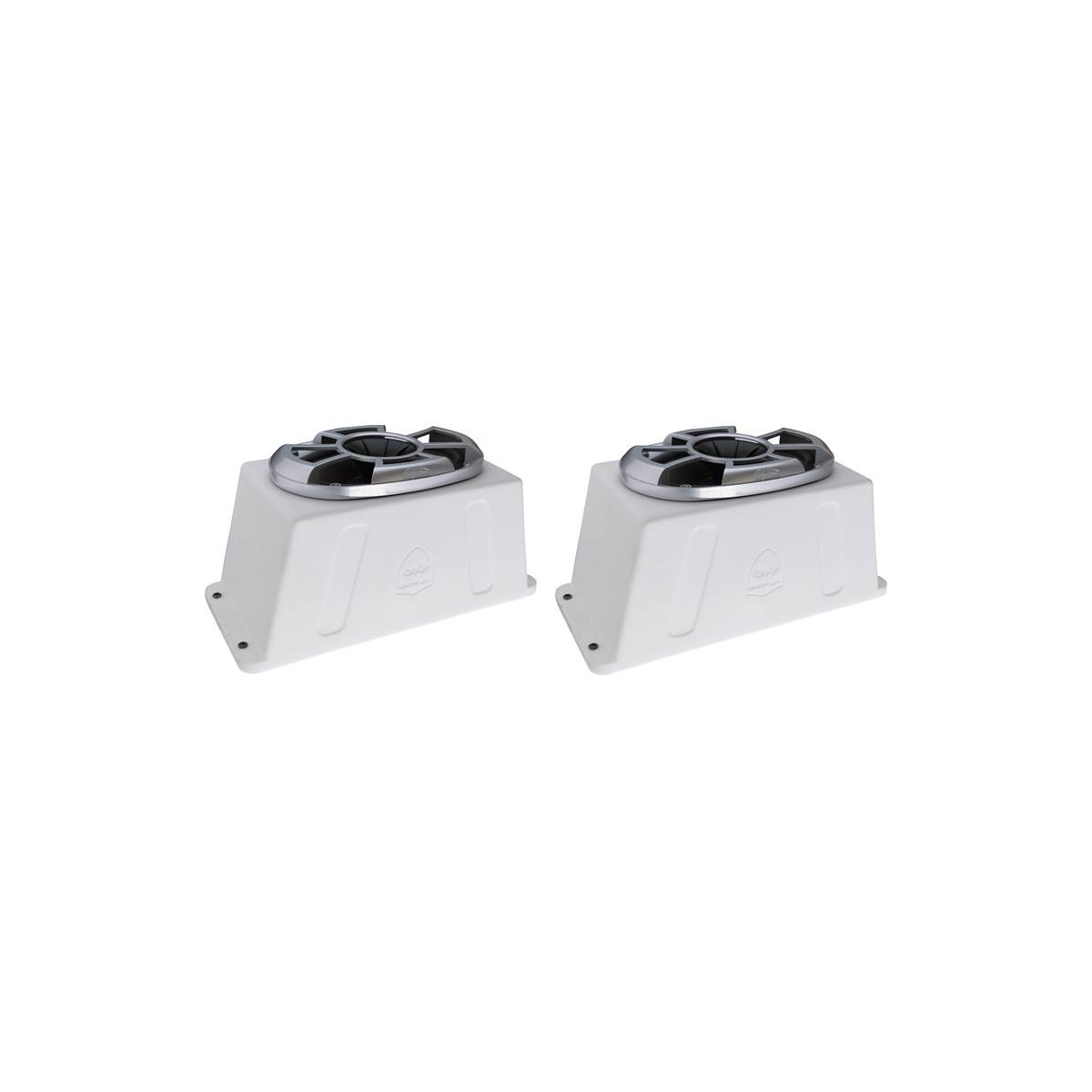

Available in a BLACK or WHITE Roto-Mold housing. They feature a High Output HLCD compression driven 6×9 speaker that will deliver amazing sound throughout your boat, ATV, Golf Cart or most any application!
The REV6x9SM is the perfect speaker system for installation under the gunnels on larger off shore boats as well. Providing amazing output and full sound everywhere in the boat with no visible speakers.
For under gunnel use, minimum 7” width is needed for placement.
Impedance: 4 ohms
RMS Watts: 150
PEAK Watts: 300
Frequency Response: 20Hz to 20Khz
Sensitivity: 90db at 1watt / 1meter
Mid Bass: 6×9 EFG cone woofer with polyurethane surround
High Frequency:Pro-Axial Driver. Coaxially mounted titanium diaphragm high output horn loaded compression driver
Size & Weight:
Base Width: 16.875” W (428.625 mm)
Base Height: 7” H (177.8 mm)
Base Depth: 8 3/4” (222.25mm)
Hang Weight: 10.6 lbs (4.81kg)
