Class D 4 Channel Amplifier

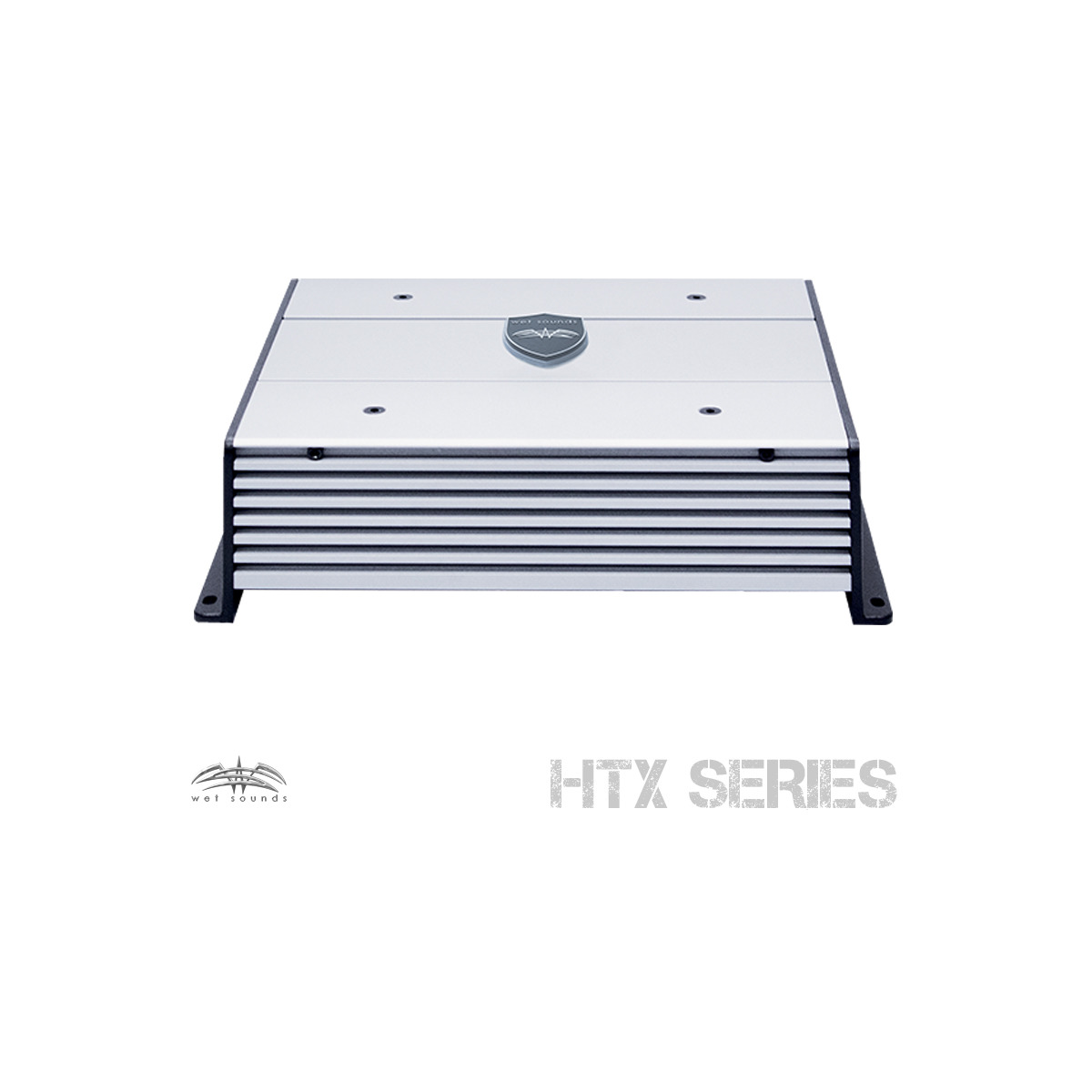

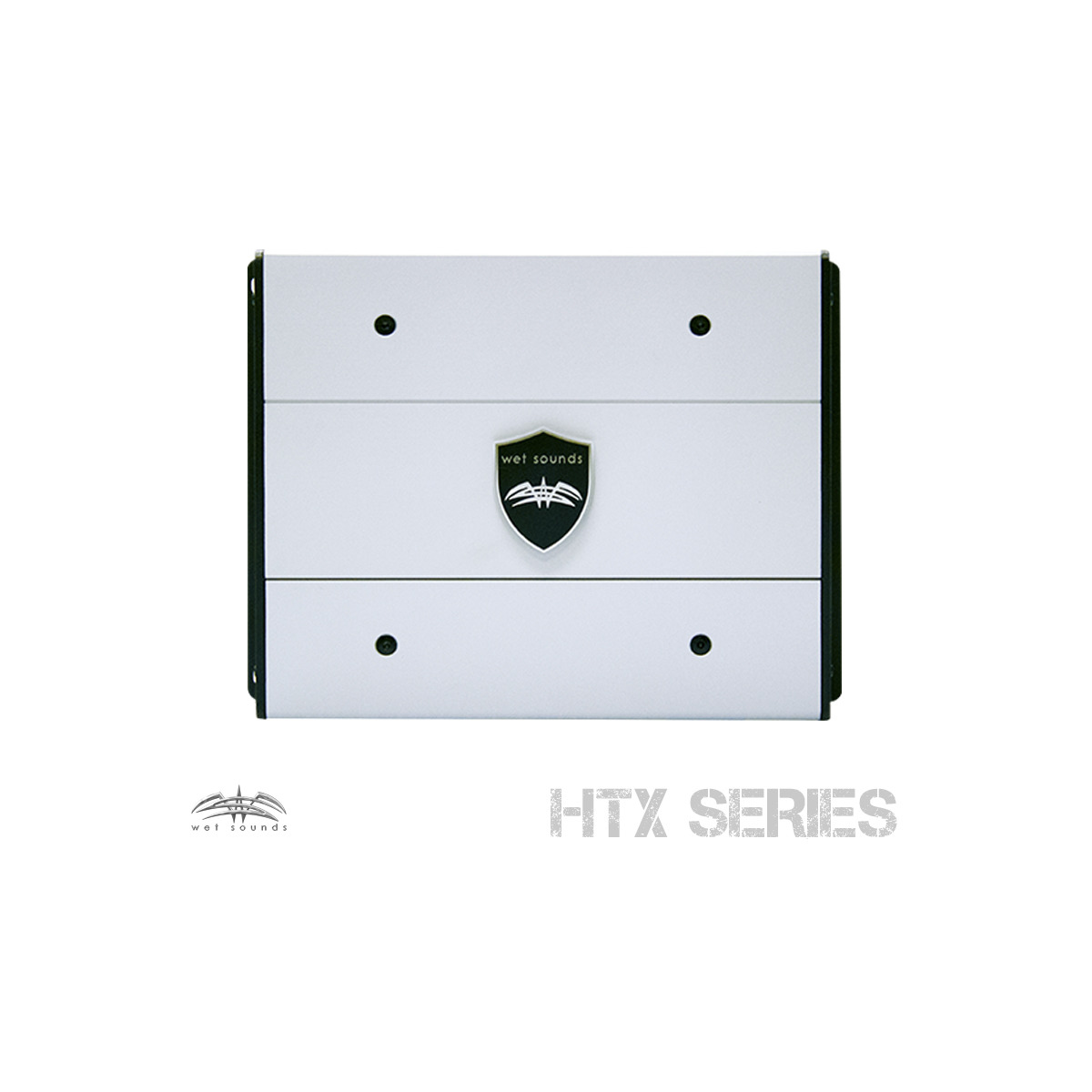

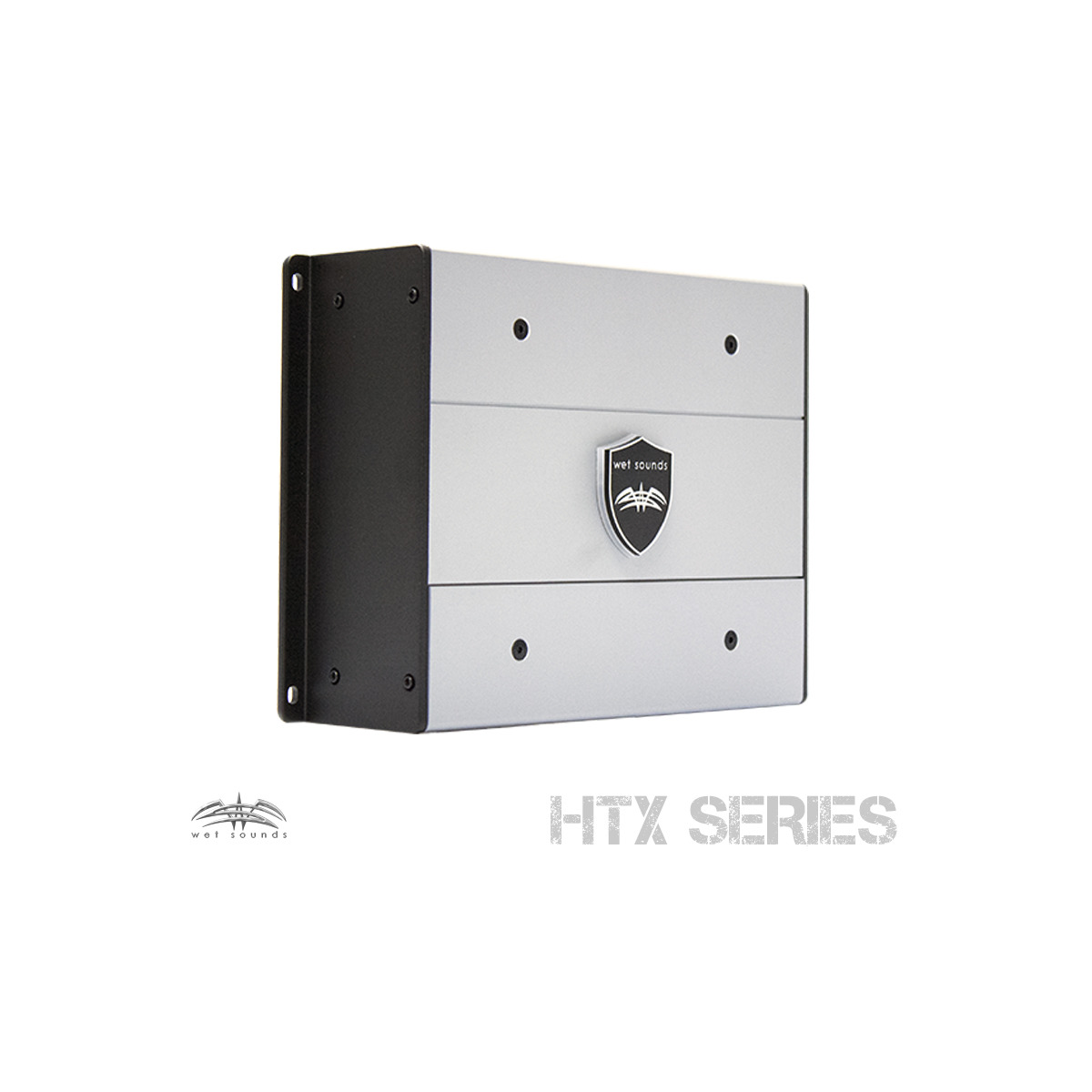

Wet Sounds™ Hydro-Tech™ X (HTX) Series Amplifier

Wet Sounds represents the ultimate in High Performance Marine Audio.
Wet Sounds HTX Series Marine Amplifiers are designed to be a complete solution for every type of extreme marine application. HTX amplifiers use superior performance circuitry by utilizing Class D Power Supplies.

These amplifiers have extreme power output packed inside a small chassis, thermal overload protection, flexible crossovers, extended inputs. HTX amplifiers are a well balanced match for all of the Wet Sounds™ products.

Specifications:
RMS Power @ 4 ohm Stereo 100 x 4 watts RMS @ < 1.0% THD
RMS Power @ 2 ohm Stereo 150 x 4 watts RMS @ < 1.0% THD
RMS Power @ 4 ohm Mono 300 x 2 watts RMS @ < 1.0% THD
Input Sensitivity Variable from 0.2V to 6.1V
Frequency Response -3dB 7Hz-33Hz
Bass Boost 0db -12db @ 45Hz
Crossover Range Low Pass 50Hz – 250Hz 12dB/Octav
Crossover Range Subsonic Filter 50Hz – 250Hz 12dB/Octav
Separation >52dB
S/N Ratio (Awtg)
>62dB (1 watt 4 Ohm)
>85dB (125 watts 4 Ohm)
