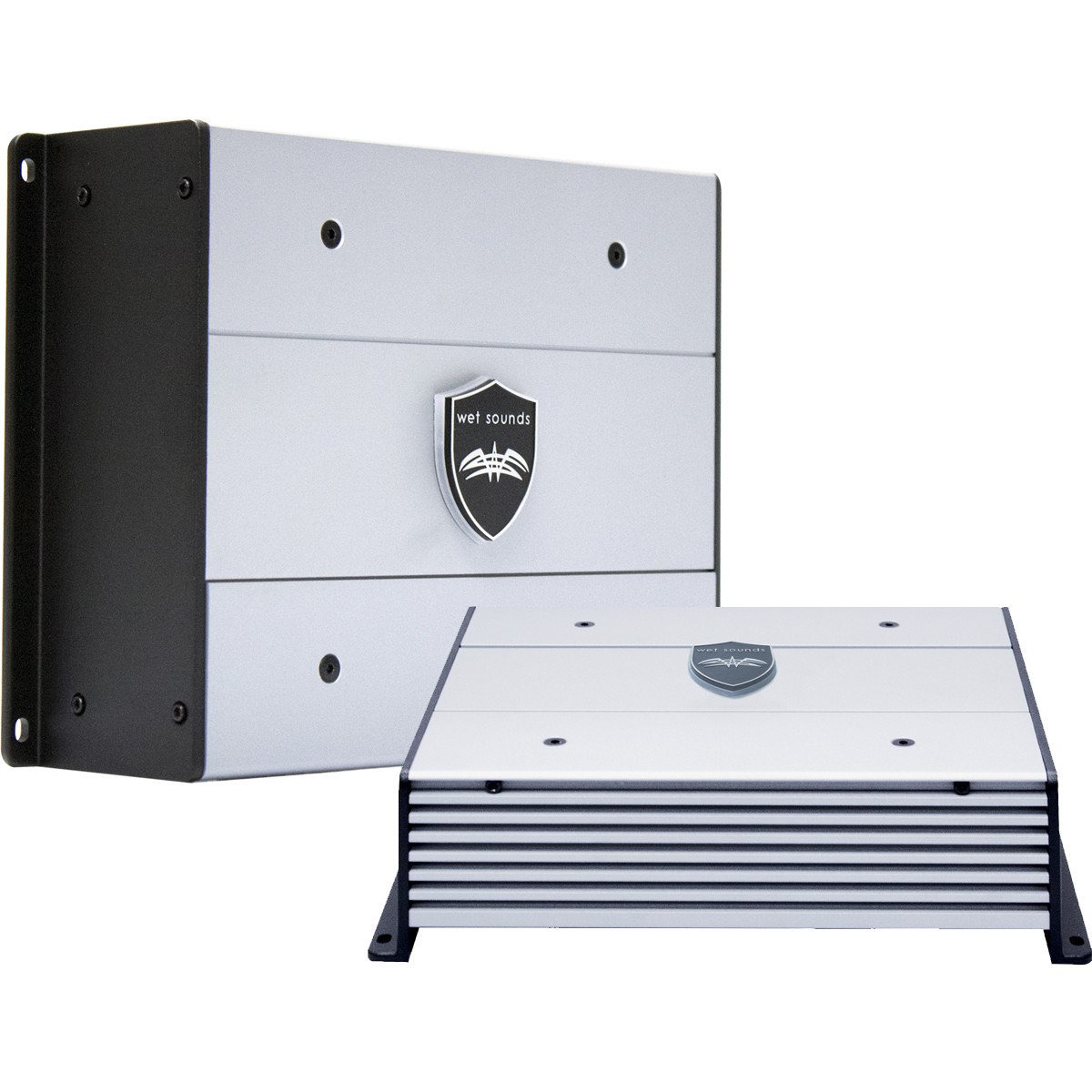

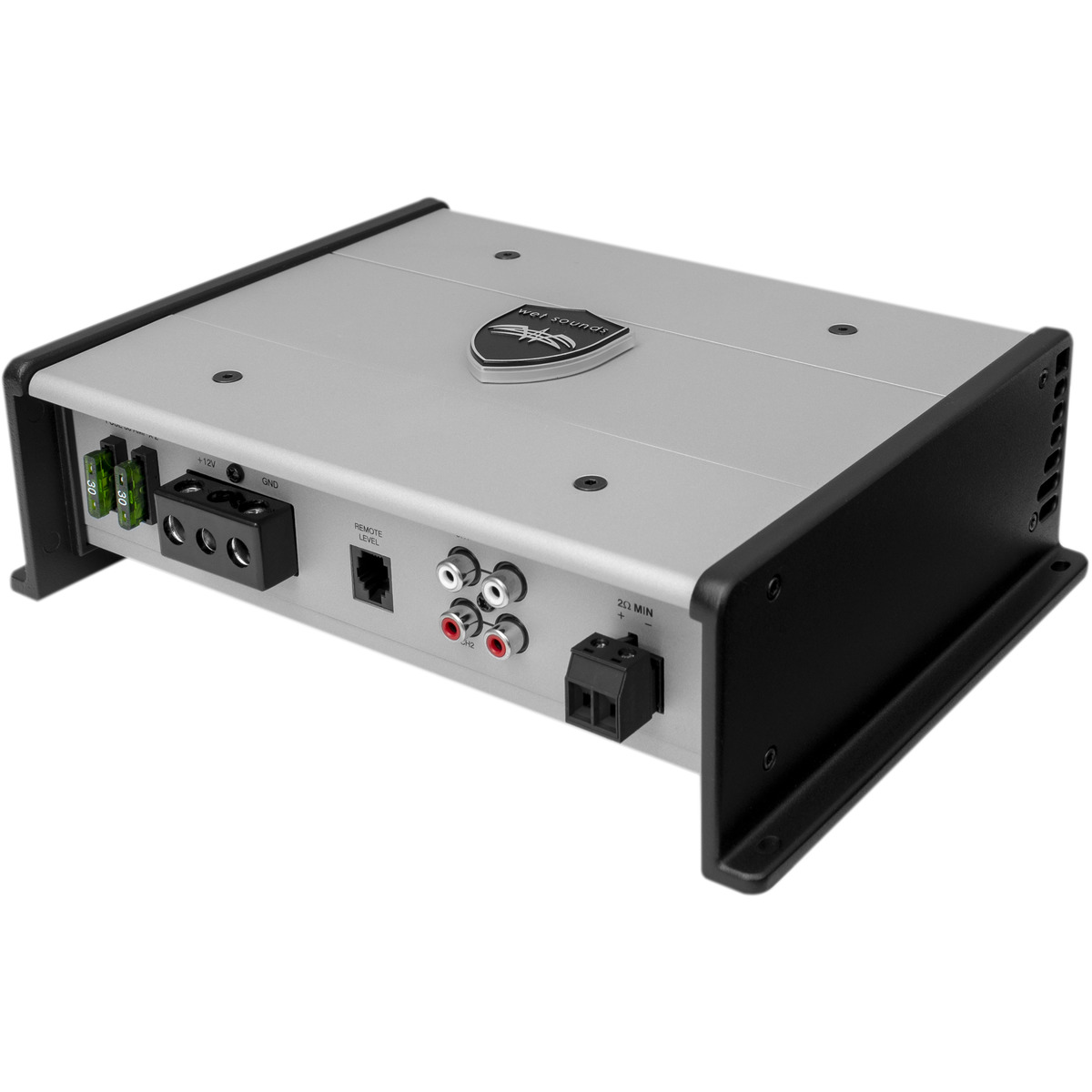

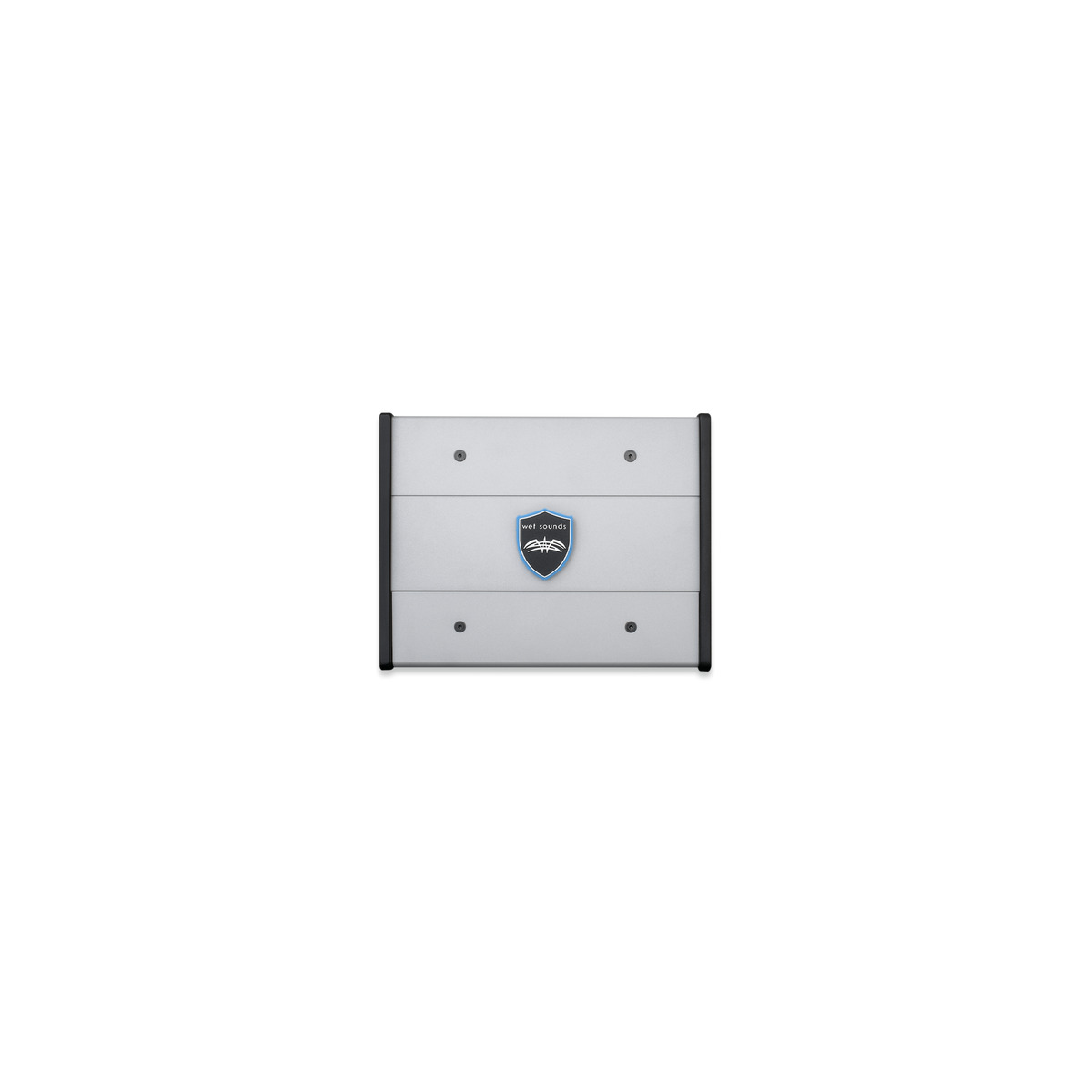

Class D Mono Amplifier
Wet Sounds™ Hydro-Tech™ X (HTX) Series Amplifier
Wet Sounds represents the ultimate in High Performance Marine Audio.
Wet Sounds HTX Series Marine Amplifiers are designed to be a complete solution for every type of extreme marine application. HTX amplifiers use superior performance circuitry by utilizing Class D Power Supplies.
These amplifiers have extreme power output packed inside a small chassis, thermal overload protection, flexible crossovers, extended inputs. HTX amplifiers are a well balanced match for all of the Wet Sounds™ products.
RMS Power @ 4 ohm Mono
330 x 1 watts RMS @ < 1.0% THD
RMS Power @ 2 ohm Mono
650 x 1 watts RMS @ < 1.0% THD
Input Sensitivity Variable from 0.2V to 6.0V
Frequency Response -3dB 10Hz-150Hz
Bass Boost 0db -12db @ 45Hz
Crossover Range Low Pass 50Hz – 150Hz 12dB/Octav
Crossover Range Subsonic Filter 10Hz – 50Hz 12dB/Octav
Remote Attenuation +0.7 – -29dB
S/N Ratio (Awtg)
>59dB (1 watt 4 Ohm)
>92dB (125 watts 4 Ohm)
