11.2ch. 8K AV Amplifier with 3D Sound and HEOS Built-in
Overview
Marantz has long set the standard for AV amplifiers combining home theatre prowess with the most musical sound, and the SR8015 takes that capability to unprecedented levels. Experience the staggering impact of audio quality, which is quite simply an intoxicating mix of effortless power, amazing detail and sensational depth. This flagship AV amplifier marks the pinnacle in Marantz build quality with a centrally mounted toroidal transformer, copper plating and a symmetrical monolithic design.
Enjoy exquisite video performance thanks to the latest HDMI technologies such as 8K/60Hz pass-through or upscaling, various HDR format support including HDR10, HDR10+, Dolby Vision, Hybrid Log-Gamma (HLG) and Dynamic HDR, as well as the latest gaming technologies such as 4K/120Hz** pass-through, Variable Refresh Rate (VRR) and Auto Low Latency Mode (ALLM).
Extensively tuned by world-renowned sound acousticians at the most state-of-the-art facilities, the new Marantz SR8015 leverages decades of experience in Hi-Fi to drive exceptional, audiophile-quality surround sound for all your entertainment.
Extensively tuned by Marantz sound masters at the most state of the art facilities to deliver an exquisite sonic signature. No component leaves the hands of the Marantz sound masters until it passes rigorous testing. Envelop yourself with the most musical sound, from any source.
With unparalleled Marantz performance, the new top-of-the-line SR8015 AV amplifier is made for those wanting the ultimate audio and video experience, paired with the latest features. Its symmetrical monolithic amplifier design gives it 11 identical amplifier channels, each delivering 205W per channel, for seamless surround sound integration. The design also includes a large toroidal transformer, mounted centrally for mechanical balance, a copper plated chassis, selected high-quality audio components throughout and high-grade speaker terminals.
The new Marantz SR8015 includes 8 HDMI inputs and 3 outputs for all your favourite sources. One dedicated 8K input supports 8K/60Hz and 4K/120Hz** pass-through capability, 4:4:4 Pure Color sub-sampling, Dolby Vision, HLG, HDR10, 21:9 video, 3D and BT.2020 pass-through. Additionally, the latest HDCP 2.3 copy protection standard is supported on all HDMI ports. Showcasing the latest HDMI technology and specifications, the new SR7015 lets you take home entertainment to the next level with HDR10+, Dynamic HDR, ALLM, VRR, QMS and QFT support. The video processor is capable of upscaling native video sources up to 8K quality. The SR7015 also features HDMI eARC support, which supports 3D audio formats like Dolby Atmos and DTS:X in masterful quality from your TV apps. Conveniently, your HDMI inputs automatically rename themselves with information provided by the source (when available).
Feel every dimension in Dolby Atmos with up to 7.1.6 or 9.1.4 configuration (with additional 2ch amplifier). Enjoy a 7.1 or 9.1 surround sound speaker system and up to six additional overhead speakers or four Dolby Atmos enabled up-firing speakers for the ultimate home theatre experience - including Dolby Surround upmixer for legacy content. For those without in-ceiling speakers, Dolby Atmos Height Virtualization Technology leverages Dolby’s deep understanding of human audio perception to create the sensation of overhead sound from listener-level speakers.
DTS:X immersive audio content places sound where it would naturally occur in space, creating life-like, multi-dimensional audio. The included spatial remapping engine of DTS Neural:X offers improved immersion and heightened realism for all your favourite movies. DTS Virtual:X provides immersive audio without height channels, creating virtual height effects in a 7.1, 5.1 or 2.1 speaker arrangement.
Features the latest in DTS 3D audio technology. Enjoy up to 13.2 channels of audio processing with DTS:X Pro to enjoy a full surround sound in exquisite detail. You will need an additional external stereo amplifier connected to the SR8015 to drive an additional 2 channels (DTS:X Pro available with future firmware update).
Get the most premium at-home entertainment experience with IMAX Enhanced — the latest technology from DTS that sets a new standard for home theatre imaging, sound, scale and clarity. Watch clearer pictures and brighter images. Feel immersive, heart-pounding audio and experience premium content digitally remastered by IMAX.
By fully immersing the listener in life-like sound, Auro-3D provides a more encapsulating surround sound experience thanks to dedicated height and overhead channels in addition to the regular channels. The SR8015 supports 7.1, 9.1 and up to 13.1 Auro-3D configuration including top surround channel, or the “Voice of God” speaker above the listening position with an added amplification for 13.1 setting. Also supported is Auro-Matic, the groundbreaking up-mixing algorithm that converts legacy content into the Auro-3D format.
Enjoy all your entertainment in the highest quality formatting available. Screen your movies in 8K with 8K/60Hz pass-through or upscaling, and take advantage of advanced video technologies like Dynamic HDR, HDR10+ or Dolby Vision.
Quick Media Switching (QMS) eliminates previously known video delay.
Experience the highest quality gaming thrills yet. Enjoy your gaming with 4K/120Hz** pass-through, as well as Variable Refresh Rate (VRR), Quick Frame Transport (QFT), and Auto Low Latency Mode (ALLM), which reduces or eliminates lag and frame tearing to offer a smoother, lag-free gaming experience.
Supports dual subwoofers for even, low-frequency bass response within your listening environment. Enjoy accurate bass with no audible peaks or dips, no matter where you place your subwoofer. Connected subwoofers can be calibrated independently thanks to Audyssey Sub EQ HT technology for more seamless bass performance tailored to any room.
Enjoy effortless voice control and total flexibility from the leading voice agents. Speak commands with Amazon Alexa, Google Assistant and Apple Siri. Ask to play your favourite music, turn the volume up, skip to the next track, switch inputs and more. Switch between voice agents or pick a favourite to use - you’re in control. (Functionality and availability vary by voice agent)
Use your voice to stream your favourite music services through Alexa to the SR8015 with HEOS Built-in. Ask Alexa to play music from Spotify, TuneIn Internet Radio, TIDAL and more. Turn volume up or down, pause, mute and play the next song — all with your voice. To start streaming with Alexa voice commands, open the Alexa app and select “Skills.” Add HEOS Home Entertainment to enable. Then, go to Smart Home in the Alexa app menu and choose Devices and Discover or say “Alexa, discover my devices.”
Ask your Google Home, Google app or other devices with Google Assistant built-in to control content across your listening environment. Start music in the HEOS app, then ask your Google Assistant to control volume, play, pause, skip tracks and more. “Works with the Google Assistant” feature is always improving.
Stream audio from your favourite music services like Apple Music and Spotify or watch videos from services like YouTube and Netflix from any iPhone, iPad, Mac or Apple TV. Hear audio perfectly synced to your speakers from AirPlay 2 sources. AirPlay 2 also supports multi-room audio — wirelessly stream content to multiple AirPlay 2 compatible devices simultaneously with improved audio buffering for smooth audio playback. AirPlay 2 provides control and grouping of compatible audio devices within the Apple Music or Home app. Use AirPlay 2 in-app or control with your voice via Siri.
Featuring dual diversity antennas, the SR8015 lets you stream your favourite audio tracks wirelessly via Wi-Fi and Bluetooth. The dual diversity antenna system ensures stable streaming even in congested urban environments, and the Wi-Fi function features 2.4GHz (11b/g/n), 5GHz (11a/n) technology for compatibility with the widest range of smart devices. The SR8015 offers quick and easy push-button Wi-Fi protected setup and simple iOS Wi-Fi sharing.
Watch the latest movie or listen to music without waking the house. Listen to the audio on Bluetooth-connected headphones wirelessly and main speakers off, not to disturb anyone around you. The SR8015 allows you as well to play audio on both Bluetooth headphones and connected speakers simultaneously. If you have a family member or a friend who is hearing impaired, this is a great option to enjoy a movie together without raising the overall volume.
HEOS Built-in is your key to an unlimited music experience, anywhere in your home. Play songs stored on your smart device or personal media server, and stream your favourite hits from leading streaming services like Spotify, Amazon Music HD, TIDAL, TuneIn Internet Radio and more, even in high resolution. Pair your HEOS enabled AVR with any HEOS Built-in product or speaker, and distribute any music source or TV sound anywhere in your home.
The ability to decode Hi-Res audio ALAC, FLAC and WAV lossless files up to 24-bit/192-kHz, as well as DSD 2.8MHz and 5.6MHz tracks (the audiophile format of SACD) lets you enjoy each note exactly as the artist intended. Listen to your music via the front panel USB port or over network sources.
Advanced reference-class 32-bit AKM AK4458 D/A converters on all channels for optimum fidelity and the widest dynamic range with the lowest distortion. This ensures consistent high-fidelity and precise channel matching across all channels for the ultimate listening experience.
Features proprietary HDAM (Hyper Dynamic Amplifier Module) circuit boards, providing superior low-noise wideband performance and an ultra-fast slew rate for maximum dynamic range to support high-resolution audio formats. Current Feedback Topology technology, another proprietary Marantz innovation, delivers wide closed-loop bandwidth and very high slew rate for superior fidelity with wideband audio sources.
Easily connect your analogue turntable to the amplifier and enjoy the warmth and realism of your vinyl collection. The HDAM component of the Marantz SR8015 outperforms op-amp solutions due to its high speed and maintains a clean audio signal for exceptional sound performance.
With new Pre-Amplifier Mode, your Marantz AV receiver works as a perfect AV pre-processor with the latest HDMI connectivity. Pre-Amplifier Mode provides a cleaner signal path and more tolerance in clipping level by disconnecting internal amplifiers. Modernize your AV separate system without breaking the bank.
The SR8015 features up to 13.2 channel processing capability. Connect your choice of 2-channel power amplifier to the SR8015 for even more immersive, fluid 3D audio experience at 7.2.6 or 9.2.4 speaker configuration.
With front wide channel support, you can add two front wide speakers with both Dolby and DTS to create a more seamless front surround stage up to 9.1.2 or 9.1.4 speaker configurations. For a 9.1.4 setup requires additional 2 channel amplifications connected to the SR8015.
All new Marantz AV amplifiers are now Roon Tested. Get more out of your digital music library with searchable, surfable information about your favourite artists and songs. Find lyrics, concert dates, photos, bios, reviews and more. Subscription required.
Watch a movie in one room while another family member plays a song from Spotify in a different zone without interruption. Enjoy 7.1-channel surround sound in the main room and a separate source or music stream in another. Connect a pair of stereo speakers to the multi-room amplified outputs or hook up a separate stereo amp and speakers to the Zone 2 pre-outs.
Share the main zone TV audio in the second zone without losing fully discrete multi-channel playback in the main zone. Select “Source” for the second zone from the AVR remote app so that main zone audio will not switch to stereo PCM.
The SR8015 Quick Start Guide provides simple, direct instructions to get started. Once you connect your TV to the SR8015 via HDMI, the Marantz Setup Assistant appears on your TV screen and guides you through setup. The Setup Assistant helps you establish crucial settings for the best possible sound quality, whatever your configuration. The SR8015 will also rename HDMI inputs automatically when connected or you can rename manually for your convenience.
Easily control the SR8015 with your Smart TV remote via the HDMI CEC functionality associated with your Smart TV. Simply set “HDMI Control” to ON in your amplifier, then set “Smart Menu” to ON to begin controlling the amplifier with your TV remote. The Smart Menu home screen gives you quick access to source and surround mode selections, the AV amplifier setup menu, and four Smart Select options.

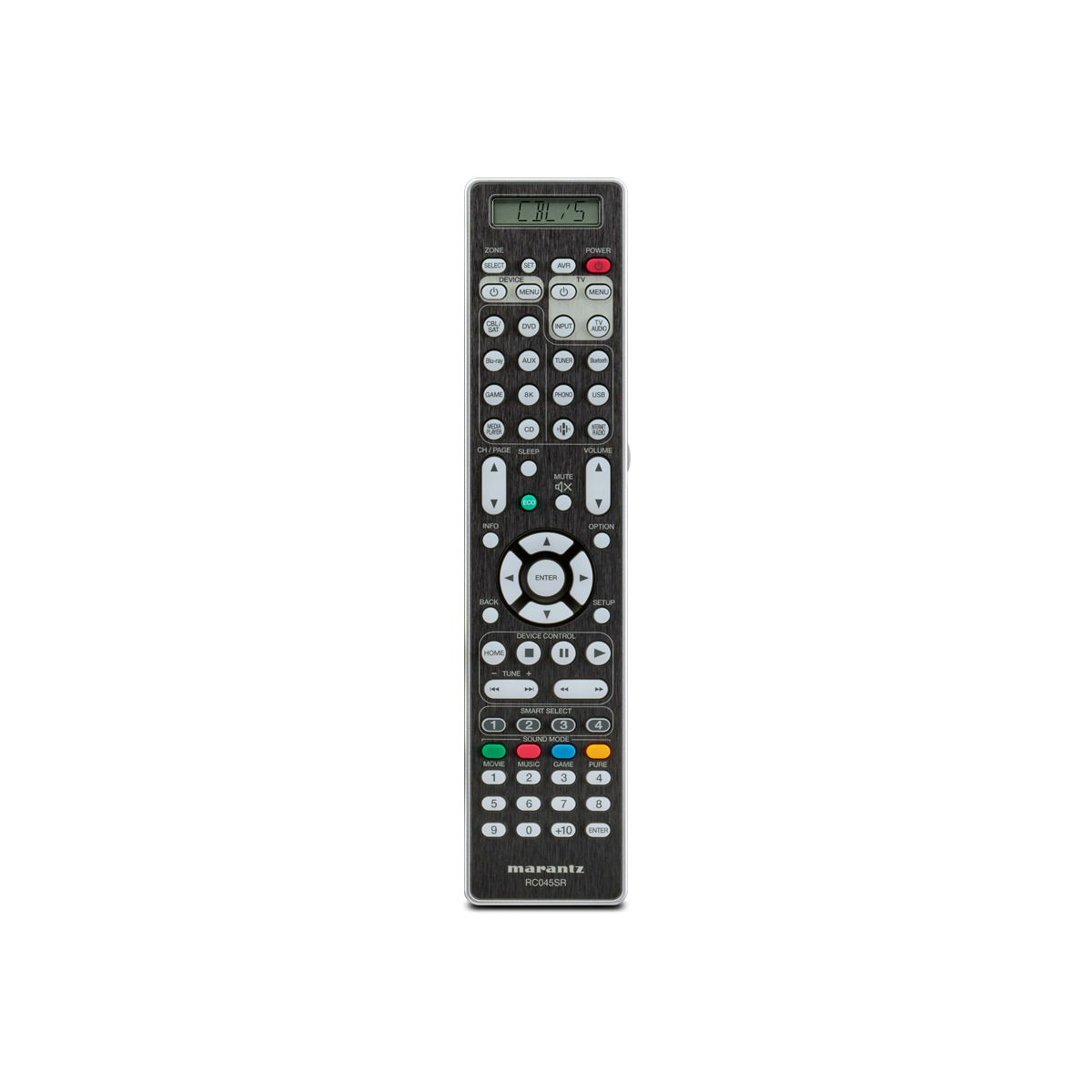

Four Smart Select function buttons on the included remote allow you to store your preferred or frequently used settings and change them when you want — including input source, volume level, sound mode, Audyssey configuration and even “All Zone Stereo” setting for party mode. With the push of a button, the SR8015 instantly configures the amplifier to your desired setting.
The Marantz AVR Remote app for iOS and Android provides complete control over the latest Marantz network AV amplifiers. Use it to power on/off, adjust volume, input and settings, or switch instantly to the HEOS Built-in app.
Optimize your audio experience with Audyssey MultEQ XT32 for seamless setup of your listening environment. With the supplied measurement microphone, MultEQ XT32 analyzes each speaker's output (including the subwoofers) at up to eight measurement locations and generates precision digital filters that optimize each channel for the correct frequency and time domain response. Audyssey Dynamic Volume smooths out disruptive jumps in volume (such as TV commercials), letting you listen at lower levels while still enjoying clear dialogue, music and sound. Audyssey Dynamic EQ provides full-range clarity at any listening level, and Audyssey Low Frequency Containment uses advanced psychoacoustic algorithms to deliver more full-range balance, including deep bass, without disturbing neighbors or people in other rooms of your home. Audyssey Sub EQ HT provides individual DSP tailoring of each subwoofer in a dual subwoofer setup for deeper bass with improved definition.
The SR8015 supports the Audyssey MultEQ Editor App. Go ‘under the hood’, view and adjust settings for detailed tuning, customize the sound more precisely to the specific problem areas in your room, and tailor the sound to your personal preferences.
Features external RS232 and IP control capabilities for easy customization and compatibility with third-party integration solutions. The Marantz SR8015 offers IP control capability for major third-party control devices, as well as Control4 SDPP (Simple Device Detection Protocol) certification for seamless integration with Control4 home automation equipment. IR (infrared) remote control input and output are included on the rear panel for remote control compatibility with other components in your home theatre system.
Founded in 1953, Marantz has a long and rich history of designing audio components embraced by music lovers and critical listeners around the world. Because Music Matters, the SR8015 carries on the long Marantz tradition of delivering a best-in-class listening experience for music and cinema.
Specifications
-Max. number of processing (preamp) channels: 13.2
-Number of Power Amps: 11
-Power Output (8 ohm, 20 Hz – 20 kHz, 0.05% 2ch Drive) 140 W
-Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 175 W
-Power Output (6 ohm, 1 kHz, 1% 1ch Drive) 205 W
-Power Transformer: Toroidal / EI Toroidal
-Auto speaker setup by microphone: Audyssey MultEQ XT32
-HDMI inputs back / front: 7 / 1
-HDCP2.3 support: Yes
-HDMI outputs main / zone: 2 / 1
-HDMI max Resolution (8k / 4k): 8k/60 – 4k/120
-Video conversion Analog -> HDMI: Yes
-HDMI to HDMI scaling: up to 8K 60/50
-Multiroom zones: 3
-Voice Control – Works with Amazon Alexa, Google Assist, Apple Siri
-Voice Control – Microphone built-in: No
-Graphic User Interface – GUI Advanced
-Composite In / Out 4+1 / 2
-Component In / Out 3 / 1
-HDMI In / Out 7+1 / 3
-Multi-Room Video Out: Video / HDMI
-Analogue In / Out 7+1 / –
-Phono (MM) In
-Digital in: optical / coaxial 2 / 2
-Multi-Room Out: analog / digital 2 / –
-Multichannel Pre Out: (13.2)
-Subwoofer Out: 2 (independant)
-7.1 multichannel input
-Speaker Terminal: Gold plated screw / regular screw
-Number of speaker terminals: 13
-Speaker A / B: assignable
-Bi-amp drive: assignable
-Multi-Room Speaker Terminal: assignable
-Front Inputs: Audio / Composite / HDMI / USB
-USB Audio (Front) / Made for iPod / Made for iPhone o / AirPlay / AirPlay
-DAB / DAB+ tuner: No
-FM Tuner with RDS: No
-Maximum Dimensions:
-Antenna Horizontal:(W x D x H): 440 x 460 x 185mm, Antenna Vertical :(W x D x H): 440 x 460 x 248mm, w/o Antenna :(W x D x H): 440 x 450 x 185mm
-Weight: 17.6Kg
-Carton Maximum Dimensions (W x D x H): 541 x 537 x 304mm
-Carton Weight (inc. product): 20.9Kg
