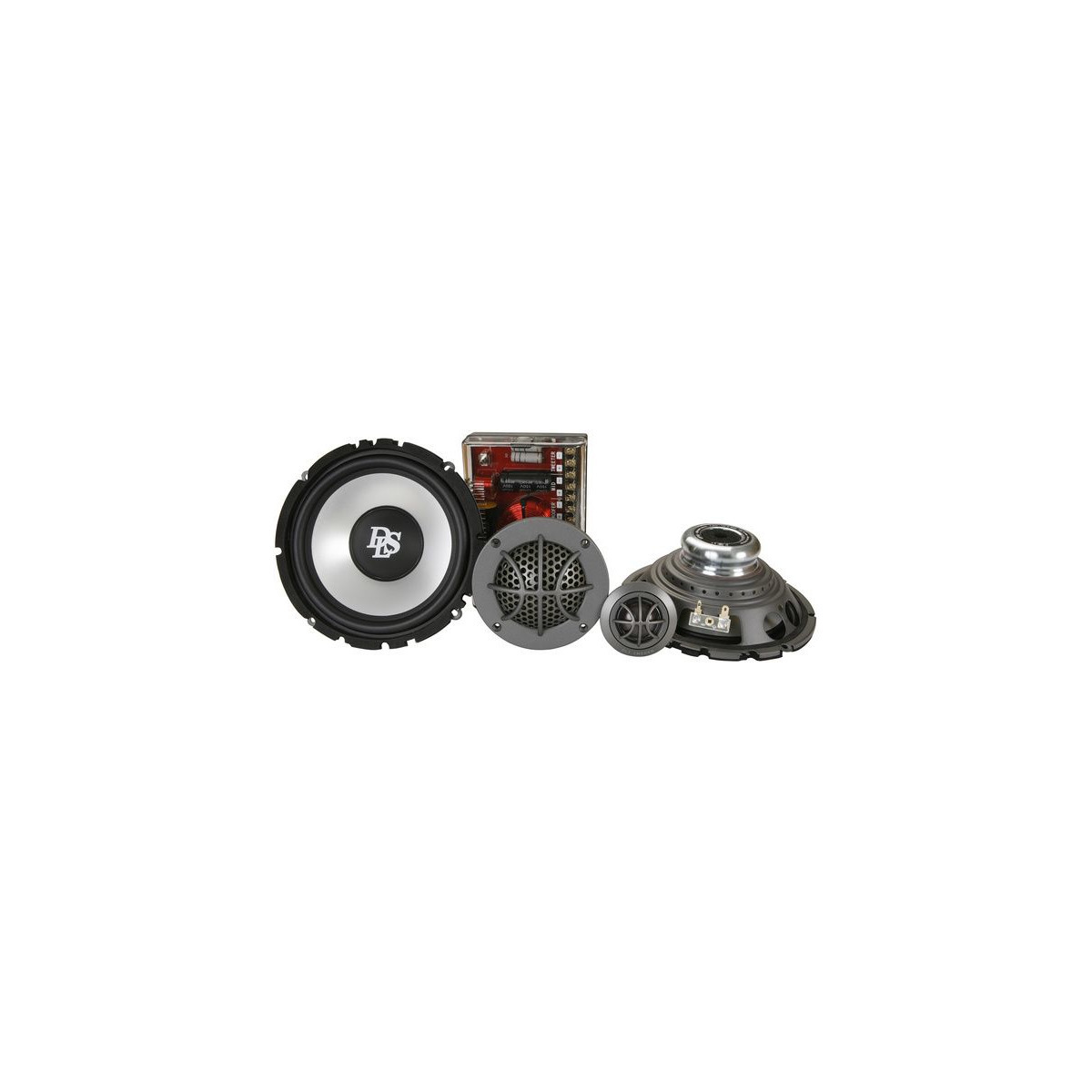

DLS Ultimate UPi36 - 6.5" 180watt 3-Way component speakers


UPi36 Component Speakers - Ultimate series UPi36 is a 16,5 cm (6,5") 3-way component with very good sound. This kit is the replacement for UP36i.

DLS Ultimate UPi6 is a brand new 6.5 "(165mm) 2-way kit system at 200W (Max) in the Ultimate series. Here's a high-end system for the connoisseur, there is also the small dimensions which make them suitable many cars are a bonus!

This is an upgraded version of the DLS-seller UP6i.

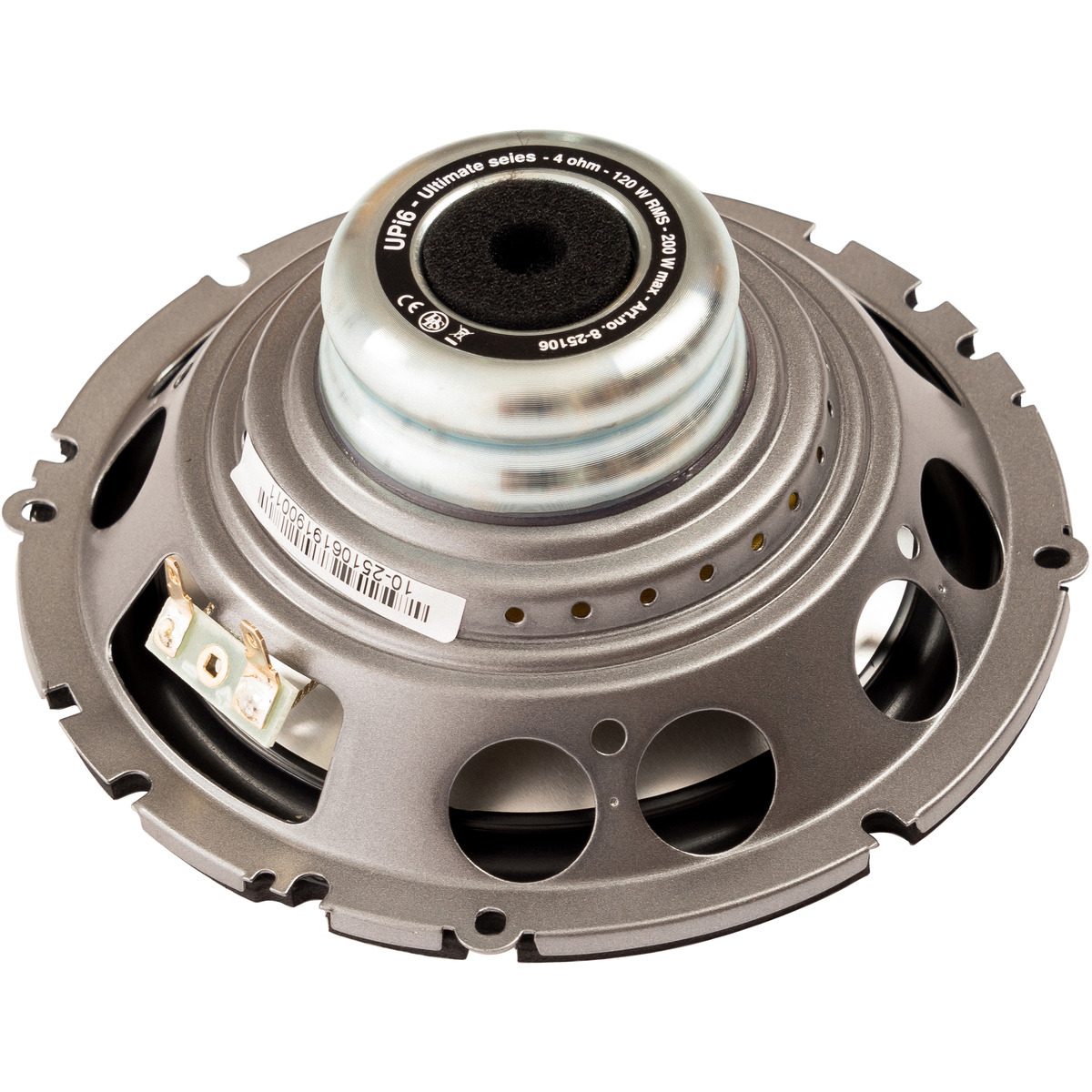

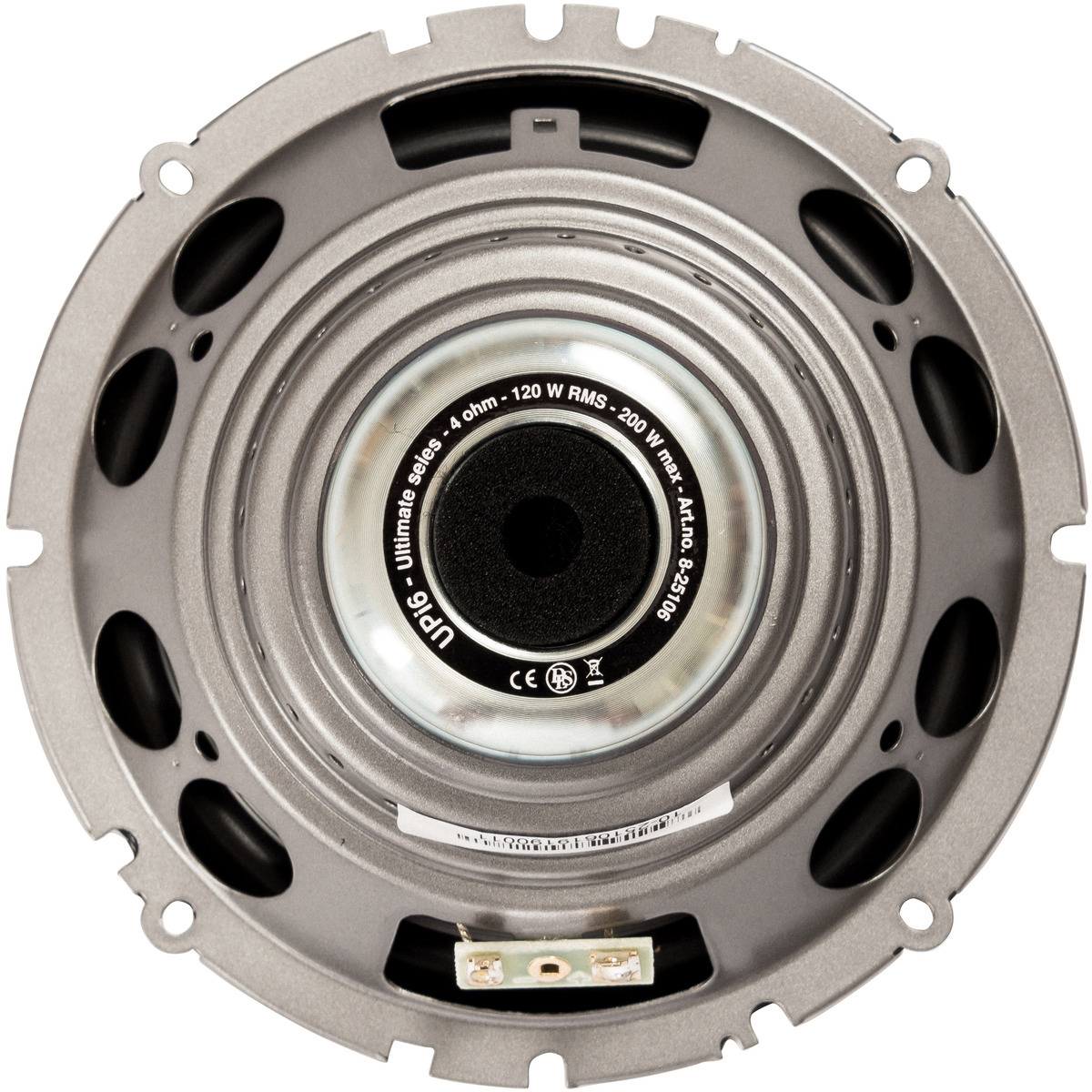

UPi6 has a powerful neodymium magnet system with a 2 "(50mm) voice coil. The tweeter is a 1.1" (28mm) silk dome tweeter RC25. Separate filter boxes with high-quality components with selectable tweeter level in two steps and the slope LP 6 dB, 12 dB HP that guarantees a perfect sound performance. Mounting accessories for flush or surface mounting the tweeters included. Grilles are included.

The new DLS Ultimate range is the top choice for audio quality enthusiasts. DLS is a globally recognised manufacturer mainly thanks to the Ultimate range, which easily exceeds the standards of competing inverters.

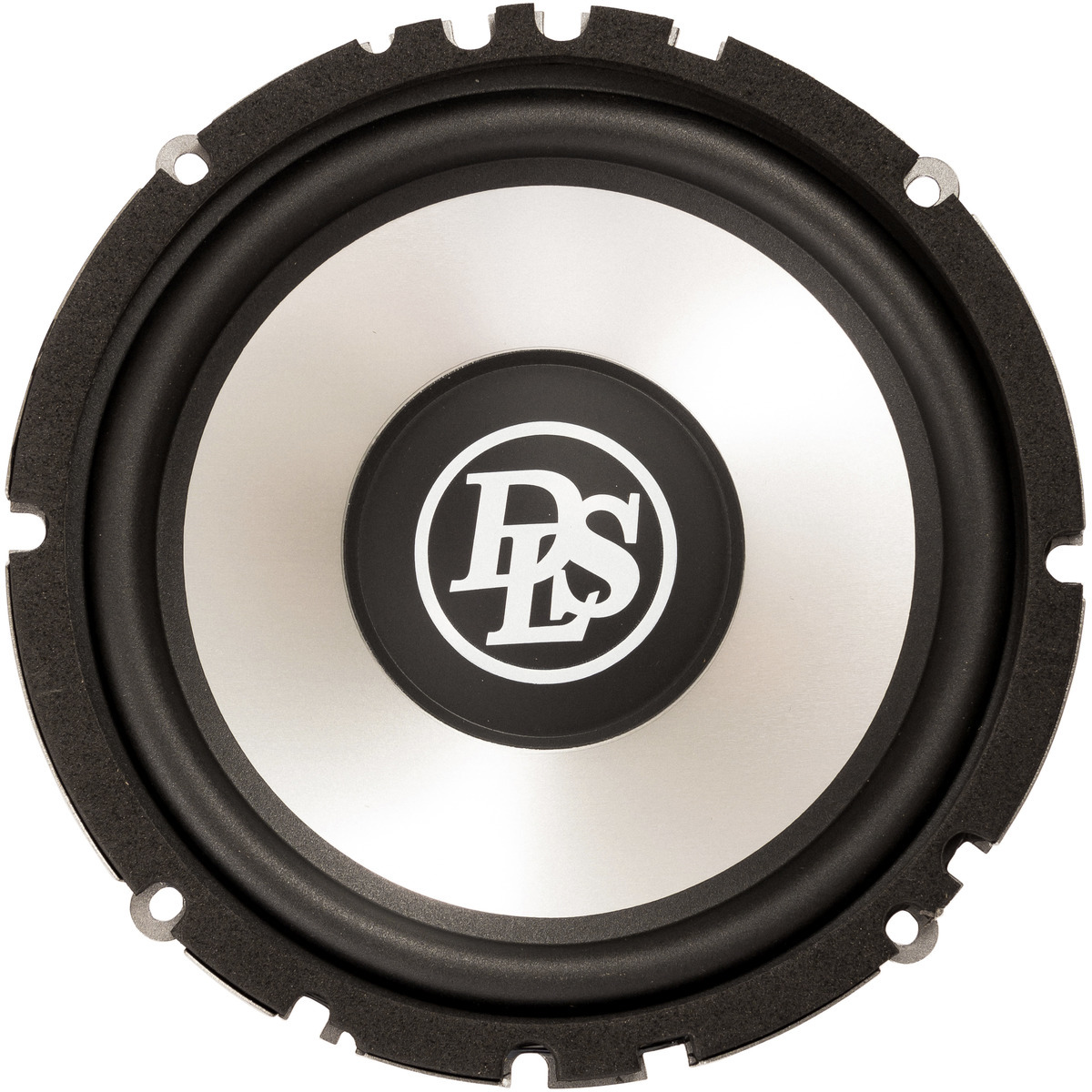

  • Woofer size 16,5 cm (6,5")
  • Midrange size 63 mm (2,5")
  • Tweeter RC25, 25 mm (1,1") silk dome tweeter
  • Power handling capacity 120 W RMS / 200 W max
  • Impedance 4 ohm
  • Frequency range 50 - 20.000 Hz
  • Sensitivity 84,2 dB (1W/1m)
  • Crossover Filter box with 12/6/6/12 dB slope
  • Crossover point (Hz) 500 Hz / 5000 Hz
  • Size of filter box 145 x 95 x 38 mm ( 5,71 x 3,74 x 1,5")
  • Outer diameter of woofer Woofer: 165 mm (6,5") Mid: 100 mm (3,94")
  • Magnet size 58 mm (2,28") neodymium
  • Mounting depth Woofer: 60 mm ( 2,36") Mid: 29 mm (1,14")
  • Mounting hole Woofer: 145 mm (5,7") Mid: 80 mm (3,15")
