Very high value

Overview

Very high value – one of DLS absolute most popular models for upgrades.

Paper cone with textile fibers and rubber surround provide good bass and open midrange, 25 mm

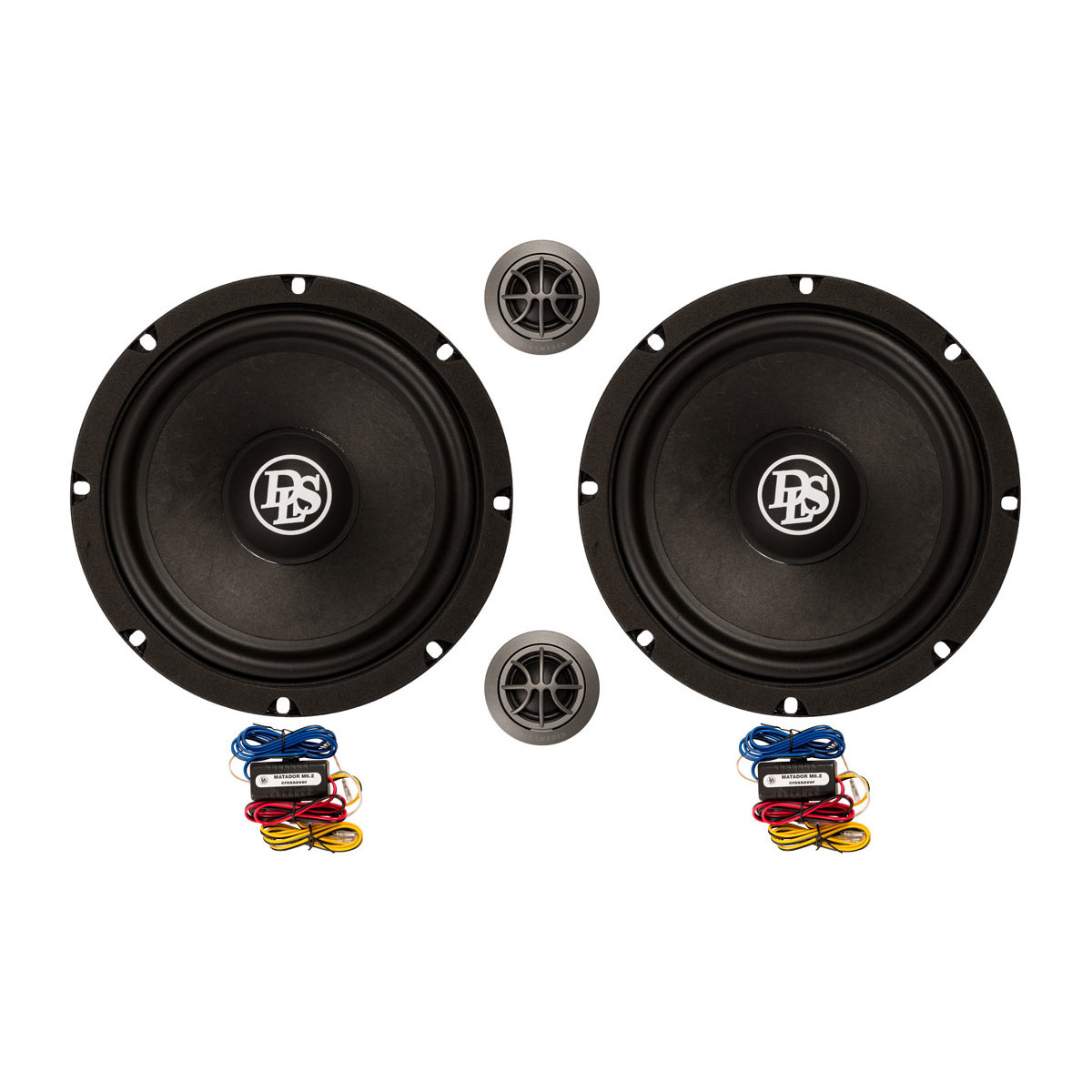

soft dome tweeter, external inline crossover HP12dB with tweeter level select and woofer bypass for easy install in the door or on the dashboard. Tweeter installation cups and mesh woofer grilles included

Specifications

• Woofer size 16,5 cm (6,5″)
• Tweeter 25 mm soft dome tweeter
• Power handling capacity 60 W RMS / 80 W max, 160 Watt peak power
• Impedance 4 ohm
• Frequency range 55 – 25.000 Hz
• Crossover point (Hz) 5500 Hz
• Sensitivity 87 dB (1W/1m)
• Outer diameter of woofer 165 mm (6,5″)
• Magnet size 90 mm (3,54″)
• Cone material Paper cone with textile fibres
• Mounting depth 65mm ( 2,56″)

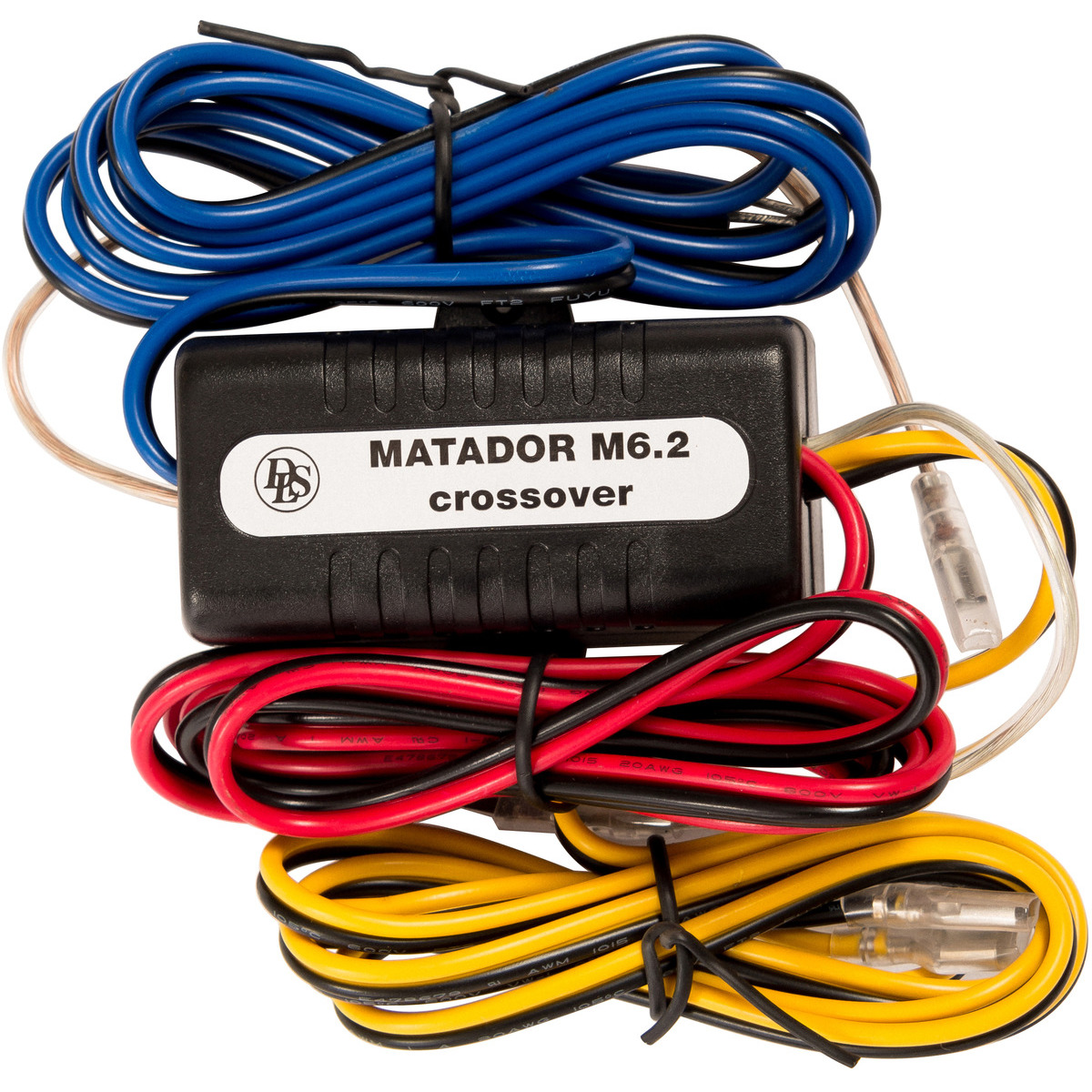

• Crossover 12dB slope filterbox to the tweeter, two tweeter levels
• Mounting hole 145 mm (5,75″)
• Size of filter box 73 x 36 x 35 mm
