Heco Elementa 700

Purchase this product

RRP: $5,999.95
Our Price: $5,999.95

Enquire about this product Print Product Information

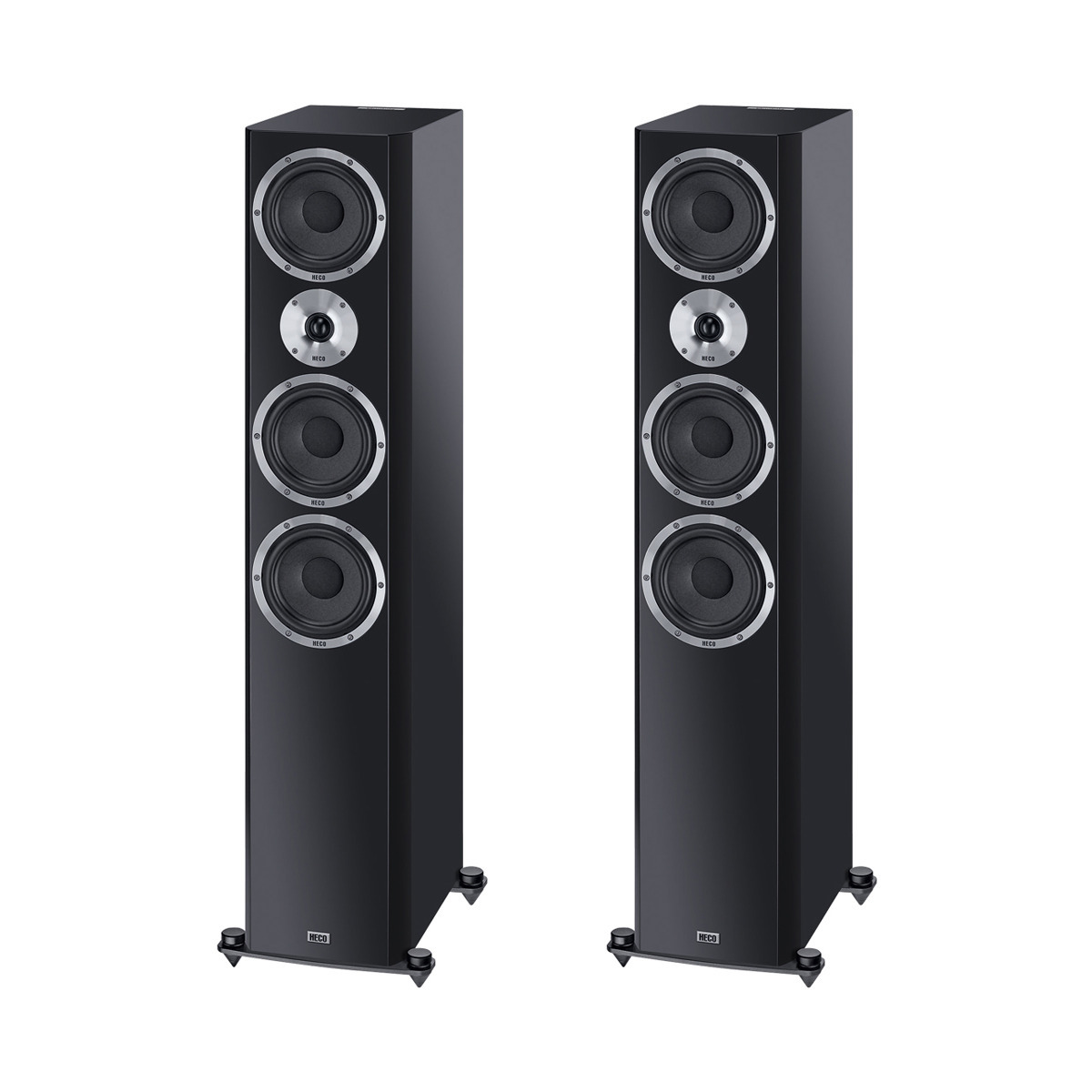

3-WAY BASS REFLEX SPEAKER (SOLD AS PAIR)


Overview

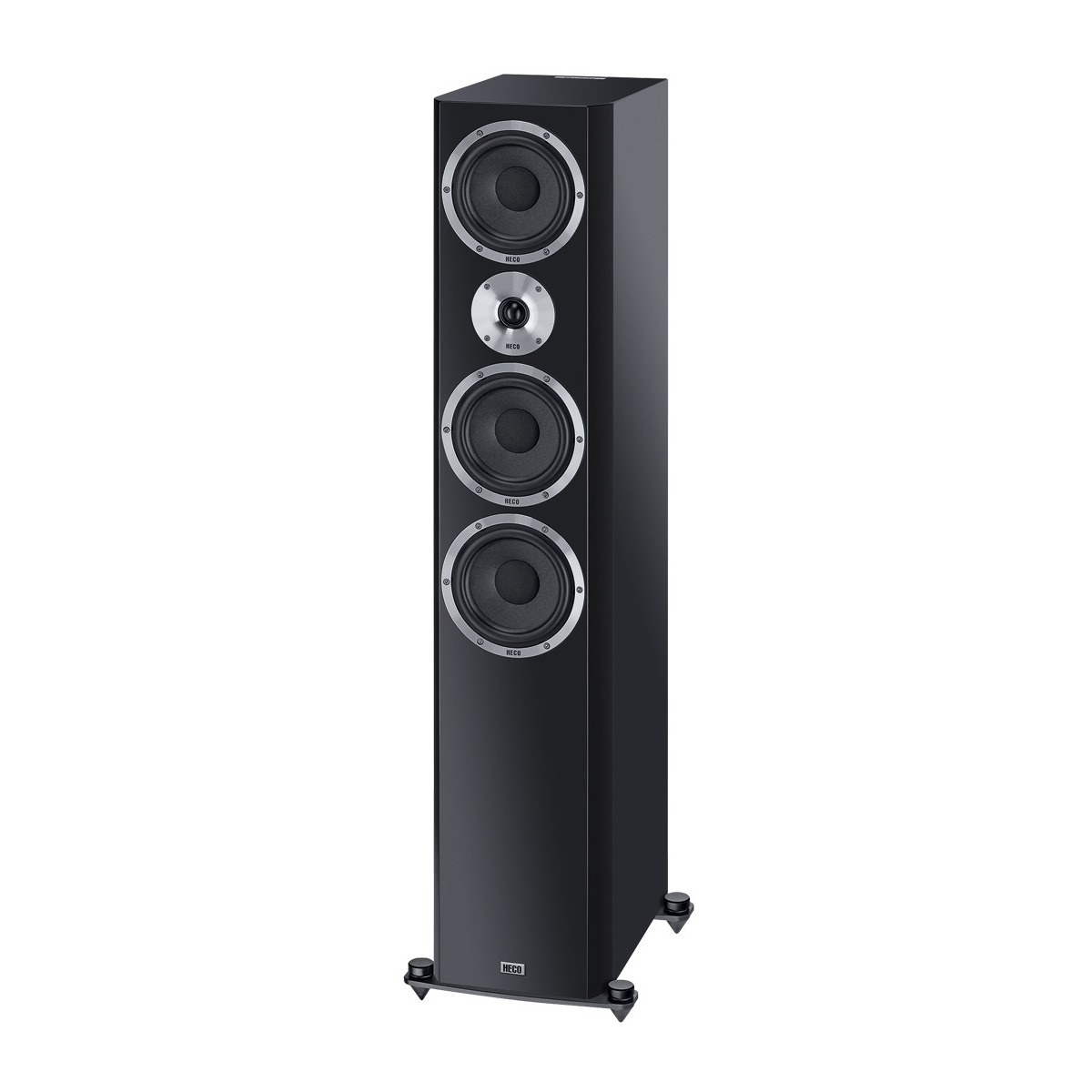

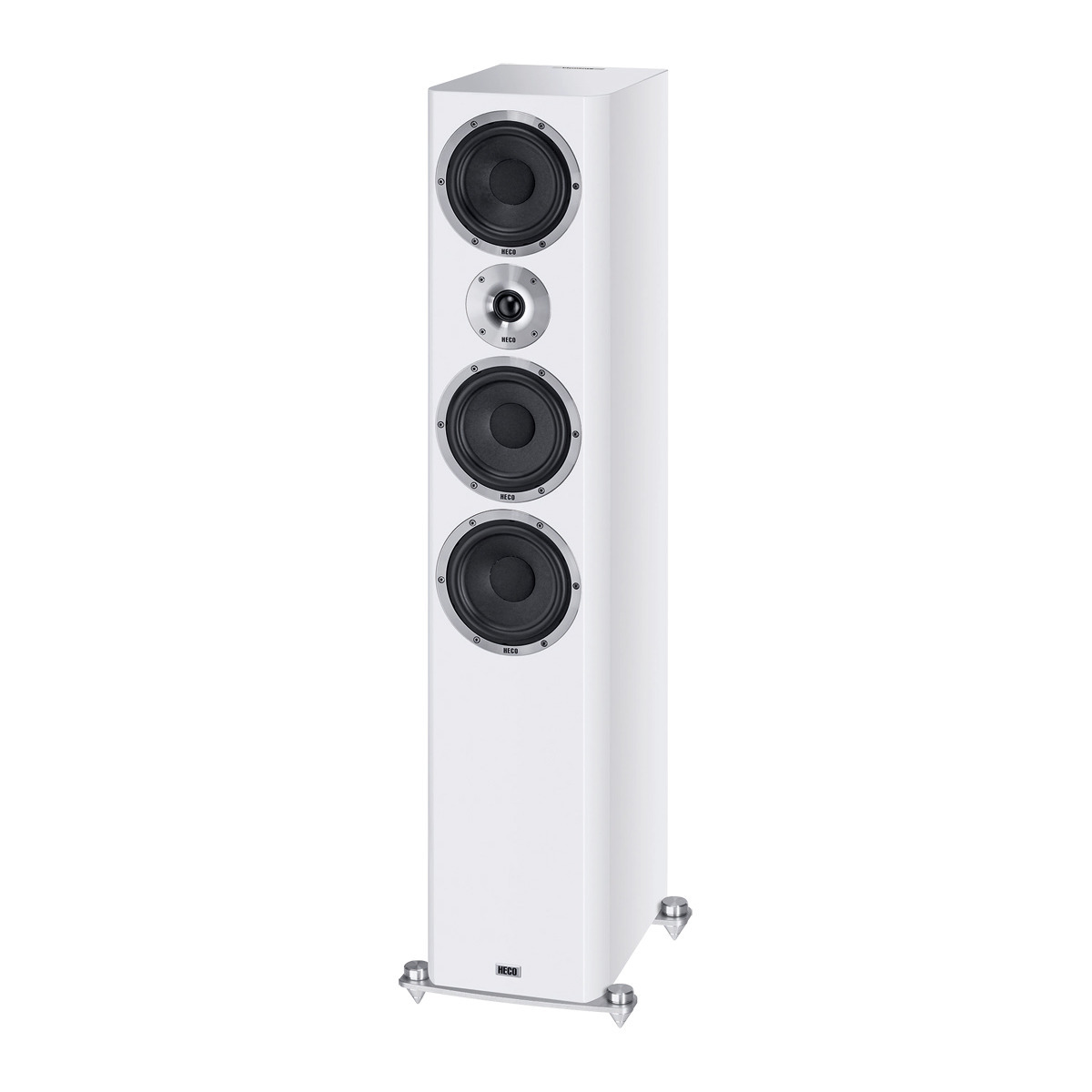

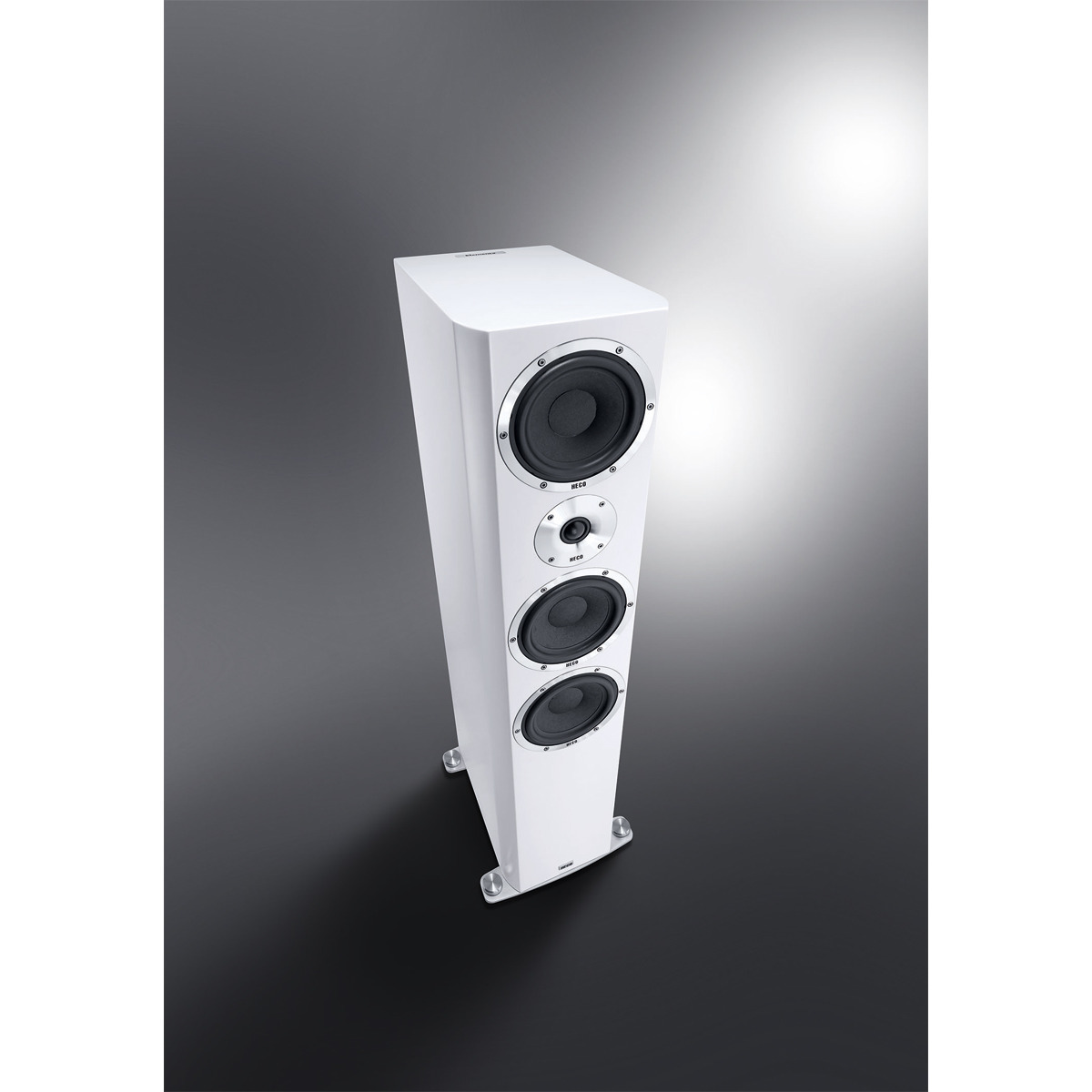

The fully-fledged 3-way bass reflex speaker is the flagship model in Heco´s Elementa series and provides an extensive, authentic sound stage for both music and film. Two 170 mm woofers guarantee a solid foundation. One 170 mm woofer and a 28 mm silk compound dome with its ferrofluid cooling and powerful double ferrite magnet system are responsible for clearly structured and precise frequencies in the higher range. Woofers and midrange drivers are equipped with lightweight long fiber cones and highly resilient voice coils to ensure maximum performance and a high-speed response at all times. The sturdy, multi-braced MDF housing features rounded sides and an elegant silk matt lacquer finish, which is optionally available in black or white. The front grille can be detached, and the hidden magnetic mounts ensure the speaker casts a very elegant appearance when it is removed.

 Features
-
3-way bass reflex, Floor standing Speaker
-
Innovative speaker chassis for maximum performance
-
Elegant and timeless
-

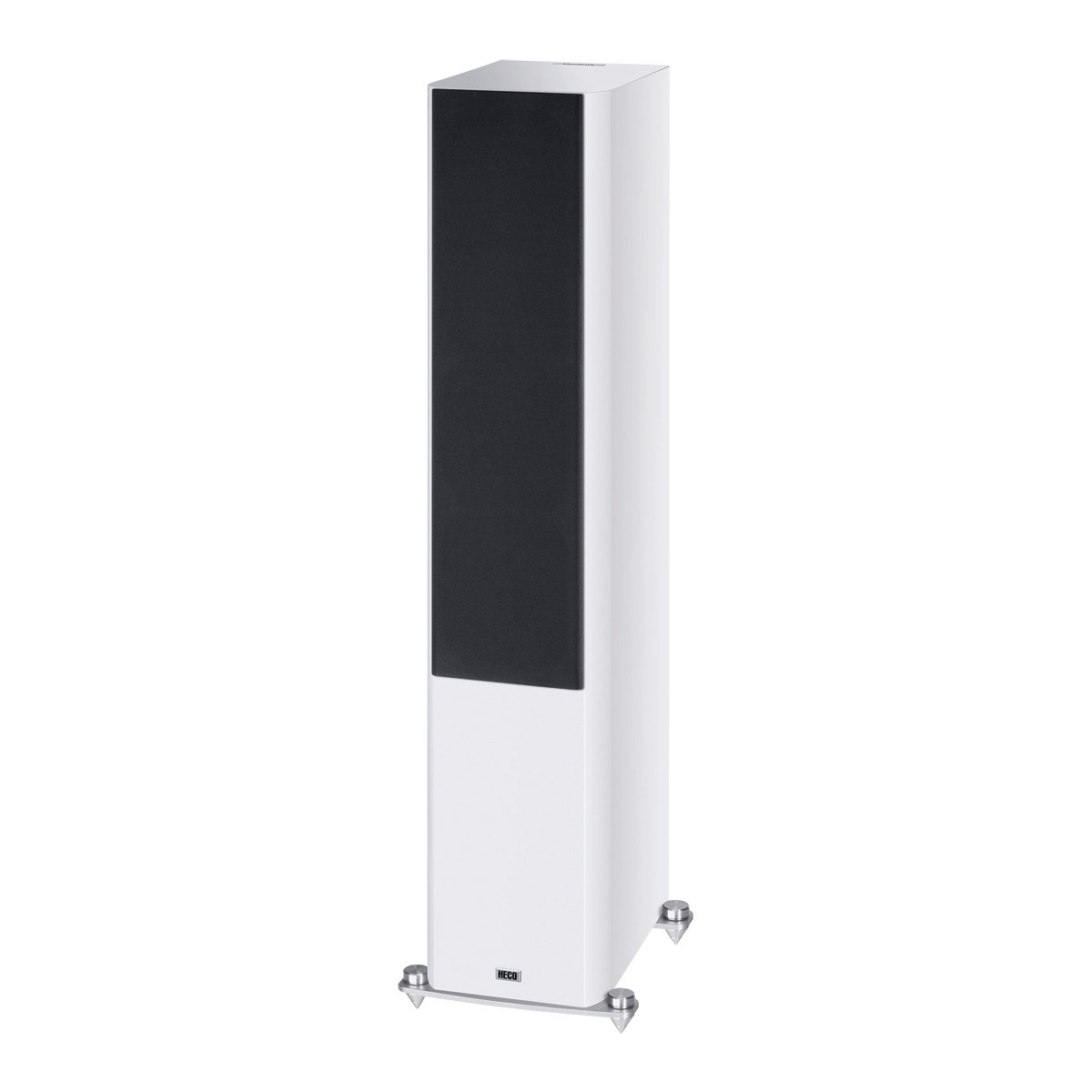

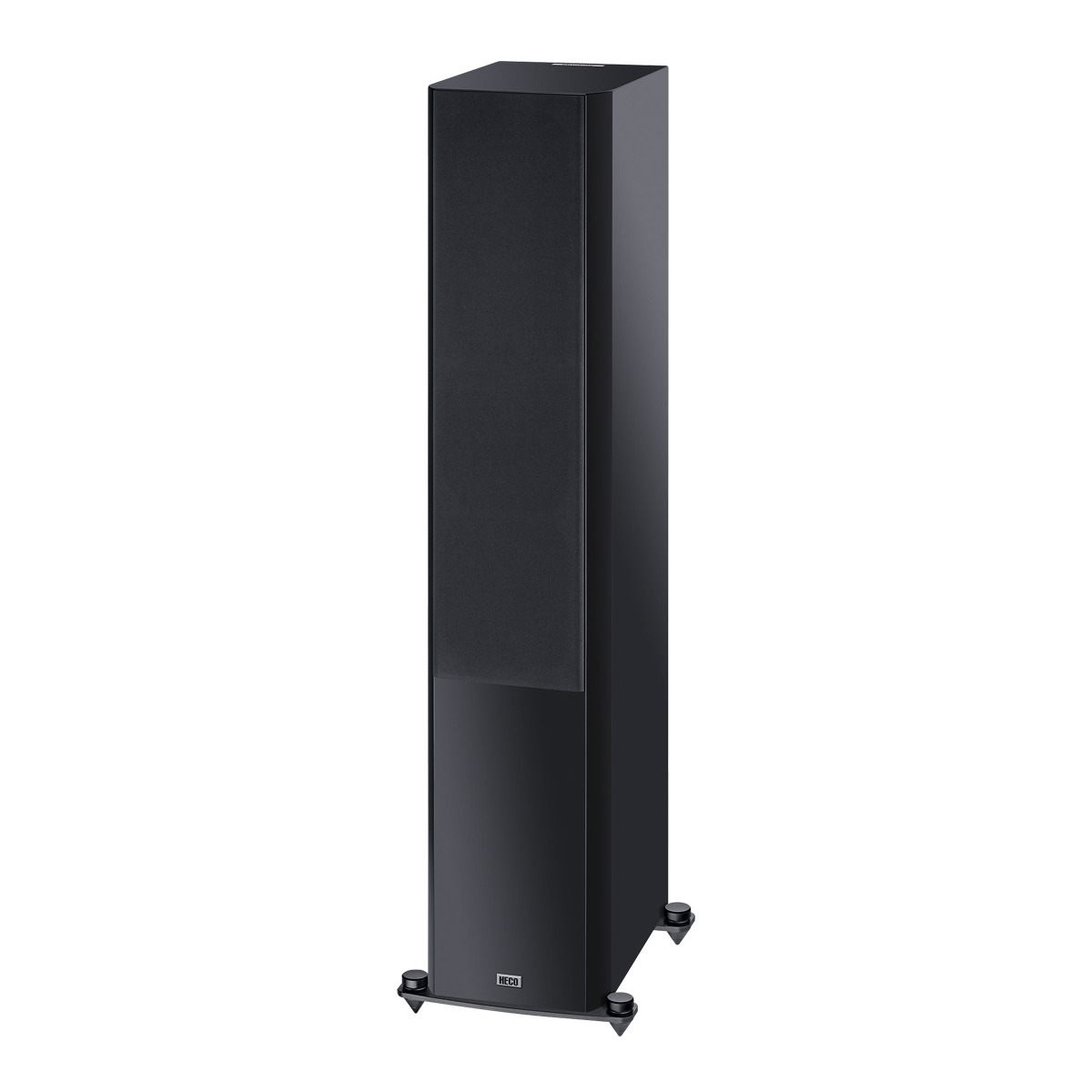

Removable cloth protection cover with hidden magnetic
-
Solid aluminium cross beams with height-adjustable massive metal cone spikes
-
Exchangeable metal/rubber spike tips for an optimum adaptation to the floor type
-
Noble semi matte painting
-
Bass reflex construction with screwed reflex tubes which are airflow-optimised on both sides
-
Solid construction using MDF panels and elaborated strutting, rounded side panels
-
170 mm midrange
-
2 x 170 mm woofer
-
28 mm tweeter
-
Tweeter with 28 mm silk compound dome, ferrofluid cooling for high capacity, powerful ferrite double magnet system and waveguide aluminium face plate
-
Bi-wiring/Bi-aping-Option
-
High-quality connecting terminal with solid, gold-plated and capsulated screw connectors
-
Elaborated phase and amplitude optimized crossover with high-quality components
-
Tweeter level adjustment ‚linear’ / ‚+2dB’


 Specifications
-
PRINCIPLE 3 way floor standing speaker, bass reflex
-
SENSITIVITY (2.8V/1M) 92 dB
-
EQUIPMENT 170 mm midrange 2 x 170 mm woofer 28 mm tweeter
-IMPEDANCE 4 – 8 Ohms
-
CROSSOVER FREQUENCIES 280 Hz, 3.200 Hz
-
POWER HANDLING (RMS/MAX) 200/300 Watts
-
FREQUENCY RESPONSE 25 - 45.000 Hz
-
RECOMMENDED AMPLIFIER OUTPUT 30 - 300 Watts
-
DIMENSIONS (WXHXD) 310 x 1135 x 370 mm incl. Terminal
-
CABINET SURFACE  Black satin
-
WEIGHT 25,5 kg
