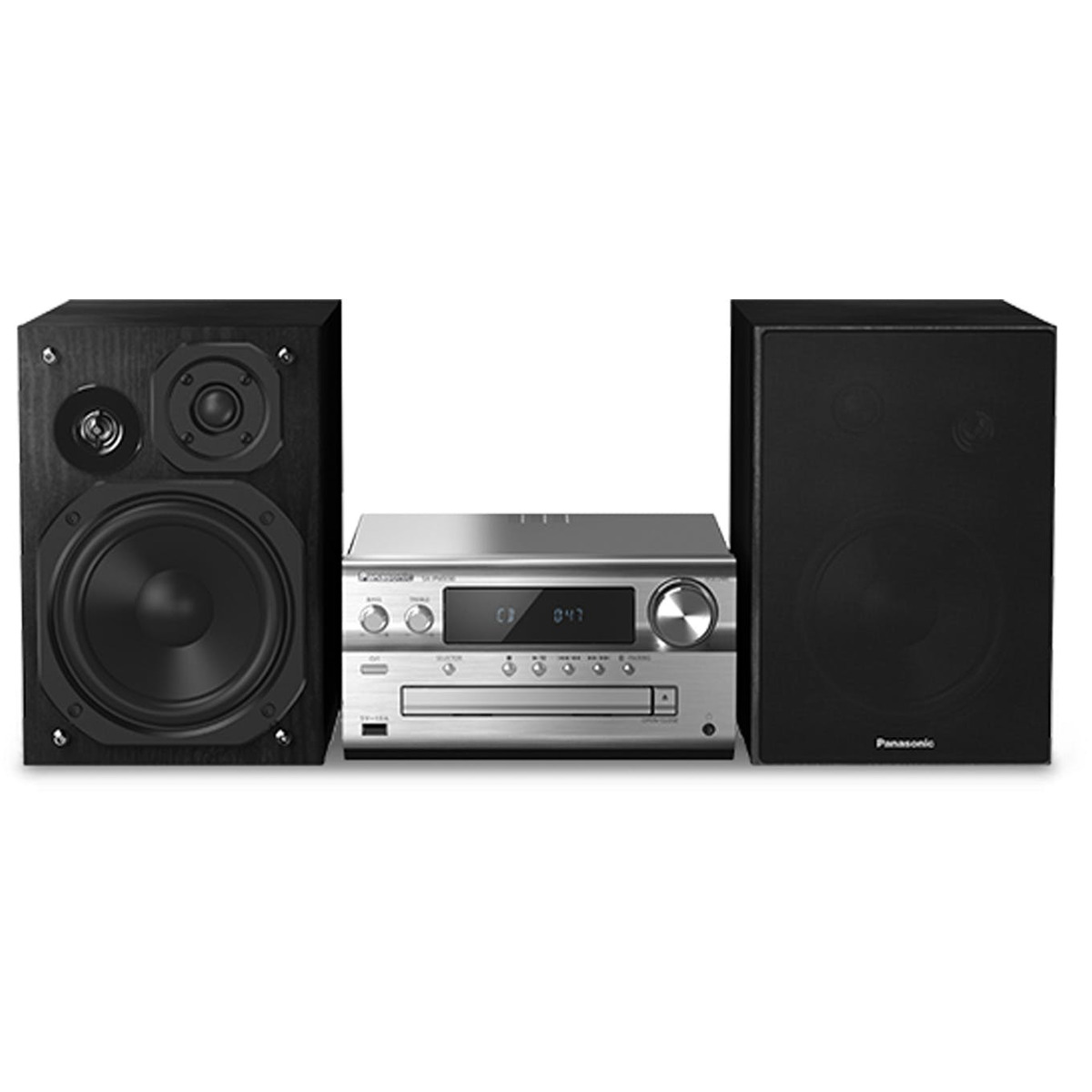

CD Stereo System

True High-Resolution Audio Quality
The LincsD-Amp and 3-way speakers with Silk Dome Tweeters provide rich sound from a variety of music sources. The USB DAC port makes it easy to enjoy hi-res audio, and the AUX-IN Auto Play function allows it to work with various devices. An Optical Input has been added for easy connection with a TV. PMX92 enrich music listening experiences more than ever.

Clear and dynamic sound
The PMX92 produces a beautifully expressive, dynamic sound perfectly suited to high­resolution audio. This is thanks to its combination of a 3-way speaker design and a silk dome tweeter capable of reaching frequencies as high as 50kHz.

Natural sound with minimal interference or distortion
Experience music exactly as it was meant to be heard thanks to the LincsD-Amp. The latest innovative version of this technology manages to correct issues such as jitter and power supply noise that usually cause distortion in digital music playback.

Unlocking the full potential of high-res sound
To get the best sound quality from today's high­-res audio formats, you need to use the best-­quality components. This is why Panasonic has left no stone unturned in sourcing only the finest materials for the PMX92. Premium-­grade aluminum electrolyte capacitors, metallized polyester film capacitors, are just two the areas where the PMX92 is built to make a genuine Hi-­Fi difference.

Top-grade audio aluminum electrolyte capacitors
Synthetic mica powder is blended into electrolytic paper, and copper clad steel wires are used for the lead wires in these audio aluminum electrolyte capacitors. The resulting sound is crisp and clear with a powerful presence.

Metallized polyester film capacitors
These film capacitors are designed specially for audio use, with excellent frequency response and temperature characteristics, using metal deposited electrodes.

Rich sound from Hi-Res sources
The PMX92 uses a unique DAC controller and USB driver system to ensure you get to hear all the detail and richness of today’s highresolution audio formats such as DSD, FLAC, WAV and AIFF.

Rich sound expression
Bluetooth® ReMaster compensates the signals that are lost due to data compression when streaming Bluetooth® sounds. It gives you highquality playback of sound sources from Bluetooth®compatible devices such as smartphones and tablets.

AUX-IN Auto Play for audio devices & streaming devices
Simply connect your existing audio device or streaming device, such as Chromecast Audio, to AUXIN. Even if the PMX92 power is turned off, the sound signal from the device will be recognized, the power will be automatically turned on, and music will be played from the AUX terminal.

Experience TV with greatly improved sound quality
The PMX92 is equipped with Optical Input terminals for easy connection with a TV. You can enjoy superb quality sound along with images on screen.

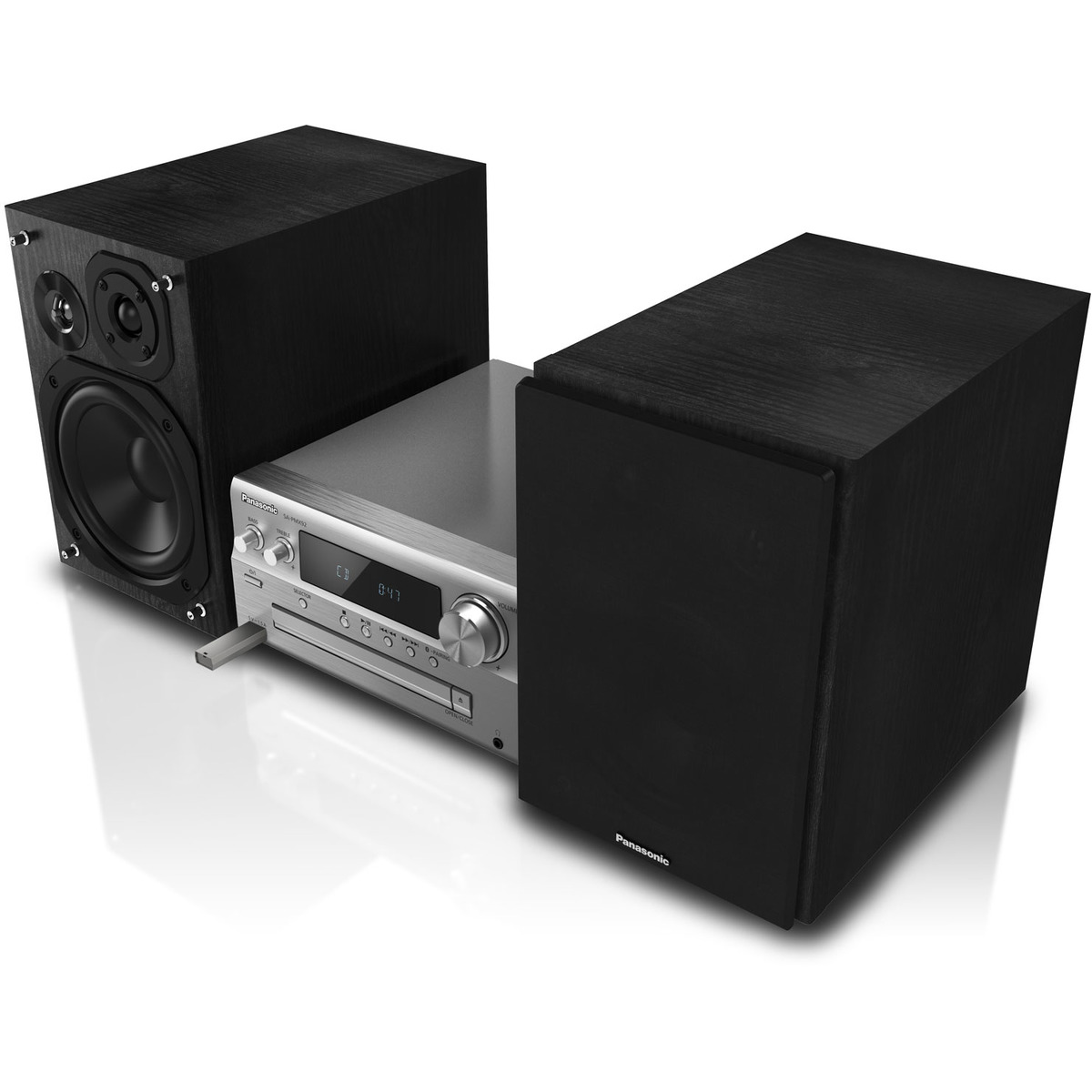

Elegant, compact design

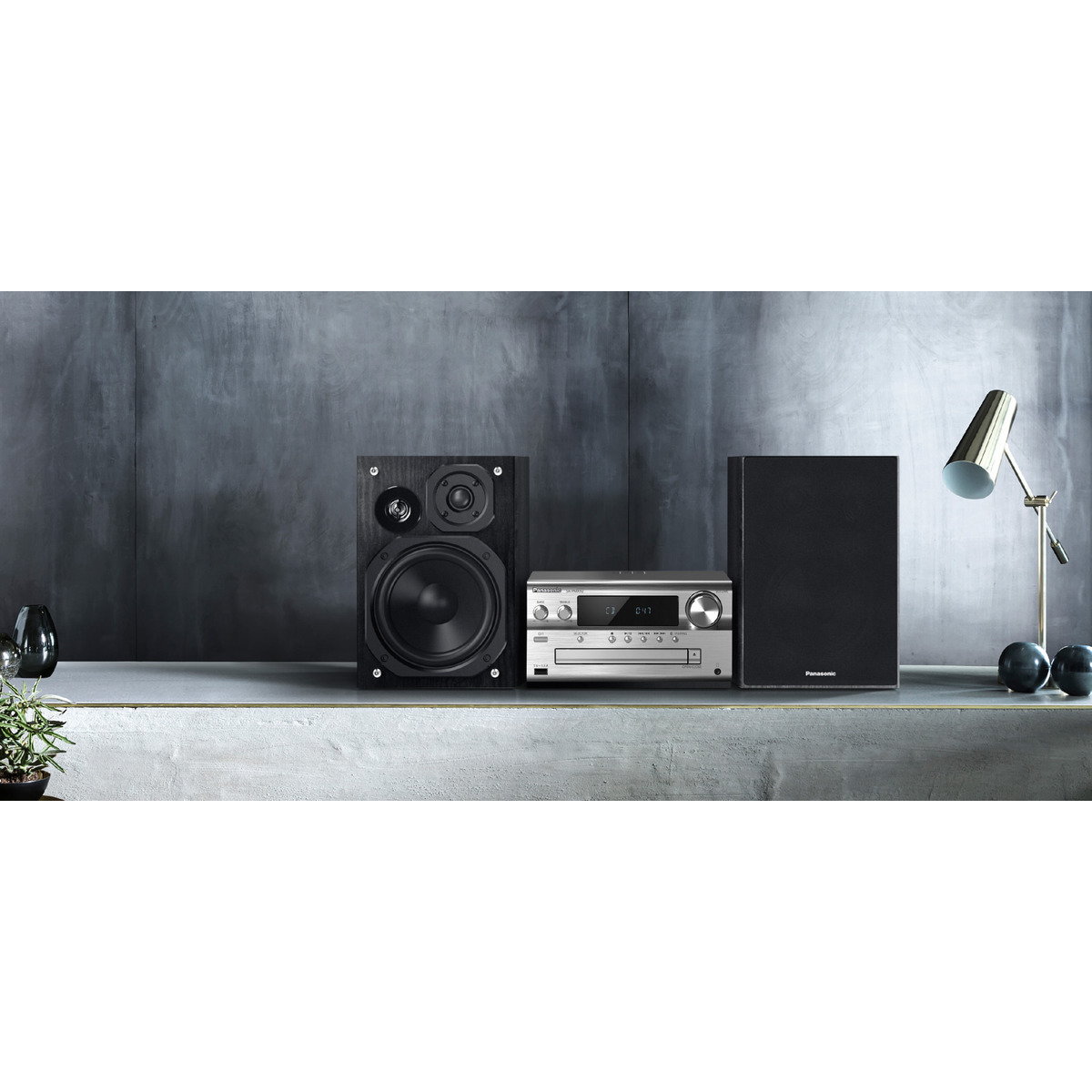

Aluminium is used in the main unit’s front panel, top panel, and sound volume dial, to provide a simple, high grade appearance. The speaker box is made of high-quality lumber. This high-quality, universal design matches a wide range of room décor.

Specifications:
AMPLIFIER:
·         Amp Type            Lincs D-Amp™ (3rd generation)
·         RMS Output Power         Front Ch               60 W Per channel (3 ohms, 1 kHz, 10 % THD)
·         Total RMS Stereo mode power  120 W
·         SPEAKER SYSTEM             Bass Expand       Bass Reflex Port
·         Front Speaker   Type      3 Way, 3 Speaker system (Bass reflex)
·         Speaker Unit      Bamboo Charcoal PP 14 cm
·         Silk Dome Tweeter 1.9cm
·         Piezo Tweeter 1.5cm
·         CD / DVD             Playback Disc *1               CD-R / RW
·         Format CD-DA / MP3
·         USB        USB Standard     USB 2.0 High-speed
·         Playback Format               DSD (2.8 MHz)*Not support 5.6 MHz, MP3, AIFF, AAC, FLAC(up to 192 kHz/24 bit), WAV(up to 192 kHz/24 bit)
·         Playback              yes *2
·         Battery Charge  Other portable device (1.5 A)
·         USB-DAC function            Playback Format               DSD (2.8 MHz)*Not support 5.6 MHz, MP3, AIFF,FLAC(up to 192 kHz/24 bit), WAV(up to 192 kHz/24 bit)
·         Player Application (Windows / Mac OS)  yes
RADIO:
·         Auto Tuning        yes
·         Antenna Terminal            75 ohm unbalanced
·         tation Presets    FM         30 stations
·         DAB Plus              20 stations
·         NETWORK           AUX-In Auto Play              yes
·         Bluetooth            Version Bluetooth® Ver 2.1 + EDR
·         Class      Class 2 (2.5mW)
·         Wireless audio playback yes
·         Remote control yes
·         Codec   SBC, AAC
·         Multi-Pairing      yes (MAX 8 Devices)
·         SMARTPHONE APP          Panasonic Music Streaming App Supported OS    iOS*3(Bluetooth), Android*3(Bluetooth)
SOUND FUNCTION:
·         Super Sound EQ, Super Bass Sound          D.Bass
·         XBS Master         yes
·         High-Res AUDIO               yes
·         EQ          Preset EQ            4 Preset
·         Manual EQ          Bass / Treble
·         Re-Master          Bluetooth Re-Master     yes
TERMINALS:
·         USB Port              USB Type-A x1 / USB Type-B x1
·         Audio IN               RCA Pin Jack (AUDIO IN) / 3.5 mm Stereo mini (AUX IN) / Opt-In (for LPCM)
·         Audio OUT          Phones (3.5 mm)
·         Speaker Terminal             Screw type
·         GENERAL             Dimmer                yes
·         Auto Off               yes
·         Power Consumption       Normal Use        40 W*4
·         Normal Standby               0.35 W*4
·         Bluetooth Standby          0.45 W*4
·         Timer    Sleep     yes
·         Clock     yes
·         Play Timer           yes
·         DIMENSIONS: WEIGHT (Main Unit)
- Dimensions (W x H x D) 211 x 114 x 267 mm
-   Weight 2.8 kg
·         Speaker Unit: Dimensions (W x H x D) 161 x 238 x 262 mm
·         Weight 2.6 kg
