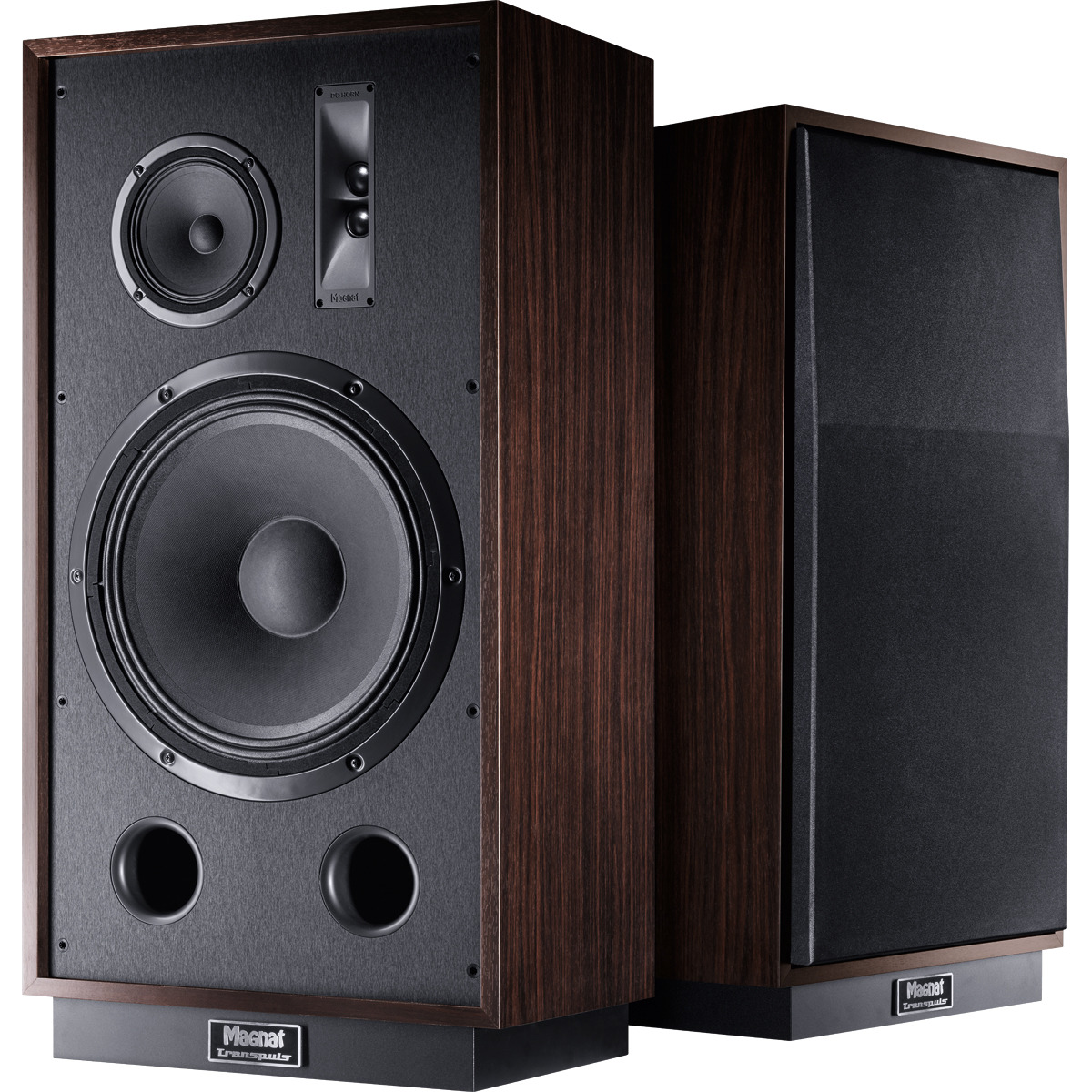

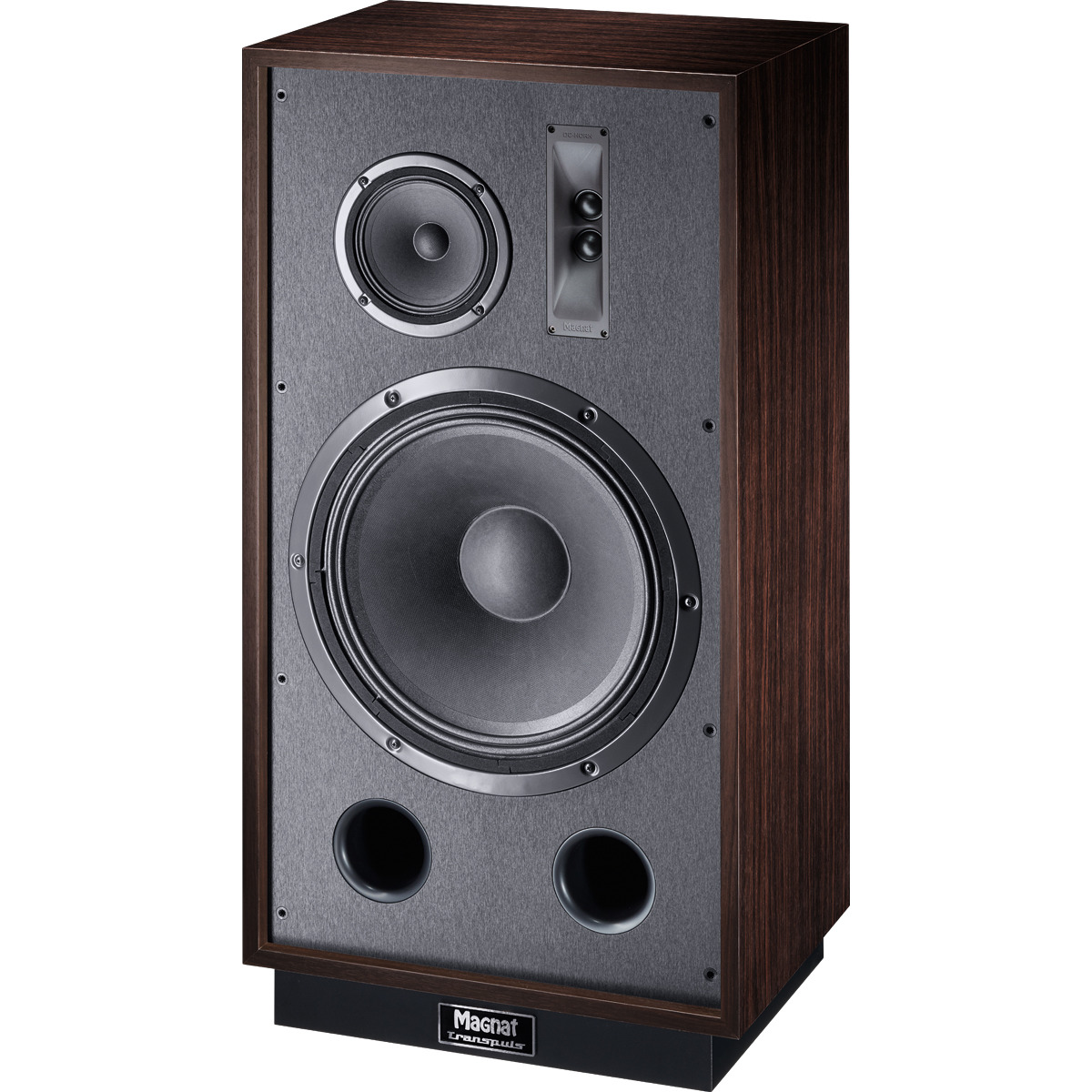

Magnat Transpuls 1500

Purchase this product

RRP: $1,649.95
Our Price: $1,599.00

Enquire about this product Print Product Information

FULL-SIZE RETRO FLOORSTANDING SPEAKER WITH 15" WOOFER AND DYNAMIC TWEETER HORN

Overview

The Magnat Transpuls 1500 is equipped with classic components of this loudspeaker category, but developed using modern development tools such as our Klippel® laser measuring system. The premier class calibre of 38 cm/15 inches has been used in the woofer. We did not want to compromise on size at the heart of the Transpuls 1500. But it is not only the diameter of the woofer that determines the bass power and dynamics; for perfect functioning, the internal volume also has to be precisely defined and implemented structurally.

Features

State-of-the-art technologies offer a powerful, lively sound and a very strong bass
Double-compression tweeter horn with two 1" fabric domes for excellent dynamic and natural sound
Performance-optimised midrange for high efficiency
Deep and precise bass reproduction by a 15" woofer in a unique Controlled Reflex bass cabinet
Sturdy MDF cabinet with high-quality dark wood decor and removable cloth cover in retro design
Large, Klippel®-optimised speaker drivers for an excellent degree of efficiency and very high maximum level
Double Compression tweeter horn (DC-Horn) with two 25 mm cloth domes for excellent dynamic and natural sound
Deep and precise bass reproduction by a 38 cm woofer in a special CRA (Controlled Reflex Alignment) bass cabinet: Bass reflex cabinet with acoustic flow resistance
Performance-optimised midrange for high efficie
12 dB filtering with phase correction for woofer and midrange
Tweeter with steep 18 dB filtering with phase correction for a particularly high degree of resilience
Sturdy MDF cabinet
High-quality dark wood decor, baffle in contrast black

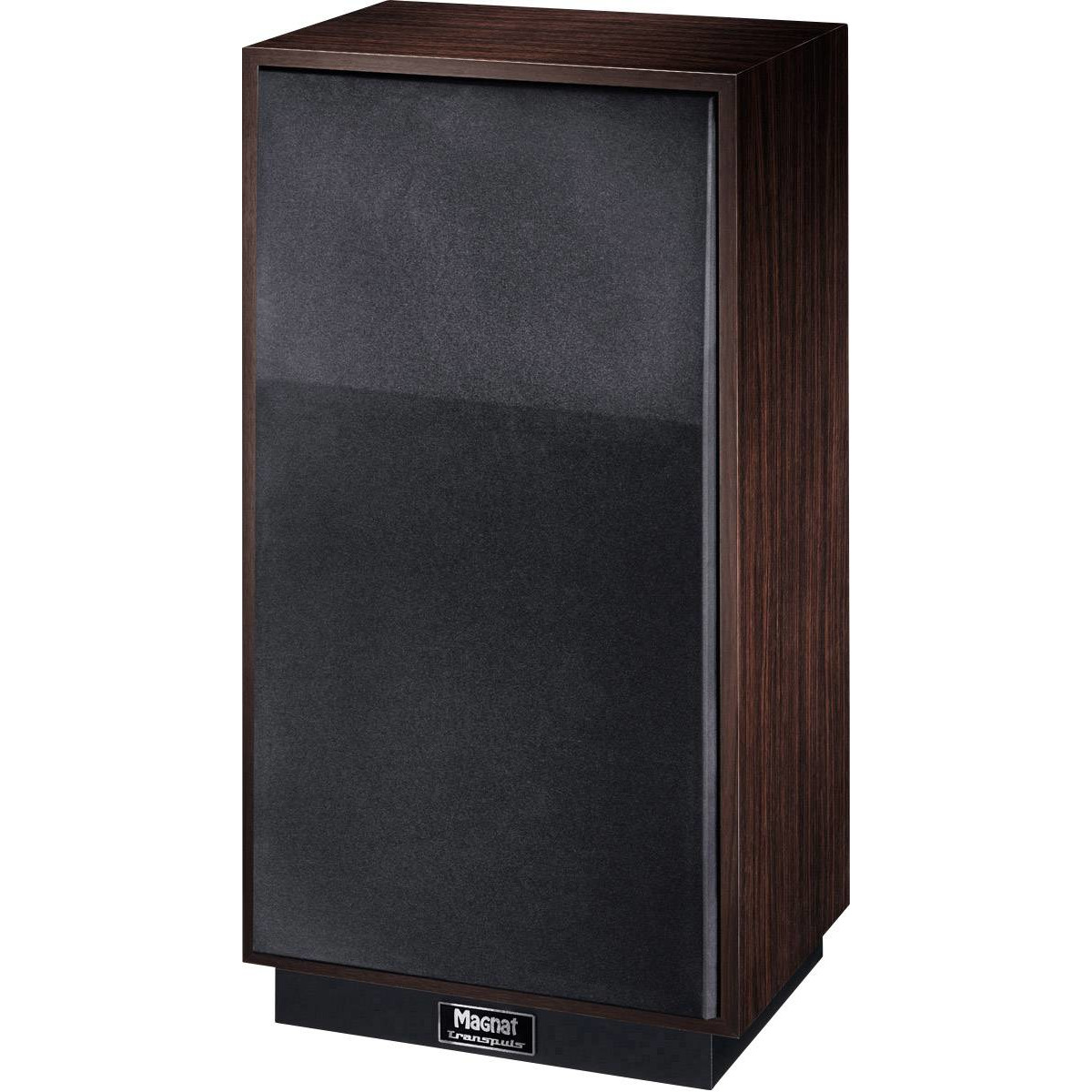

Removable cloth cover in retro design with a solid MDF frame
Solid MDF foot construction for optimum stability
Stylish full-metal logo plate
CABINET SURFACE Dark Wood

Specifications

PRINCIPLE 3-way CRA bass reflex
EQUIPMENT 1 x 15" woofer 1 x 6.5" midrange 2 x 1” horn-dome tweeters
POWER HANDLING (RMS/MAX.) 250 / 500 Watts
SENSITIVITY (2.8V/1M) 95 dB
IMPEDANCE 4 – 8 Ohms
FREQUENCY RESPONSE 16 - 35000 Hz
CROSSOVER FREQUENCIES 920 Hz, 4800 Hz
RECOMMENDED AMPLIFIER OUTPUT 30 – 500 Watts
DIMENSIONS (WXHXD) 514 x 1000 x 385 mm
WEIGHT 37 kg
