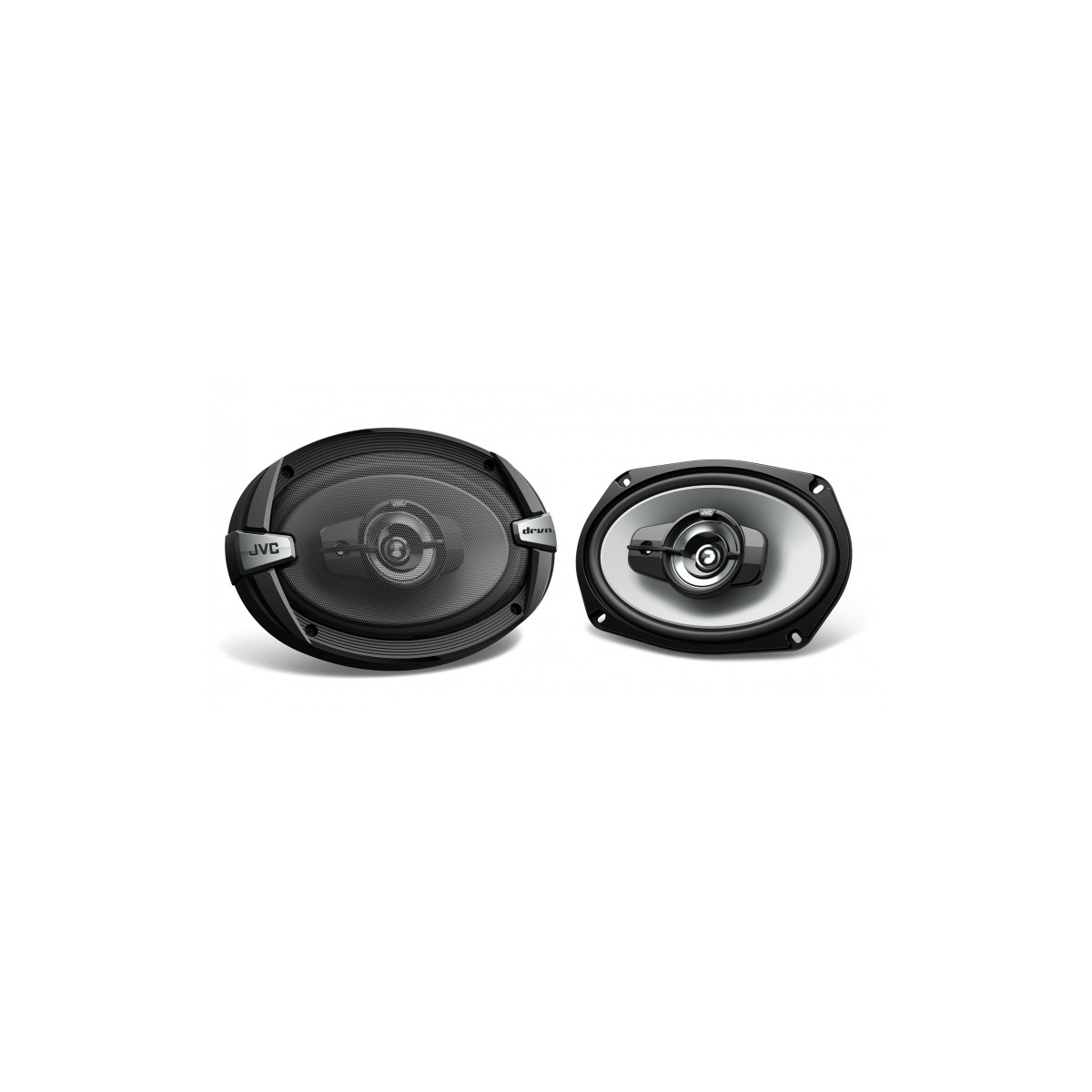

6X9 drvn DR Series Speakers

Full Cover Grill Design

Protects the woofer and tweeter in open installations.

Horn Ring Sound Enhancer

Improves mid - higher frequency sound character and reproduces life-like sound.

PP + Mica Cone

Lightweight PP + Mica Cone Material provides highly responsive, clear and undistorted sound.

Woofer

Size 15 x 23 cm (6'' x 9'')

Diaphragm PP

Surround Cloth

Magnet Ferrite

Midrange

Size 6.6 cm (2-5/8'')

Diaphragm Cone

Magnet Ferrite

Super Tweeter 1

Size 1.5 cm (19/32'')

Diaphragm Dome

General

Frequency Response 54 - 18,000Hz

Power Handling Capacity (RMS) 70W

Power Handling Capacity (Peak Power) 500W

Impedance 4 ohms

Sound Pressure Level 86 dB

Weight

Weight (w.Grille) 1.1kg (2.5lbs)

Weight (w/o Grille) 1.0kg (2.3lbs)

Magnet Mass 340g (12.0oz)

Mounting Depth 79 mm (3-1/8")
